8-10 — WIRING HARNESS AND FUSE
(#64896) — 72 parça
◀

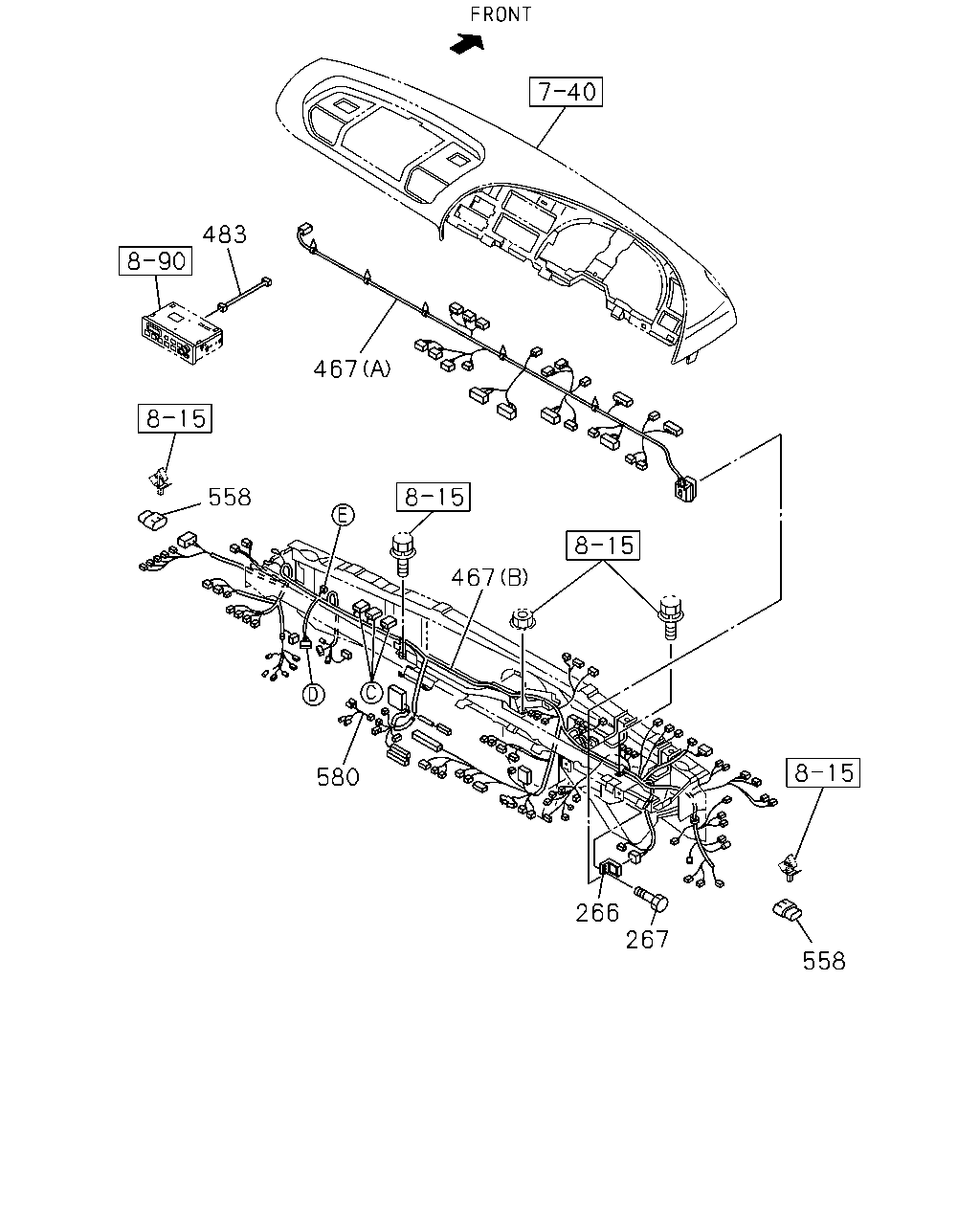

[810A] FACIA HARNESS (9 parça)

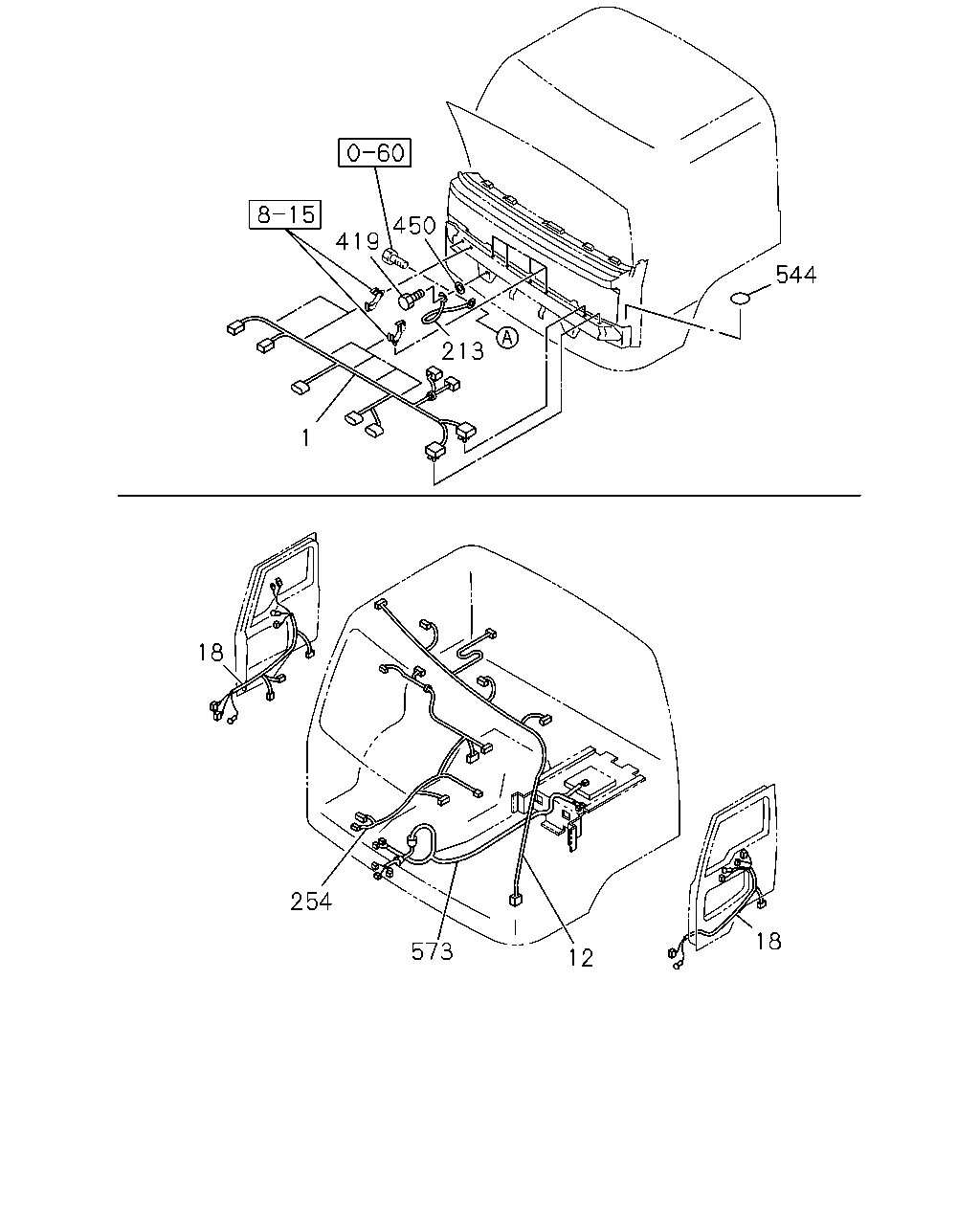

[810A] CAB HARNESS (13 parça)

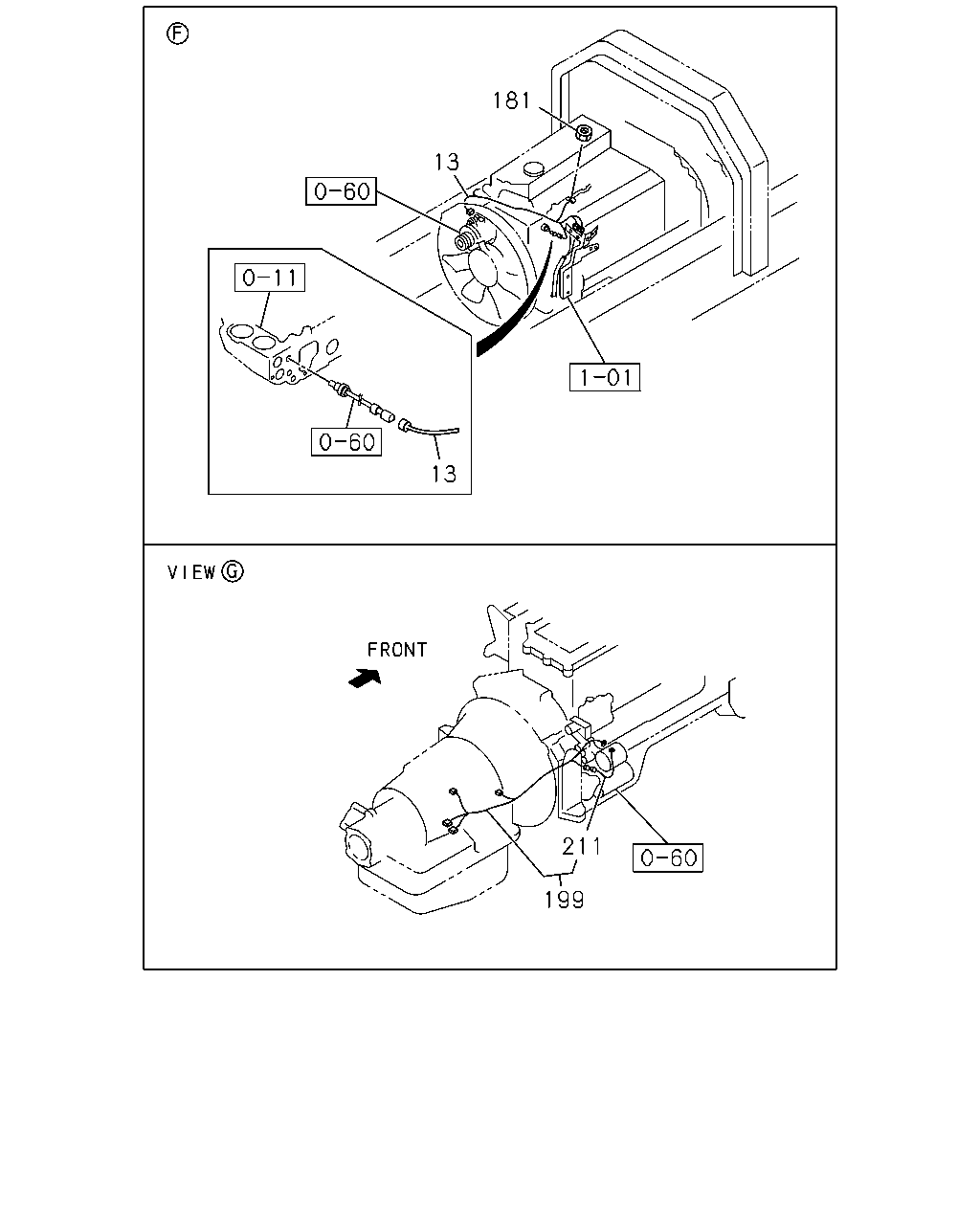

[810A] DETAIL NO.2 (4 parça)

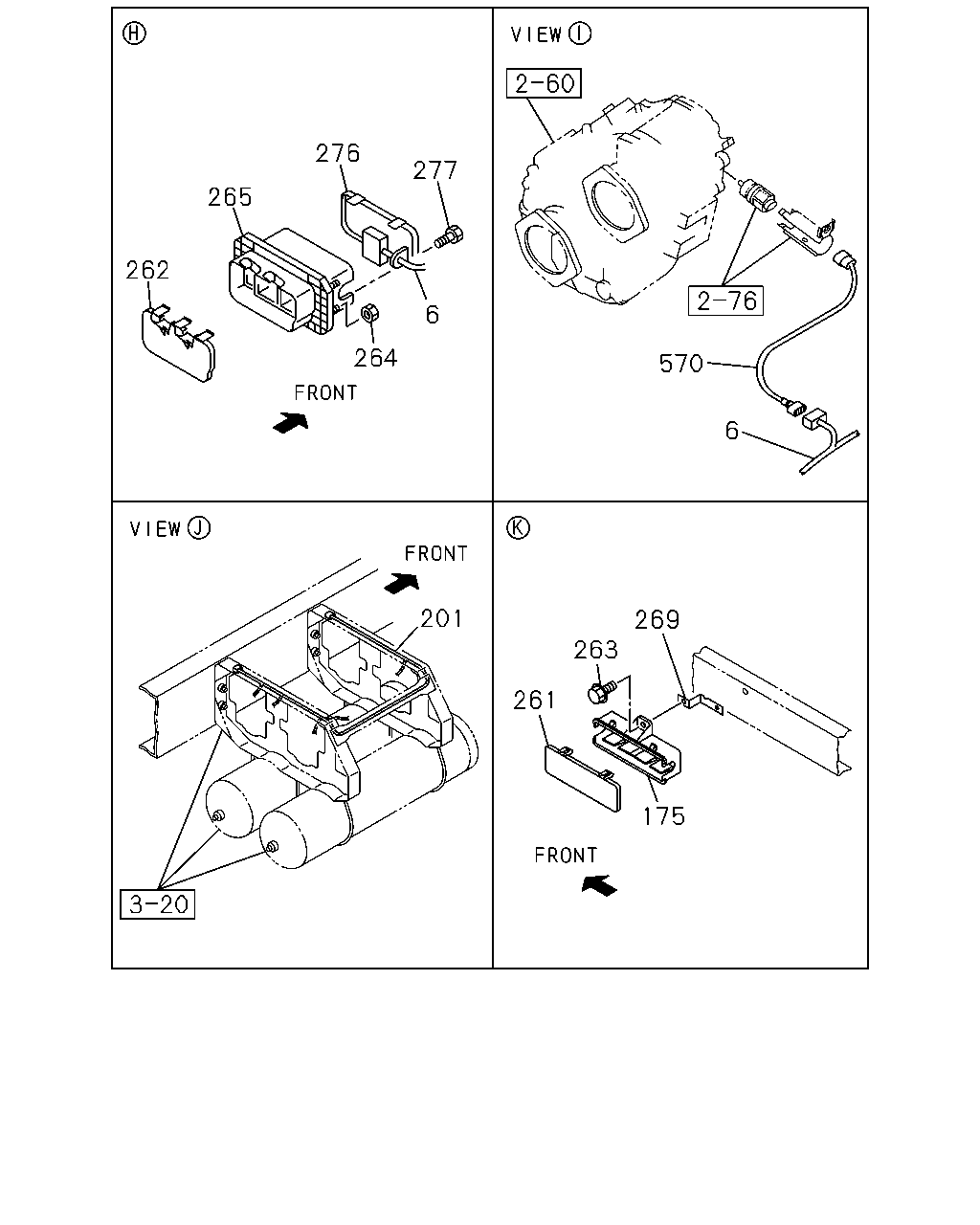

[810A] DETAIL NO.3 (19 parça)
[810A] DETAIL NO.1 (23 parça)

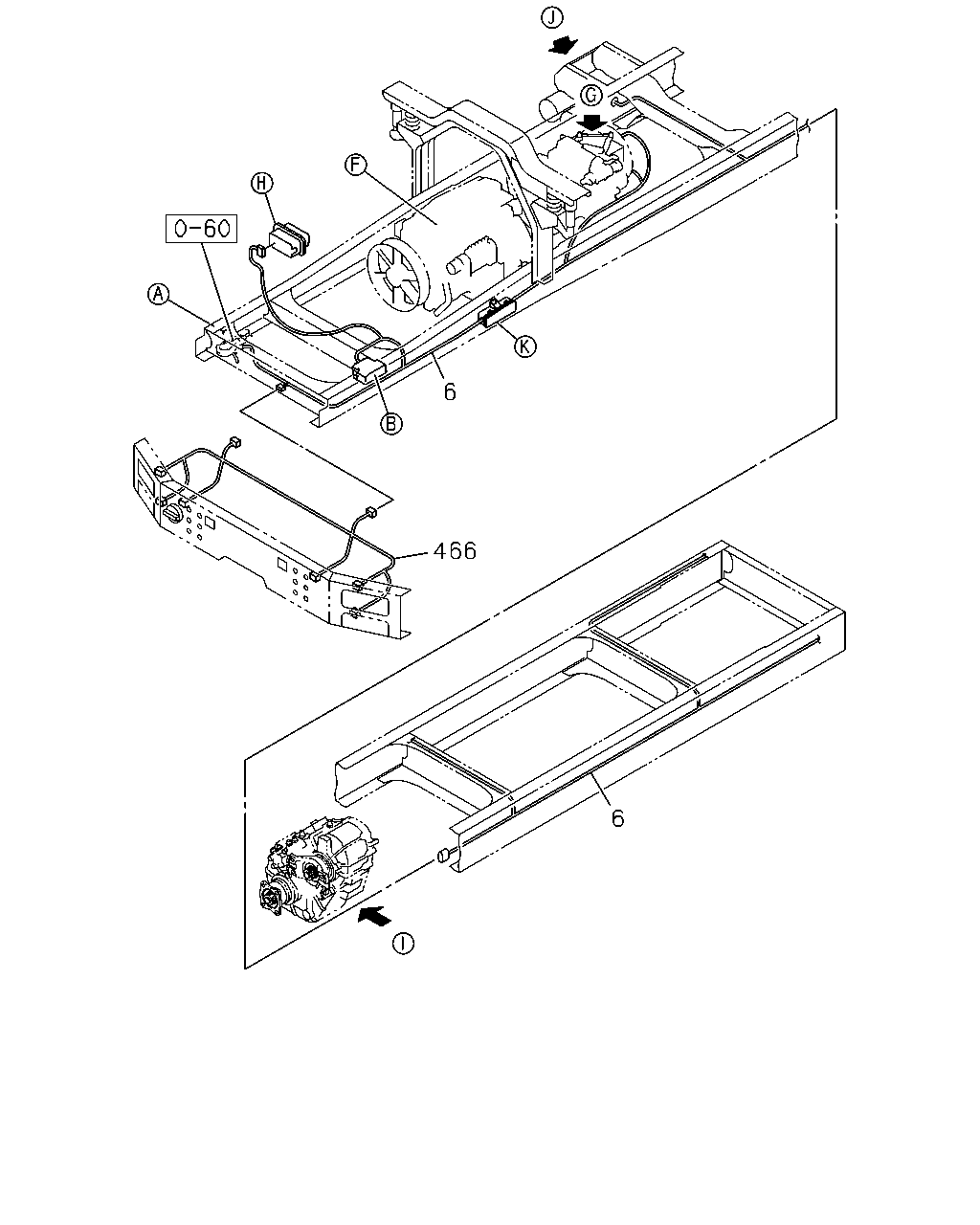

[810A] CHASSIS HARNESS (4 parça)
▶
483
467
558
467
580
266
267
558
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0112-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0112-
467
HARNESS; FACIA
(A)
1-82629-857-1
01
1
0112-
467
HARNESS; FACIA
(B)
1-82629-858-1
01
1
0112-0411
467
HARNESS; FACIA
(B)
1-82662-527-1
01
1
0412-1411
467
HARNESS; FACIA
(B)
8-98232-086-0
01
1
1412-
483
HARNESS; EXT,RADIO
RADIO CLARION<SK2>
8-98075-645-0
01
1
0703-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0112-
580
HARNESS; MAP LAMP
1-82629-863-1
01
1
0112-
450
419
544
213
1
18
254
18
573
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
1-82627-127-0
01
1
0112-
12
HARNESS; ROOF
1-82625-713-4
01
1
0112-
18
HARNESS; DOOR
1-82628-581-0
02
1
0112-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0112-
254
HARNESS; CAB FLOOR
1-82629-860-0
01
1
0112-
419
BOLT; CAB EARTH
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0112-0204
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0205-1202
419
BOLT; CAB EARTH
M8X24 W/PL WASHER
8-98141-256-1
01
1
1203-
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
9-09164-608-0
01
1
0205-0605
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
0-91614-608-0
01
1
0606-
544
SEAL; FRT MTG RAIL
OD=25 BLACK MAL
1-76798-019-0
01
1
0112-
573
HARNESS; CONTROL UNIT
1-82629-859-0
01
1
0112-1411
573
HARNESS; CONTROL UNIT
8-98229-607-0
01
1
1412-
181
13
13
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
1-82640-714-0
01
1
0112-
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
0112-
199
HARNESS; STARTER
1-82641-166-2
01
1
0112-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
0112-
276
277
265
262
6
264
570
6
201
269
263
261
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82673-748-0
01
1
0112-0401
6
HARNESS; FRAME
1-82677-431-0
01
1
0402-0407
6
HARNESS; FRAME
1-82677-570-0
01
1
0408-
175
BOX; CONNECTOR
1-82699-467-0
03
1
0112-
201
HARNESS; AIR TANK
1-82673-906-0
01
1
0112-0407
201
HARNESS; AIR TANK
1-82677-571-0
01
1
0408-
261
COVER; CONNECTOR BOX
1-82699-320-0
03
1
0112-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0112-
263
BOLT; CONNECTOR BOX
M8X35 W/LK&PL WASHER
1-09030-025-0
02
1
0112-
263
BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER
8-94279-144-0
01
1
0112-
264
NUT; CONNECTOR BOX
M8 FLANGE
0-91150-108-0
03
1
0112-0602
264
NUT; CONNECTOR BOX
M8 FLANGE MAL
0-91180-108-0
03
1
0603-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0112-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0112-
269
BRACKET; CONNECTOR BOX
1-82699-564-1
02
1
0112-
276
COVER; BOX,FRAME HARNESS
1-82699-803-0
01
1
0112-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0112-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
570
HARNESS; SPEED SENSOR
1-82670-078-0
01
1
0112-0401
10
27
27
431
62
467
467
41
5
4
5
4
62
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX17
1-82510-393-0
01
1
0112-1411
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX13
1-82510-421-0
01
1
1412-
4
BOX ASM; FUSE,HARNESS
(B) 15AX13 25AX2
1-82510-595-0
01
1
0112-1411
4
BOX ASM; FUSE,HARNESS
(B) 15AX11
1-82510-431-0
01
1
1412-
5
FUSE; FACIA HARNESS
25A CLEAR MAL
5-82516-005-0
02
1
0112-
5
FUSE; FACIA HARNESS
15A BLUE MAL
5-82516-003-0
13
1
0112-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
17
1
0112-1411
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
18
1
1412-
10
BOX; FUSE,HARNESS
1-82510-408-0
01
1
0112-0401
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0402-0407
10
BOX; FUSE,HARNESS
1-82510-408-0
01
1
0408-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
04
1
0112-0401
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0402-0407
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
04
1
0408-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0112-
41
PULLER; FUSE
L=25.3 B=11.5 MAL
8-94121-482-0
01
1
0112-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
0112-
62
DIODE; HARNESS
(B) BLACK 2P-1.5A MAL
8-94422-639-1
01
1
0112-
431
CONNECTOR; JOINT
10P BROWN MAL
1-82699-601-0
01
1
0112-
467
HARNESS; FACIA
(A)
1-82629-857-1
01
1
0112-
467
HARNESS; FACIA
(B)
1-82629-858-1
01
1
0112-0411
467
HARNESS; FACIA
(B)
1-82662-527-1
01
1
0412-1411
467
HARNESS; FACIA
(B)
8-98232-086-0
01
1
1412-
6
466
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82673-748-0
01
1
0112-0401
6
HARNESS; FRAME
1-82677-431-0
01
1
0402-0407
6
HARNESS; FRAME
1-82677-570-0
01
1
0408-
466
HARNESS; BUMPER
1-82673-747-0
01
1
0112-
