Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

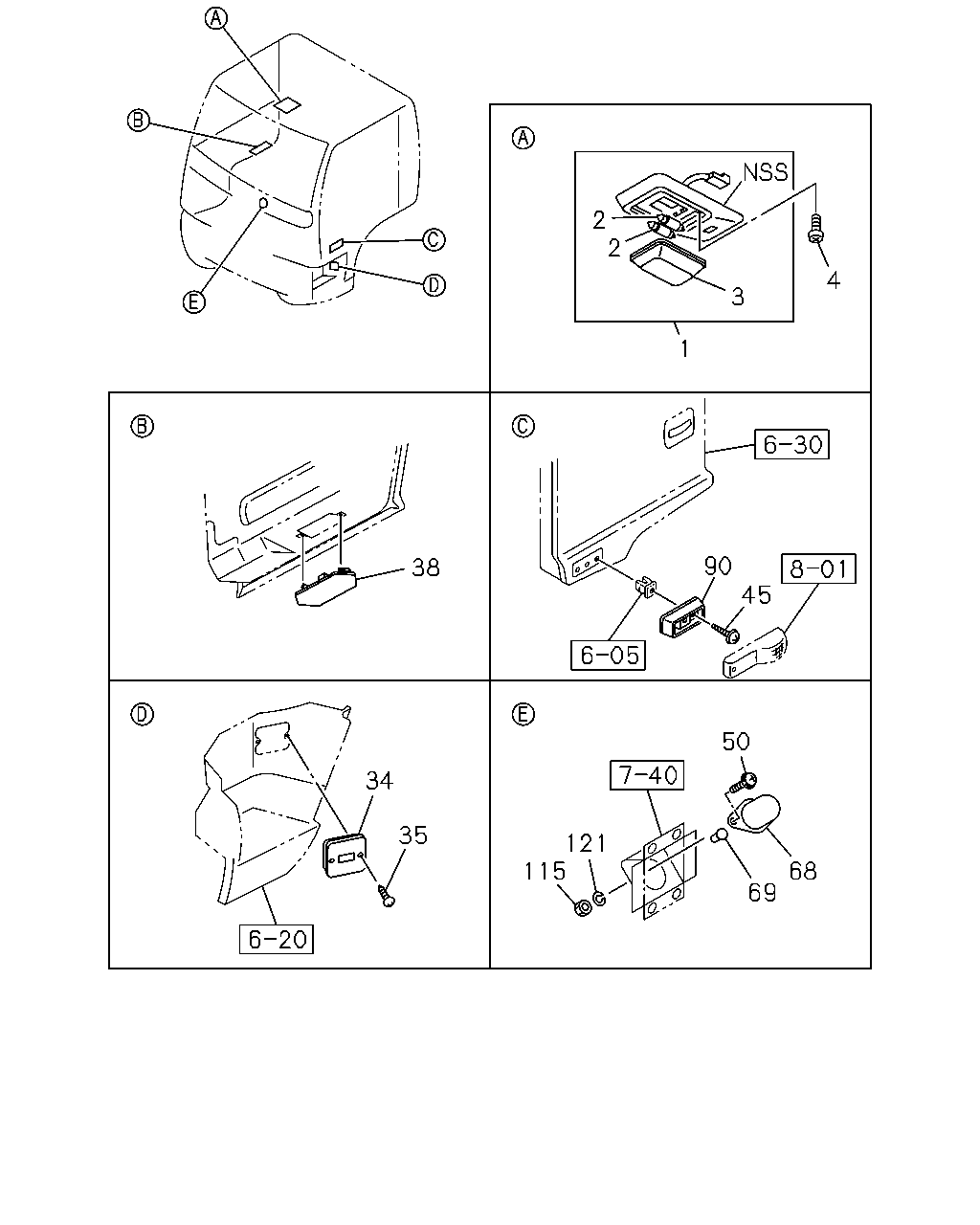

8-05 — INTERIOR LAMP
(#64895) — 20 parça
2
2
4
3
1
90
45
38
50
34
35
121
115
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
1-82140-050-1
01
1
0112-
2
BULB; ROOM LAMP
24V 10W
1-82195-001-0
02
1
0112-
3
LENS; ROOM LAMP
1-82145-020-0
01
1
0112-
4
SCREW; ROOM LAMP
M5X20 TAPPING
9-07066-520-0
03
1
0112-0603
4
SCREW; ROOM LAMP
M5X20 TAPPING
0-71040-520-0
03
1
0604-
34
COVER; STEP LAMP
1-79998-925-0
02
1
0112-
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74310-420-0
04
1
0112-0604
35
SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0605-
38
COVER; STEP LAMP,DOOR
1-74997-029-2
01
1
0112-
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER
0-74100-516-0
04
1
0112-0604
45
SCREW; BASE FIX
M5X16 TAPPING W/PL WASHER MAL
0-74160-516-0
04
1
0605-
50
SCREW; INST LAMP
M5X16 W/LK&PL WASHER MAL
8-94279-400-0
02
1
0112-
68
BRACKET; MAP LAMP
1-82147-002-0
01
1
0112-
69
BULB; MAP LAMP
24V 6W
9-82691-306-0
01
1
0112-
90
BASE; LAMP
1-79996-539-0
01
1
0112-
90
BASE; LAMP
1-79996-538-0
01
1
0112-
115
NUT; LAMP
M5
9-99110-405-0
01
1
0112-0512
115
NUT; LAMP
M5
0-91110-505-0
01
1
0601-
121
WASHER; LK,LAMP
ID=5.1
9-09150-505-0
01
1
0112-0603
121
WASHER; LK,LAMP
ID=5.1
0-91510-505-0
01
1
0604-
