Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

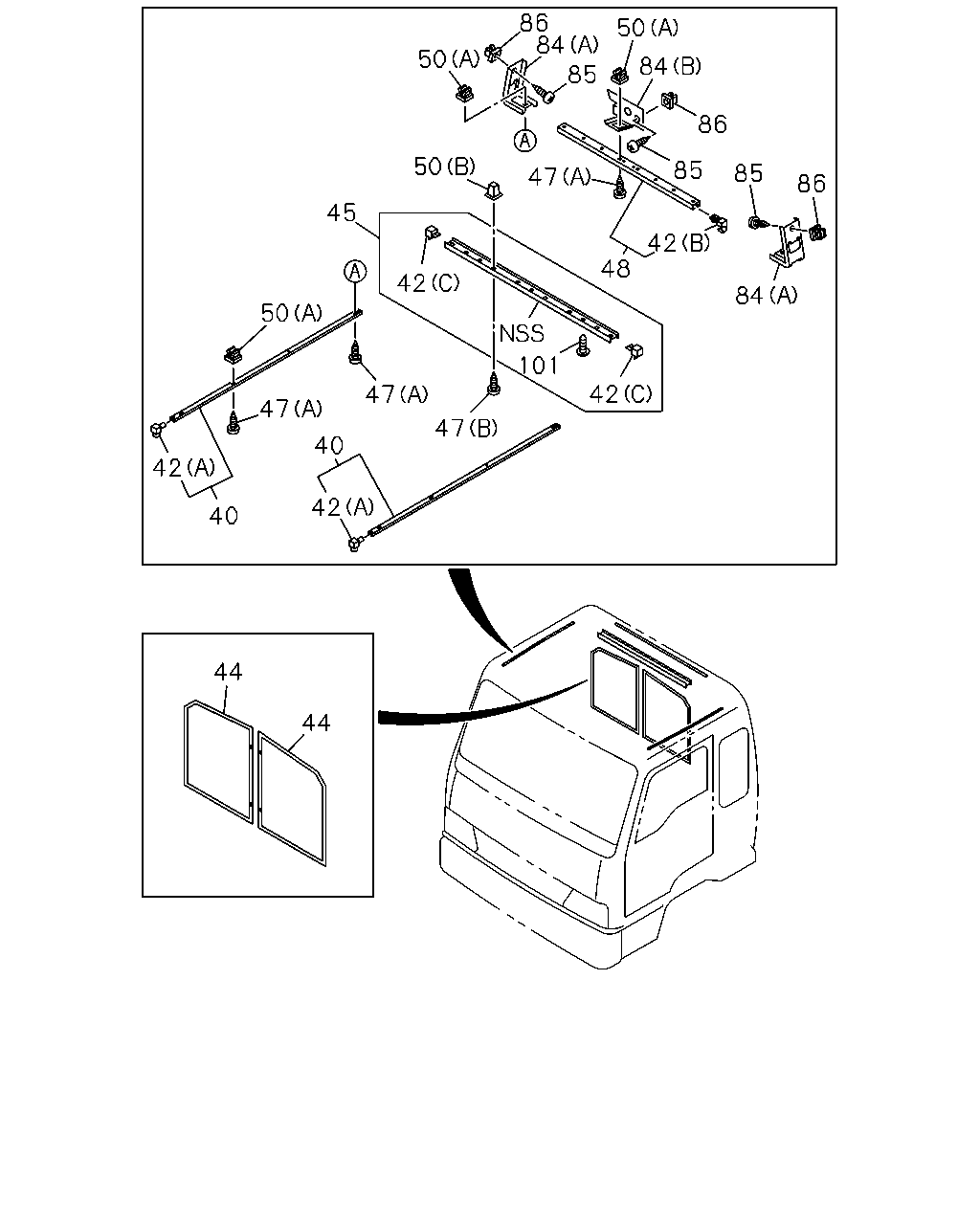

7-70 — SEPARATER AND BED
(#64892) — 22 parça
86
84
85
50
50
84
86
50
85
85
47
86
45
42
48
42
84
50
101
42
47
47
47
40
42
42
40
44
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73996-380-1
01
1
0112-
40
RAIL; CURTAIN,SIDE
1-73996-379-0
01
1
0112-
42
STOPPER; CURTAIN RAIL
(A)
1-73996-393-0
02
1
0112-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-399-0
01
1
0112-
42
STOPPER; CURTAIN RAIL
EXC. CURTAIN SLEEPER COMPARTMENT<E25> (C)
1-73907-657-0
02
1
0112-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-208-1
01
1
0112-
44
CURTAIN ASM; CABIN CENTER
CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-207-1
01
1
0112-
45
RAIL; CURTAIN,FRT
EXC. CURTAIN SLEEPER COMPARTMENT<E25>
1-73908-373-1
01
1
0112-
47
SCREW; CURTAIN RAIL
(A) M5X20 MAL
5-09981-059-0
17
1
0112-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0112-
48
RAIL; CURTAIN,BACK
1-73996-385-1
01
1
0112-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0112-0211
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
15
1
0212-0212
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0212-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 MAL
8-94279-078-0
17
1
0112-0211
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 MAL
8-94279-078-0
09
1
0212-0212
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5 MAL
8-94279-078-0
17
1
0212-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0112-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0112-
85
SCREW; BRKT
M5X20 MAL
5-09981-059-0
09
1
0112-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 MAL
8-94279-078-0
09
1
0112-
101
SCREW; STOPPER
EXC. CURTAIN SLEEPER COMPARTMENT<E25>
1-73907-400-0
02
1
0112-
