◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#64889) — 18 parça
çizim 134306
242 49 49 354 307 306 317 299 211 299 50 211
BalonParca AdiParca NoAdetTipApplied Date
49 SCREW; CONSOLE
M6X30 		9-03920-630-0 04 1 0112-
50 CLIP; CONSOLE
L=80 		5-09700-307-1 01 1 0702-
211 NUT; CENTER CONSOLE
M6 FLANGE 		0-91150-106-0 04 1 0112-0602
211 NUT; CENTER CONSOLE
M6 FLANGE MAL 		0-91180-106-0 04 1 0603-
242 TRAY ASM; CTR CONSOLE 1-72538-285-0 01 1 0112-
299 PLATE; CONSOLE 1-72418-032-0 02 1 0112-
306 SCREW; TRAY
M6X24 W/LK&PL WASHER MAL 		8-94279-404-0 04 1 0112-0202
306 SCREW; TRAY
M6X20 W/LK&PL WASHER MAL 		8-94279-403-0 04 1 0203-
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 04 1 0112-
317 CONSENT
(B) 		1-82523-008-1 01 1 0112-0601
317 CONSENT
(B) 		8-97612-084-0 01 1 0602-
317 CONSENT
(A) 		1-82523-020-2 01 1 0112-
354 BRACKET; ROTARY SW,CTR CONSOLE 1-72418-031-0 01 1 0112-

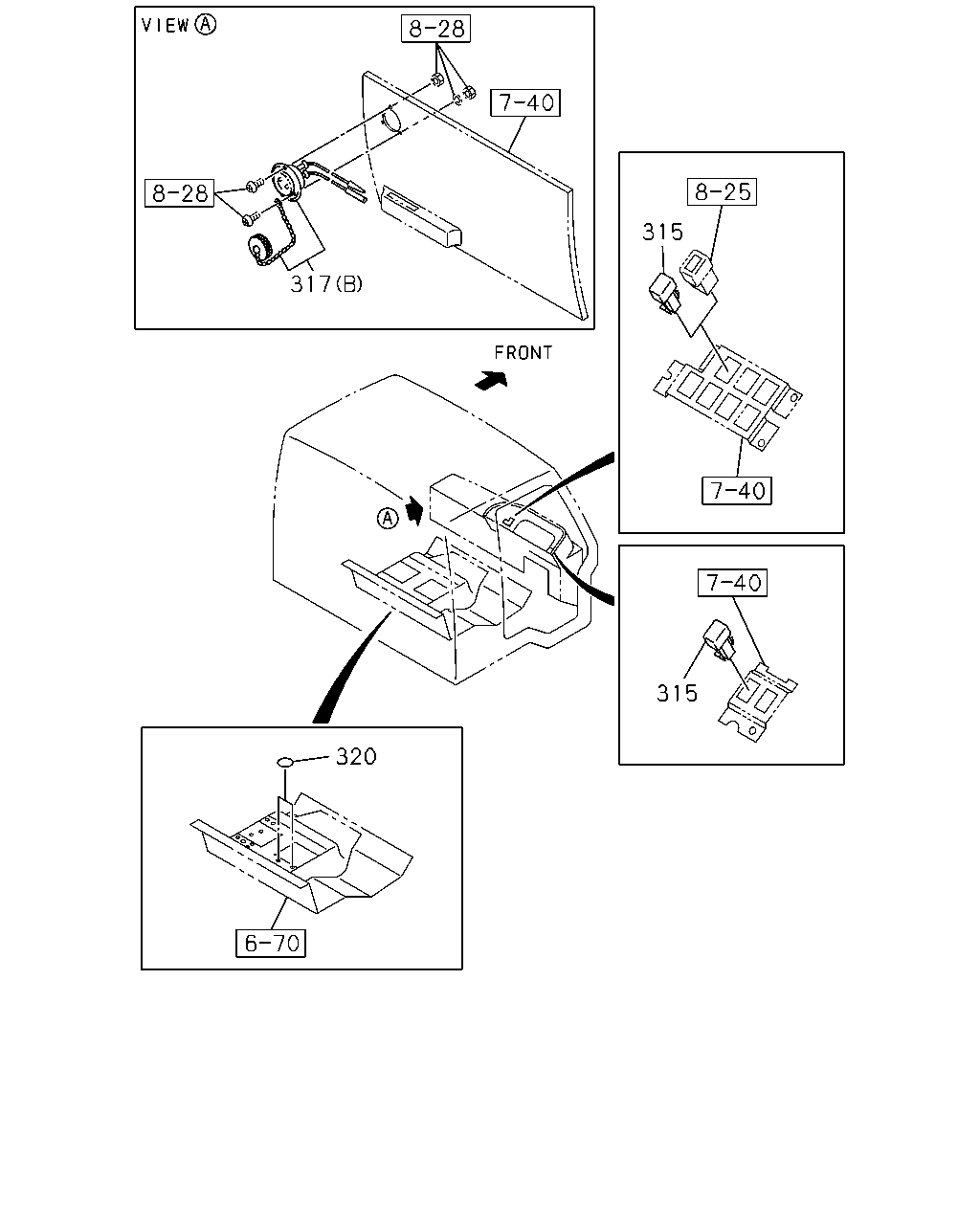

çizim 191311
315 317 315 320
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW 1-82359-069-2 06 1 0112-
317 CONSENT
(B) 		1-82523-008-1 01 1 0112-0601
317 CONSENT
(B) 		8-97612-084-0 01 1 0602-
317 CONSENT
(A) 		1-82523-020-2 01 1 0112-
320 SEAL; HOLE,TRAY
OD=25 BLACK MAL 		1-76798-019-0 02 1 0112-
