◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#64887) — 109 parça

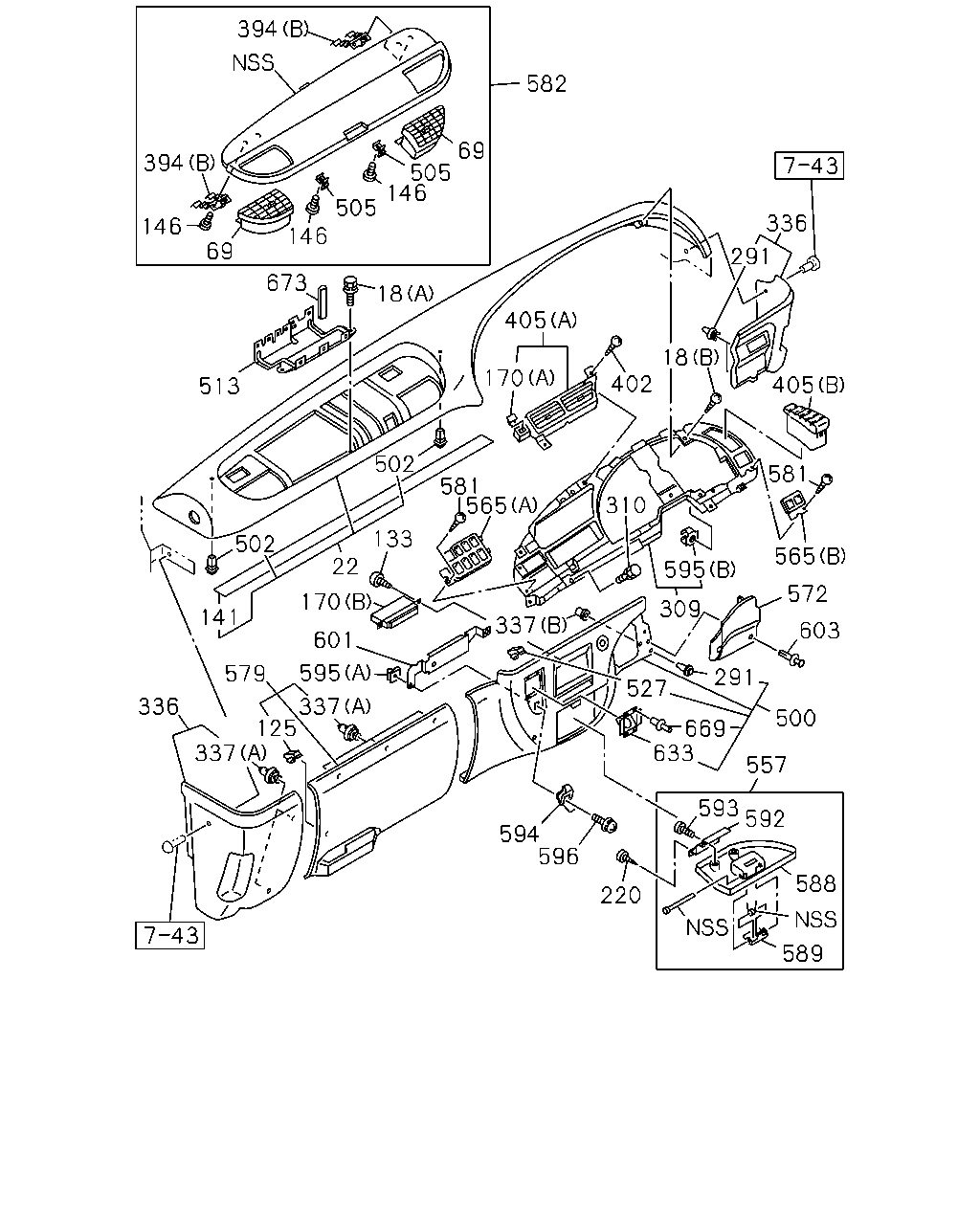

çizim 191310
394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 402 405 513 502 581 581 565 310 133 502 565 22 595 572 170 309 141 337 603 601 595 579 291 527 336 337 125 500 669 633 337 557 593 592 594 596 588 220 589
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0112-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 07 1 0112-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0112-
22 PAD; INST 1-72318-433-4 01 1 0112-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0112-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0112-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 01 1 0112-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 08 1 0112-
133 SCREW; COVER,INST PNL
M5X14 MAL 		8-94279-325-0 02 1 0112-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0112-
146 SCREW; TAP
M5X14 MAL 		8-94279-325-0 02 1 0112-
146 SCREW; TAP
M5X14 MAL 		8-94279-325-0 10 1 0112-
170 COVER; HOLE
(B) MAL 		1-72438-139-1 01 1 0112-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0112-
220 SCREW; LID TO STOPPER
M5X14 MAL 		8-94279-325-0 02 1 0112-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0112-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0112-
309 PANEL; SW,INST 1-72418-009-6 01 1 0112-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 05 1 0112-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0112-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0112-
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0112-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0112-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0112-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0112-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0112-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0112-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0112-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0112-
500 CLUSTER; INST CENTER 1-72438-206-1 01 1 0112-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0112-
505 LOCK; LID 1-72558-024-2 02 1 0112-
513 BRACKET; RELAY 1-73908-009-9 01 1 0112-0205
513 BRACKET; RELAY 1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER
MAL 		8-97217-066-0 04 1 0112-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0112-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0112-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0112-
572 COVER; INSPECTION 1-72438-183-0 01 1 0112-
579 COVER; INST PNL 1-72438-208-1 01 1 0112-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0112-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0112-
588 LID; BOX 1-72548-135-3 01 1 0112-
589 KNOB; LID 1-72548-143-0 01 1 0112-
592 HINGE; LID 1-72548-133-3 01 1 0112-
593 SCREW; HINGE
M5X14 MAL 		8-94279-325-0 02 1 0112-
594 HOOK; COAT 1-72498-013-0 01 1 0112-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0112-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0112-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER MAL 		8-94279-400-0 01 1 0112-
601 BRACKET; SW 1-73908-387-3 01 1 0112-
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0112-
633 PANEL; MAP LAMP 1-73908-388-1 01 1 0112-
669 FIXING; RIVET 1-09987-280-0 04 1 0112-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0112-

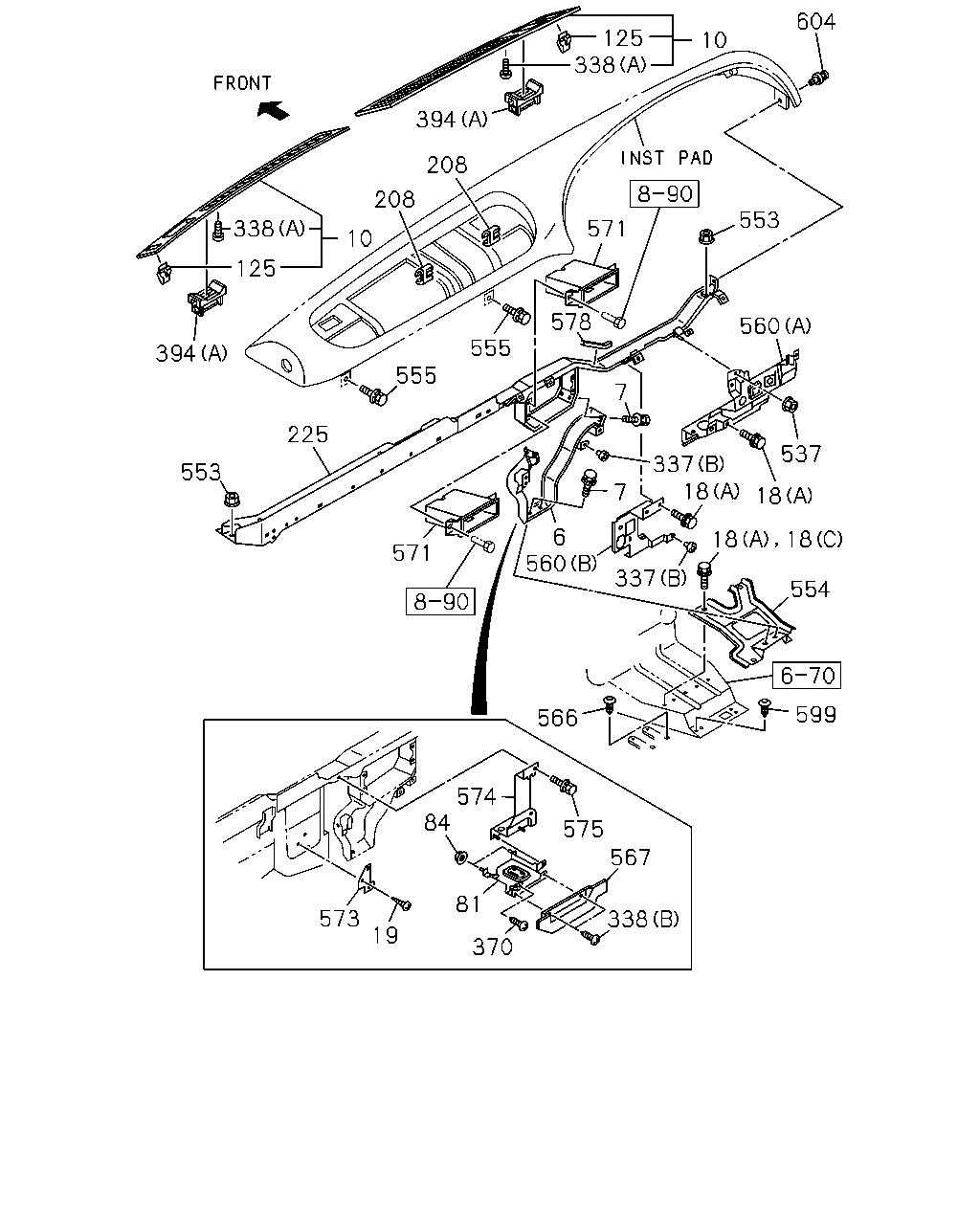

çizim 191312
604 125 338 10 394 208 208 553 571 338 10 125 578 560 555 394 555 7 225 537 337 18 553 7 18 6 560 18 18 571 337 554 599 566 574 84 575 567 81 573 338 19 370
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0112-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 06 1 0112-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0112-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0112-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-158-1 01 1 0112-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-157-1 01 1 0112-
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0112-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 07 1 0112-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0112-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 MAL 		8-94279-325-0 02 1 0112-
81 BRACKET; ELEC CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-008-7 01 1 0112-
84 NUT; CONT UNIT BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0112-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 01 1 0112-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 08 1 0112-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0112-
225 FRAME; FACIA 1-65681-096-2 01 1 0112-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0112-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0112-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0112-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 MAL 		8-94279-325-0 10 1 0112-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 MAL 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 MAL 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 MAL 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 		8-94479-534-0 02 1 0112-0302
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X12 		8-97094-854-0 02 1 0303-
370 SCREW; BRKT,ELEC CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 MAL 		8-94279-325-0 01 1 0112-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0112-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0112-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0112-0602
537 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0112-0602
553 NUT; FRAME
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0112-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0112-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 03 1 0112-
560 BRACKET
(B) 		1-65680-976-3 01 1 0112-
560 BRACKET
(A) 		1-65681-078-7 01 1 0112-
566 PLUG; HOLE
OD=20 T=0.05 BLACK MAL 		5-76777-036-0 01 1 0112-
567 COVER; CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-65681-022-2 01 1 0112-
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-72438-151-3 01 1 0112-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0112-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0112-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0112-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0112-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0112-
604 CLIP; INST PAD 1-09983-123-0 01 1 0112-
