◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#64863) — 158 parça

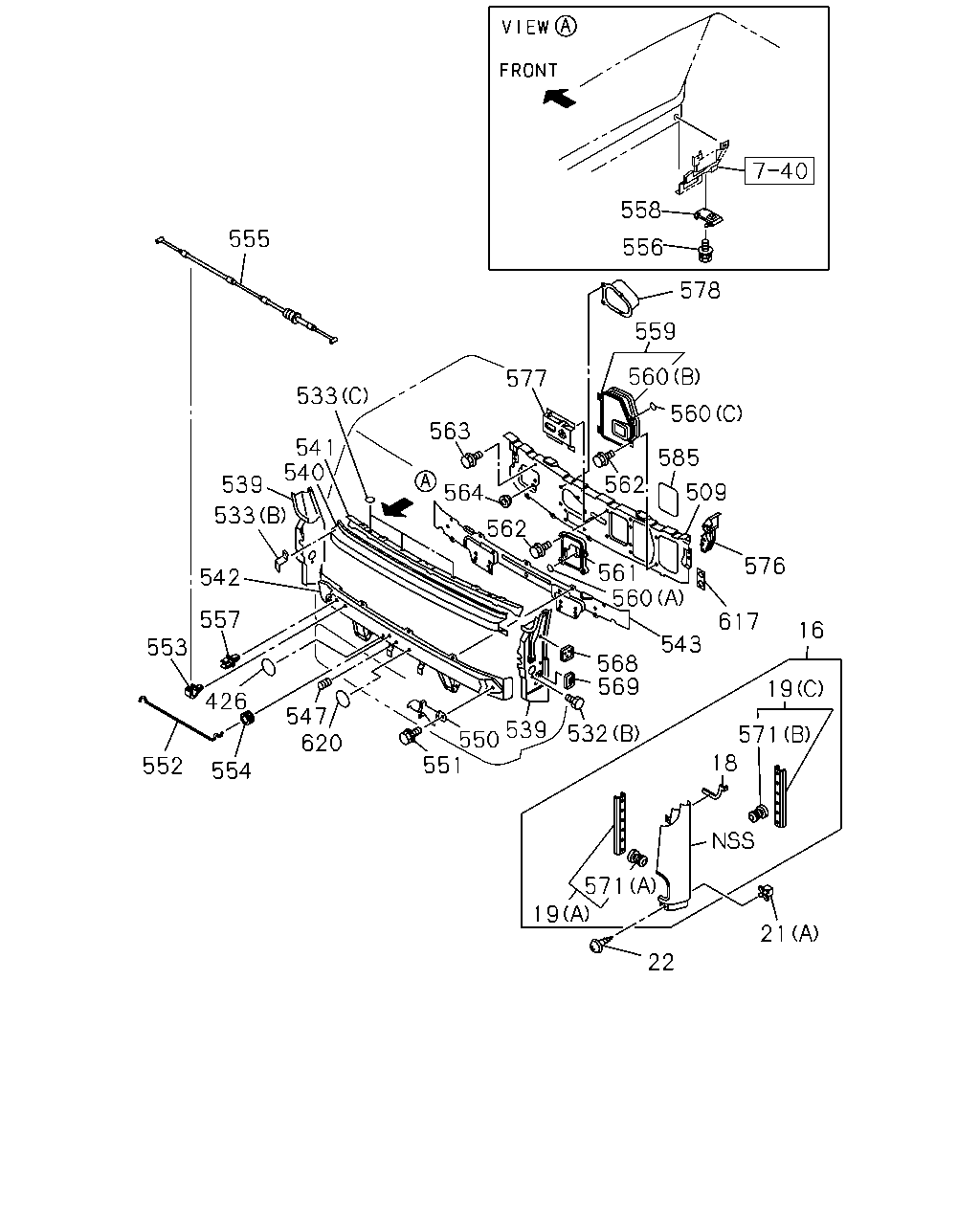

çizim 191300
558 555 556 578 559 560 577 533 560 563 541 540 585 539 562 509 564 533 562 561 560 576 542 557 617 16 543 553 568 569 19 426 547 620 539 550 551 532 571 18 552 554 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0112-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0112-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0112-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0112-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0112-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0112-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0112-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0112-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0112-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 04 1 0112-
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 0112-0604
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-215-1 01 1 0112-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0112-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0112-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0112-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0112-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0112-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0112-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0112-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0112-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0112-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0112-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0112-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0112-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0112-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0112-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0112-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 04 1 0112-
552 STAY; FRT LID 1-71998-810-2 01 1 0112-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0112-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0112-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0112-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0112-
557 CLIP; CABLE
ID=4.8 MAL 		8-94128-483-0 02 1 0112-
558 LEVER; FRT LID 1-79338-003-1 01 1 0112-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0112-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0112-
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 01 1 0112-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 0112-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0112-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 08 1 0112-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0112-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0112-
568 PATCH; INST REINF 1-61480-675-2 02 1 0112-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0112-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0112-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0112-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0112-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0112-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0112-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0112-0604
576 FRAME; INST SIDE 1-62280-176-6 01 1 0112-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0112-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0112-0604
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-71996-084-1 01 1 0112-
617 SEAL; DASH 1-61281-497-0 02 1 0112-0604
620 SEAL; FRT MTG
OD=25 BLACK MAL 		1-76798-019-0 02 1 0112-

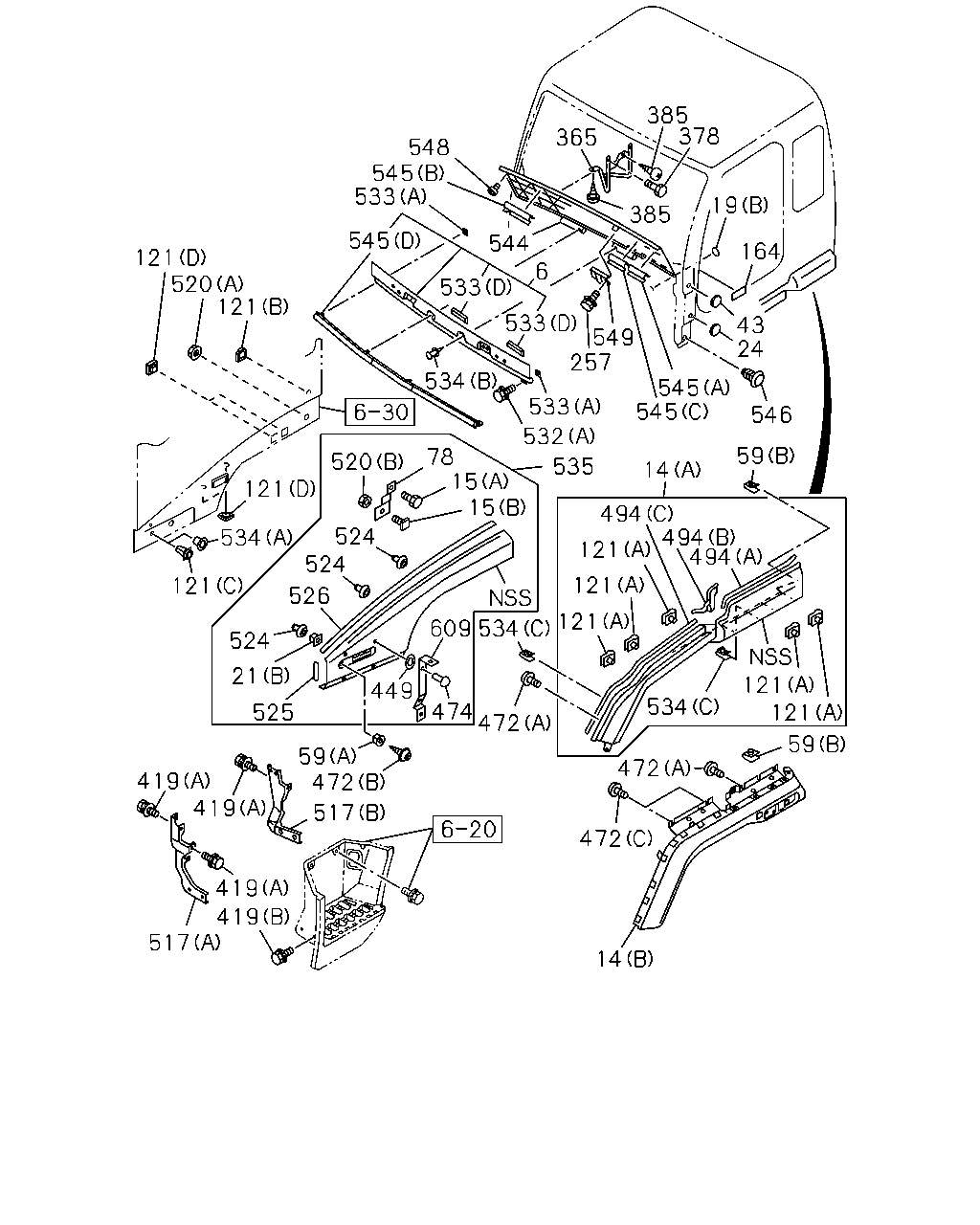

çizim 191307
385 378 365 548 545 533 19 385 545 544 164 121 520 121 6 533 533 43 24 549 257 534 545 545 533 546 532 59 78 15 15 520 535 14 121 494 494 494 524 524 534 121 121 121 526 121 524 121 121 449 21 534 474 472 525 59 59 472 472 419 419 517 472 419 419 517 14 609 534
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0112-
14 FENDER; FRT
(A) 		1-65481-638-0 01 1 0112-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0112-
14 FENDER; FRT
(A) 		1-65481-637-0 01 1 0112-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0112-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0112-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0112-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0112-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0112-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0112-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0112-
24 SEAL; FRT PANEL LWR
OD=25 BLACK MAL 		1-76798-019-0 08 1 0112-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0112-
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 0112-
59 GROMMET; SCREW
(B) 		8-94279-723-0 02 1 0112-
78 BRACKET; FENDER 1-71268-323-0 01 1 0112-
78 BRACKET; FENDER 1-71268-322-0 01 1 0112-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0112-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 02 1 0112-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0112-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0112-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0112-
257 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0112-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0112-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0112-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0112-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 10 1 0112-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0112-0204
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
449 WASHER; PL,BRKT
ID=5.3 		9-09160-505-0 08 1 0112-0605
449 WASHER; PL,BRKT
ID=5.3 		0-91610-505-0 08 1 0606-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0112-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0112-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0112-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 02 1 0112-
474 RIVET; FENDER 1-72448-570-0 08 1 0112-0209
474 RIVET; FENDER 8-97163-054-0 08 1 0210-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0112-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0112-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0112-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0112-
517 SUPPORT; STEP PANEL
(A) 		1-71996-057-1 01 1 0112-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0112-
517 SUPPORT; STEP PANEL
(A) 		1-71996-056-1 01 1 0112-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0112-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0112-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0112-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0112-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0112-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 0112-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 0112-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0112-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0112-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0112-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0112-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0112-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0112-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0112-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 24 1 0112-0609
534 FASTENER
(C) 		1-71996-035-1 26 1 0610-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0112-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71268-389-2 01 1 0112-0209
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71268-435-1 01 1 0210-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71268-388-2 01 1 0112-0209
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) 		1-71268-434-2 01 1 0210-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) 		1-71268-385-3 01 1 0112-0209
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) 		1-71268-435-1 01 1 0210-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) 		1-71268-384-3 01 1 0112-0209
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) 		1-71268-434-2 01 1 0210-
544 LID; FRT
WHITE 		1-71108-118-1 01 1 0112-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0112-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0112-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0112-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0112-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0112-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0112-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0112-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
609 BRACKET; PROTECTOR,SIDE TURN LAMP 1-71268-375-1 04 1 0112-
