Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

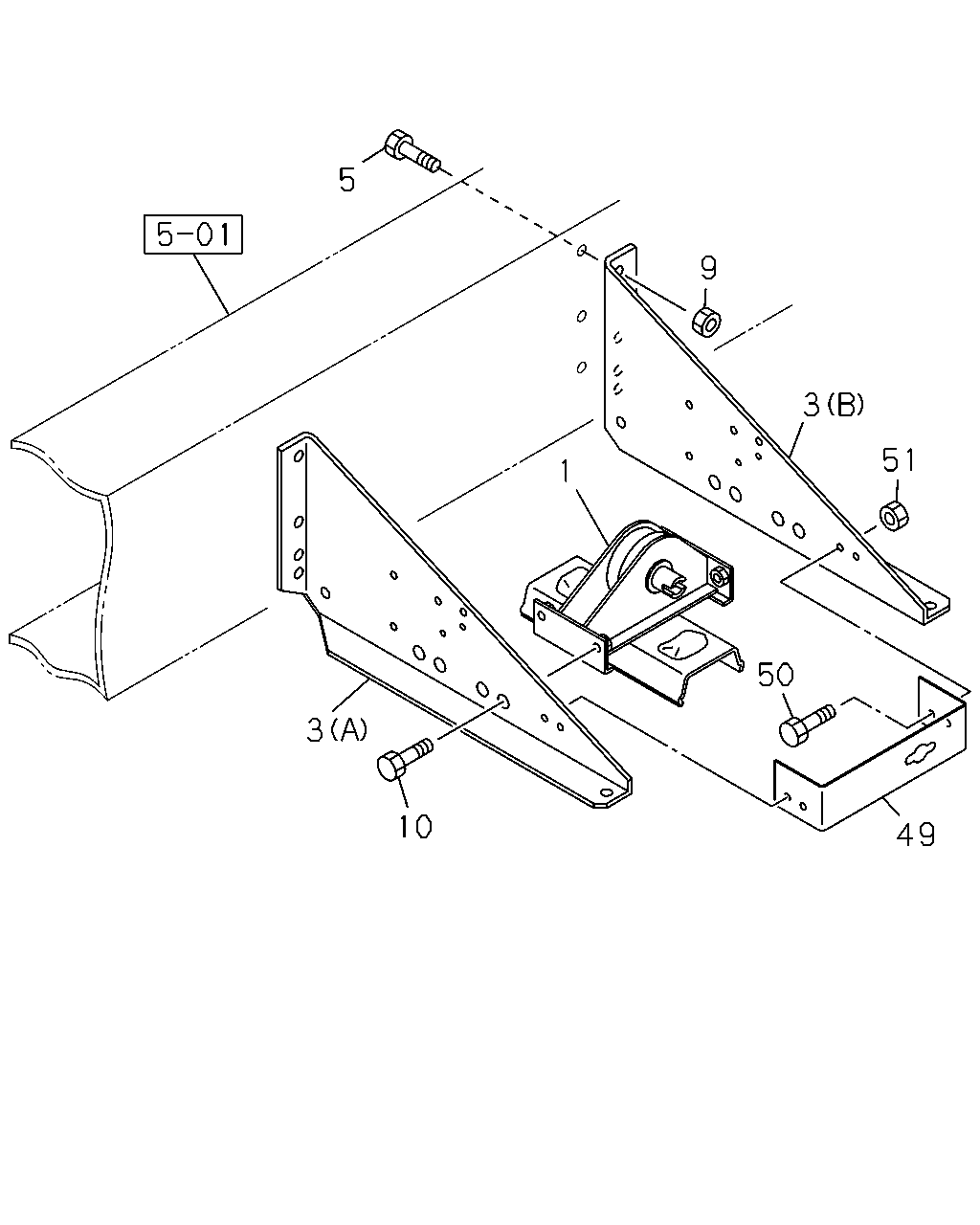

5-30 — SPARE TIRE CARRIER AND COVER
(#64860) — 14 parça
5
9
3
51
1
50
3
10
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-208-3
01
1
0112-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-401-0
01
1
0112-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-402-0
01
1
0112-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
06
1
0112-0512
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
06
1
0601-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE
0-91150-212-0
06
1
0112-0602
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE MAL
0-91180-212-0
06
1
0603-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
04
1
0112-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
0601-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-278-1
01
1
0112-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE MAL
0-28680-820-0
04
1
0112-0512
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE MAL
0-28650-820-0
04
1
0601-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91150-108-0
04
1
0112-0602
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE MAL
0-91180-108-0
04
1
0603-
