Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

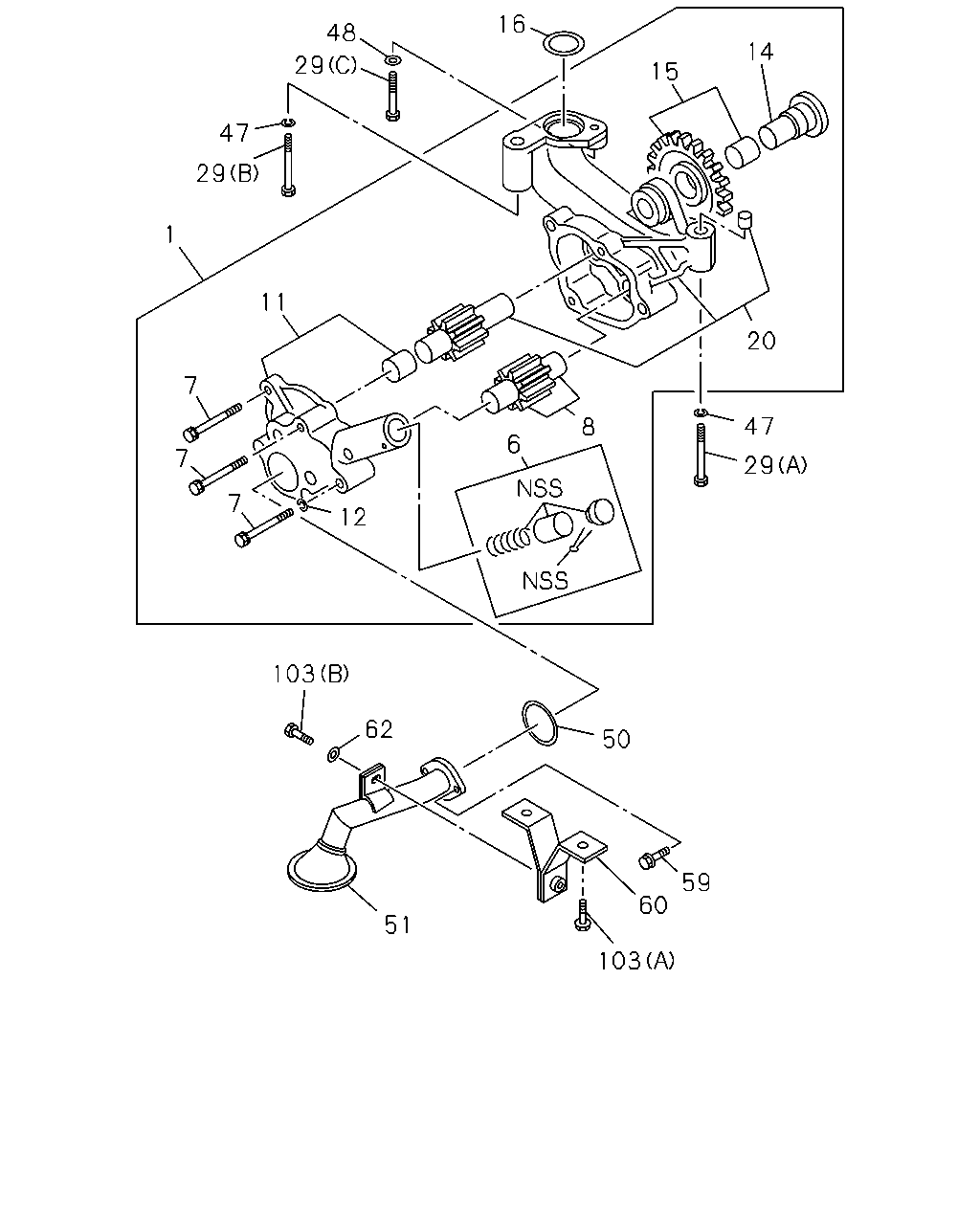

0-51 — OIL PUMP AND OIL STRAINER
(#6486) — 25 parça
16
48
14
29
15
47
29
1
11
20
7
47
8
6
7
29
7
12
103
62
50
59
60
51
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
1-13100-186-3
01
1
9705-
6
VALVE ASM; RELIEF,OIL PUMP
1-13160-012-0
01
1
9705-9902
7
BOLT; COVER,OIL PUMP
M10X50
0-16806-050-0
01
1
9705-9902
7
BOLT; COVER,OIL PUMP
M10X55
0-16806-055-0
01
1
9705-9902
7
BOLT; COVER,OIL PUMP
M10X35 W/LK WASHER
0-50051-035-0
01
1
9705-9902
7
BOLT; COVER,OIL PUMP
M10X45 W/LK WASHER
0-50051-045-0
01
1
9705-9902
8
GEAR; DRIVEN,OIL PUMP
1-13125-036-0
01
1
9705-9902
11
COVER ASM; OIL PUMP
1-13113-054-0
01
1
9705-9902
12
WASHER; LK,BOLT COVER
ID=10.2
9-09150-510-0
02
1
9705-9902
14
SPINDLE; DRIVEN GEAR
1-13129-010-1
01
1
9705-9902
15
GEAR ASM; IDLE
1-13128-027-0
01
1
9705-9902
16
GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2
1-09623-220-0
01
1
9705-
20
GEAR; DRIVE,OIL PUMP
1-13120-053-0
01
1
9705-9902
29
BOLT; OIL PUMP
(A) M12X55
9-01666-255-0
01
1
9705-
29
BOLT; OIL PUMP
(B) M12X70
9-01666-270-0
01
1
9705-
29
BOLT; OIL PUMP
(C) M10X30
9-02361-030-0
01
1
9705-
47
WASHER; LK,OIL PUMP
ID=12.5
9-09851-682-0
02
1
9705-
48
WASHER; PL,OIL PUMP
ID=10
1-09503-033-1
01
1
9705-
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-397-0
01
1
9705-
51
STRAINER & PIPE ASM; OIL
1-13140-097-2
01
1
9705-
59
BOLT; BRKT,STRAINER
M8X18 FLANGE
0-28080-818-0
02
1
9705-
60
BRACKET; OIL STRAINER
1-13145-047-0
01
1
9705-
62
WASHER; PL,STAY
ID=8.4 OD=18
9-09160-608-0
01
1
9705-
103
BOLT; STRAINER
(A) M8X18 FLANGE
0-28080-818-0
02
1
9705-
103
BOLT; STRAINER
(B) M8X25 W/LK WASHER
0-50040-825-0
01
1
9705-
