5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

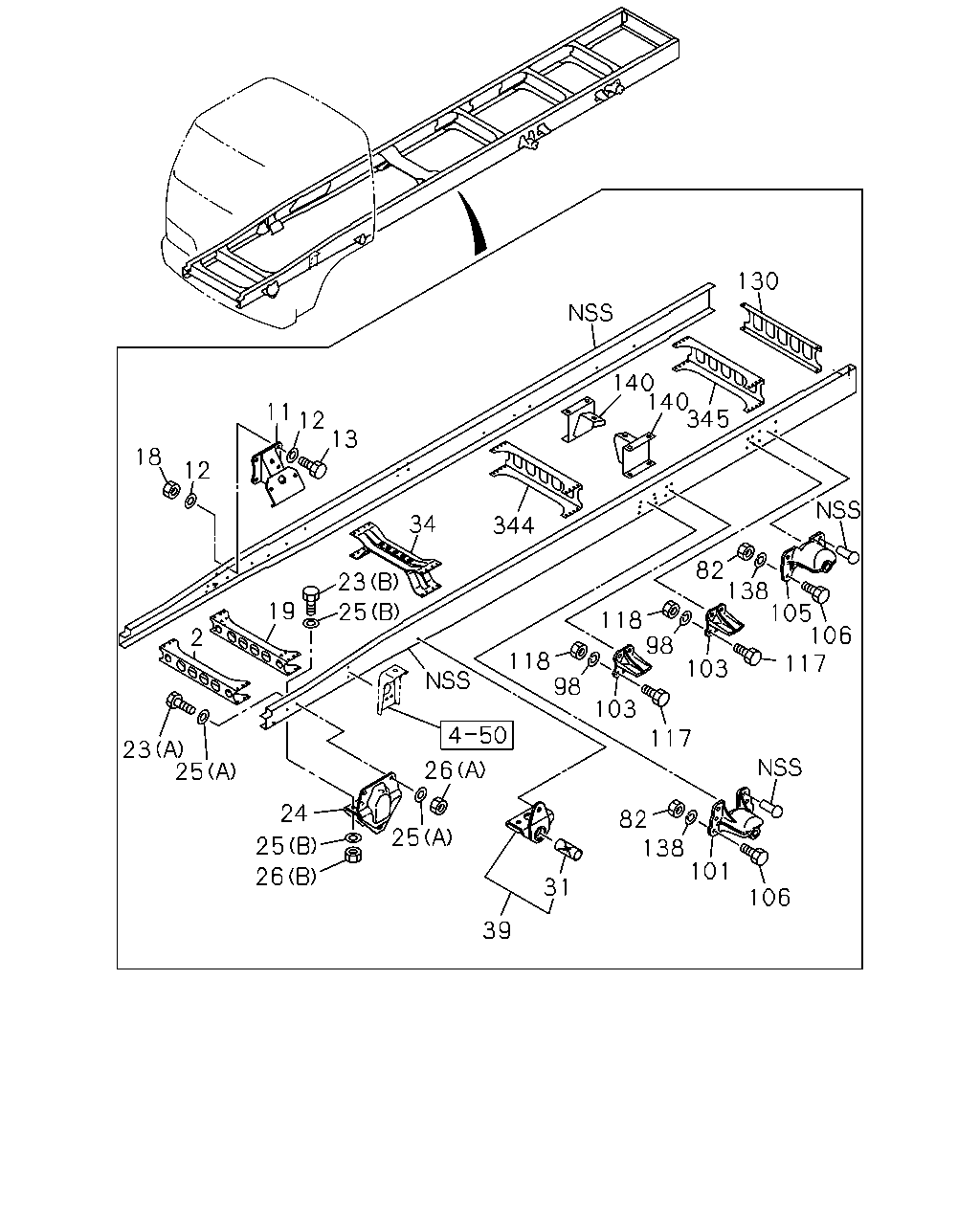

5-01 — FRAME AND OTHER PARTS
(#64856) — 42 parça
130
140
140
345
11
12
13
18
12
34
344
82
138
105
106
117
23
19
2
25
118
98
118
98
103
103
117
23
25
26
24
82
138
101
25
25
26
31
106
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-781-1
01
1
0112-
11
BRACKET; ENG MTG
1-53211-197-0
02
1
0112-
12
WASHER; PL,BRKT,ENG MTG
ID=12.5
1-09503-171-0
16
1
0112-
13
BOLT; BRKT,ENG MTG
M12X40
9-92061-240-0
08
1
0112-0512
13
BOLT; BRKT,ENG MTG
M12X40
0-20951-240-0
08
1
0601-
18
NUT; BRKT,ENG MTG
M12
9-99110-512-0
08
1
0112-0512
18
NUT; BRKT,ENG MTG
M12 MAL
0-91110-512-0
08
1
0601-
19
MEMBER; CROSS,2ND
1-53181-910-0
01
1
0112-
23
BOLT; BRKT,SPR
(A) M12X35
9-92061-235-0
10
1
0112-0512
23
BOLT; BRKT,SPR
(A) M12X35 MAL
0-20951-235-0
10
1
0601-
23
BOLT; BRKT,SPR
(B) M14X40
9-92061-440-0
04
1
0112-0512
23
BOLT; BRKT,SPR
(B) M14X40
0-20951-440-0
04
1
0601-
24
BRACKET; FRT SPR,FRT
1-53351-258-0
02
1
0112-
25
WASHER; PL,BRKT
(A) ID=12.2
1-09503-224-0
20
1
0112-
25
WASHER; PL,BRKT
(B) ID=15 MAL
9-09651-069-0
08
1
0112-1201
25
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1202-
26
NUT; BRKT,SPR
(A) M12
9-99110-512-0
10
1
0112-0512
26
NUT; BRKT,SPR
(A) M12 MAL
0-91110-512-0
10
1
0601-
26
NUT; BRKT,SPR
(B) M14
9-99110-514-0
04
1
0112-0512
26
NUT; BRKT,SPR
(B) M14 MAL
0-91110-514-0
04
1
0601-
31
BUSHING; FRT SPR,RR
ID=25 MAL
9-51151-032-0
02
1
0112-0811
31
BUSHING; FRT SPR,RR
ID=25 MAL
8-98082-176-0
02
1
0812-
34
MEMBER; CROSS,3RD
1-53175-366-0
01
1
0112-
39
BRACKET; FRT SPR,RR
1-53352-185-1
02
1
0112-
82
NUT; BRKT
M14
9-99110-514-0
22
1
0112-0512
82
NUT; BRKT
M14 MAL
0-91110-514-0
22
1
0601-
98
WASHER; LK,STOPPER
ID=14.2
9-09150-814-0
16
1
0112-0603
98
WASHER; LK,STOPPER
ID=14.2 MAL
0-91510-814-0
16
1
0604-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0112-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0112-
105
BRACKET; RR SPR,RR
MAL
1-53354-074-0
02
1
0112-
106
BOLT; BRKT
M14X45 MAL
0-20801-445-0
22
1
0112-
117
BOLT; STOPPER
M14X45 MAL
0-20801-445-0
16
1
0112-
118
NUT; STOPPER
M14
9-99110-514-0
16
1
0112-0512
118
NUT; STOPPER
M14 MAL
0-91110-514-0
16
1
0601-
130
MEMBER; CROSS,END
1-53181-748-2
01
1
0112-
138
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
22
1
0112-0603
138
WASHER; LK,BRKT
ID=14.2 MAL
0-91510-814-0
22
1
0604-
140
BRACKET; S/ABS,RR
1-53381-021-0
01
1
0112-
140
BRACKET; S/ABS,RR
1-53381-020-0
01
1
0112-
344
MEMBER; CROSS,4TH
1-53181-465-9
01
1
0112-
345
MEMBER; CROSS,5TH
1-53181-465-9
01
1
0112-
