0-50 — OIL COOLER AND OIL FILTER (#6485) — 88 parça

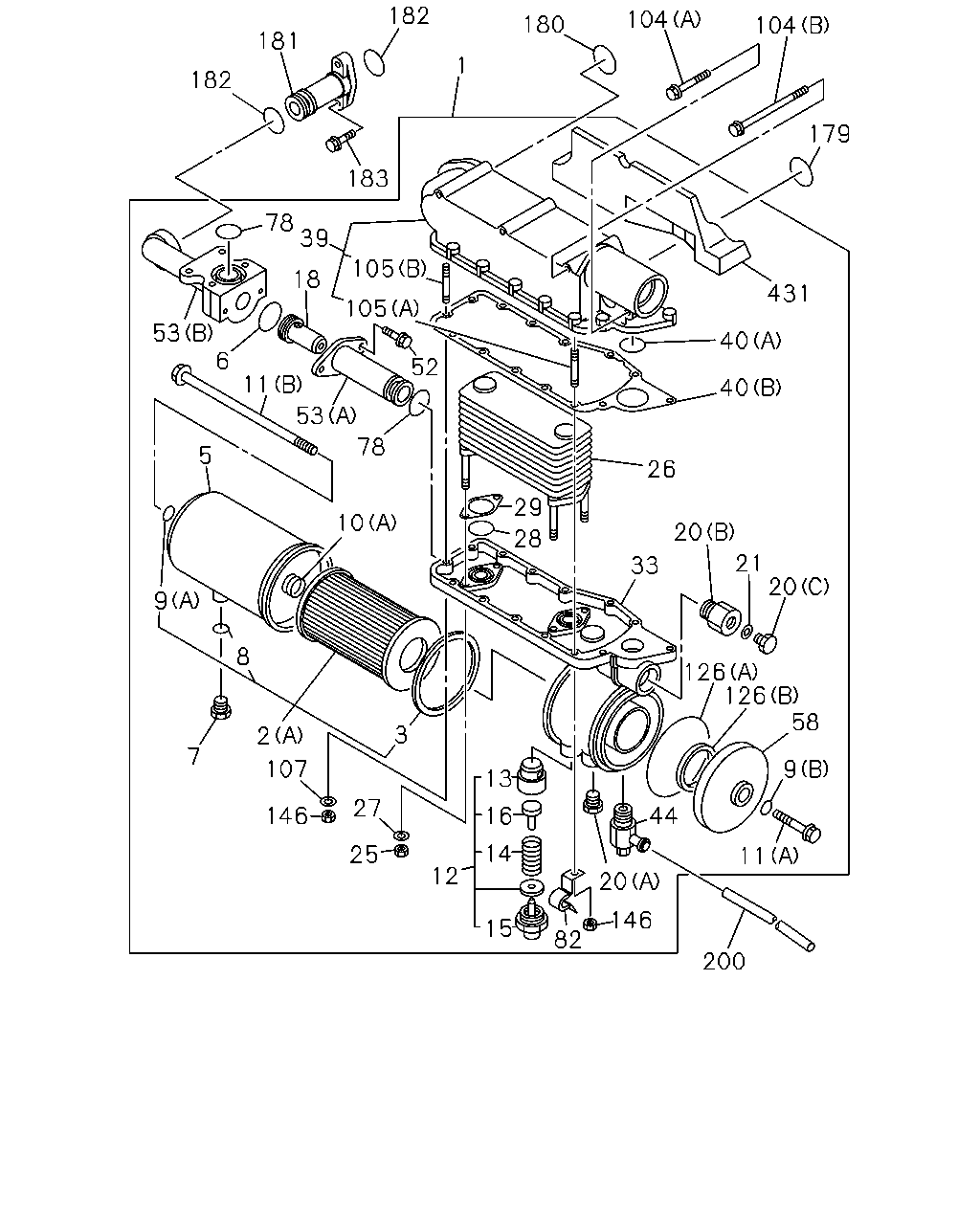

182 104 180 104 181 1 182 179 183 78 39 105 18 431 105 53 6 40 52 11 40 53 78 5 26 29 10 20 28 21 20 33 9 8 126 126 58 3 2 7 107 9 13 27 146 44 16 14 25 11 12 20 146 15 82 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	1-13200-918-0	01	1	9705-9707
1	FILTER & COOLER ASM; OIL	1-13200-992-1	01	1	9708-0202
1	FILTER & COOLER ASM; OIL	1-13201-029-0	01	1	0203-
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-116-0	01	1	9705-9707
2	ELEMENT; OIL FILTER (A)	1-13240-217-0	01	1	9708-
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-202-0	01	1	9705-
2	ELEMENT; OIL FILTER (B) TOKYO ROKI	1-13240-206-0	01	1	9705-
3	GASKET	1-13213-010-0	01	1	9705-
5	CASE; OIL FILTER	1-13211-244-0	01	1	9705-9707
5	CASE; OIL FILTER	1-13211-281-0	01	1	9708-
6	GASKET; VLV CASE ID=43.7	9-09565-344-0	01	1	9705-9707
6	GASKET; VLV CASE	5-09565-344-0	01	1	9708-
7	PLUG; CENTER BOLT	1-09604-088-0	01	1	9705-9707
7	PLUG; CENTER BOLT	1-13219-275-0	01	1	9708-
8	GASKET; PLUG ID=11.8	9-09923-579-0	01	1	9705-9707
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-499-0	01	1	9705-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=15.5	9-09920-694-0	01	1	9705-9807
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-026-0	01	1	9808-
10	SPRING; ELEMENT (A)	1-13219-263-0	01	1	9705-
10	SPRING; ELEMENT (B)	1-13219-264-0	01	1	9705-
11	BOLT; CENTER (A)	1-13231-037-0	01	1	9705-
11	BOLT; CENTER (B)	1-13231-079-0	01	1	9705-
12	VALVE ASM; BYPASS	1-13260-105-0	01	1	9705-9707
12	VALVE ASM; BYPASS	1-13260-112-0	01	1	9708-
13	VALVE; RELIEF	1-13262-004-0	01	1	9705-
14	SPRING; RELIEF VLV	1-13263-003-0	01	1	9705-
15	PLUG; RELIEF VLV	1-13265-025-0	01	1	9705-9707
15	PLUG; RELIEF VLV	1-13265-027-0	01	1	9708-
16	VALVE ASM; RELIEF	1-13260-023-0	01	1	9705-
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9705-
20	PLUG; COOLER BODY (A)	1-09604-020-0	01	1	9705-
20	PLUG; COOLER BODY (B)	1-13226-002-0	01	1	9705-
20	PLUG; COOLER BODY (C) M14X9	9-99202-314-0	01	1	9705-
21	GASKET; PLUG	1-09630-104-0	01	1	9705-
25	NUT; CORE TO BODY M10	9-09110-410-0	04	1	9705-
26	CORE ASM; OIL COOLER	1-21723-008-0	01	1	9705-
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9705-
28	GASKET; CORE TO BODY ID=35.7	1-09623-026-0	02	1	9705-0202
29	GASKET; CORE TO BODY	1-21729-057-0	02	1	9705-
33	HOUSING ASM; COOLER	1-13212-031-1	01	1	9705-0202
33	HOUSING ASM; COOLER	1-13212-190-0	01	1	0203-
39	COVER; OIL COOLER	1-13212-171-0	01	1	9705-0202
39	COVER; OIL COOLER	1-13212-187-0	01	1	0203-
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.7	1-09623-026-0	01	1	9705-0202
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-21729-060-0	01	1	9705-
44	COCK ASM; WATER DRAIN	1-09680-032-0	01	1	9705-
52	BOLT; OIL INL PIPE & VLV CASE M8X30	9-02050-830-0	02	1	9705-
53	PIPE; OIL INL (A)	1-21726-003-2	01	1	9705-
53	PIPE; OIL INL (B)	1-21726-010-0	01	1	9705-
58	ADAPTER; OIL COOLER	1-13219-005-0	01	1	9705-
78	GASKET; PIPE ID=35.7	1-09623-026-0	02	1	9705-0202
78	GASKET; PIPE ID=35.7	1-09623-026-0	05	1	0203-
82	HOLDER; OIL COOLER ID=11 H=30 L=22	1-09700-886-0	01	1	9705-
104	BOLT; OIL COOLER (A) M10X70 FLANGE	0-28181-070-0	02	1	9705-
104	BOLT; OIL COOLER (B) M10X107 FLANGE	8-94399-488-1	03	1	9705-
105	STUD; OIL COOLER (A) M8X35 L=47	9-04110-835-0	12	1	9705-
105	STUD; OIL COOLER (B) M8X45 L=57	9-04110-845-0	02	1	9705-
107	WASHER; PL,OIL COOLER	1-14219-003-0	13	1	9705-
126	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-024-1	01	1	9705-9807
126	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-024-0	01	1	9808-
126	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-13213-003-0	01	1	9705-9807
126	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-025-0	01	1	9808-
146	NUT; STUD,OIL COOLER M8	9-09110-408-0	14	1	9705-
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9705-
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9705-
181	CONNECTOR; HSG TO COOLER	1-13341-019-0	01	1	9705-
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9705-
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9705-
200	PIPE; VINYL,WATER DRAIN L=500 SERVICED BY L=3000	0-03259-300-0	01	1	9705-9707
200	PIPE; VINYL,WATER DRAIN L=500 SERVICED BY L=3000	0-03259-300-0	02	1	9708-0103
200	PIPE; VINYL,WATER DRAIN L=500 SERVICED BY L=3000	0-03559-300-0	02	1	0104-
431	SPACER; OIL COOLER	1-13219-294-0	01	1	9705-

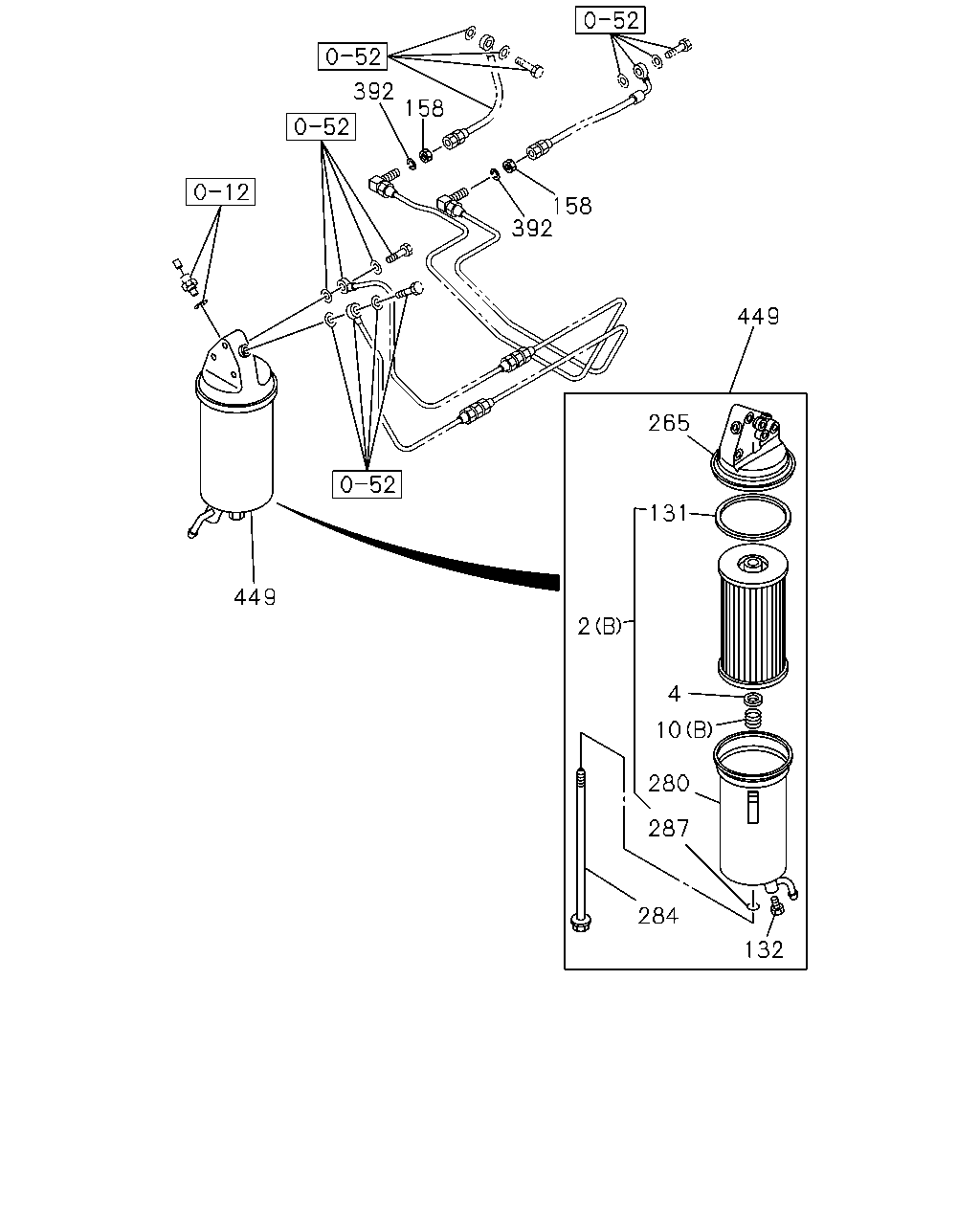

392 158 158 392 449 265 131 449 2 4 10 280 287 284 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-116-0	01	1	9705-9707
2	ELEMENT; OIL FILTER (A)	1-13240-217-0	01	1	9708-
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-202-0	01	1	9705-
2	ELEMENT; OIL FILTER (B) TOKYO ROKI	1-13240-206-0	01	1	9705-
4	WASHER; ELEMENT	1-13219-259-0	01	1	9705-
10	SPRING; ELEMENT (A)	1-13219-263-0	01	1	9705-
10	SPRING; ELEMENT (B)	1-13219-264-0	01	1	9705-
131	GASKET; PARTIAL OIL FILTER	1-13213-011-2	01	1	9705-
132	PLUG; PARTIAL OIL FILTER	1-13219-275-0	01	1	9705-
158	NUT; BRKT,OIL PIPE M22	9-09111-422-0	02	1	9705-
265	BODY; OIL FILTER	1-13211-224-0	01	1	9705-
280	CASE ASM; OIL FILTER	1-13211-242-1	01	1	9705-
284	BOLT; CENTER,OIL FILTER	1-13231-073-0	01	1	9705-
287	GASKET; CENTER BOLT	1-09623-500-0	01	1	9705-
392	WASHER; LK ID=22.5	9-09150-522-0	02	1	9705-
449	FILTER ASM; OIL PARTIAL	1-13200-932-2	01	1	9705-
