1 |

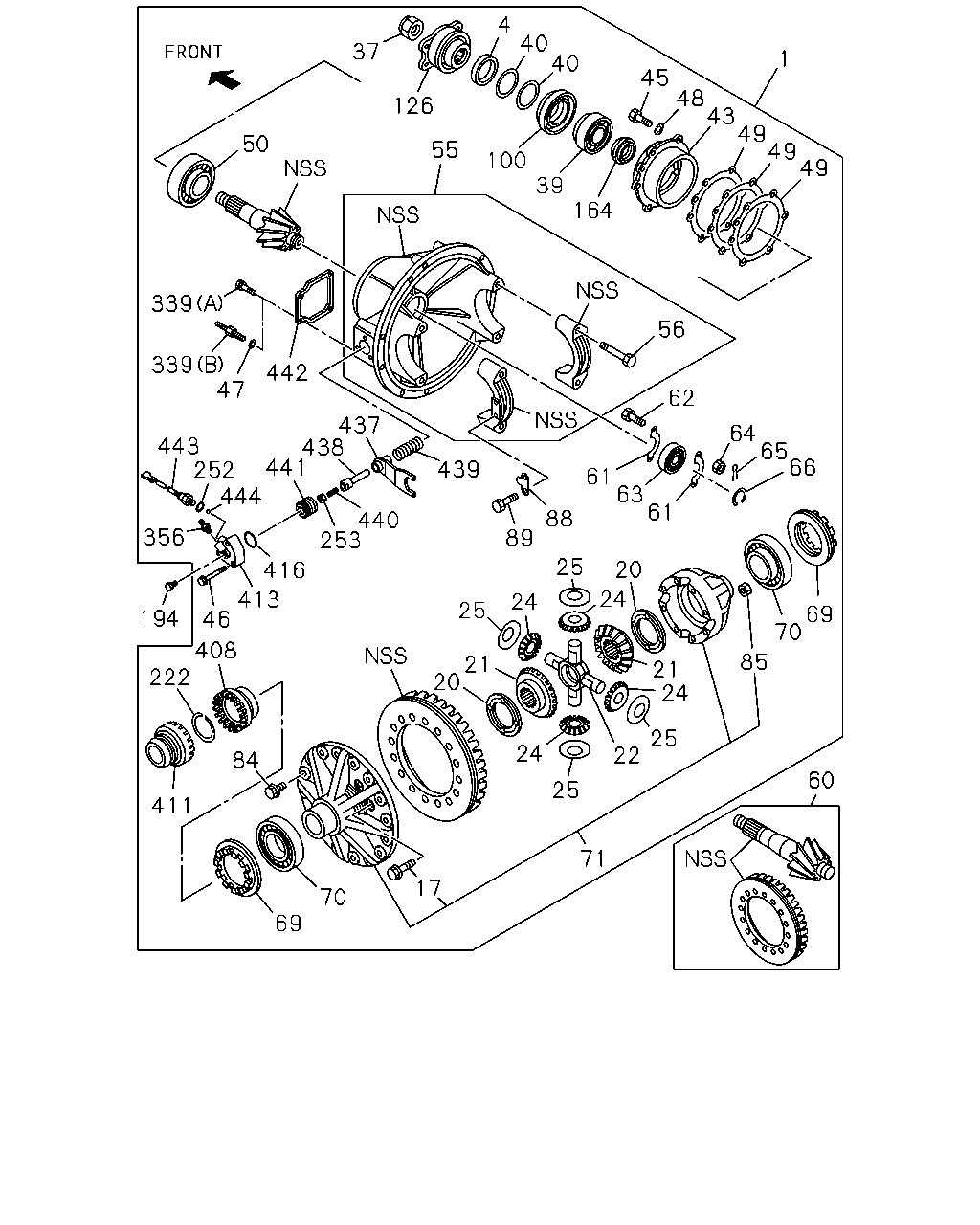

DRIVE ASM; FINAL,RR
39/7
|
1-41002-603-0 |
01 |
1 |
0112- |
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=37.5 T=4
|
1-09623-582-0 |
01 |
1 |
0112- |
| |
17 |
BOLT; DIFF CAGE SETTING
M14X121 FLANGE
|
1-09044-006-0 |
04 |
1 |
0112- |
| |
17 |
BOLT; DIFF CAGE SETTING
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-061-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-062-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-063-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-064-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-080-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-081-0 |
AR |
1 |
0112- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-082-0 |
AR |
1 |
0112- |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-107-0 |
02 |
1 |
0112-0407 |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-135-0 |
02 |
1 |
0408-0905 |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-155-0 |
02 |
1 |
0906- |
| |
22 |
SPIDER; DIFF PINION
|
1-41521-050-2 |
01 |
1 |
0112- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-032-0 |
04 |
1 |
0112-0407 |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-042-0 |
04 |
1 |
0408-0905 |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-049-0 |
04 |
1 |
0906- |
| |
25 |
WASHER; THRUST,PINION
ID=29 OD=60
|
1-41562-119-0 |
04 |
1 |
0112- |
| |
37 |
NUT; DRIVING PINION
M36 FLANGE
|
1-09449-058-2 |
01 |
1 |
0112-0804 |
| |
37 |
NUT; DRIVING PINION
M36 FLANGE
|
1-09449-083-0 |
01 |
1 |
0805- |
| |
39 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
1001- |
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-026-0 |
01 |
1 |
0112-1001 |
| |
39 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
1002- |
| |
40 |
SHIM; FINAL PINION
T=1.60
|
1-41229-179-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.61
|
1-41229-180-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.62
|
1-41229-181-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.63
|
1-41229-182-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.64
|
1-41229-183-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.65
|
1-41229-184-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.66
|
1-41229-185-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.67
|
1-41229-186-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.68
|
1-41229-187-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.69
|
1-41229-188-0 |
AR |
1 |
0112- |
| |
40 |
SHIM; FINAL PINION
T=1.70
|
1-41229-189-0 |
AR |
1 |
0112- |
| |
43 |
CAGE; FINAL PINION
|
1-41151-027-0 |
01 |
1 |
0112- |
| |
45 |
BOLT; FINAL PINION CAGE
M12X40
|
9-02361-240-0 |
06 |
1 |
0112- |
| |
46 |
BOLT
M8X60 FLANGE
|
0-28080-860-0 |
03 |
1 |
0112-0512 |
| |
46 |
BOLT
M8X60 FLANGE
|
0-28050-860-0 |
03 |
1 |
0601- |
| |
47 |
WASHER; LK
ID=8.2
|
1-09985-177-0 |
04 |
1 |
1204- |
| |
48 |
WASHER; LK,FINAL PINION
ID=12.2
|
9-09150-512-0 |
06 |
1 |
0112-0603 |
| |
48 |
WASHER; LK,FINAL PINION
ID=12.2
MAL
|
0-91510-512-0 |
06 |
1 |
0604- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.50
|
1-41154-021-1 |
AR |
1 |
0112- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.30
|
1-41154-051-1 |
AR |
1 |
0112- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.40
|
1-41154-052-1 |
AR |
1 |
0112- |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.00
|
1-41154-053-1 |
AR |
1 |
0112- |
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
0612- |
| |
50 |
BEARING; FINAL PINION
NSK
|
1-09812-041-2 |
01 |
1 |
0112- |
| |
55 |
CARRIER; DIFF
|
1-41110-122-0 |
01 |
1 |
0112- |
| |
56 |
BOLT; BRG CAP
M16X100 FLANGE
|
1-09070-047-0 |
04 |
1 |
0112- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
39/7
|
1-41210-391-2 |
01 |
1 |
0112- |
| |
61 |
RETAINER; PILOT BRG,PINION
T=2.3
|
1-41227-006-0 |
02 |
1 |
0112- |
| |
62 |
BOLT; RET
M8X35 W/PIN HOLE
|
1-09042-034-0 |
02 |
1 |
0112-0804 |
| |
62 |
BOLT; RET
M8X35 W/PIN HOLE
|
1-09042-046-0 |
02 |
1 |
0805- |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-073-2 |
01 |
1 |
0112- |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-074-1 |
01 |
1 |
0112- |
| |
64 |
NUT; RET
M8 SLOTTED
|
9-09117-508-0 |
02 |
1 |
0112-0512 |
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0601- |
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0112-0805 |
| |
65 |
PIN; SPLIT,RET
|
0-81122-012-0 |
02 |
1 |
0806- |
| |
66 |
RING; SNAP,PILOT BRG
OD=34.2
|
1-09588-066-1 |
01 |
1 |
0112-1109 |
| |
66 |
RING; SNAP,PILOT BRG
OD=34.2
|
1-09588-214-0 |
01 |
1 |
1110- |
| |
69 |
NUT; ADJ,DIFF CAGE
|
1-41121-046-0 |
01 |
1 |
0112-0409 |
| |
69 |
NUT; ADJ,DIFF CAGE
M138 H=30
|
1-41121-054-0 |
01 |
1 |
0410- |
| |
69 |
NUT; ADJ,DIFF CAGE
M128 H=22
|
1-41121-013-0 |
01 |
1 |
0112- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=85 OD=130 T=29
|
1-09812-088-0 |
01 |
1 |
0112- |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=85 OD=130 T=29
|
1-09812-089-0 |
01 |
1 |
0112- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3
|
1-09812-058-1 |
01 |
1 |
0112- |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3
|
1-09812-063-1 |
01 |
1 |
0112-0704 |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3
|
1-09812-249-0 |
01 |
1 |
0705- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-273-0 |
01 |
1 |
0112- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE
|
9-09802-575-1 |
16 |
1 |
0112- |
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
08 |
1 |
0112- |
| |
88 |
PLATE; LK,ADJ NUT
T=2.3
|
9-41124-015-0 |
02 |
1 |
0112- |
| |
89 |
BOLT; LK PLATE
M8X12 FLANGE
|
8-94479-696-1 |
04 |
1 |
0112- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0112- |
| |
100 |
SEAL; OIL,FINAL PINION
TKK
|
1-09625-637-0 |
01 |
1 |
0112- |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-069-6 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=10.7
|
1-36355-031-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=10.90
|
1-36355-033-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=11.10
|
1-36355-035-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=11.30
|
1-36355-037-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=11.50
|
1-36355-039-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=11.70
|
1-36355-041-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=11.9
|
1-36355-043-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=12.10
|
1-36355-045-0 |
01 |
1 |
0112- |
| |
164 |
COLLAR; DIST,PINION
T=12.30
|
1-36355-047-0 |
01 |
1 |
0112- |
| |
194 |
PLUG
M12X9
|
9-99202-312-0 |
01 |
1 |
0112-1304 |
| |
194 |
PLUG
M12X9
|
0-92002-412-0 |
01 |
1 |
1305- |
| |
222 |
RING; SNAP
|
1-09588-186-0 |
01 |
1 |
0112- |
| |
252 |
GASKET; CARRIER
ID=14.2
|
8-94462-114-0 |
01 |
1 |
0112- |
| |
253 |
NUT
M12
|
9-99111-512-0 |
01 |
1 |
0112-0512 |
| |
253 |
NUT
M12
|
0-91111-512-0 |
01 |
1 |
0601- |
| |
339 |
BOLT; COVER
(A)
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0112-0610 |
| |
339 |
BOLT; COVER
(A)
M8X16 W/LK WASHER
|
0-50540-816-0 |
04 |
1 |
0611-1203 |
| |
339 |
BOLT; COVER
(B)
M6X14,M8X17 L=42
|
5-09309-006-1 |
04 |
1 |
1204- |
| |
356 |
NIPPLE; SHIFT UNIT
M12 & PT1/4 STRAIGHT
MAL
|
1-09650-074-1 |
01 |
1 |
0112- |
| |
408 |
CLAW; CLU,DIFF LK
|
1-41266-025-0 |
01 |
1 |
0112- |
| |
411 |
SLEEVE; CLU
|
1-41266-026-0 |
01 |
1 |
0112- |
| |
413 |
CYLINDER; DIFF LK
|
1-41279-021-0 |
01 |
1 |
0112- |
| |
416 |
GASKET
ID=43.7
|
9-09561-344-0 |
01 |
1 |
0112- |
| |
437 |
FORK ASM; SHIFT,DIFF LK
|
1-41271-015-0 |
01 |
1 |
0112- |
| |
438 |
ROD; SHIFTER,DIFF LK
|
1-41271-014-0 |
01 |
1 |
0112- |
| |
439 |
SPRING; RETUN,DIFF LK
|
1-09580-507-0 |
01 |
1 |
0112- |
| |
440 |
SCREW SET; DIFF LK
|
1-09120-020-0 |
01 |
1 |
0112- |
| |
441 |
PISTON; CHAMBER,DIFF LK
|
1-41279-020-0 |
01 |
1 |
0112- |
| |
442 |
COVER; CARRIER,DIFF LK
|
1-41117-005-0 |
01 |
1 |
0112- |
| |
443 |
SWITCH; STROKE
|
1-82340-534-0 |
01 |
1 |
0112- |
| |
444 |
BALL
|
9-00097-010-0 |
01 |
1 |
0112- |
