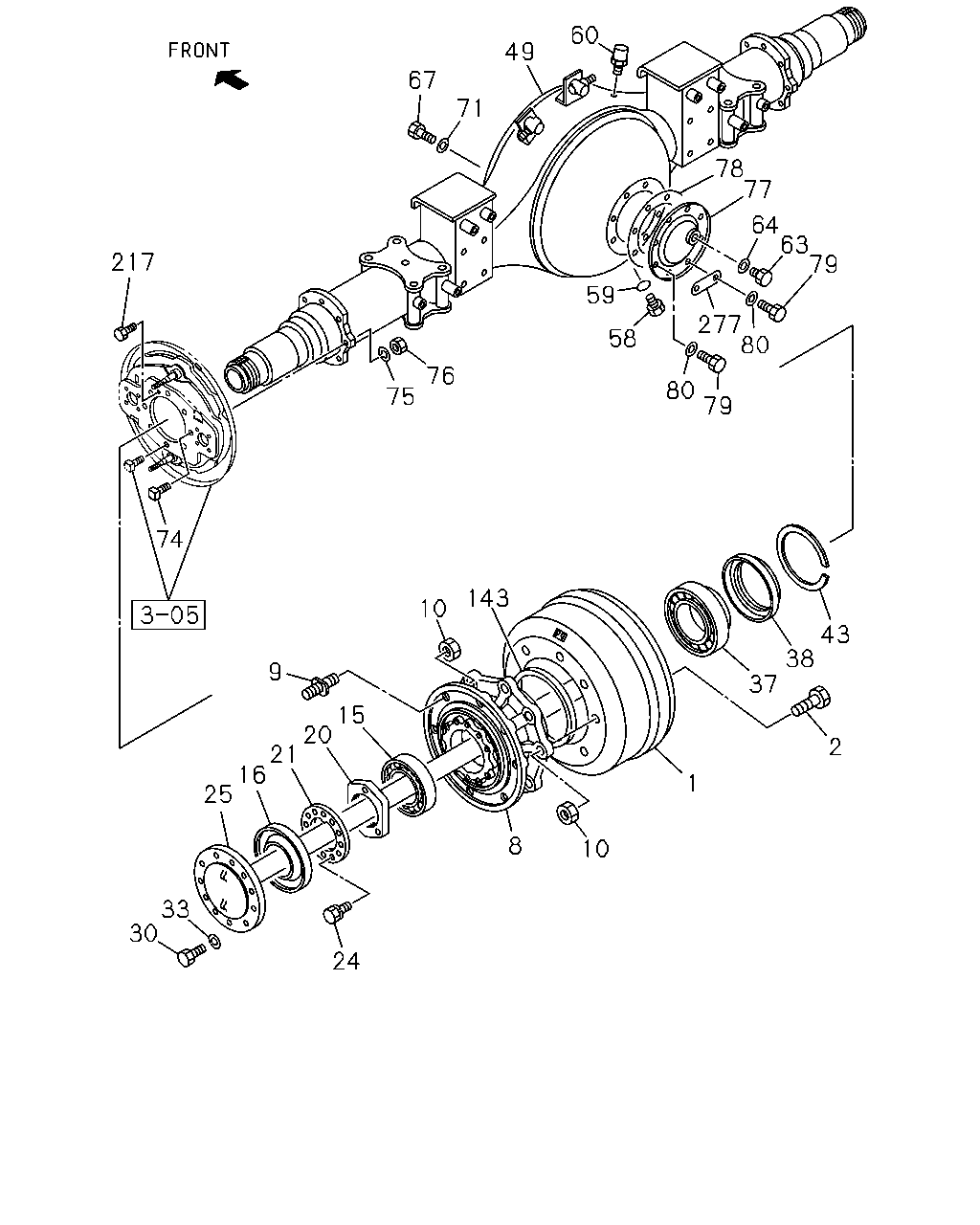

1 |
DRUM; BRK,RR
|
1-42315-362-1 |
02 |
1 |
0112- |
| |
2 |
BOLT; BRK DRUM
M22X54
|
1-09000-275-1 |
16 |
1 |
0112- |
| |
8 |
HUB; RR AXLE
|
1-42311-124-0 |
02 |
1 |
0112- |
| |
9 |
PIN; WHEEL,RR AXLE
M24X37.5 LH THREAD,M22X33.5 RH THREAD
|
1-42332-142-1 |
08 |
1 |
0112- |
| |
9 |
PIN; WHEEL,RR AXLE
M24X37.5,M22X33.5 RH THREAD
|
1-42331-142-1 |
08 |
1 |
0112- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-037-0 |
32 |
1 |
0112- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-044-0 |
02 |
1 |
0112-1002 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
1003- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NACHI
|
1-09812-053-0 |
02 |
1 |
0112-1002 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-161-0 |
02 |
1 |
0112-1002 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
1003- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
0112- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
9-09924-470-0 |
02 |
1 |
0112-0509 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
JTEKT
|
9-09924-499-0 |
02 |
1 |
0112-0509 |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
0112- |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
0112- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
MAL
|
0-28680-616-0 |
06 |
1 |
0112-0512 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
MAL
|
0-28650-616-0 |
06 |
1 |
0601- |
| |
25 |
SHAFT; AXLE,RR
|
1-42171-555-0 |
01 |
1 |
0112- |
| |
25 |
SHAFT; AXLE,RR
|
1-42171-556-0 |
01 |
1 |
0112- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M12X45
|
9-09804-239-1 |
20 |
1 |
0112- |
| |
33 |
WASHER; AXLE SHAFT
ID=12.2
|
9-09150-812-0 |
20 |
1 |
0112-0603 |
| |
33 |
WASHER; AXLE SHAFT
ID=12.2
MAL
|
0-91510-812-0 |
20 |
1 |
0604- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI ID=80 OD=140 T=35.3
|
1-09812-144-0 |
02 |
1 |
0112-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
1003- |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT ID=80 OD=140 T=35.3
|
1-09812-145-0 |
02 |
1 |
0112-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK ID=80 OD=140 T=35.3
|
1-09812-146-0 |
02 |
1 |
0112-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
1003- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
0112- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
0112- |
| |
49 |
CASE; RR AXLE
|
1-42190-060-0 |
01 |
1 |
0112-0609 |
| |
49 |
CASE; RR AXLE
|
8-98043-086-0 |
01 |
1 |
0610-1110 |
| |
49 |
CASE; RR AXLE
|
8-98201-510-0 |
01 |
1 |
1111- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0112- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0112- |
| |
60 |
BREATHER; RR AXLE CASE
|
9-36122-015-1 |
01 |
1 |
0112- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0112- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0112- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M12X105
|
8-97029-869-0 |
02 |
1 |
0112- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M12X55
|
9-91066-255-0 |
04 |
1 |
0112- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M12X35
|
9-92061-235-0 |
06 |
1 |
0112-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M12X35
MAL
|
0-20951-235-0 |
06 |
1 |
0601- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
|
9-09150-812-0 |
12 |
1 |
0112-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
MAL
|
0-91510-812-0 |
12 |
1 |
0604- |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X56
|
1-09060-004-0 |
04 |
1 |
0112- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
0112-0603 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
MAL
|
0-91510-814-0 |
16 |
1 |
0604- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
0112-0512 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
MAL
|
0-91110-514-0 |
16 |
1 |
0601- |
| |
77 |
COVER; RR AXLE CASE
|
9-42141-059-0 |
01 |
1 |
0112-1110 |
| |
78 |
GASKET; COVER TO RR AXLE CASE
|
9-42142-026-2 |
01 |
1 |
0112-1110 |
| |
79 |
BOLT; COVER TO CASE
M10X16
|
9-09800-874-0 |
08 |
1 |
0112-1110 |
| |
80 |
GASKET; BOLT,COVER
ID=10.2 OD=19
|
9-09572-010-0 |
08 |
1 |
0112-1110 |
| |
143 |
RING; EXCITER
|
1-42319-127-1 |
02 |
1 |
0112-0212 |
| |
143 |
RING; EXCITER
|
1-42319-198-0 |
02 |
1 |
0301- |
| |
217 |
BOLT; RR BRK
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0112-0512 |
| |
217 |
BOLT; RR BRK
M8X12 FLANGE
|
0-28050-812-0 |
02 |
1 |
0601- |
| |
277 |
PLATE
|
9-83996-444-1 |
01 |
1 |
0112-1110 |
