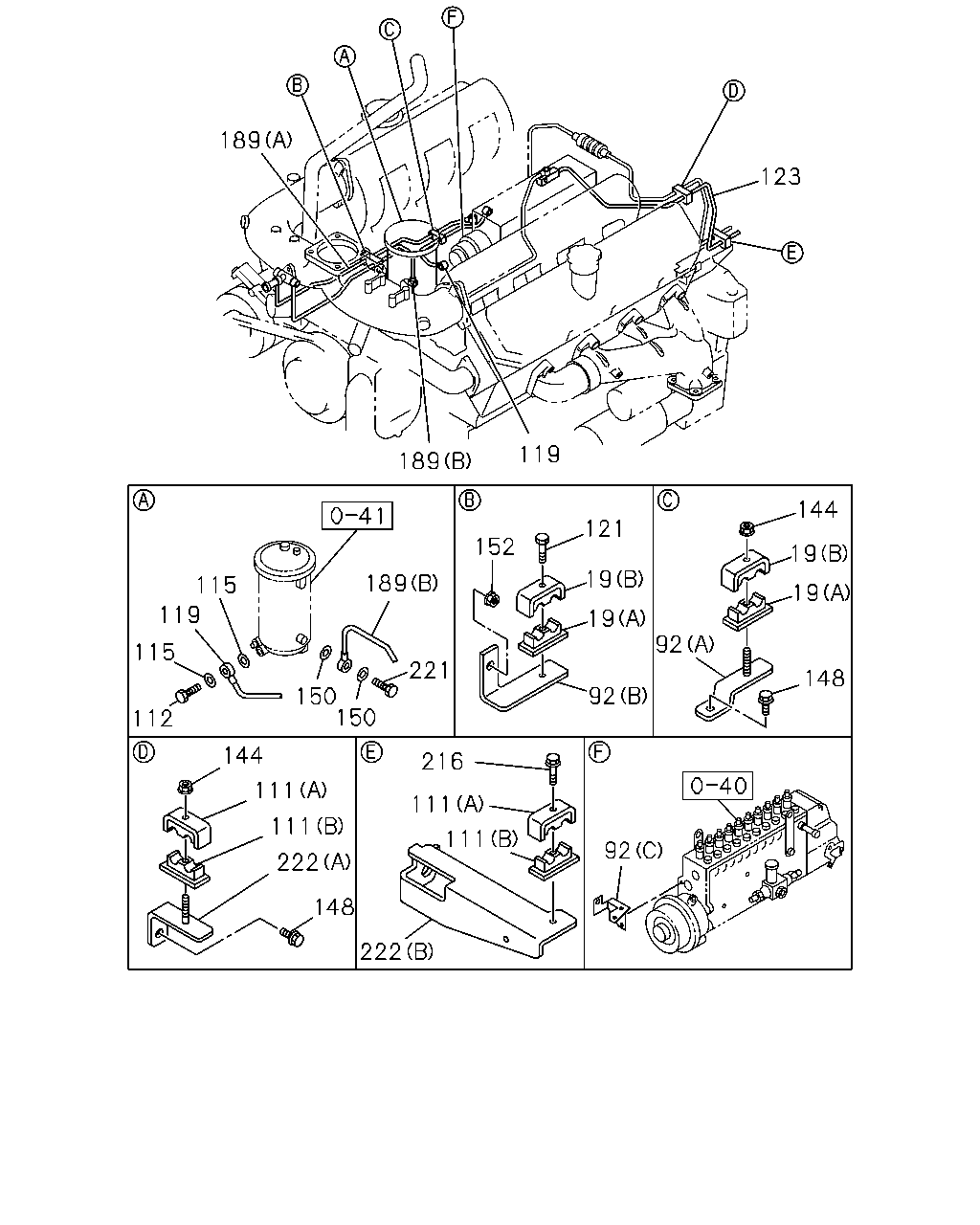

0-42 — FUEL PUMP AND PIPE (#6484) — 23 parça

189 123 119 189 144 121 152 19 19 189 115 19 119 19 92 115 221 148 92 150 150 112 144 216 111 111 111 111 92 222 148 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	CLIP; FUEL PIPE (A)	1-09701-180-0	02	1	9705-
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	02	1	9705-
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9705-9910
92	BRACKET; FUEL PIPE	1-15419-622-0	01	1	9911-
92	BRACKET; FUEL PIPE (B)	1-15419-393-0	01	1	9705-
92	BRACKET; FUEL PIPE (C)	1-15419-458-0	01	1	9705-
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9705-
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9705-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9705-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9705-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-872-0	01	1	9705-
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	03	1	9705-
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-660-1	01	1	9705-
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9705-
148	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	04	1	9705-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9705-
152	NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	9705-
189	PIPE ASM; FUEL,FEED PUMP (A)	1-15415-668-0	01	1	9705-
189	PIPE ASM; FUEL,FEED PUMP (B)	1-15415-716-0	01	1	9705-
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9705-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9705-
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9705-
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9705-
