◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#64836) — 205 parça

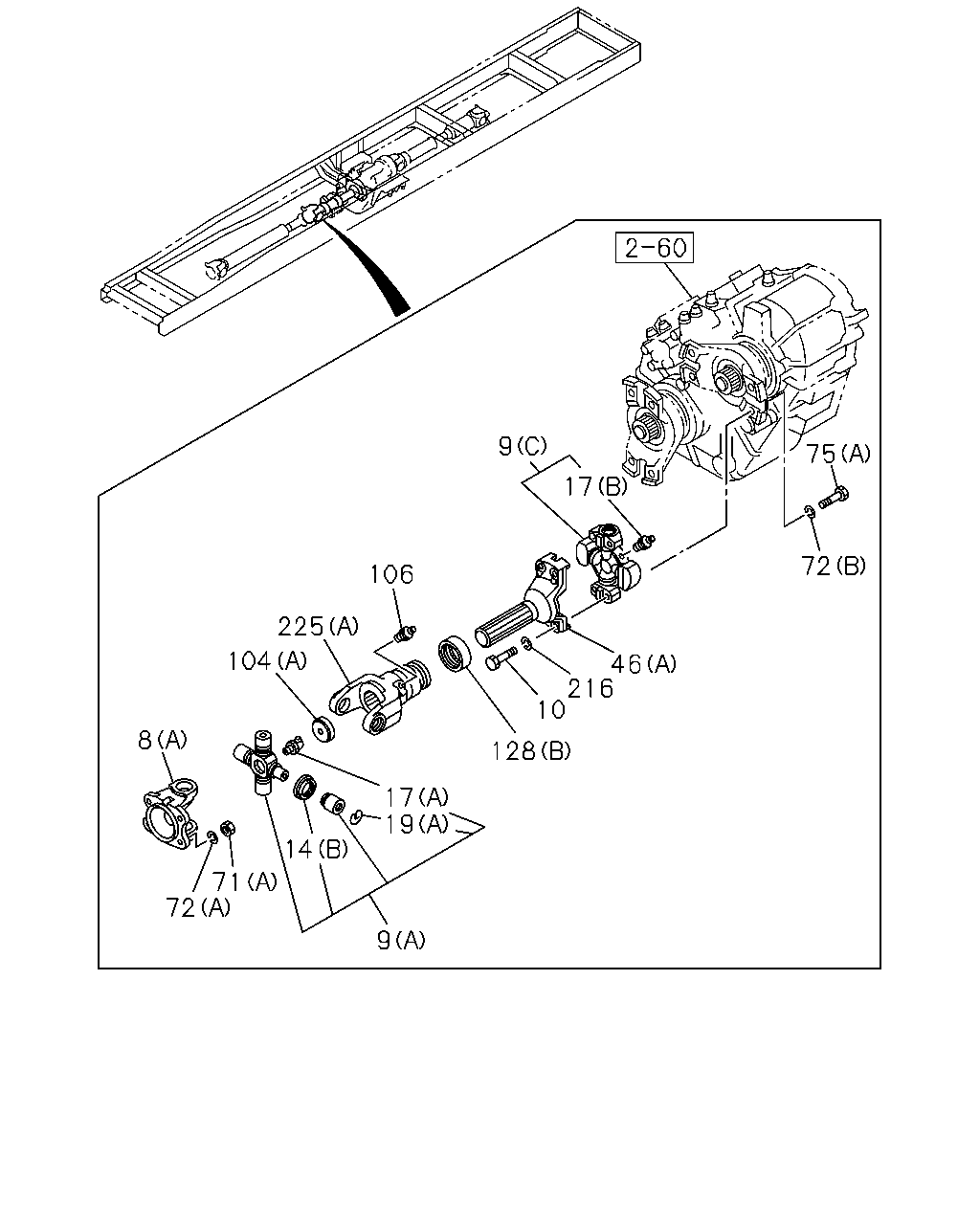

çizim 122418
9 75 17 72 106 225 104 46 216 10 8 128 17 19 14 71 72 9
BalonParca AdiParca NoAdetTipApplied Date
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 03 1 0112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-106-1 01 1 0112-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0112-1106
10 BOLT; UJT
UNF7/16X27 		9-09820-144-0 08 1 0112-
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 08 1 0112-1106
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 12 1 0112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 12 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 05 1 0112-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		9-09928-049-0 02 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) L=195 		1-37243-200-0 01 1 0112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-115-0 01 1 0112-
71 NUT; YOKE
(B) M12 		9-99110-512-0 04 1 0112-0512
71 NUT; YOKE
(B) M12 MAL 		0-91110-512-0 04 1 0601-
71 NUT; YOKE
(A) M14 		9-99110-514-0 08 1 0112-0512
71 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 0601-
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		9-09150-612-0 08 1 0112-0603
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		9-09150-614-0 08 1 0112-0603
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		0-91510-614-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=11.4 		9-09850-072-0 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(C) M14X37 		1-09000-121-0 04 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(A) UNF7/16X27 		9-09820-144-0 08 1 0112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-014-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-033-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 02 1 0112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0112-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
128 SEAL; SLEEVE
(A) 		1-37247-001-1 01 1 0112-
128 SEAL; SLEEVE
(B) 		1-37247-002-1 02 1 0112-
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0112-
216 WASHER; LK,UJT
ID=11.4 		9-09850-072-0 08 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=174 		1-37241-115-1 01 1 0112-

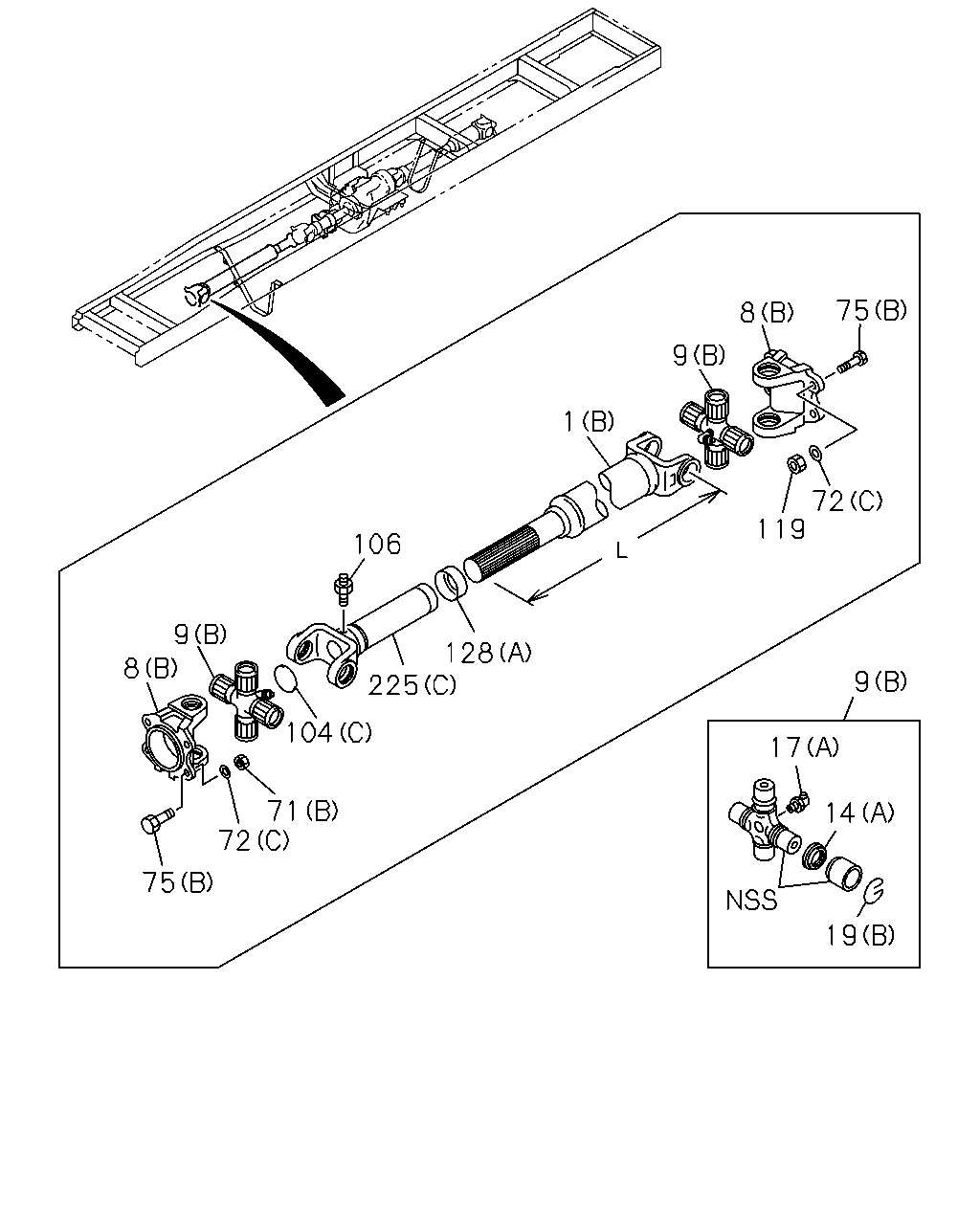

çizim 122635
75 8 9 1 72 119 106 9 8 128 225 9 104 17 71 72 14 75 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=756 		1-37123-512-1 01 1 0112-
1 SHAFT; PROP
(B) L=967 		1-37124-006-1 01 1 0112-
1 SHAFT; PROP
(A) L=410 		1-37152-765-0 01 1 0112-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 03 1 0112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-106-1 01 1 0112-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0112-1106
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 08 1 0112-1106
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 12 1 0112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 12 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 05 1 0112-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		9-09928-049-0 02 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0112-
71 NUT; YOKE
(B) M12 		9-99110-512-0 04 1 0112-0512
71 NUT; YOKE
(B) M12 MAL 		0-91110-512-0 04 1 0601-
71 NUT; YOKE
(A) M14 		9-99110-514-0 08 1 0112-0512
71 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 0601-
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		9-09150-612-0 08 1 0112-0603
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		9-09150-614-0 08 1 0112-0603
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		0-91510-614-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=11.4 		9-09850-072-0 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(C) M14X37 		1-09000-121-0 04 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(A) UNF7/16X27 		9-09820-144-0 08 1 0112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-014-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-033-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 02 1 0112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0112-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
119 NUT; PROP SHAFT
M12 		9-99110-512-0 04 1 0112-0512
119 NUT; PROP SHAFT
M12 MAL 		0-91110-512-0 04 1 0601-
128 SEAL; SLEEVE
(A) 		1-37247-001-1 01 1 0112-
128 SEAL; SLEEVE
(B) 		1-37247-002-1 02 1 0112-
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=174 		1-37241-115-1 01 1 0112-

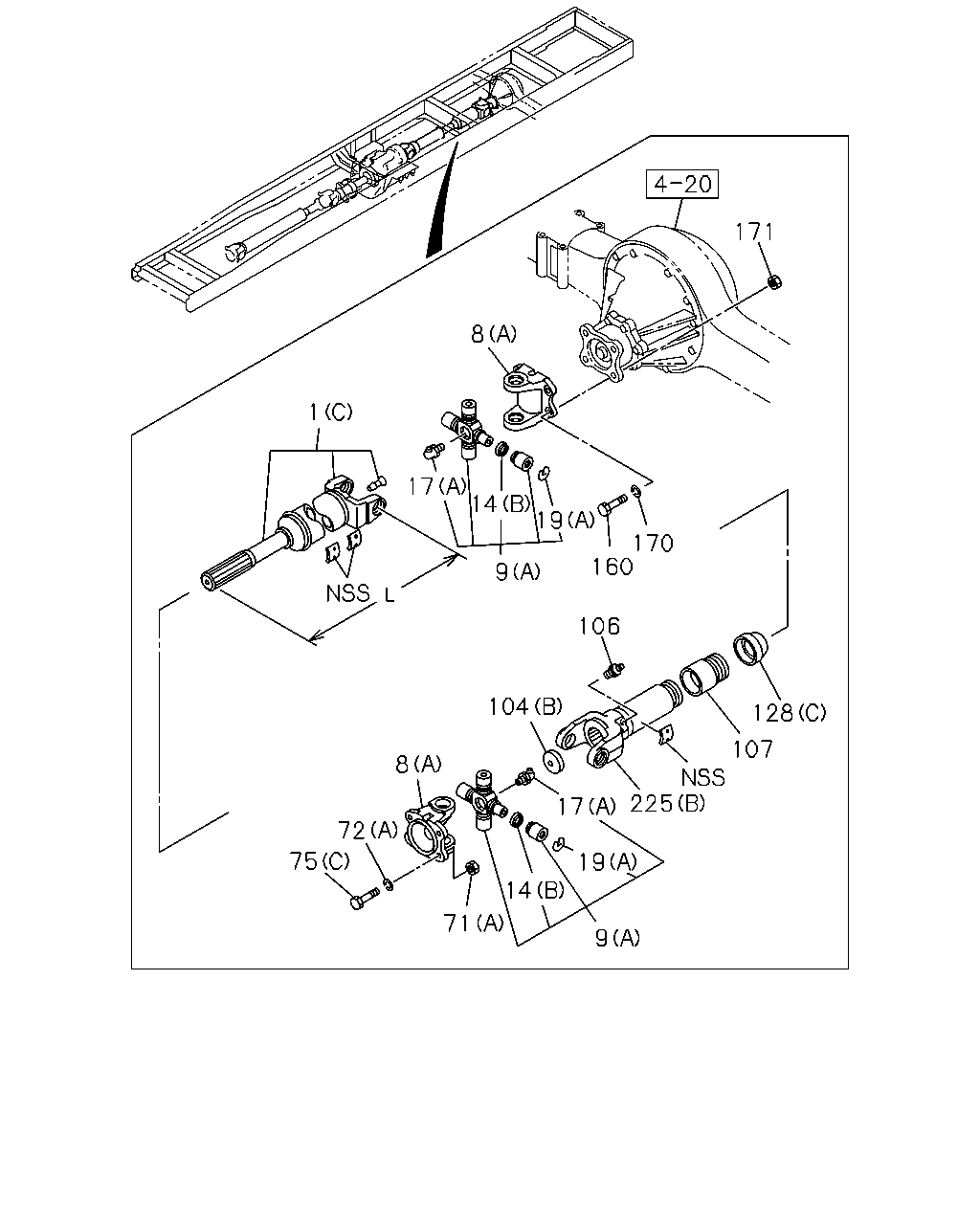

çizim 122669
171 8 1 17 14 19 170 160 9 106 104 128 107 225 8 17 72 75 19 14 71 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=756 		1-37123-512-1 01 1 0112-
1 SHAFT; PROP
(B) L=967 		1-37124-006-1 01 1 0112-
1 SHAFT; PROP
(A) L=410 		1-37152-765-0 01 1 0112-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 03 1 0112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-106-1 01 1 0112-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0112-1106
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 08 1 0112-1106
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 12 1 0112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-800-0 12 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 05 1 0112-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		9-09928-049-0 02 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0112-
71 NUT; YOKE
(B) M12 		9-99110-512-0 04 1 0112-0512
71 NUT; YOKE
(B) M12 MAL 		0-91110-512-0 04 1 0601-
71 NUT; YOKE
(A) M14 		9-99110-514-0 08 1 0112-0512
71 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 0601-
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		9-09150-612-0 08 1 0112-0603
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		9-09150-614-0 08 1 0112-0603
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		0-91510-614-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=11.4 		9-09850-072-0 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(C) M14X37 		1-09000-121-0 04 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(A) UNF7/16X27 		9-09820-144-0 08 1 0112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-014-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-033-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 02 1 0112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0112-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0112-
128 SEAL; SLEEVE
(A) 		1-37247-001-1 01 1 0112-
128 SEAL; SLEEVE
(B) 		1-37247-002-1 02 1 0112-
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0112-
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 0112-
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 MAL 		9-09150-614-0 04 1 0112-0603
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 MAL 		0-91510-614-0 04 1 0604-
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 0112-0512
171 NUT; YOKE,SLEEVE
M14 MAL 		0-91110-514-0 04 1 0601-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=174 		1-37241-115-1 01 1 0112-

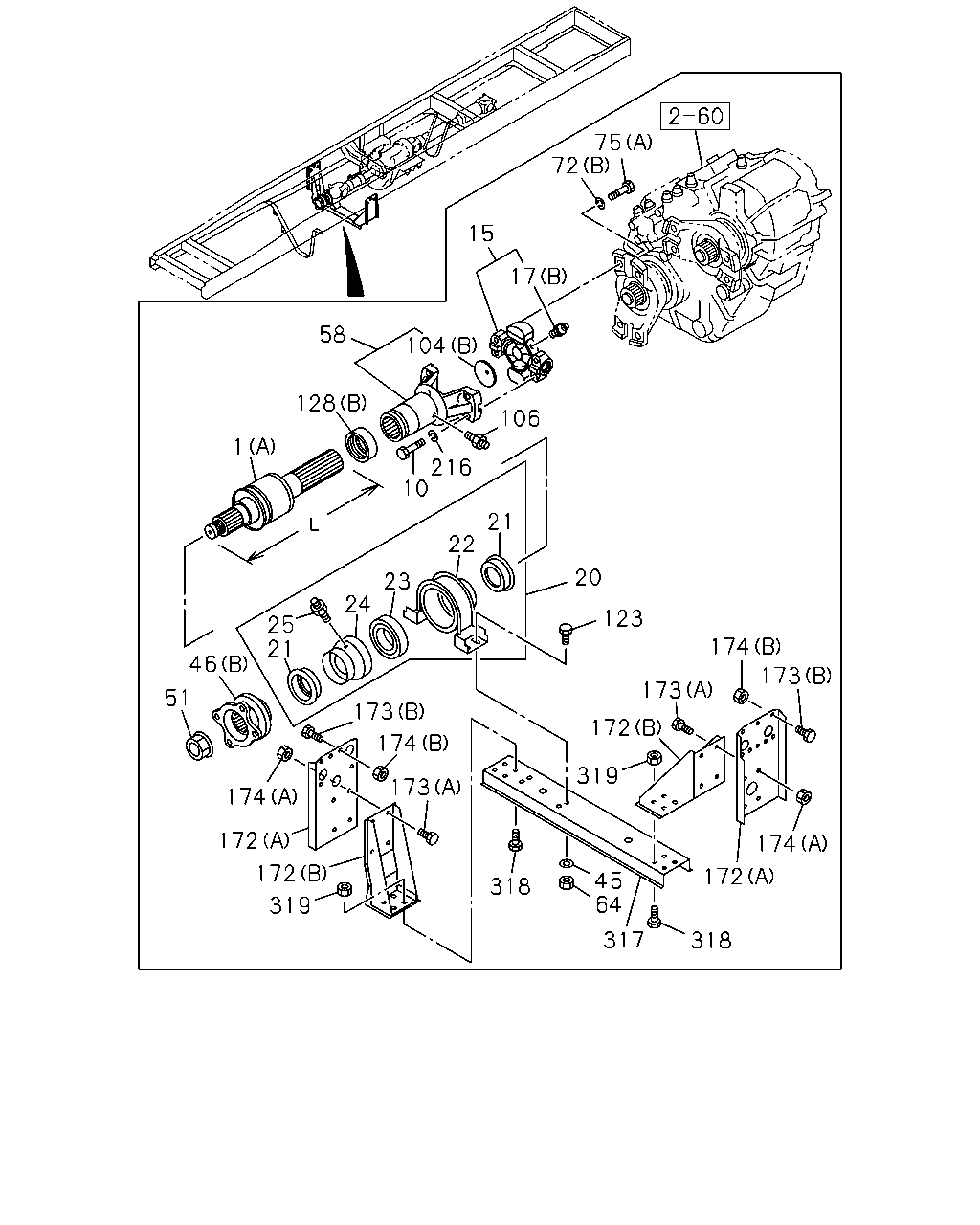

çizim 191282
75 72 15 17 58 104 128 106 1 216 10 21 22 20 23 24 123 25 21 174 46 173 173 51 173 172 174 319 173 174 172 174 172 172 45 64 318 319 317 318
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=756 		1-37123-512-1 01 1 0112-
1 SHAFT; PROP
(B) L=967 		1-37124-006-1 01 1 0112-
1 SHAFT; PROP
(A) L=410 		1-37152-765-0 01 1 0112-
10 BOLT; UJT
UNF7/16X27 		9-09820-144-0 08 1 0112-
15 UNIVERSAL CENTER 1-37300-106-1 01 1 0112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 05 1 0112-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		9-09928-049-0 02 1 0112-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0112-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0112-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0112-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0112-
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0112-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0112-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0112-0605
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) L=195 		1-37243-200-0 01 1 0112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-115-0 01 1 0112-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0112-
58 FLANGE; SPLINED 1-37245-331-0 01 1 0112-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0112-0602
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 0603-
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		9-09150-612-0 08 1 0112-0603
72 WASHER; LK,YOKE
(C) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		9-09150-614-0 08 1 0112-0603
72 WASHER; LK,YOKE
(A) ID=14.2 MAL 		0-91510-614-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=11.4 		9-09850-072-0 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 08 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(C) M14X37 		1-09000-121-0 04 1 0112-
75 BOLT; PROP SHAFT TO TRANS
(A) UNF7/16X27 		9-09820-144-0 08 1 0112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-014-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-033-0 01 1 0112-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-064-0 02 1 0112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0112-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
123 BOLT; RET
M10X35 FLANGE MAL 		0-28681-035-0 04 1 0112-0512
123 BOLT; RET
M10X35 FLANGE MAL 		0-28651-035-0 04 1 0601-
128 SEAL; SLEEVE
(A) 		1-37247-001-1 01 1 0112-
128 SEAL; SLEEVE
(B) 		1-37247-002-1 02 1 0112-
128 SEAL; SLEEVE
(C) 		1-37247-024-0 01 1 0112-
172 BRACKET; CENTER BRG
(B) 		1-37515-168-0 01 1 0112-
172 BRACKET; CENTER BRG
(A) 		1-37515-170-0 01 1 0112-
172 BRACKET; CENTER BRG
(B) 		1-37515-155-0 01 1 0112-
172 BRACKET; CENTER BRG
(A) 		1-37515-169-0 01 1 0112-
173 BOLT; BRKT
(A) M10X25 FLANGE MAL 		0-28681-025-0 08 1 0112-0512
173 BOLT; BRKT
(A) M10X25 FLANGE MAL 		0-28651-025-0 08 1 0601-
173 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 10 1 0112-0512
173 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 10 1 0601-
174 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 0112-0602
174 NUT; BRKT
(A) M10 FLANGE MAL 		0-91180-210-0 08 1 0603-
174 NUT; BRKT
(B) M10 		9-09110-510-0 10 1 0112-0512
174 NUT; BRKT
(B) M10 MAL 		0-91110-510-0 10 1 0601-
216 WASHER; LK,UJT
ID=11.4 		9-09850-072-0 08 1 0112-
317 MEMBER; CENTER BRG 1-37529-116-0 01 1 0112-
318 BOLT; MEMBER
M10X30 FLANGE 		0-28681-030-0 08 1 0112-0512
318 BOLT; MEMBER
M10X30 FLANGE 		0-28651-030-0 08 1 0601-
319 NUT; MEMBER
M10 		9-09110-510-0 08 1 0112-0512
319 NUT; MEMBER
M10 MAL 		0-91110-510-0 08 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
