Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

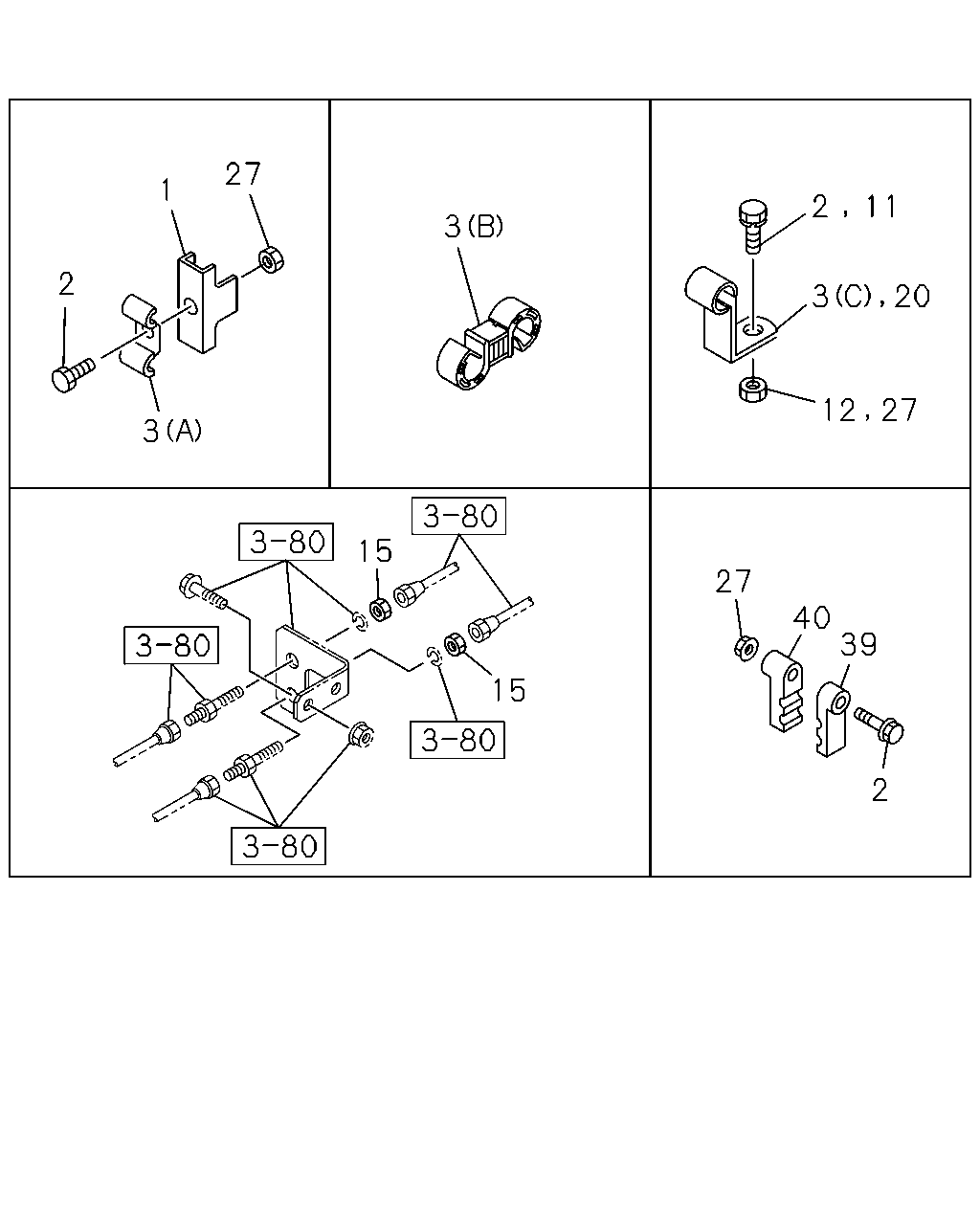

3-83 — FIXING PARTS; TRAILER PIPING
(#64835) — 25 parça
27
1
2
11
3
2
3
15
27
40
39
15
2
3
20
12
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
TRAILER BRAKE CONTROL<J91>
1-47475-427-1
01
1
0112-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X50 FLANGE
0-28080-850-0
03
1
0112-0512
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X50 FLANGE
0-28050-850-0
03
1
0601-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28680-825-0
01
1
0112-0512
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
01
1
0601-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X40 FLANGE
0-28680-840-0
01
1
0112-0512
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X40 FLANGE
0-28650-840-0
01
1
0601-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0112-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=10 & 10
1-09709-277-1
01
1
0112-0407
3
CLIP; AIR PIPE
(B) ID=10 & 10
1-09709-277-1
01
1
0408-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=10 & 10
1-09709-277-1
01
1
0408-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (C) ID=11 H=20 L=20
5-09700-351-0
01
1
0112-0707
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (C) ID=11 H=20 L=20
8-98033-780-0
01
1
0708-
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28680-825-0
02
1
0112-0512
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
12
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91150-108-0
03
1
0112-0602
12
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
03
1
0603-
15
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL
9-99111-416-0
02
1
0112-0512
15
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL
0-91111-516-0
02
1
0601-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=11 H=20 L=20
5-09700-351-0
02
1
0112-0707
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=11 H=20 L=20
8-98033-780-0
02
1
0708-
27
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91150-108-0
04
1
0112-0602
27
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
04
1
0603-
39
CLIP; UPR
TRAILER BRAKE CONTROL<J91> ID=10 & 10 MAL
1-09709-241-0
02
1
0112-
40
CLIP; LWR
TRAILER BRAKE CONTROL<J91> ID=10 & 10 MAL
1-09709-243-0
02
1
0112-
