◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#64833) — 102 parça
çizim 121822
60 24 367 38 75 68 133 382 278 383 382 283 383
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0408-
38 NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE 		0-91150-210-0 02 1 0112-0602
38 NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
60 BOLT; CLIP FIX
M8X45 FLANGE 		0-28080-845-0 01 1 0408-0512
60 BOLT; CLIP FIX
M8X45 FLANGE 		0-28050-845-0 01 1 0601-
68 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28080-870-0 02 1 0112-0512
68 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
75 BOLT; CLIP
M8X50 FLANGE 		0-28080-850-0 03 1 0112-0512
75 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 03 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0112-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
278 NUT; CLIP,AIR PIPE
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0112-0602
283 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 0603-
367 BRACKET ASM 1-47475-427-1 01 1 0408-
382 CLIP; UPR
ID=10 & 10 MAL 		1-09709-241-0 08 1 0112-
382 CLIP; UPR
ID=10 & 10 MAL 		1-09709-241-0 01 1 0112-
383 CLIP; LWR
(A) ID=10 & 10 MAL 		1-09709-241-0 05 1 0112-
383 CLIP; LWR
(B) ID=6 & 6 		1-09709-244-0 01 1 0112-
383 CLIP; LWR
(B) ID=6 & 6 		1-09709-244-0 03 1 0112-

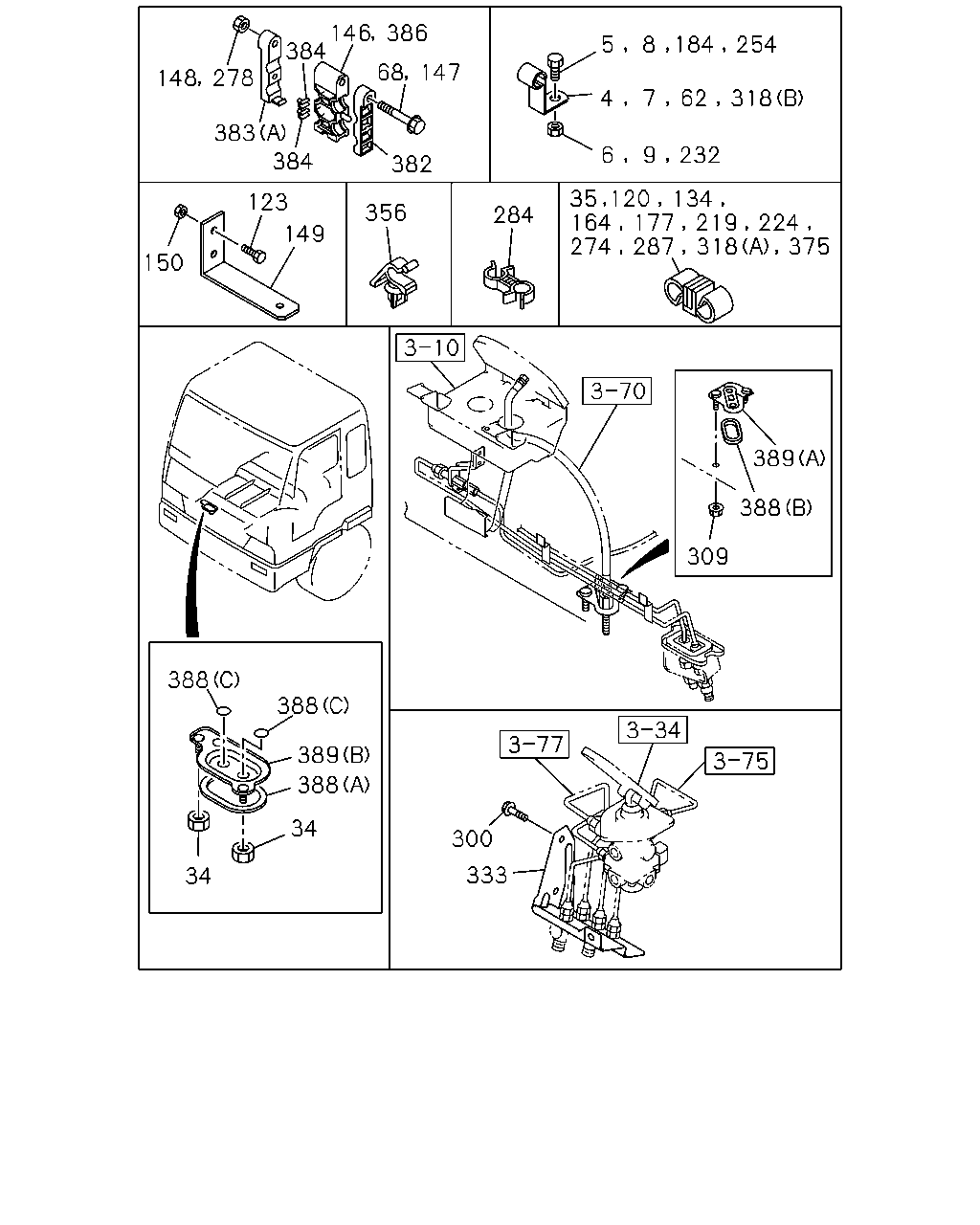

çizim 191277
146 384 386 5 8 68 147 148 278 62 318 7 4 383 9 232 6 384 382 123 356 284 149 150 389 388 309 388 388 389 388 34 300 333 34 184 254 35 120 134 164 177 219 224 274 287 318 375
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0112-
4 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0112-
5 BOLT; PIPE CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 0112-0512
5 BOLT; PIPE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 0601-
5 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28680-825-0 01 1 0112-0512
5 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28680-825-0 01 1 0112-0512
5 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
5 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0112-0602
6 NUT; PIPE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
6 NUT; PIPE CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
7 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0112-
8 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28680-825-0 01 1 0112-0512
8 BOLT; PIPE CLIP
M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
9 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0112-0602
9 NUT; PIPE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
34 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE MAL 		1-09985-340-0 02 1 0112-
35 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 03 1 0408-
62 CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=11 H=20 L=20 		5-09700-351-0 05 1 0112-0707
62 CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=11 H=20 L=20 		8-98033-780-0 05 1 0708-
68 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28080-870-0 02 1 0112-0512
68 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
120 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 0408-
123 BOLT; PIPE CLIP
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
123 BOLT; PIPE CLIP
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
134 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 02 1 0408-
134 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 0408-
146 CLIP; AIR PIPE
ID=10 MAL 		1-09709-242-0 01 1 0112-
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28080-870-0 03 1 0112-0512
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 03 1 0601-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0112-0602
148 NUT; PIPE CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 0603-
149 BRACKET; PIPE CLIP 1-47476-792-0 01 1 0112-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
150 NUT; CLIP BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
164 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0112-
164 CLIP; AIR PIPE
ID=10 & 15 		1-09709-279-1 01 1 0112-0407
177 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 0112-
177 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 02 1 0112-0407
177 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 03 1 0408-
184 BOLT; PIPE CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL 		0-28680-825-0 05 1 0112-0512
184 BOLT; PIPE CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL 		0-28650-825-0 05 1 0601-
219 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 0408-
219 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0408-
224 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 0112-
224 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 0112-0407
232 NUT; PIPE CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE 		0-91150-108-0 05 1 0112-0602
232 NUT; PIPE CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL 		0-91180-108-0 05 1 0603-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 02 1 0112-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 02 1 0205-0205
274 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 0112-
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
278 NUT; CLIP,AIR PIPE
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 0112-
287 CLIP; AIR PIPE
ID=6.35 & 12 		1-09709-275-1 01 1 0408-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 02 1 0206-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 02 1 0905-
309 NUT; BRKT FIX
M8 CUTTING NUT W/FLANGE MAL 		1-09985-340-0 02 1 0112-
318 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0112-
318 CLIP; AIR PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0112-0407
318 CLIP; AIR PIPE
(A) ID=6.35 & 12 		1-09709-275-1 01 1 0112-0407
318 CLIP; AIR PIPE
(A) ID=6.35 & 15 		1-09709-276-1 01 1 0112-0407
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 0112-
356 CLIP; AIR PIPE
ID=4.8 MAL 		8-94128-483-0 01 1 0112-
375 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 0408-
375 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0408-
382 CLIP; UPR
ID=10 & 10 MAL 		1-09709-241-0 08 1 0112-
382 CLIP; UPR
ID=10 & 10 MAL 		1-09709-241-0 01 1 0112-
383 CLIP; LWR
(A) ID=10 & 10 MAL 		1-09709-241-0 05 1 0112-
383 CLIP; LWR
(B) ID=6 & 6 		1-09709-244-0 01 1 0112-
383 CLIP; LWR
(B) ID=6 & 6 		1-09709-244-0 03 1 0112-
384 COLLAR
ID=6 MAL 		1-47459-010-0 04 1 0112-
386 CLIP; CENTER
ID=10 MAL 		1-09709-242-0 05 1 0112-
388 SEAL
(C) OD=25 BLACK MAL 		1-76798-019-0 02 1 0112-
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0112-
388 SEAL
(B) 		1-79738-826-0 01 1 0112-
389 BRACKET; UNION
(B) 		1-79738-796-2 01 1 0112-
389 BRACKET; UNION
(A) 		1-79738-827-1 01 1 0112-
