Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#64832) — 54 parça
◀
[377A] AIR TANK SIDE '04/8- (18 parça)
[377A] FRAME SIDE (17 parça)
[377A] AIR TANK SIDE -'04/7 (16 parça)
[377A] DIFF LOCK PIPE AND HOSE BRACKET (3 parça)
▶

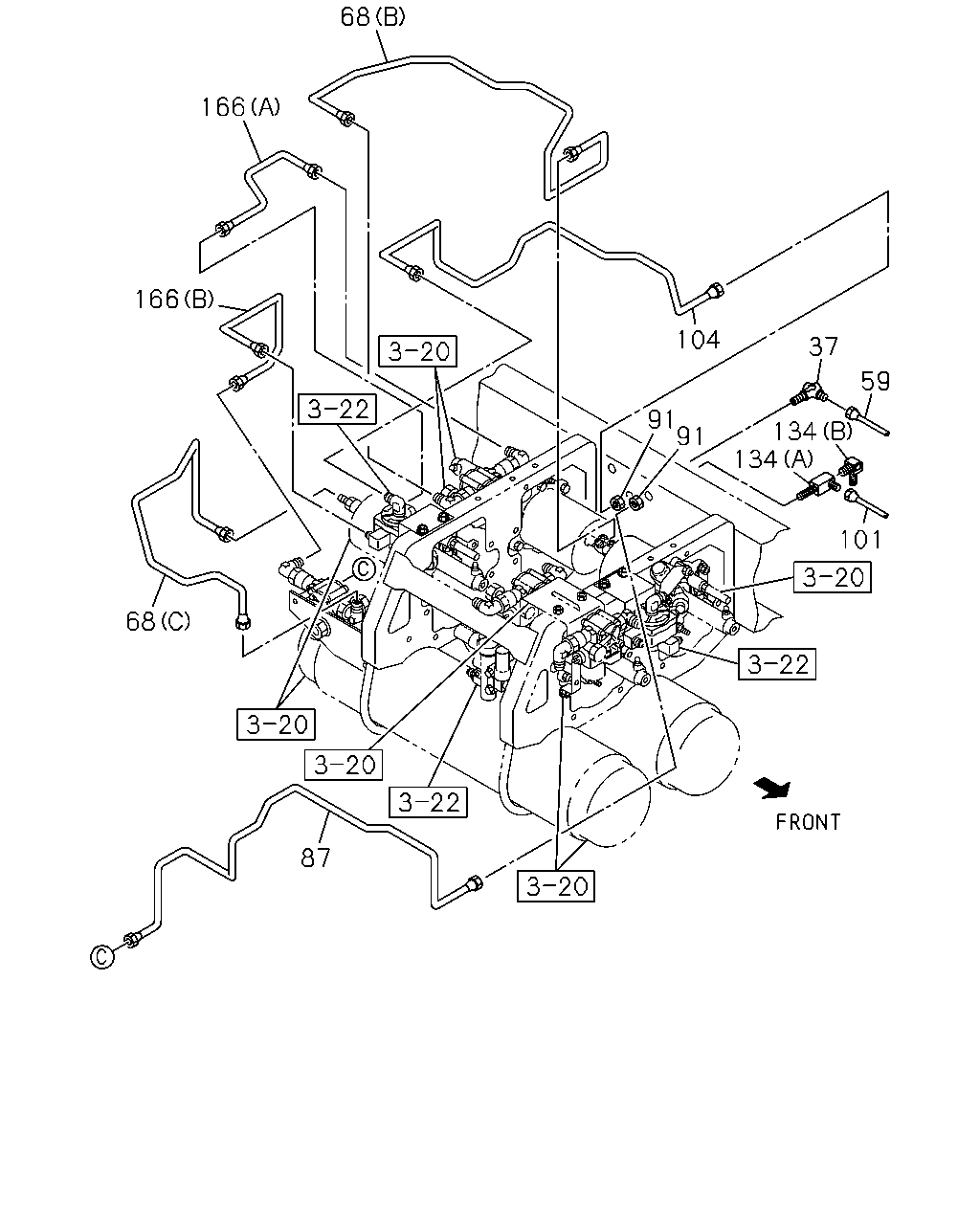

68
166
166
104
37
59
91
91
134
134
101
68
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
0112-0607
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3328 SERVICED BY L=3300
1-47428-801-0
01
1
0112-0407
59
PIPE; AIR,UNION TO FLEX HOSE
L=3362 SERVICED BY L=3500
1-47428-802-0
01
1
0408-
68
PIPE; AIR,MODULATOR TO UNION
(B)
1-49124-398-0
01
1
0408-
68
PIPE; AIR,MODULATOR TO UNION
(A) L=247
1-49118-906-0
01
1
0112-0407
68
PIPE; AIR,MODULATOR TO UNION
(C)
1-49124-397-0
01
1
0408-
87
PIPE; AIR,AIR TANK TO UNION
1-49121-809-0
01
1
0112-0407
87
PIPE; AIR,AIR TANK TO UNION
L=1034 SERVICED BY L=1100
1-47428-790-0
01
1
0408-
91
NUT; PIPE UNION
M16 MAL
9-99111-416-0
02
1
0112-0512
91
NUT; PIPE UNION
M16 MAL
0-91111-516-0
02
1
0601-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3086 SERVICED BY L=3300
1-47428-801-0
01
1
0112-
104
PIPE; AIR,UNION TO UNION
L=1015 SERVICED BY L=1100
1-47428-790-0
01
1
0408-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (A)
1-09656-561-1
01
1
0112-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
0112-0607
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 ELBOW MAL
0-92134-310-0
01
1
0608-
166
PIPE; AIR,RELAY VALVE TO UNION
(A) L=289
1-49124-395-0
01
1
0408-
166
PIPE; AIR,RELAY VALVE TO UNION
(B) L=431
1-49124-396-0
01
1
0408-

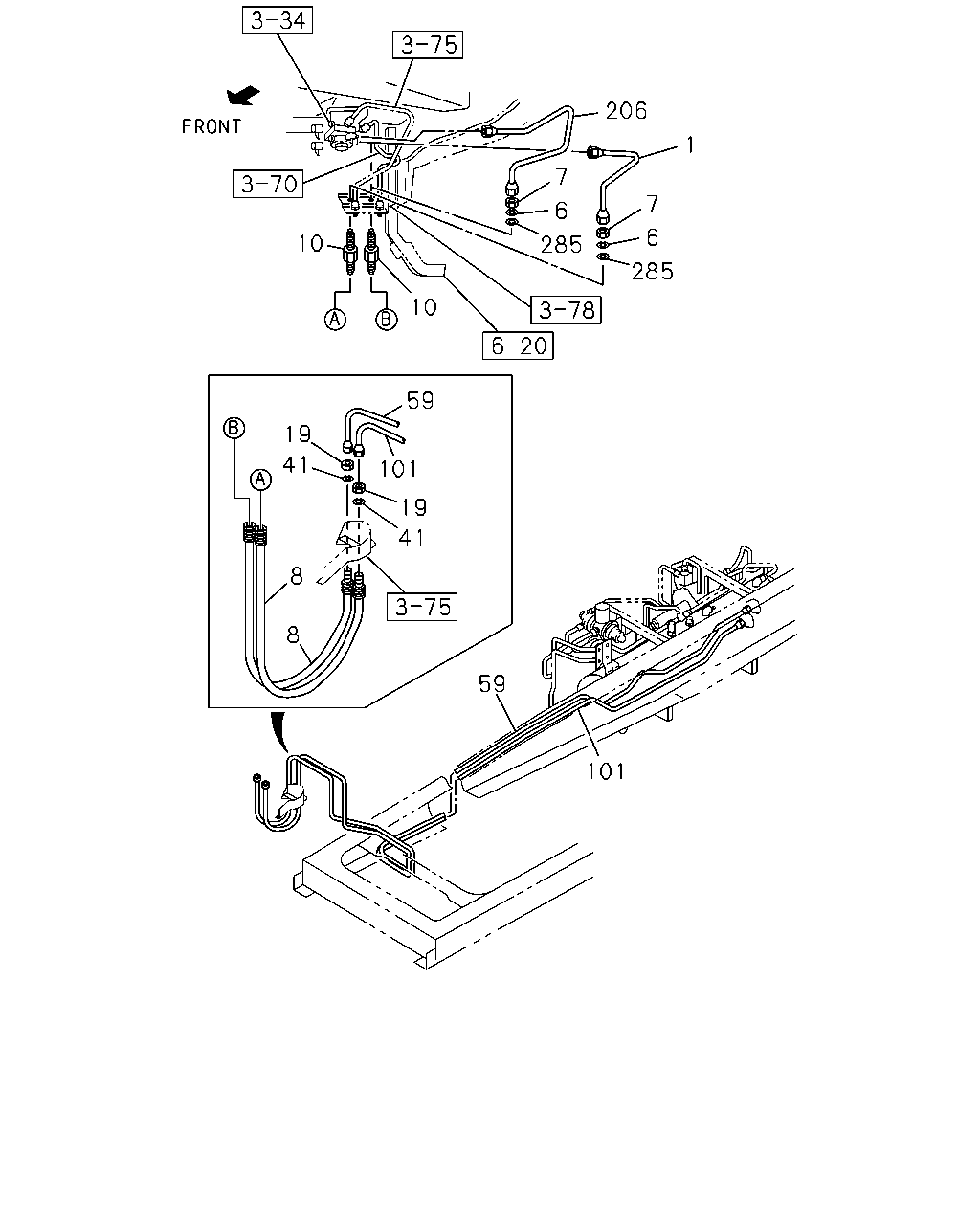

206
1
7
7
6
6
10
285
285
10
59
19
41
101
19
41
8
8
59
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0112-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0112-0603
6
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16 MAL
9-99111-416-0
02
1
0112-0512
7
NUT; FLEX HOSE
M16 MAL
0-91111-516-0
02
1
0601-
8
HOSE; FLEX,AIR,CAB SIDE
L=520
1-09363-605-0
02
1
0112-
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
02
1
0112-
19
NUT; PIPE UNION
M16 MAL
9-99111-416-0
02
1
0112-0512
19
NUT; PIPE UNION
M16 MAL
0-91111-516-0
02
1
0601-
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0112-0603
41
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3328 SERVICED BY L=3300
1-47428-801-0
01
1
0112-0407
59
PIPE; AIR,UNION TO FLEX HOSE
L=3362 SERVICED BY L=3500
1-47428-802-0
01
1
0408-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3086 SERVICED BY L=3300
1-47428-801-0
01
1
0112-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0112-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
0112-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-

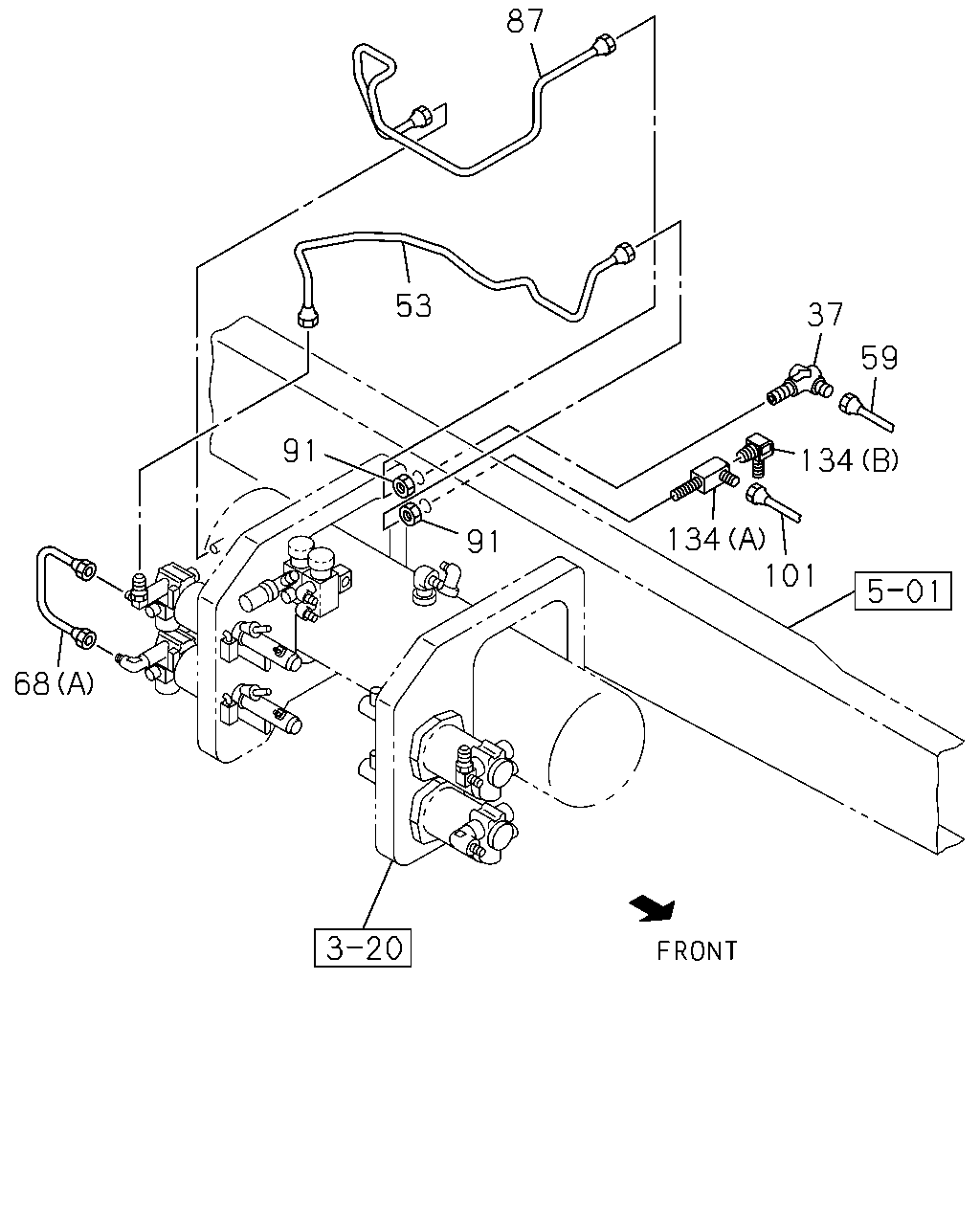

87
53
37
59
91
134
134
101
91
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
01
1
0112-0607
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0608-
53
PIPE; AIR,UNION TO MODULATOR
1-49121-810-0
01
1
0112-0407
59
PIPE; AIR,UNION TO FLEX HOSE
L=3328 SERVICED BY L=3300
1-47428-801-0
01
1
0112-0407
59
PIPE; AIR,UNION TO FLEX HOSE
L=3362 SERVICED BY L=3500
1-47428-802-0
01
1
0408-
68
PIPE; AIR,MODULATOR TO UNION
(B)
1-49124-398-0
01
1
0408-
68
PIPE; AIR,MODULATOR TO UNION
(A) L=247
1-49118-906-0
01
1
0112-0407
68
PIPE; AIR,MODULATOR TO UNION
(C)
1-49124-397-0
01
1
0408-
87
PIPE; AIR,AIR TANK TO UNION
1-49121-809-0
01
1
0112-0407
87
PIPE; AIR,AIR TANK TO UNION
L=1034 SERVICED BY L=1100
1-47428-790-0
01
1
0408-
91
NUT; PIPE UNION
M16 MAL
9-99111-416-0
02
1
0112-0512
91
NUT; PIPE UNION
M16 MAL
0-91111-516-0
02
1
0601-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3086 SERVICED BY L=3300
1-47428-801-0
01
1
0112-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (A)
1-09656-561-1
01
1
0112-
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
0112-0607
134
CONNECTOR
TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 ELBOW MAL
0-92134-310-0
01
1
0608-
159
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
159
PIPE; AIR,UNION TO FLEX HOSE
L=1406 SERVICED BY L=1500
1-47428-819-0
01
1
0112-
163
BRACKET; FLEX HOSE
1-47476-240-0
01
1
0112-
163
BRACKET; FLEX HOSE
1-47476-239-0
01
1
0112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
