3-75 — BRAKE PIPING; AIR,FRONT (#64831) — 99 parça

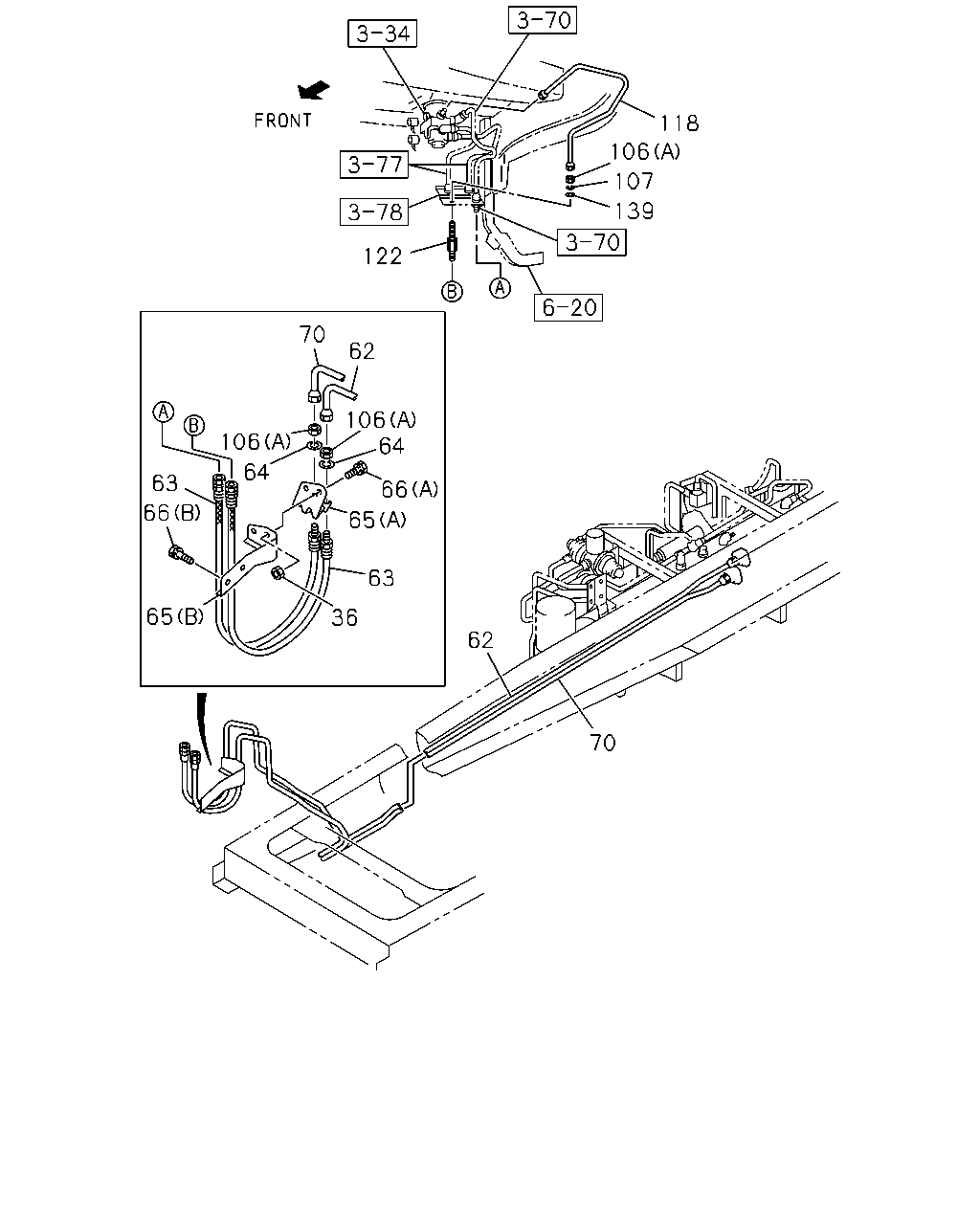

çizim 121258
118 106 107 139 122 70 62 106 64 106 64 63 66 66 65 63 65 36 62 70
BalonParca AdiParca NoAdetTipApplied Date
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
36 NUT; HOSE BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
36 NUT; HOSE BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
62 PIPE; AIR,UNION TO FLEX HOSE
L=2722 SERVICED BY L=2900 		1-47428-800-0 01 1 0112-
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 0112-
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0112-0603
64 WASHER; LK,FLEX HOSE
ID=16.2 MAL 		0-91510-516-0 02 1 0604-
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 0112-
65 BRACKET; FLEX HOSE
(B) 		1-47476-762-0 01 1 0112-
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601-
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
(C) M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(C) M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0112-0407
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0408-
106 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 0112-
106 NUT; FLEX HOSE
(A) M16 MAL 		9-99111-416-0 02 1 0112-0512
106 NUT; FLEX HOSE
(A) M16 MAL 		9-99111-416-0 02 1 0112-0512
106 NUT; FLEX HOSE
(A) M16 MAL 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
(A) M16 MAL 		0-91111-516-0 02 1 0601-
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0112-0603
107 WASHER; LK,FLEX HOSE
ID=16.2 MAL 		0-91510-516-0 02 1 0604-
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 0112-
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 0112-
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0112-0605
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-

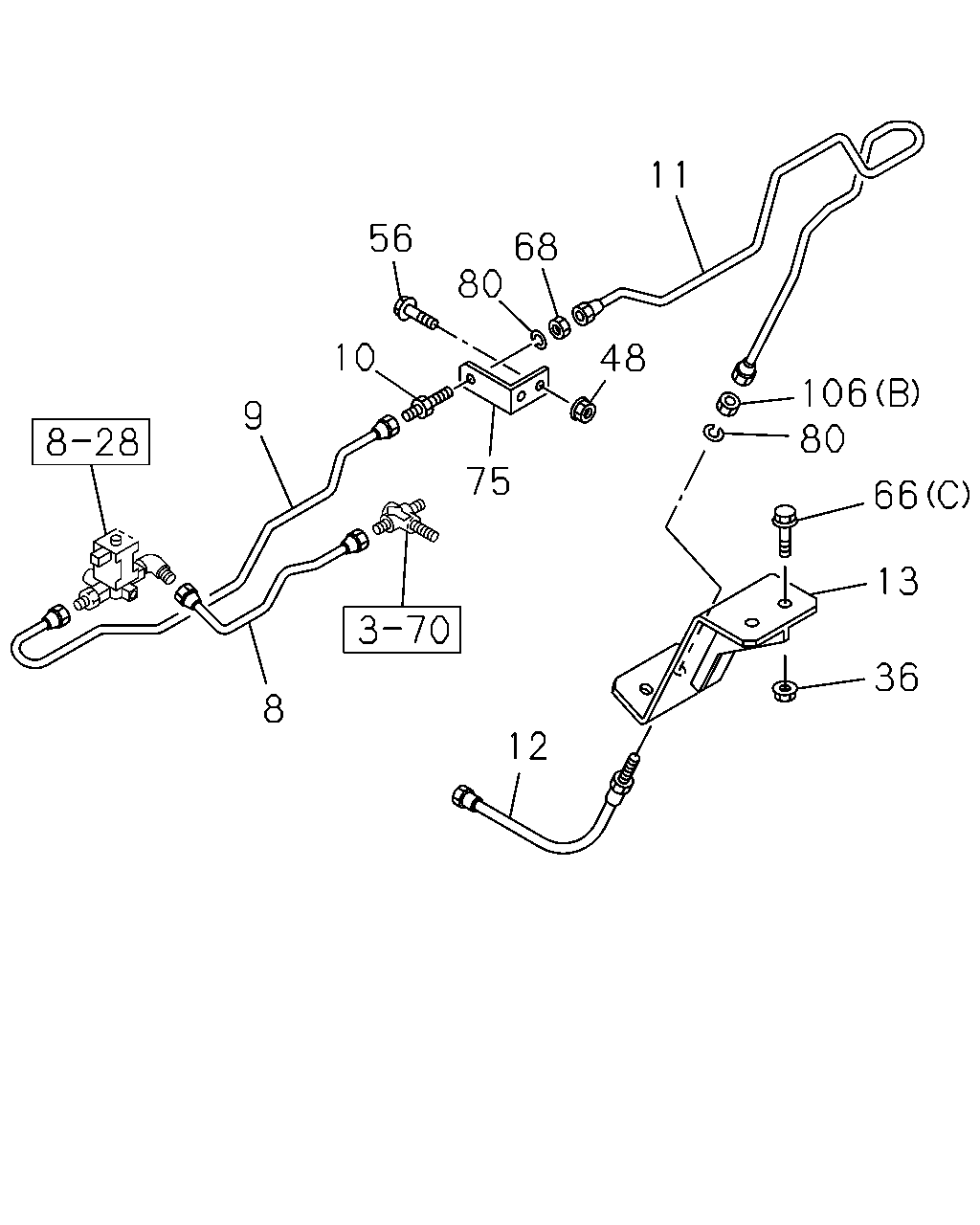

çizim 122239
11 56 68 80 10 48 106 80 9 75 66 13 36 8 12
BalonParca AdiParca NoAdetTipApplied Date
8 PIPE; AIR,UNION TO MAG VLV 1-49122-143-0 01 1 0112-
9 PIPE; AIR,MAG VLV TO UNION 1-49122-144-0 01 1 0112-
10 UNION; AIR PIPE
M12 L=56.5 		9-09223-106-1 01 1 0112-0607
10 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0608-
11 PIPE; AIR,UNION TO FLEX HOSE,DIFF LOCK
L=1166 SERVICED BY L=1200 		1-47428-816-0 01 1 0112-
12 HOSE; FLEX,DIFF LOCK
L=470 		1-09363-682-0 01 1 0112-
13 BRACKET; FLEX HOSE,DIFF LOCK 1-47477-897-0 01 1 0112-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
36 NUT; HOSE BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
36 NUT; HOSE BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
48 NUT; UNION BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
56 BOLT; UNION BRKT
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
56 BOLT; UNION BRKT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601-
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
66 BOLT; HOSE BRKT
(C) M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
66 BOLT; HOSE BRKT
(C) M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
68 NUT; UNION
M12 		9-09840-280-0 01 1 0112-
75 BRACKET; UNION 1-47478-018-0 01 1 0112-
80 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0112-0603
80 WASHER; LK,UNION
ID=12.2 MAL 		0-91510-512-0 02 1 0604-
106 NUT; FLEX HOSE
(B) M12 		9-09840-280-0 01 1 0112-
106 NUT; FLEX HOSE
(A) M16 MAL 		9-99111-416-0 02 1 0112-0512
106 NUT; FLEX HOSE
(A) M16 MAL 		9-99111-416-0 02 1 0112-0512
106 NUT; FLEX HOSE
(A) M16 MAL 		0-91111-516-0 02 1 0601-
106 NUT; FLEX HOSE
(A) M16 MAL 		0-91111-516-0 02 1 0601-

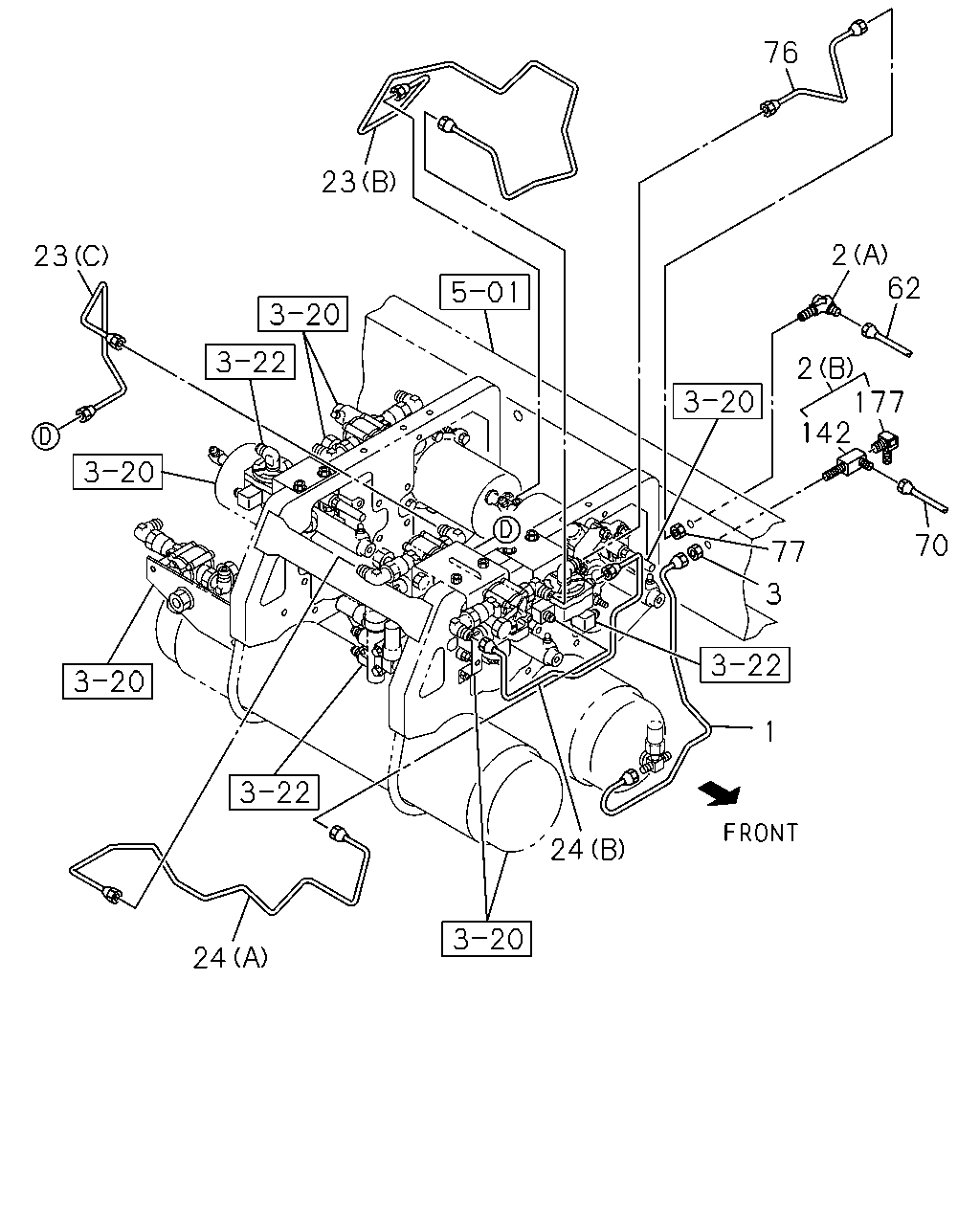

çizim 122279
76 23 2 62 23 2 177 142 70 77 3 1 24 24
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=758 SERVICED BY L=730 		1-47428-871-0 01 1 0112-0407
1 PIPE; AIR,AIR TANK TO UNION
L=787 SERVICED BY L=800 		1-47428-787-0 01 1 0408-
2 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 0112-0607
2 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 0608-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) 		1-09654-377-0 01 1 0112-
3 NUT; PIPE UNION
M16 MAL 		9-99111-416-0 01 1 0112-0512
3 NUT; PIPE UNION
M16 MAL 		0-91111-516-0 01 1 0601-
23 PIPE; AIR,MODULATOR
(B) 		1-49124-392-0 01 1 0408-
23 PIPE; AIR,MODULATOR
(A) L=387 SERVICED BY L=400 		1-47428-864-0 01 1 0112-0407
23 PIPE; AIR,MODULATOR
(C) 		1-49124-391-0 01 1 0408-
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=799 SERVICED BY L=800 		1-47428-787-0 01 1 0408-
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=685 SERVICED BY L=700 		1-47428-785-0 01 1 0408-
62 PIPE; AIR,UNION TO FLEX HOSE
L=2722 SERVICED BY L=2900 		1-47428-800-0 01 1 0112-
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0112-0407
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0408-
76 PIPE; AIR,UNION TO UNION 1-49124-390-0 01 1 0408-
77 NUT; PIPE UNION
M16 MAL 		9-99111-416-0 01 1 0112-0512
77 NUT; PIPE UNION
M16 MAL 		0-91111-516-0 01 1 0601-
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 0112-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0112-0607
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW MAL 		0-92134-310-0 01 1 0608-

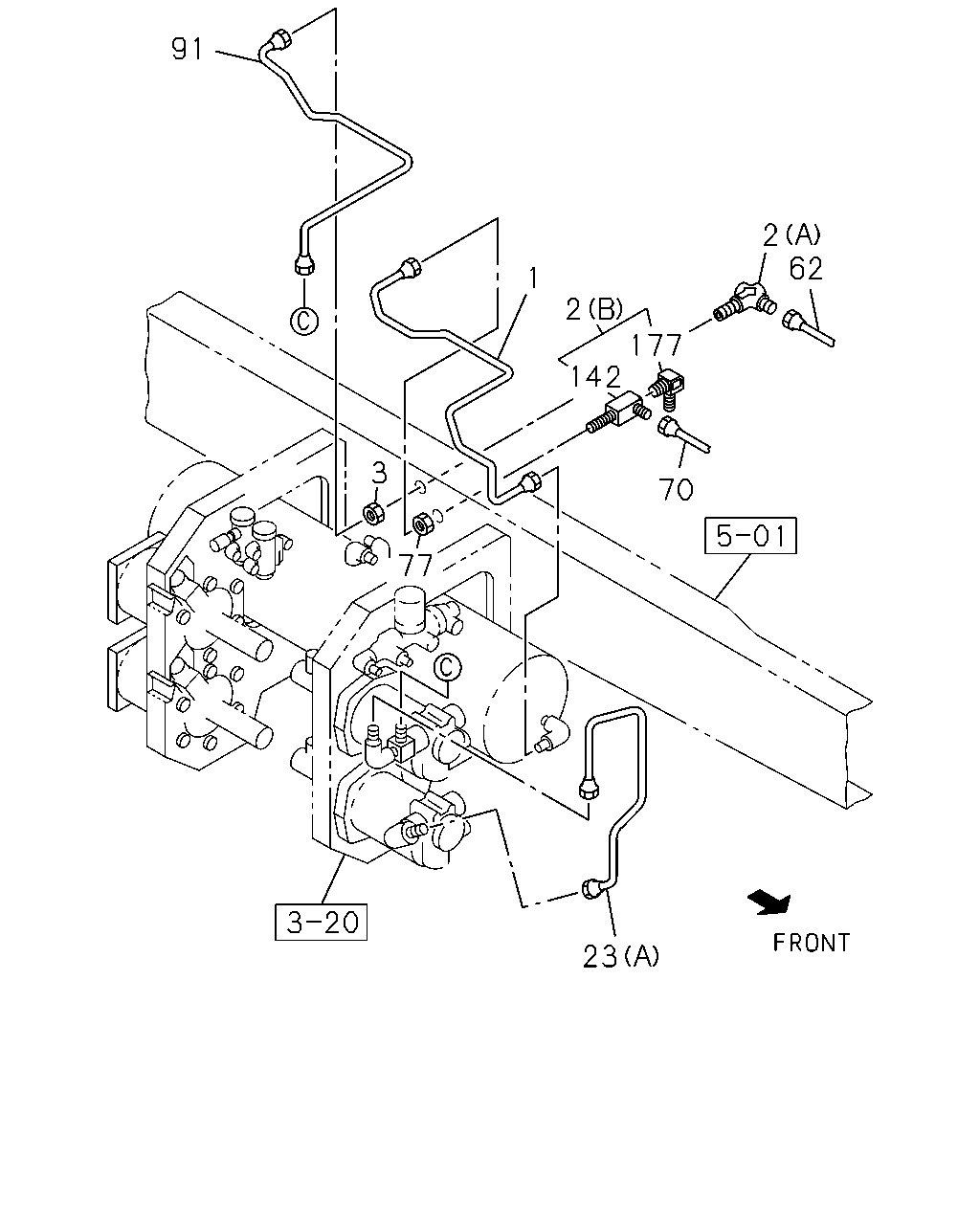

çizim 122347
91 2 62 1 2 177 142 3 70 77 23
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=758 SERVICED BY L=730 		1-47428-871-0 01 1 0112-0407
1 PIPE; AIR,AIR TANK TO UNION
L=787 SERVICED BY L=800 		1-47428-787-0 01 1 0408-
2 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 0112-0607
2 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 0608-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) 		1-09654-377-0 01 1 0112-
3 NUT; PIPE UNION
M16 MAL 		9-99111-416-0 01 1 0112-0512
3 NUT; PIPE UNION
M16 MAL 		0-91111-516-0 01 1 0601-
23 PIPE; AIR,MODULATOR
(B) 		1-49124-392-0 01 1 0408-
23 PIPE; AIR,MODULATOR
(A) L=387 SERVICED BY L=400 		1-47428-864-0 01 1 0112-0407
23 PIPE; AIR,MODULATOR
(C) 		1-49124-391-0 01 1 0408-
62 PIPE; AIR,UNION TO FLEX HOSE
L=2722 SERVICED BY L=2900 		1-47428-800-0 01 1 0112-
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0112-0407
70 PIPE; AIR,FLEX HOSE TO UNION
L=2933 SERVICED BY L=3300 		1-47428-801-0 01 1 0408-
77 NUT; PIPE UNION
M16 MAL 		9-99111-416-0 01 1 0112-0512
77 NUT; PIPE UNION
M16 MAL 		0-91111-516-0 01 1 0601-
91 PIPE; AIR,UNION TO MODULATOR 1-49121-808-0 01 1 0112-0407
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 0112-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0112-0607
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW MAL 		0-92134-310-0 01 1 0608-
