3-70 — BRAKE PIPING; AIR,AIR MASTER (#64830) — 122 parça

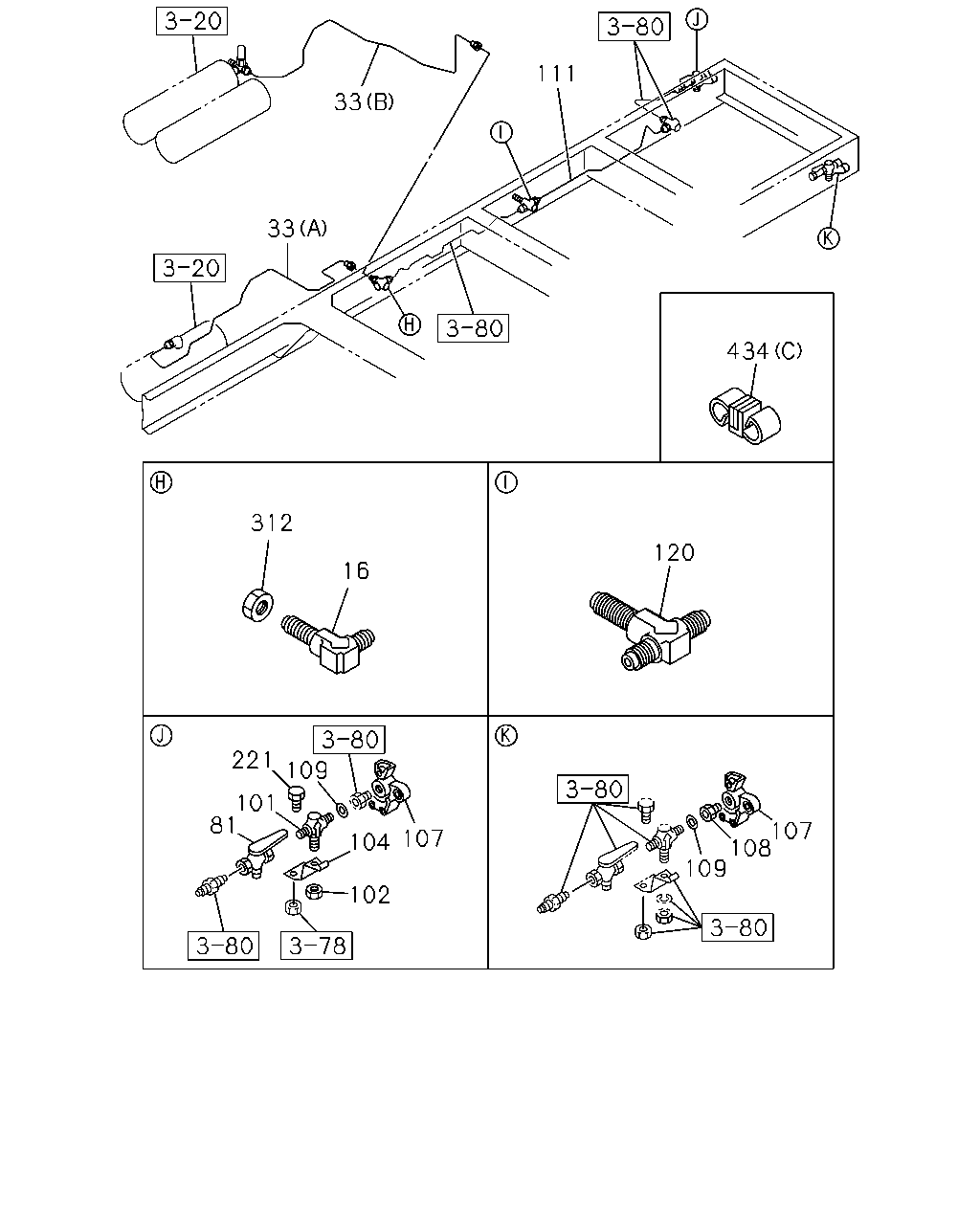

çizim 121184
111 33 33 434 312 120 16 221 109 101 81 107 108 109 107 104 102
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		9-09235-210-1 01 1 0112-0607
16 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW 		0-92135-210-0 01 1 0608-
33 PIPE; AIR,UNION TO AIR TANK
TRAILER BRAKE CONTROL<J91> (A) L=1078 SERVICED BY L=1100 		1-47428-875-0 01 1 0112-0407
33 PIPE; AIR,UNION TO AIR TANK
TRAILER BRAKE CONTROL<J91> (B) L=980 SERVICED BY L=1000 		1-47428-789-0 01 1 0408-
81 COCK; AIR
TRAILER BRAKE CONTROL<J91> RED 		1-09680-091-0 01 1 0112-
101 NIPPLE; AIR PIPE
TRAILER BRAKE CONTROL<J91> 		1-09656-377-1 01 1 0112-
102 NUT; NIPPLE,AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 MAL 		9-99111-416-0 01 1 0112-0512
102 NUT; NIPPLE,AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 MAL 		0-91111-516-0 01 1 0601-
104 BRACKET; NIPPLE
TRAILER BRAKE CONTROL<J91> 		1-47469-061-0 01 1 0112-
107 COUPLING; SERVICE
TRAILER BRAKE CONTROL<J91> 		1-47456-008-0 01 1 0112-
107 COUPLING; SERVICE
TRAILER BRAKE CONTROL<J91> 		1-47456-009-0 01 1 0112-
108 CONNECTOR; COUPLING
TRAILER BRAKE CONTROL<J91> 		1-09660-199-1 01 1 0112-
109 GASKET; COUPLING
TRAILER BRAKE CONTROL<J91> 		1-09630-108-0 02 1 0112-
111 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1012 SERVICED BY L=1000 		1-47428-789-0 01 1 0112-
120 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 L=42 		9-09233-010-1 01 1 0112-0607
120 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 L=42 		0-92123-010-0 01 1 0608-
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28681-030-0 02 1 0112-0512
221 BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE 		0-28651-030-0 02 1 0601-
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL 		9-99111-416-0 01 1 0112-0512
312 NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL 		0-91111-516-0 01 1 0601-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0112-
434 CLIP
(B) 		8-94297-486-0 02 1 0112-
434 CLIP
TRAILER BRAKE CONTROL<J91> (C) ID=6.35 & 10.0 		1-09709-274-1 02 1 0112-
434 CLIP
TRAILER BRAKE CONTROL<J91> (C) ID=10 & 10 		1-09709-277-1 01 1 0112-0407

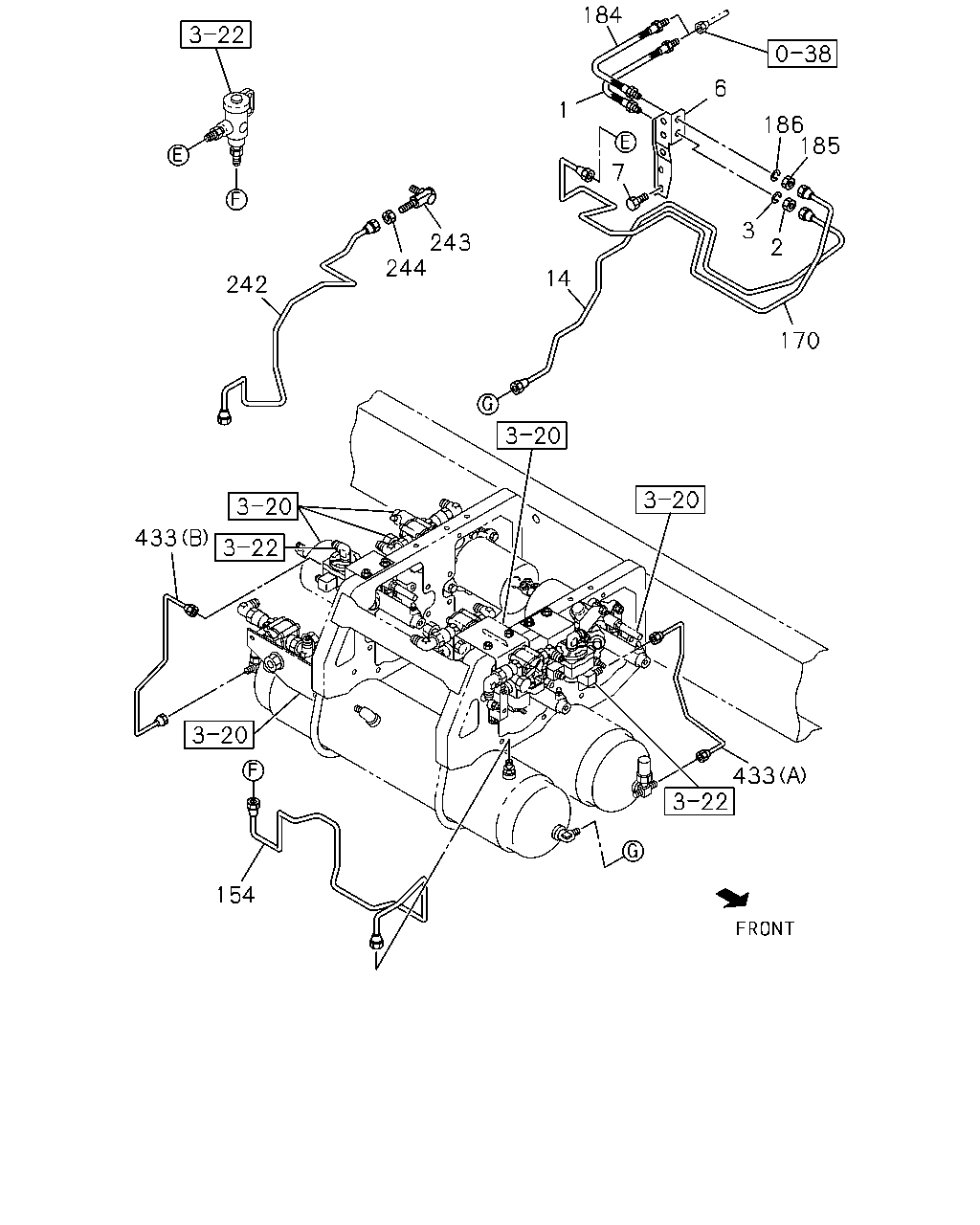

çizim 121213
184 6 1 186 185 7 3 243 244 2 14 242 170 433 433 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 0112-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0112-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0112-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0112-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-806-0 01 1 0112-0407
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1350 		1-49124-386-0 01 1 0408-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=344 		1-49113-742-0 01 1 0112-0407
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49124-405-0 01 1 0408-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-326-0 01 1 0112-0407
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49124-406-0 01 1 0408-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 0112-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0112-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0112-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
242 PIPE; AIR,AIR TANK TO UNION 1-49121-811-0 01 1 0112-0407
242 PIPE; AIR,AIR TANK TO UNION
L=776 SERVICED BY L=800 		1-47428-812-0 01 1 0408-
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0112-0607
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0112-
433 PIPE; AIR,AIR TANK TO RELAY VLV
(A) 		1-49124-407-0 01 1 0408-
433 PIPE; AIR,AIR TANK TO RELAY VLV
(B) 		1-49124-408-0 01 1 0408-

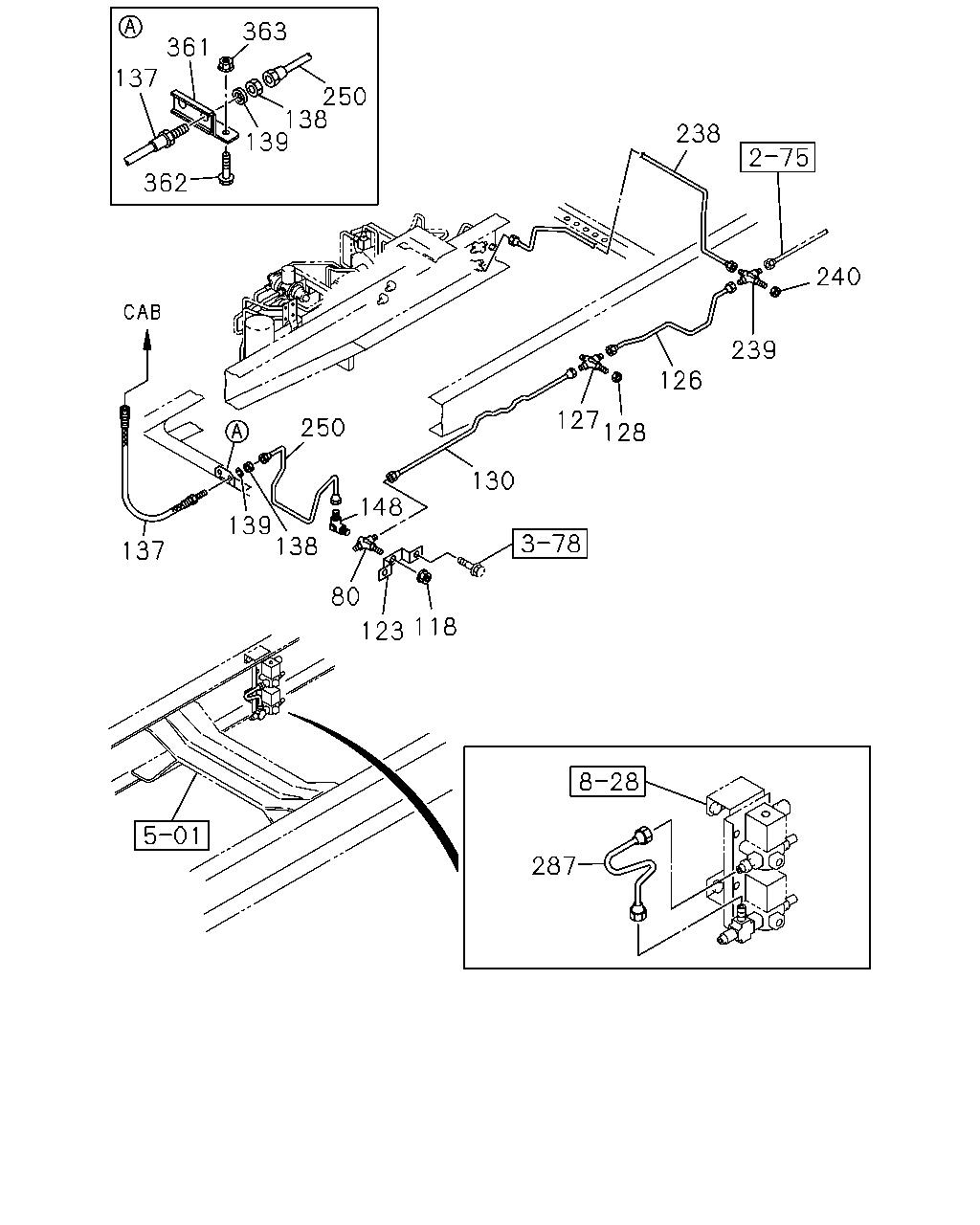

çizim 121314
363 361 137 250 138 139 238 362 240 239 126 127 128 250 130 148 139 138 137 80 118 123 287
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0112-
118 NUT; UNION
M12 		9-99111-412-0 01 1 0112-0512
118 NUT; UNION
M12 		0-91111-512-0 01 1 0601-
123 BRACKET; UNION 1-47478-692-0 01 1 0112-
126 PIPE; AIR,UNION TO UNION 1-49121-866-0 01 1 0112-
127 UNION; AIR PIPE
M12 2WAY 		1-09654-234-2 01 1 0112-
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 0112-0512
128 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0601-
130 PIPE; AIR,UNION TO UNION
L=1909 SERVICED BY L=2000 		1-47428-823-0 01 1 0112-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=400 		1-09363-606-0 01 1 0112-
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0112-
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0112-0603
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
148 CONNECTOR; UNION
M12 & PT1/8 		9-09224-306-2 01 1 0112-0607
148 CONNECTOR; UNION
M12 & PT1/8 		0-92124-306-0 01 1 0608-
238 PIPE; AIR,UNION TO UNION
L=1078 SERVICED BY L=1100 		1-47428-815-0 01 1 0112-0407
238 PIPE; AIR,UNION TO UNION
L=1034 SERVICED BY L=1100 		1-47428-815-0 01 1 0408-
239 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0112-0607
239 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608-
240 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0112-0512
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0601-
250 PIPE; AIR,UNION TO FLEX HOSE
L=631 SERVICED BY L=650 		1-47428-810-0 01 1 0112-
287 PIPE; AIR,MAG VLV
L=207 		1-49113-918-0 02 1 0112-
361 BRACKET; FLEX HOSE,AIR GOV 1-47476-781-0 01 1 0112-
362 BOLT; BRKT,FLEX HOSE,AIR GOV
M8X20 FLANGE MAL 		0-28680-820-0 01 1 0112-0512
362 BOLT; BRKT,FLEX HOSE,AIR GOV
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
363 NUT; BRKT,FLEX HOSE,AIR GOV
M8 FLANGE 		0-91150-108-0 01 1 0112-0602
363 NUT; BRKT,FLEX HOSE,AIR GOV
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-

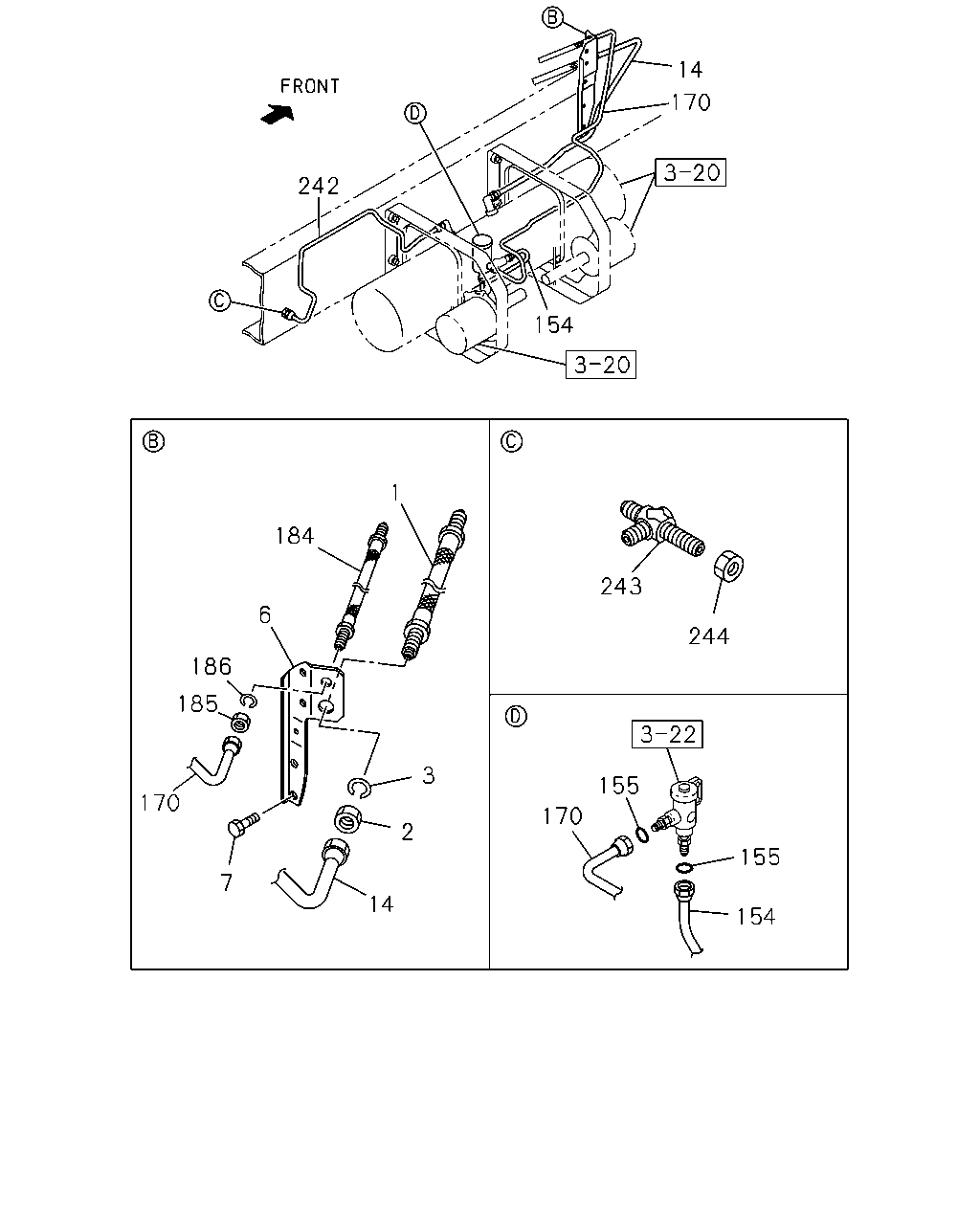

çizim 121597
14 170 242 154 1 184 243 6 244 186 185 3 155 170 170 2 155 7 14 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 0112-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0112-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0112-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0112-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-806-0 01 1 0112-0407
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1350 		1-49124-386-0 01 1 0408-
154 PIPE; AIR,AIR TANK TO AIR GOV
L=344 		1-49113-742-0 01 1 0112-0407
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49124-405-0 01 1 0408-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 0112-0407
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49122-326-0 01 1 0112-0407
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49124-406-0 01 1 0408-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 0112-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0112-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0112-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
242 PIPE; AIR,AIR TANK TO UNION 1-49121-811-0 01 1 0112-0407
242 PIPE; AIR,AIR TANK TO UNION
L=776 SERVICED BY L=800 		1-47428-812-0 01 1 0408-
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0112-0607
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0112-

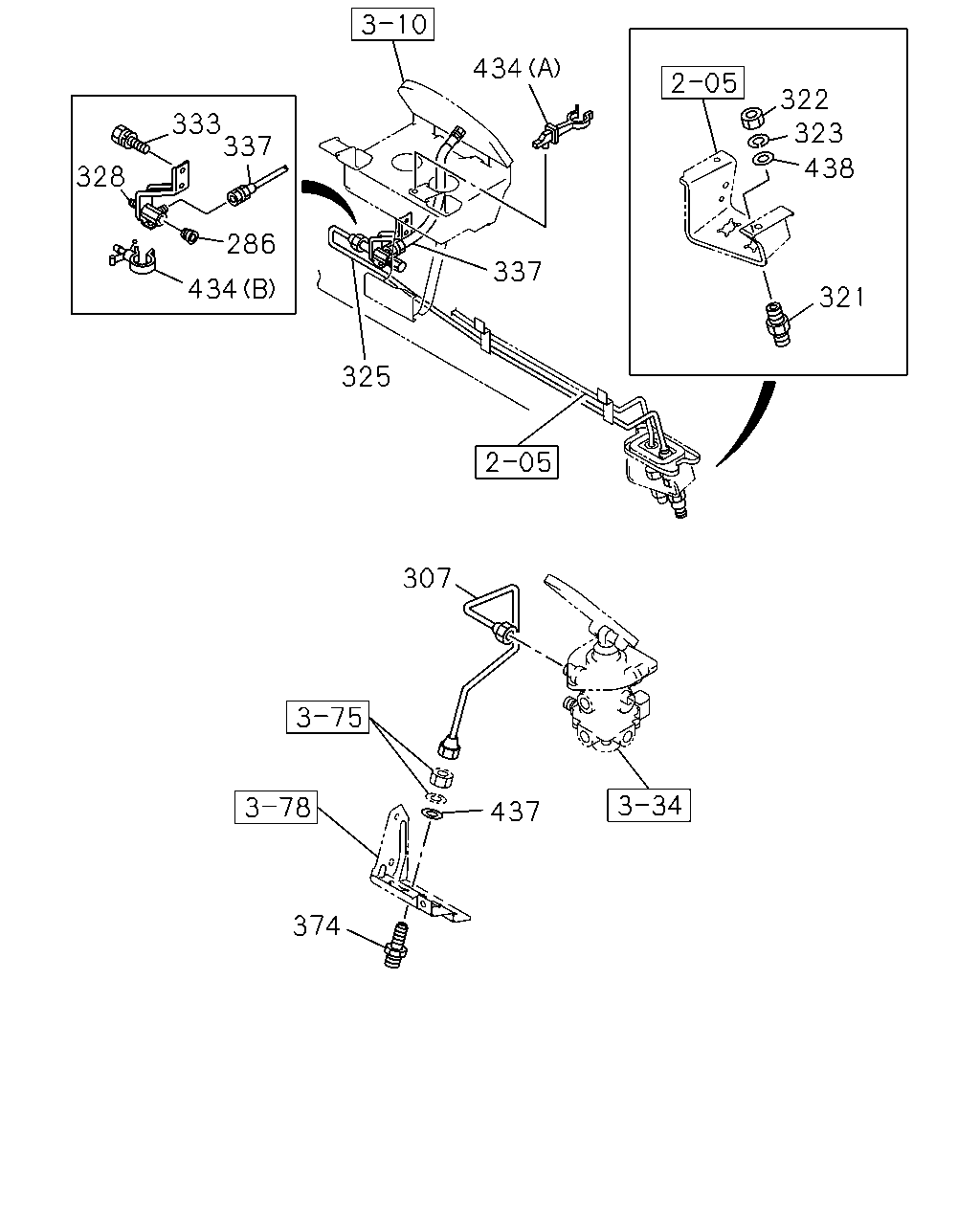

çizim 191278
434 322 323 333 337 438 328 286 337 434 321 325 307 437 374
BalonParca AdiParca NoAdetTipApplied Date
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0112-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0112-
321 JOINT; FLEX HOSE 1-09656-712-0 01 1 0112-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0112-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0112-0603
323 WASHER; LK,JOINT
ID=10.2 MAL 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0112-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0112-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0112-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0112-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0112-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0112-
434 CLIP
(B) 		8-94297-486-0 02 1 0112-
434 CLIP
TRAILER BRAKE CONTROL<J91> (C) ID=6.35 & 10.0 		1-09709-274-1 02 1 0112-
434 CLIP
TRAILER BRAKE CONTROL<J91> (C) ID=10 & 10 		1-09709-277-1 01 1 0112-0407
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0112-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0112-
