Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶

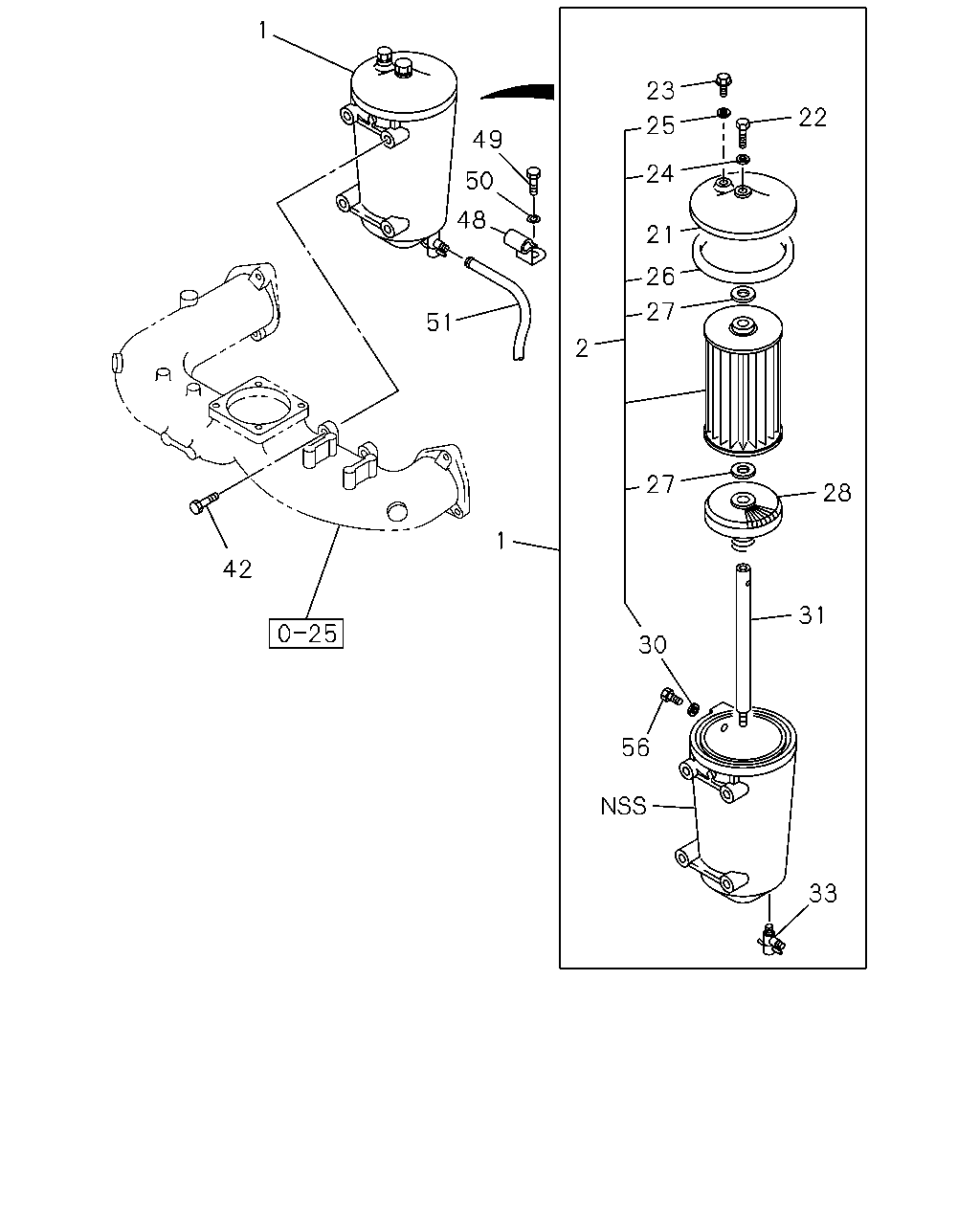

0-41 - FUEL FILTER AND BRACKET
▶
0-41 — FUEL FILTER AND BRACKET
(#6483) — 21 parça
1
23
22
25
49
24
50
48
21
26
27
51
2
27
28
1
42
31
30
56
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-927-1
01
1
9705-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
9705-
2
ELEMENT KIT; FUEL FILTER
BESTFIX
1-86750-444-0
01
1
9705-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
9705-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
9705-
23
PLUG; COVER
1-13219-074-0
01
1
9705-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
9705-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
9705-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
9705-
27
GASKET; ELEMENT
1-09630-007-0
02
1
9705-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
9705-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
9705-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
9705-
33
COCK ASM; DRAIN
1-13219-186-1
01
1
9705-
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28081-035-0
04
1
9705-
48
CLIP; VINYL PIPE
ID=11 H=20 L=17.5
1-09700-562-1
01
1
9705-
49
BOLT; CLIP
M10X14
0-23801-014-0
01
1
9705-
50
WASHER; LK,CLIP
ID=10.2
9-09150-510-0
01
1
9705-
51
PIPE; VINYL
L=1700 SERVICED BY L=10000
9-09914-701-0
01
1
9705-0102
51
PIPE; VINYL
L=1700 SERVICED BY L=10000
1-09366-161-0
01
1
0103-
56
PLUG; FUEL FILTER
M14X9
9-99202-314-0
01
1
9705-
