3-55 — BRAKE PIPING; OIL,REAR (#64828) — 76 parça

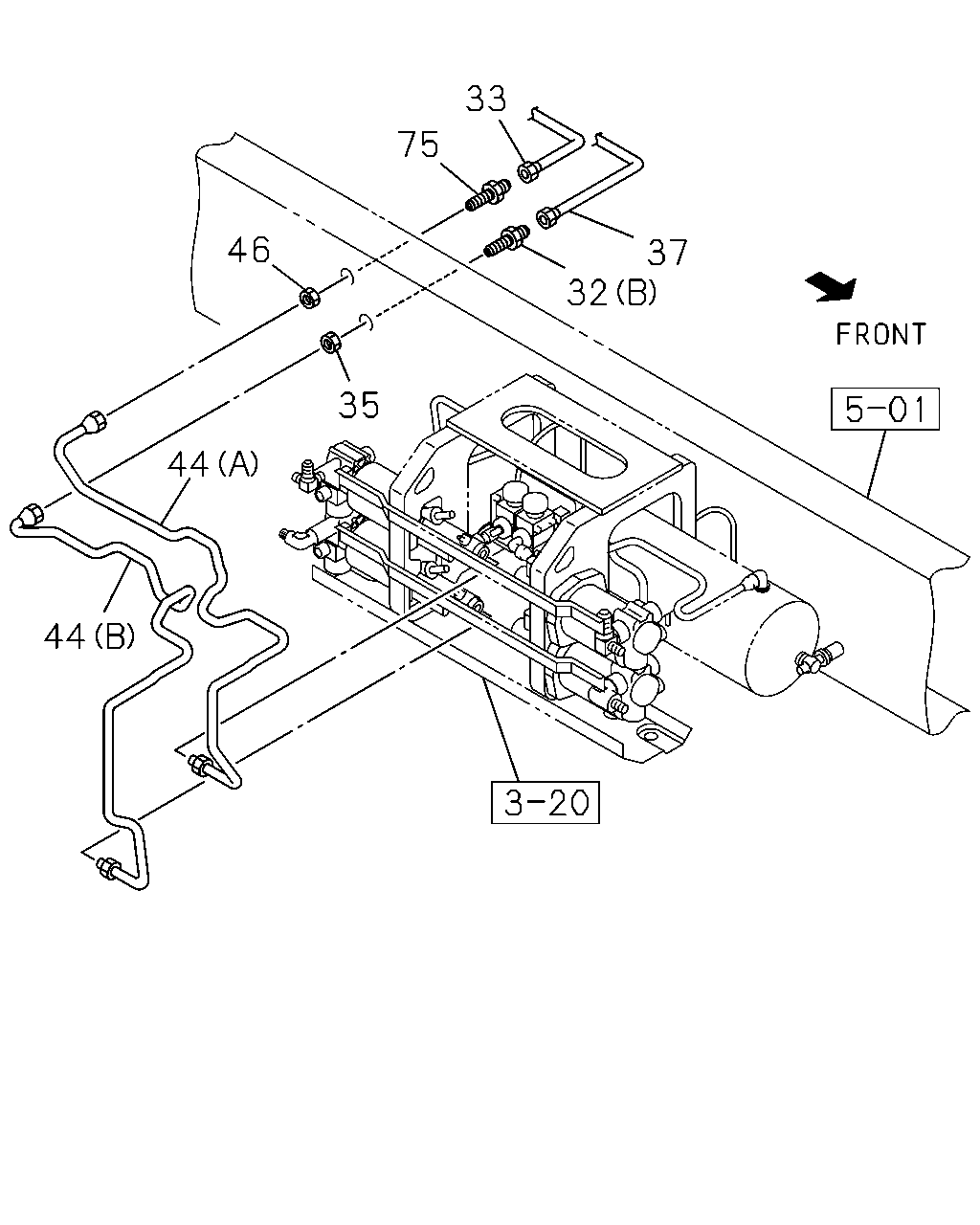

33 75 46 37 32 35 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0112-0407
32	UNION; OIL PIPE (C) M12 ELBOW	9-09225-206-1	01	1	0408-0607
32	UNION; OIL PIPE (C) M12 ELBOW	0-92125-206-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0112-0407
33	PIPE; OIL,UNION TO UNION L=1685 SERVICED BY L=1700	1-47426-357-0	01	1	0408-
35	NUT; UNION M12	9-09840-280-0	01	1	0112-
37	PIPE; BRK,UNION TO UNION	1-49164-881-0	01	1	0112-0407
37	PIPE; BRK,UNION TO UNION	1-49167-211-0	01	1	0408-
44	PIPE; BRK,HYDRAULIC UNIT TO VALVE (B) L=1171 SERVICED BY L=1200	1-47428-732-0	01	1	0112-0407
44	PIPE; BRK,HYDRAULIC UNIT TO VALVE (A)	1-49164-561-0	01	1	0112-0407
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0112-
75	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	01	1	0112-0407
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0408-0607
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-

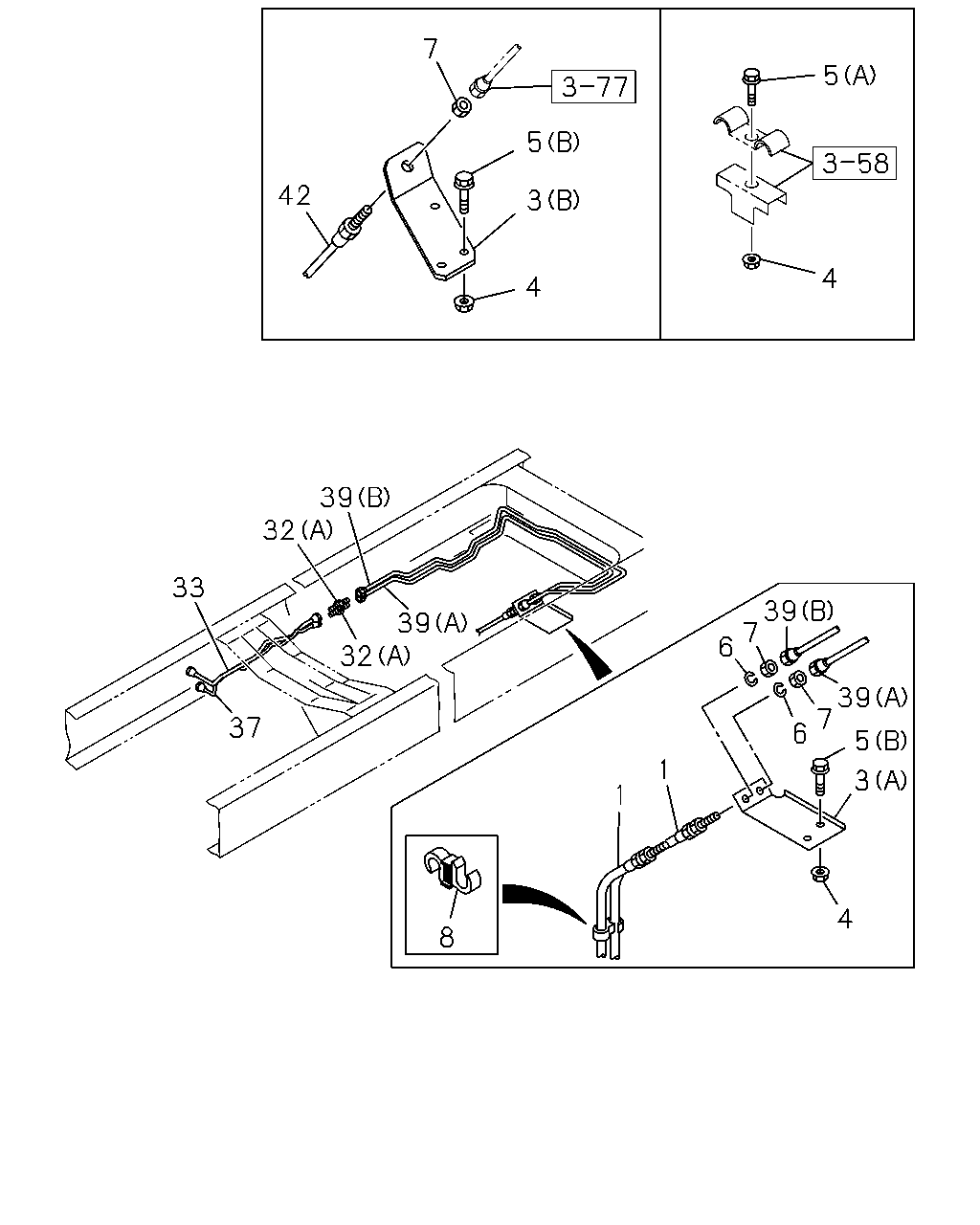

7 5 5 42 3 4 4 39 32 33 39 7 6 39 32 39 7 6 37 5 1 3 1 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=650	0-05312-650-0	01	1	0112-
1	HOSE; FLEX,RR BRK L=650	0-05312-650-0	01	1	0112-
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47478-533-0	01	1	0112-
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47478-540-0	01	1	0112-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	0112-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE MAL	0-91180-108-0	04	1	0603-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	01	1	0112-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE MAL	0-91180-108-0	01	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X25 FLANGE MAL	0-28680-825-0	04	1	0112-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X25 FLANGE MAL	0-28650-825-0	04	1	0601-
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X40 FLANGE	0-28680-840-0	01	1	0112-0512
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0112-0603
6	WASHER; LK,FLEX HOSE ID=12.2 MAL	0-91510-512-0	01	1	0604-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0112-0603
6	WASHER; LK,FLEX HOSE ID=12.2 MAL	0-91510-512-0	02	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0112-
7	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0112-
8	CLIP; RR BRK ID=10 & 10	1-09709-277-1	01	1	0112-
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0112-0407
32	UNION; OIL PIPE (C) M12 ELBOW	9-09225-206-1	01	1	0408-0607
32	UNION; OIL PIPE (C) M12 ELBOW	0-92125-206-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0112-0407
33	PIPE; OIL,UNION TO UNION L=1685 SERVICED BY L=1700	1-47426-357-0	01	1	0408-
37	PIPE; BRK,UNION TO UNION	1-49164-881-0	01	1	0112-0407
37	PIPE; BRK,UNION TO UNION	1-49167-211-0	01	1	0408-
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=1477 SERVICED BY L=1500	1-47426-355-0	01	1	0112-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1377 SERVICED BY L=1370	1-47426-354-0	01	1	0112-
42	HOSE; FLEX,DIFF LOCK L=500	1-09363-693-0	01	1	0112-

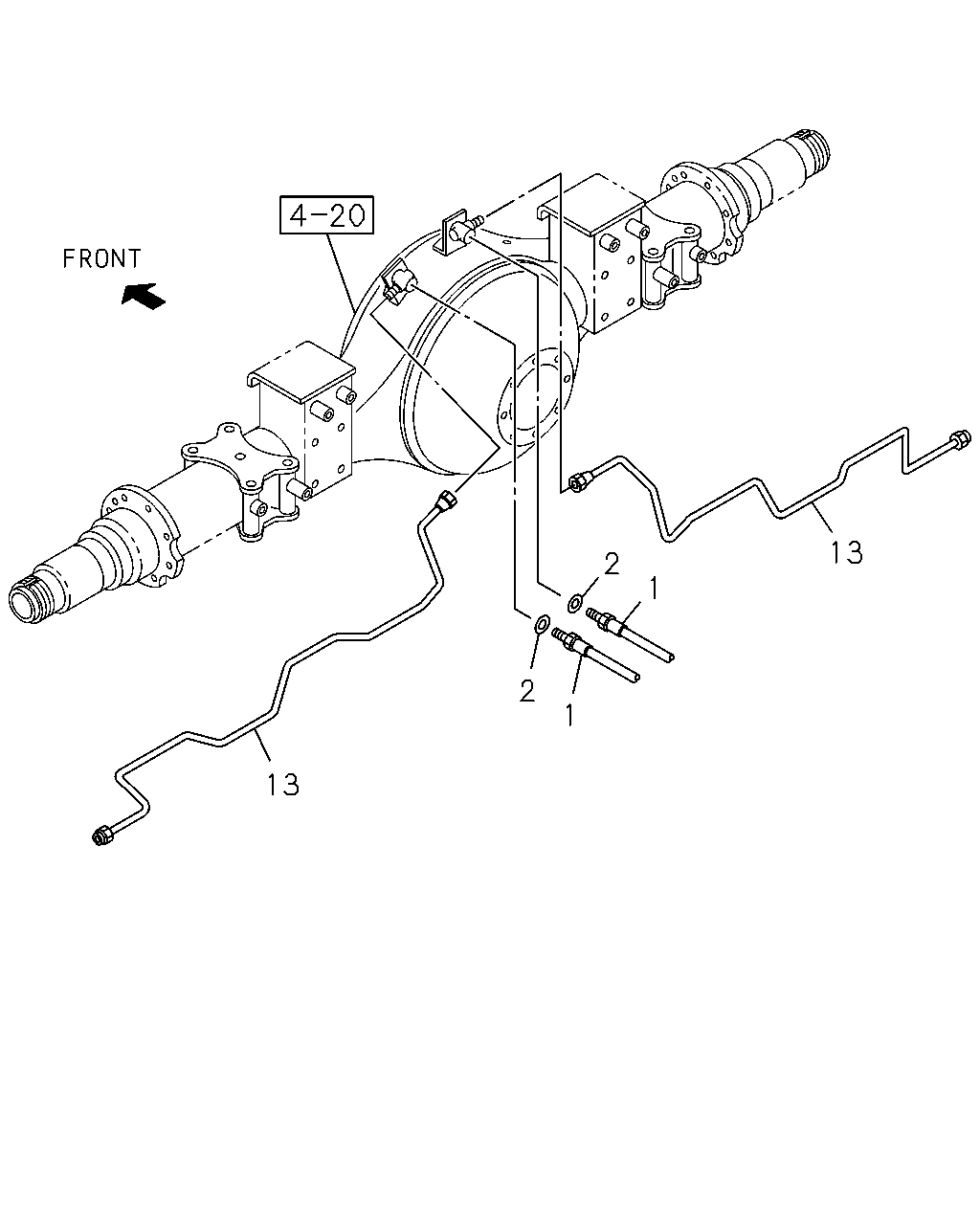

13 2 1 2 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=650	0-05312-650-0	01	1	0112-
1	HOSE; FLEX,RR BRK L=650	0-05312-650-0	01	1	0112-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0112-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0112-
13	PIPE; BRK,RR AXLE	1-49164-609-0	01	1	0112-
13	PIPE; BRK,RR AXLE	1-49164-608-0	01	1	0112-

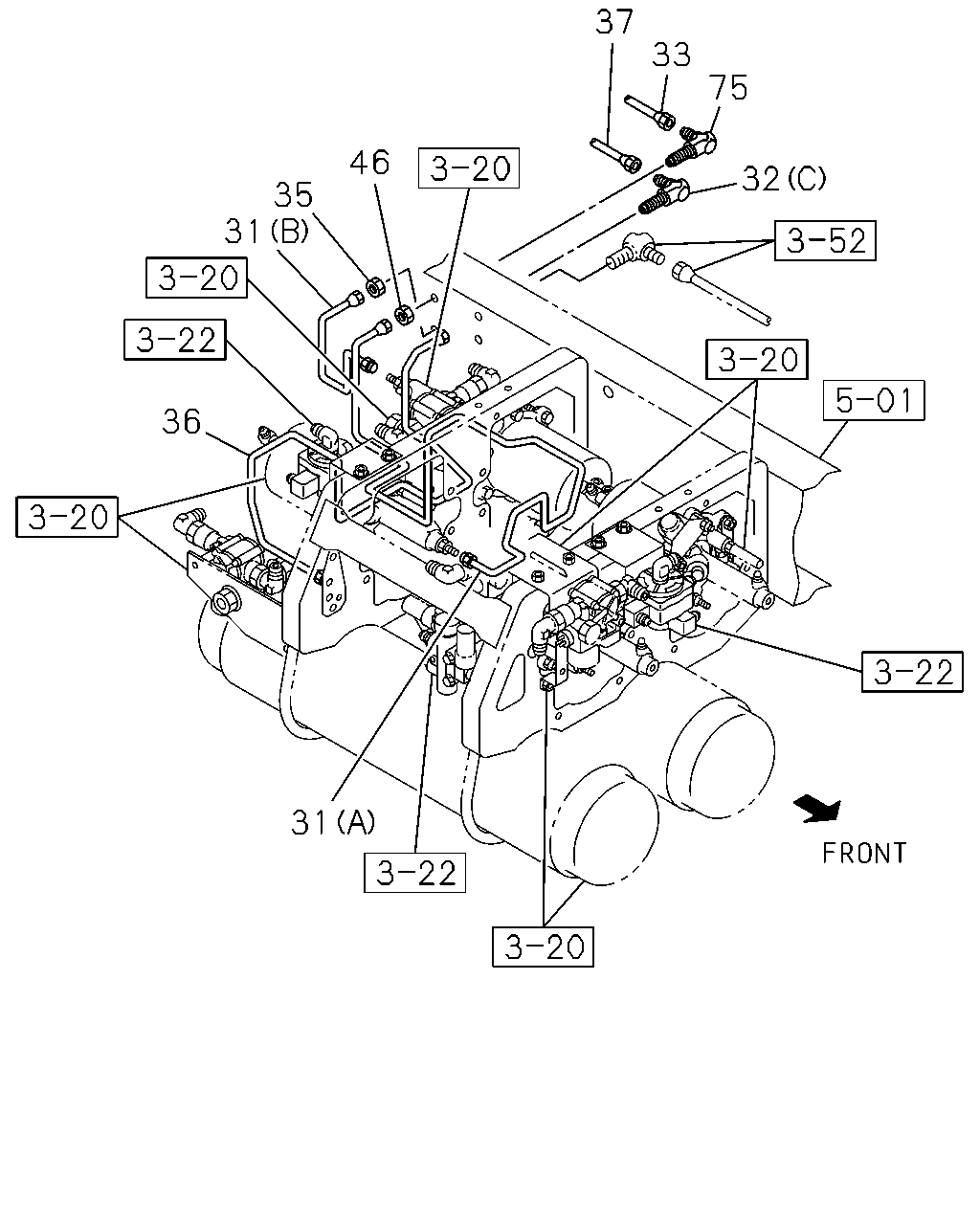

37 33 75 46 32 35 31 36 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	PIPE; OIL,AIR MASTER TO UNION (A) L=1315 SERVICED BY L=1370	1-47426-354-0	01	1	0408-
31	PIPE; OIL,AIR MASTER TO UNION (B) L=286	1-49167-210-0	01	1	0408-
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0112-0607
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0112-0407
32	UNION; OIL PIPE (C) M12 ELBOW	9-09225-206-1	01	1	0408-0607
32	UNION; OIL PIPE (C) M12 ELBOW	0-92125-206-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION L=2085 SERVICED BY L=2200	1-47426-360-0	01	1	0112-0407
33	PIPE; OIL,UNION TO UNION L=1685 SERVICED BY L=1700	1-47426-357-0	01	1	0408-
35	NUT; UNION M12	9-09840-280-0	01	1	0112-
36	PIPE; OIL,UNION TO UNION L=946 SERVICED BY L=1000	1-47426-350-0	01	1	0408-
37	PIPE; BRK,UNION TO UNION	1-49164-881-0	01	1	0112-0407
37	PIPE; BRK,UNION TO UNION	1-49167-211-0	01	1	0408-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0112-
75	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	01	1	0112-0407
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0408-0607
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
