Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#64823) — 426 parça

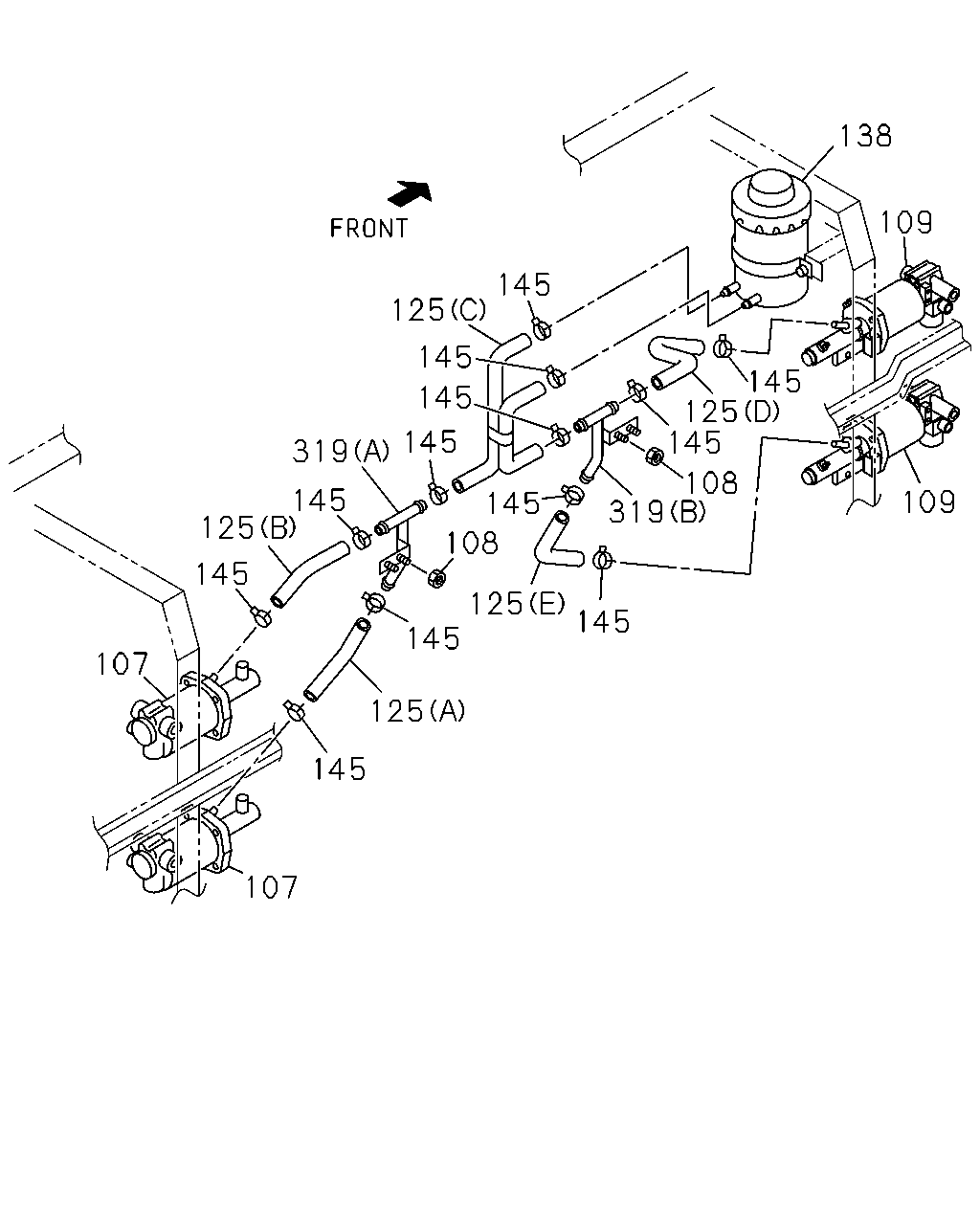

138 109 145 125 145 145 125 145 145 145 319 108 319 145 125 109 145 108 145 125 145 145 125 145 107 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	MODULATOR; RR	1-47800-784-0	02	1	0112-0407
107	MODULATOR; RR MAL	1-48240-262-0	02	1	0408-
108	NUT; CONNECTOR M8 FLANGE	0-91150-108-0	04	1	0112-0407
108	NUT; CONNECTOR M10 FLANGE	0-91150-210-0	04	1	0408-0602
108	NUT; CONNECTOR M10 FLANGE MAL	0-91180-210-0	04	1	0603-
109	MODULATOR; FRT	1-47800-786-0	02	1	0112-0407
109	MODULATOR; FRT MAL	1-48240-262-0	02	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (A)	1-09361-008-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (F) L=135 SERVICED BY L=1800	1-09360-320-0	02	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (B)	1-09361-009-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (G) L=270 SERVICED BY L=1800	1-09360-320-0	03	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (E)	1-47469-121-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (H)	1-09360-950-0	01	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (D)	1-47469-122-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (C)	1-47469-130-1	01	1	0112-0407
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0112-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0112-0407
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	12	1	0112-
319	UNION; HOSE (A)	1-09669-132-0	01	1	0112-0407
319	UNION; HOSE (B)	1-09669-133-0	01	1	0112-0407

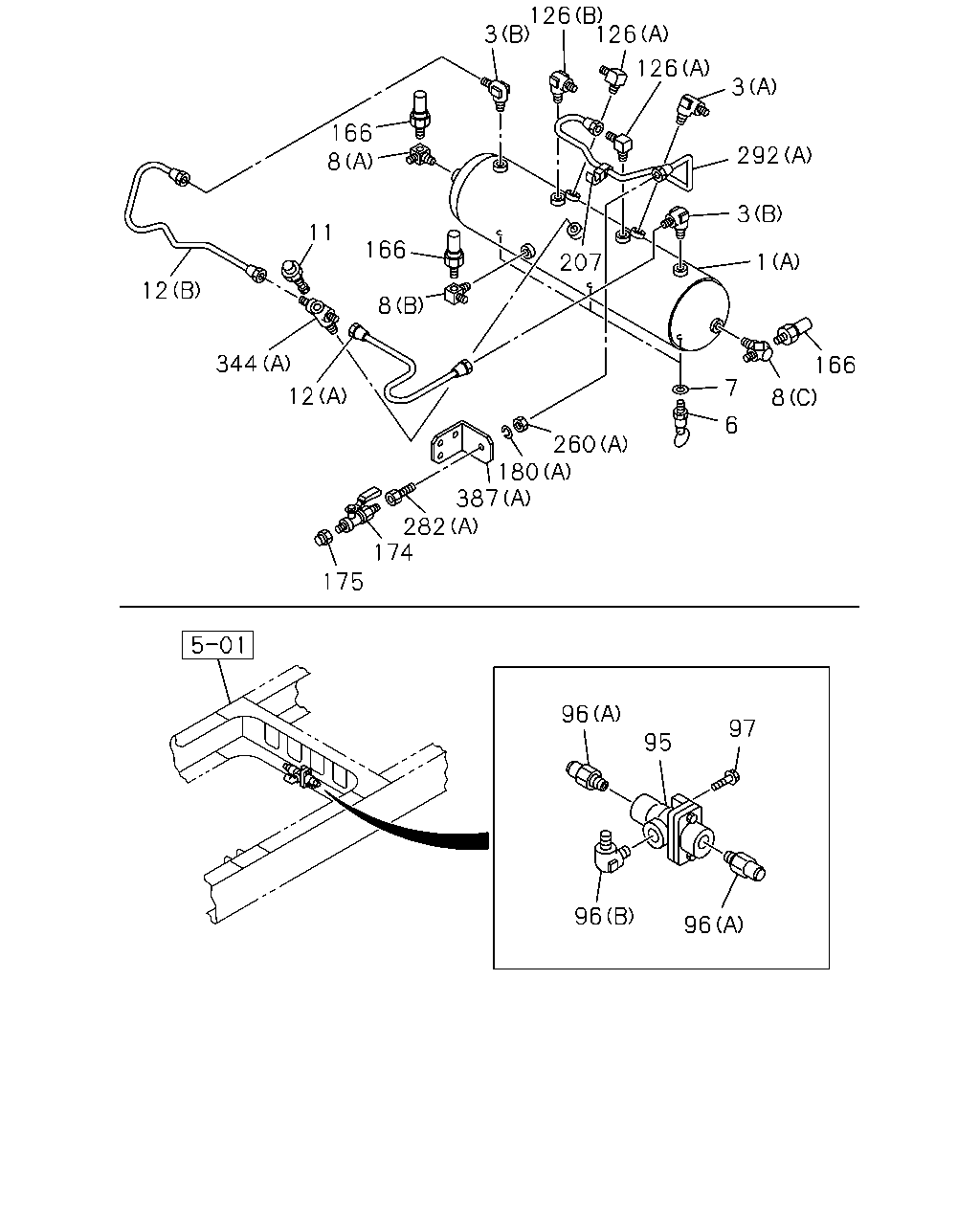

126 3 126 126 3 166 8 292 3 11 166 1 207 12 8 344 166 7 12 8 6 260 180 387 282 174 175 96 97 95 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-349-0	01	1	0408-
1	TANK ASM; AIR TIRE INFLATOR DEVICE<SG4> (A)	1-48370-925-0	01	1	0112-0407
1	TANK ASM; AIR (B)	1-48371-348-0	01	1	0408-
3	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0112-0407
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0408-
3	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0112-0407
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0408-
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	03	1	0112-0407
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0408-
7	GASKET; DRAIN COCK TIRE INFLATOR DEVICE<SG4> ID=14	1-09630-145-0	03	1	0112-0407
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0408-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0112-0407
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) MAL	1-09656-698-0	01	1	0112-0407
8	CONNECTOR; AIR TANK (D)	1-09656-180-1	01	1	0408-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0112-0407
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0112-0407
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0112-0407
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0408-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK TIRE INFLATOR DEVICE<SG4> (A)	1-49111-309-1	01	1	0112-0407
12	PIPE ASM; AIR,AIR TANK TO AIR TANK TIRE INFLATOR DEVICE<SG4> (B)	1-49111-310-2	01	1	0112-0407
95	VALVE; DOUBLE CHECK TRAILER BRAKE CONTROL<J91>	1-48410-531-1	01	1	0112-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	02	1	0112-
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW MAL	1-09650-438-0	01	1	0112-
97	BOLT; BRKT,DBL CHECK VLV TRAILER BRAKE CONTROL<J91> M8X16 FLANGE	0-28080-816-0	02	1	0112-0512
97	BOLT; BRKT,DBL CHECK VLV TRAILER BRAKE CONTROL<J91> M8X16 FLANGE MAL	0-28050-816-0	02	1	0601-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW MAL	1-09650-430-0	02	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0408-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	03	1	0408-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK TIRE INFLATOR DEVICE<SG4> 530KPA MAL	1-48340-054-1	03	1	0112-0407
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA MAL	1-48340-054-1	01	1	0408-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0112-0407
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	0408-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0112-0407
175	CAP; AIR COCK	9-48319-102-0	01	1	0408-
180	WASHER; LK (B)	1-48219-140-0	08	1	0112-0407
180	WASHER; LK (A) ID=12.2	9-09150-512-0	01	1	0408-0603
180	WASHER; LK (A) ID=12.2 MAL	0-91510-512-0	01	1	0604-
180	WASHER; LK TIRE INFLATOR DEVICE<SG4> (A) ID=12.2	9-09150-512-0	01	1	0112-0407
207	CLIP; AIR PIPE TIRE INFLATOR DEVICE<SG4> ID=6.35 & 12	1-09709-275-1	01	1	0112-0407
207	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	02	1	0408-
260	NUT; UNION (B) M20	9-99110-520-0	01	1	0408-0512
260	NUT; UNION (B) M20	0-91110-520-0	01	1	0601-
260	NUT; UNION TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	0112-0407
260	NUT; UNION (A) M12	9-09840-280-0	01	1	0408-
282	UNION; 2 WAY (B) M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	01	1	0408-
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	0112-0407
282	UNION; 2 WAY (A)	1-09654-280-1	01	1	0408-
292	PIPE; AIR,AIR TANK TO UNION TIRE INFLATOR DEVICE<SG4> (A)	1-49121-867-0	01	1	0112-0407
292	PIPE; AIR,AIR TANK TO UNION (B)	1-49124-409-0	01	1	0408-
344	CONNECTOR; 4WAY TIRE INFLATOR DEVICE<SG4> (A) MAL	1-09656-699-0	01	1	0112-0407
344	CONNECTOR; 4WAY (B) M16X2 & PT3/8 3WAY	1-09656-718-0	02	1	0408-
387	BRACKET; UNION (C)	1-47479-977-0	01	1	0408-
387	BRACKET; UNION TIRE INFLATOR DEVICE<SG4> (A)	1-47478-606-0	01	1	0112-0407
387	BRACKET; UNION (B)	1-47479-976-0	01	1	0408-

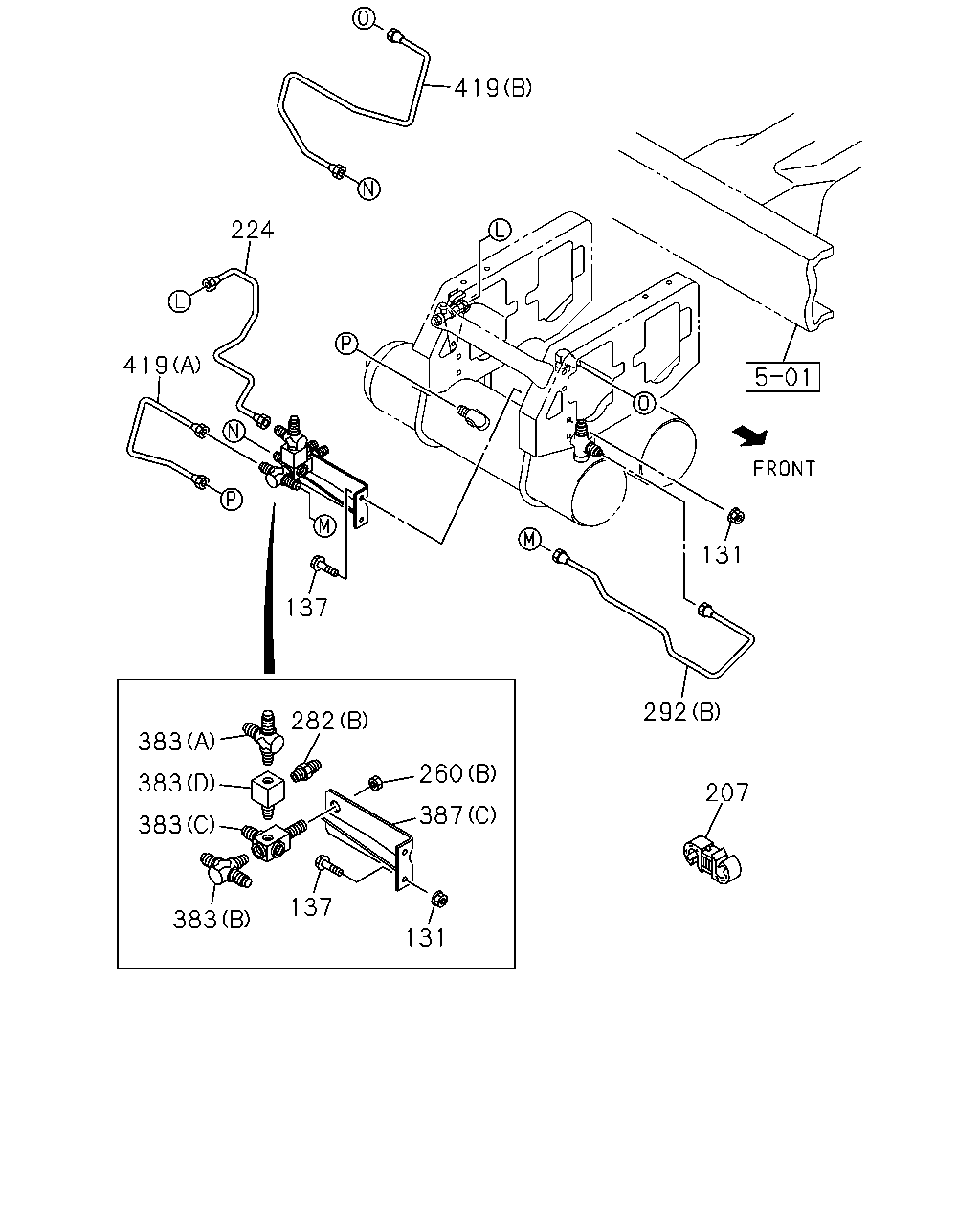

419 224 419 131 137 292 282 383 260 383 207 387 383 137 383 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
131	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	02	1	0408-0602
131	NUT; BRKT FIX M10 FLANGE MAL	0-91180-210-0	02	1	0603-
137	BOLT; BRKT M10X25 FLANGE MAL	0-28681-025-0	02	1	0408-0512
137	BOLT; BRKT M10X25 FLANGE MAL	0-28651-025-0	02	1	0601-
207	CLIP; AIR PIPE TIRE INFLATOR DEVICE<SG4> ID=6.35 & 12	1-09709-275-1	01	1	0112-0407
207	CLIP; AIR PIPE ID=6.35 & 12	1-09709-275-1	02	1	0408-
224	PIPE ASM; AIR UNION TO UNION	1-49124-412-0	01	1	0408-
260	NUT; UNION (B) M20	9-99110-520-0	01	1	0408-0512
260	NUT; UNION (B) M20	0-91110-520-0	01	1	0601-
260	NUT; UNION TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	0112-0407
260	NUT; UNION (A) M12	9-09840-280-0	01	1	0408-
282	UNION; 2 WAY (B) M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	01	1	0408-
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	0112-0407
282	UNION; 2 WAY (A)	1-09654-280-1	01	1	0408-
292	PIPE; AIR,AIR TANK TO UNION TIRE INFLATOR DEVICE<SG4> (A)	1-49121-867-0	01	1	0112-0407
292	PIPE; AIR,AIR TANK TO UNION (B)	1-49124-409-0	01	1	0408-
383	UNION; 3 WAY (A)	1-09656-326-1	01	1	0408-
383	UNION; 3 WAY (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0408-
383	UNION; 3 WAY (C)	1-09656-398-1	01	1	0408-
383	UNION; 3 WAY (D) PT3/8 3WAY	1-09661-300-0	01	1	0408-
387	BRACKET; UNION (C)	1-47479-977-0	01	1	0408-
387	BRACKET; UNION TIRE INFLATOR DEVICE<SG4> (A)	1-47478-606-0	01	1	0112-0407
387	BRACKET; UNION (B)	1-47479-976-0	01	1	0408-
419	PIPE ASM; AIR,UNION TO AIR TANK (A)	1-49124-410-0	01	1	0408-
419	PIPE ASM; AIR,UNION TO AIR TANK (B)	1-49124-411-0	01	1	0408-

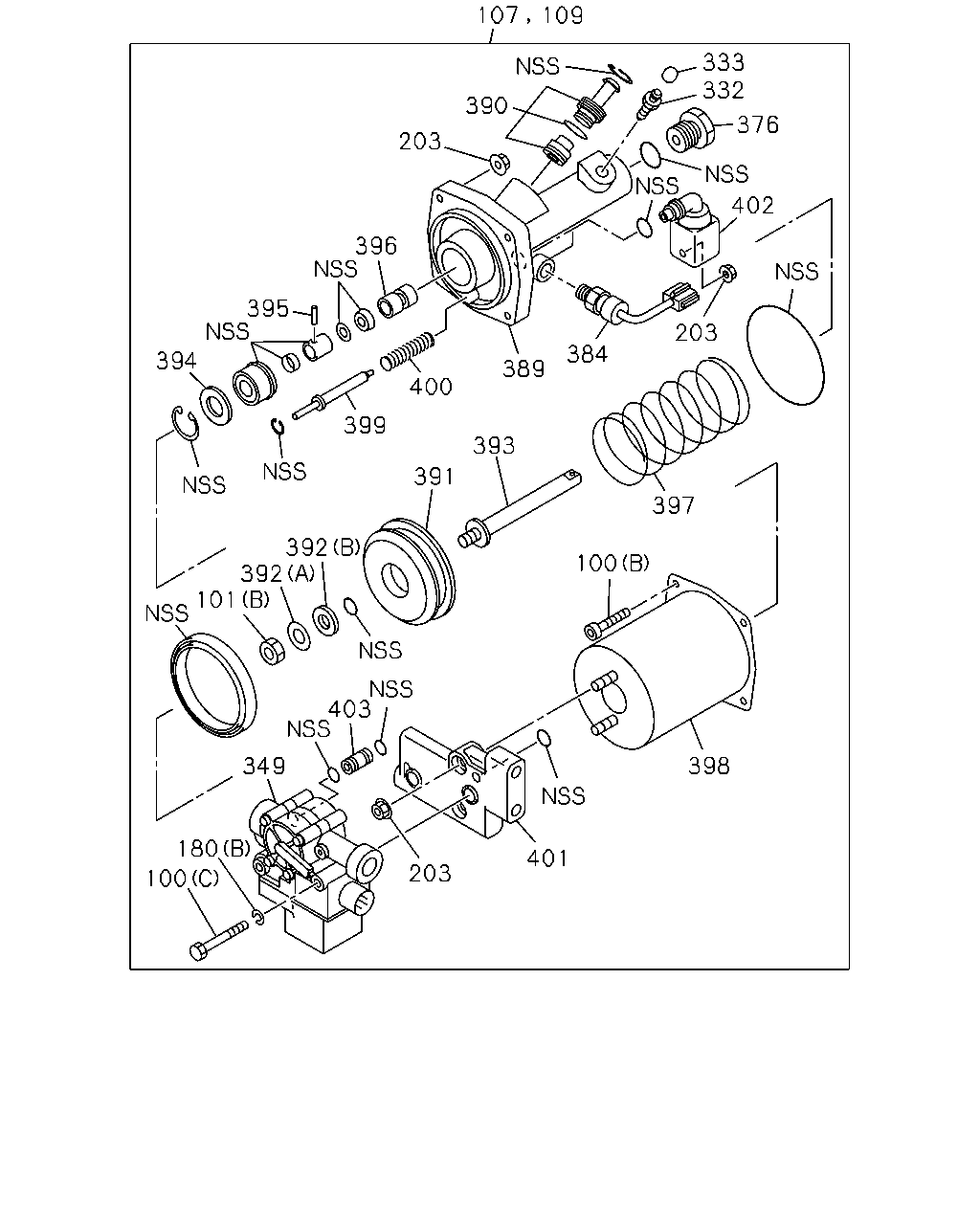

107 109 333 332 390 376 203 402 396 395 203 400 384 394 389 399 393 391 397 392 392 101 100 403 398 349 180 401 203 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M10X20 FLANGE MAL	0-28681-020-0	04	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	02	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	02	1	0601-
100	BOLT; MODULATOR (B)	1-47819-220-0	16	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	06	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	06	1	0601-
100	BOLT; MODULATOR (C)	1-48219-139-0	08	1	0112-0407
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28681-025-0	03	1	0408-0512
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28651-025-0	03	1	0601-
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	12	1	0112-0407
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	06	1	0408-0602
101	NUT; MODULATOR (A) M8 FLANGE MAL	0-91180-108-0	06	1	0603-
101	NUT; MODULATOR (B)	1-47829-114-0	04	1	0112-0407
101	NUT; MODULATOR (C) M10 FLANGE	0-91150-210-0	03	1	0408-0602
101	NUT; MODULATOR (C) M10 FLANGE MAL	0-91180-210-0	03	1	0603-
107	MODULATOR; RR	1-47800-784-0	02	1	0112-0407
107	MODULATOR; RR MAL	1-48240-262-0	02	1	0408-
109	MODULATOR; FRT	1-47800-786-0	02	1	0112-0407
109	MODULATOR; FRT MAL	1-48240-262-0	02	1	0408-
180	WASHER; LK (B)	1-48219-140-0	08	1	0112-0407
180	WASHER; LK (A) ID=12.2	9-09150-512-0	01	1	0408-0603
180	WASHER; LK (A) ID=12.2 MAL	0-91510-512-0	01	1	0604-
180	WASHER; LK TIRE INFLATOR DEVICE<SG4> (A) ID=12.2	9-09150-512-0	01	1	0112-0407
203	NUT	1-47819-219-0	28	1	0112-0407
332	SCREW; BLEEDER	1-47819-225-0	04	1	0112-0407
333	CAP; BLEEDER SCREW	1-47819-226-0	04	1	0112-0407
349	VALVE; AIR CONT REAR	1-48211-025-0	02	1	0112-0407
349	VALVE; AIR CONT FRONT	1-48211-026-0	02	1	0112-0407
376	PLUG	1-47819-217-0	04	1	0112-0407
384	SWITCH; MODULATOR	1-47819-224-0	04	1	0112-0407
389	HOUSING; CYLINDER REAR	1-47811-145-0	02	1	0112-0407
389	HOUSING; CYLINDER FRONT	1-47811-147-0	02	1	0112-0407
390	JOINT; MODULATOR	1-47819-246-0	04	1	0112-0407
391	PISTON; AIR	1-47821-048-0	04	1	0112-0407
392	SPACER; MODULATOR (A)	1-47829-115-0	04	1	0112-0407
392	SPACER; MODULATOR (B)	1-47829-137-0	04	1	0112-0407
393	ROD; PISTON	1-47829-138-0	04	1	0112-0407
394	HOLDER; OIL SEAL	1-47819-215-0	04	1	0112-0407
395	PIN; MODULATOR	1-47829-118-0	04	1	0112-0407
396	PISTON; HYDRAULIC	1-47821-051-0	04	1	0112-0407
397	SPRING; PISTON	1-47824-036-0	04	1	0112-0407
398	CYLINDER; AIR	1-47811-146-0	04	1	0112-0407
399	ROD; SWITCH	1-47829-121-0	04	1	0112-0407
400	SPRING; SWITCH	1-47829-122-0	04	1	0112-0407
401	HOUSING; MANIFOLD REAR	1-48219-133-0	02	1	0112-0407
401	HOUSING; MANIFOLD FRONT	1-48219-141-0	02	1	0112-0407
402	BREATHER ASM; MODULATOR REAR	1-47819-227-0	02	1	0112-0407
402	BREATHER ASM; MODULATOR FRONT	1-47819-231-0	02	1	0112-0407
403	PIPE; JOINT	1-48219-135-0	04	1	0112-0407

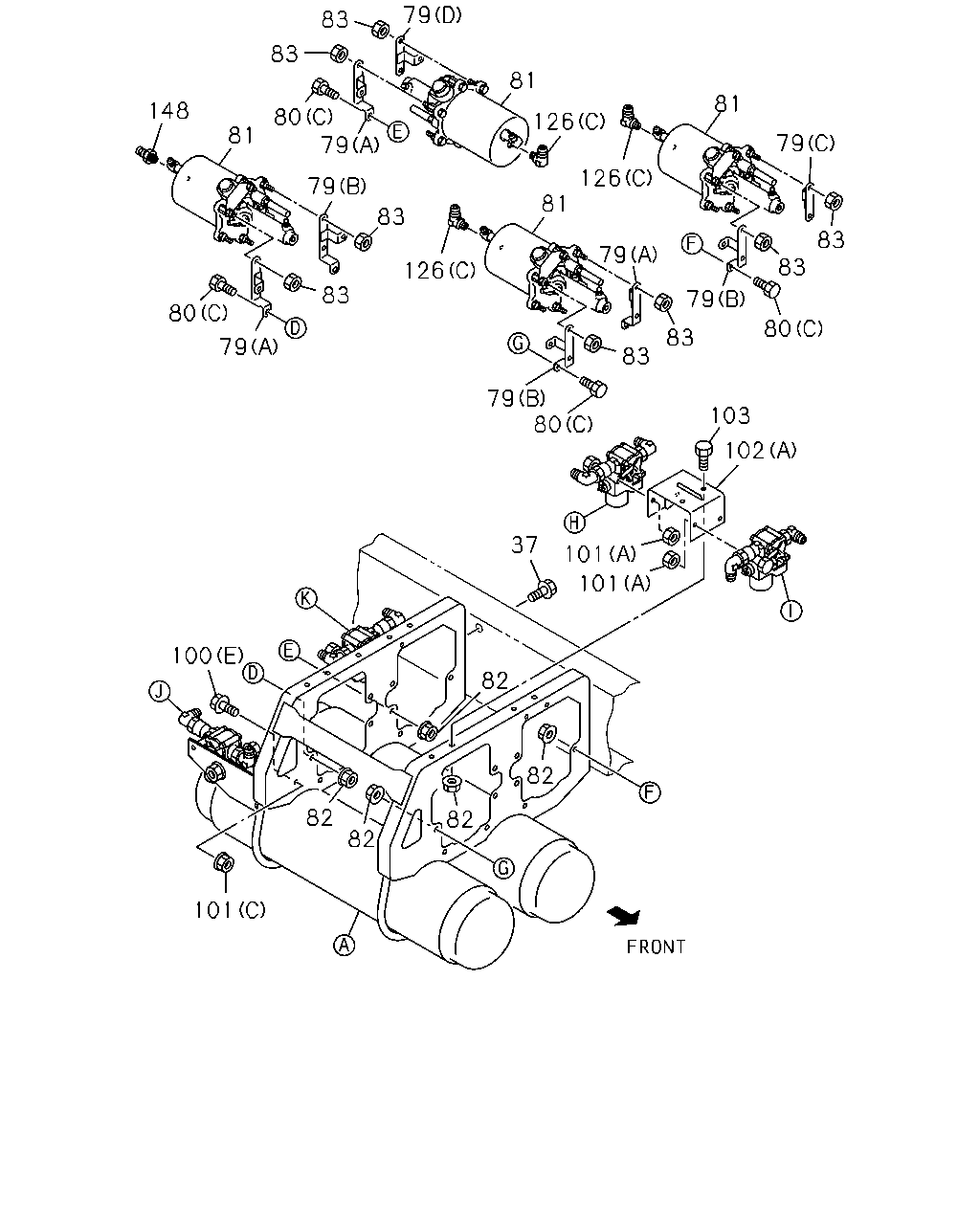

79 83 83 81 81 148 80 79 126 81 79 126 79 81 83 83 83 79 126 83 79 80 80 83 79 83 79 80 103 102 37 101 101 100 82 82 82 82 82 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M10X35 FLANGE MAL	0-28681-035-0	04	1	0112-0407
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28681-240-0	06	1	0408-0512
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT (A)	1-47537-136-1	03	1	0408-
79	STAY; AIR MASTER TO BRKT (B)	1-47537-137-1	03	1	0408-
79	STAY; AIR MASTER TO BRKT (C)	1-47537-138-1	01	1	0408-
79	STAY; AIR MASTER TO BRKT (D)	1-47537-139-1	01	1	0408-
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	02	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	0601-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	14	1	0408-0512
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	14	1	0601-
80	BOLT; BRKT TIRE INFLATOR DEVICE<SG4> (A) M8X20 FLANGE MAL	0-28680-820-0	03	1	0112-0407
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	01	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-789-0	04	1	0408-0901
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-827-0	04	1	0902-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	14	1	0408-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE MAL	0-91180-210-0	14	1	0603-
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	16	1	0408-0602
83	NUT; AIR MASTER M8 FLANGE MAL	0-91180-108-0	16	1	0603-
100	BOLT; MODULATOR (A) M10X20 FLANGE MAL	0-28681-020-0	04	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	02	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	02	1	0601-
100	BOLT; MODULATOR (B)	1-47819-220-0	16	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	06	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	06	1	0601-
100	BOLT; MODULATOR (C)	1-48219-139-0	08	1	0112-0407
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28681-025-0	03	1	0408-0512
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28651-025-0	03	1	0601-
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	12	1	0112-0407
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	06	1	0408-0602
101	NUT; MODULATOR (A) M8 FLANGE MAL	0-91180-108-0	06	1	0603-
101	NUT; MODULATOR (B)	1-47829-114-0	04	1	0112-0407
101	NUT; MODULATOR (C) M10 FLANGE	0-91150-210-0	03	1	0408-0602
101	NUT; MODULATOR (C) M10 FLANGE MAL	0-91180-210-0	03	1	0603-
102	BRACKET; MODULATOR (B)	1-47537-149-0	01	1	0408-
102	BRACKET; MODULATOR (A)	1-47537-167-0	01	1	0408-
103	BOLT; BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
103	BOLT; BRKT M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW MAL	1-09650-430-0	02	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0408-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	03	1	0408-
148	CONNECTOR; AIR MASTER M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	01	1	0408-

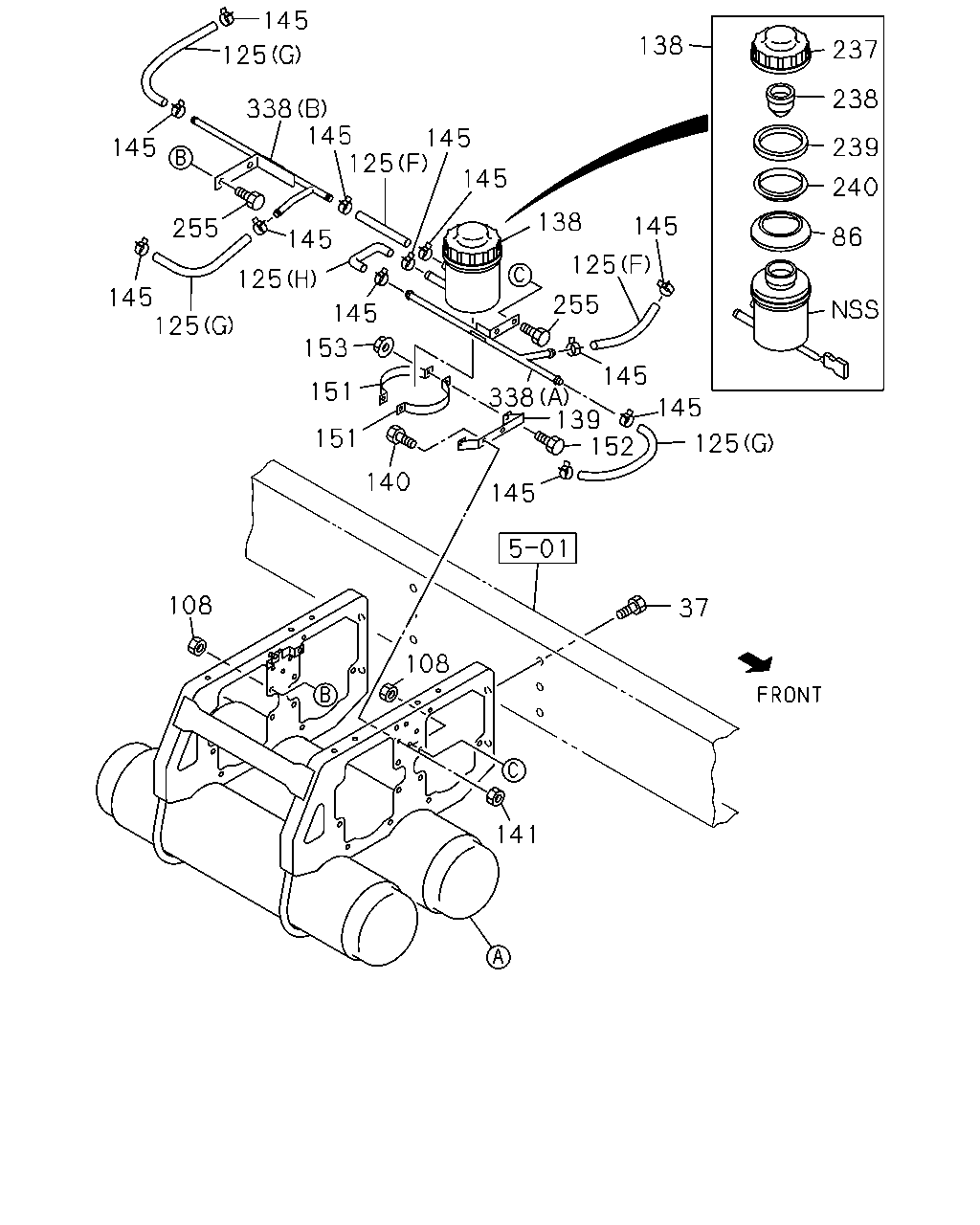

145 138 237 125 238 338 145 145 125 239 145 145 240 138 145 255 86 145 125 125 145 125 255 145 153 145 151 338 139 152 145 151 125 140 145 108 37 108 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M10X35 FLANGE MAL	0-28681-035-0	04	1	0112-0407
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28681-240-0	06	1	0408-0512
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	0601-
86	SEAL; DUST	1-47529-019-0	01	1	0112-
108	NUT; CONNECTOR M8 FLANGE	0-91150-108-0	04	1	0112-0407
108	NUT; CONNECTOR M10 FLANGE	0-91150-210-0	04	1	0408-0602
108	NUT; CONNECTOR M10 FLANGE MAL	0-91180-210-0	04	1	0603-
125	HOSE; OIL TANK TO AIR MASTER (A)	1-09361-008-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (F) L=135 SERVICED BY L=1800	1-09360-320-0	02	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (B)	1-09361-009-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (G) L=270 SERVICED BY L=1800	1-09360-320-0	03	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (E)	1-47469-121-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (H)	1-09360-950-0	01	1	0408-
125	HOSE; OIL TANK TO AIR MASTER (D)	1-47469-122-0	01	1	0112-0407
125	HOSE; OIL TANK TO AIR MASTER (C)	1-47469-130-1	01	1	0112-0407
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0112-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0112-0407
139	BRACKET; OIL TANK	1-47537-131-0	01	1	0408-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE MAL	0-28681-020-0	02	1	0112-0407
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0407
141	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0408-0602
141	NUT; OIL TANK TO BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0112-0407
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	12	1	0112-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0112-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28680-820-0	02	1	0112-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0112-0602
153	NUT; OIL TANK TO BAND M8 FLANGE MAL	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-030-0	01	1	0112-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0112-
239	FILTER; DUST	1-47529-017-0	01	1	0112-
240	HOLDER; FILTER	1-47529-018-0	01	1	0112-
255	BOLT; CONN M10X20 FLANGE MAL	0-28681-020-0	04	1	0408-0512
255	BOLT; CONN M10X20 FLANGE MAL	0-28651-020-0	04	1	0601-
338	CONNECTOR; 3WAY VLV (B)	1-09669-124-0	01	1	0408-
338	CONNECTOR; 3WAY VLV (A)	1-09669-143-1	01	1	0408-

28 104 43 104 278 172 172 64 260 180 28 67 119 80 282 174 175 80 54 10 43 21 387 64 9 10 3 1 344 1 7 6 58 166 8 7 344 9 58 42 42 58 6 213 58 58 42 42 58 58 58 213 3 11 213 213 100 126 107 317 317 100 317 100 317 109 107 317 109 126 317 100 101 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-349-0	01	1	0408-
1	TANK ASM; AIR TIRE INFLATOR DEVICE<SG4> (A)	1-48370-925-0	01	1	0112-0407
1	TANK ASM; AIR (B)	1-48371-348-0	01	1	0408-
3	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0112-0407
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0408-
3	VALVE; CHECK,AIR TANK TIRE INFLATOR DEVICE<SG4> (B) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0112-0407
3	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0408-
6	COCK; DRAIN,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-48312-015-0	03	1	0112-0407
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0408-
7	GASKET; DRAIN COCK TIRE INFLATOR DEVICE<SG4> ID=14	1-09630-145-0	03	1	0112-0407
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0408-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0112-0407
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (B) MAL	1-09656-698-0	01	1	0112-0407
8	CONNECTOR; AIR TANK (D)	1-09656-180-1	01	1	0408-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0112-0407
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA MAL	1-48340-054-1	02	1	0408-
10	PLUG; AIR TANK PT3/8 MAL	9-09204-517-0	02	1	0408-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0112-0407
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0112-0407
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0408-
21	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0408-
28	BRACKET; AIR TANK (C)	1-53318-379-0	01	1	0408-
28	BRACKET; AIR TANK TIRE INFLATOR DEVICE<SG4> (A)	1-48317-771-0	02	1	0112-0407
28	BRACKET; AIR TANK (B)	1-53318-378-1	01	1	0408-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0408-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (C) M10X25 FLANGE MAL	0-28681-025-0	04	1	0408-0512
43	BOLT; STAY,AIR TANK,MAIN (C) M10X25 FLANGE MAL	0-28651-025-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN TIRE INFLATOR DEVICE<SG4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0112-0407
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0408-0602
54	NUT; STAY M8 FLANGE MAL	0-91180-108-0	02	1	0603-
58	NUT; BAND,AIR TANK M8 MAL	9-09110-408-0	16	1	0408-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-
64	STAY; AIR TANK,MAIN (C)	1-53318-293-1	01	1	0408-
64	STAY; AIR TANK,MAIN TIRE INFLATOR DEVICE<SG4> (A)	1-48317-831-0	02	1	0112-0407
64	STAY; AIR TANK,MAIN (B)	1-48317-349-0	01	1	0408-
67	STAY; SUB TANK	1-48317-349-0	01	1	0408-
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	02	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	0601-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	14	1	0408-0512
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	14	1	0601-
80	BOLT; BRKT TIRE INFLATOR DEVICE<SG4> (A) M8X20 FLANGE MAL	0-28680-820-0	03	1	0112-0407
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	01	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
100	BOLT; MODULATOR (A) M10X20 FLANGE MAL	0-28681-020-0	04	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	02	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	02	1	0601-
100	BOLT; MODULATOR (B)	1-47819-220-0	16	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	06	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	06	1	0601-
100	BOLT; MODULATOR (C)	1-48219-139-0	08	1	0112-0407
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28681-025-0	03	1	0408-0512
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28651-025-0	03	1	0601-
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	12	1	0112-0407
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	06	1	0408-0602
101	NUT; MODULATOR (A) M8 FLANGE MAL	0-91180-108-0	06	1	0603-
101	NUT; MODULATOR (B)	1-47829-114-0	04	1	0112-0407
101	NUT; MODULATOR (C) M10 FLANGE	0-91150-210-0	03	1	0408-0602
101	NUT; MODULATOR (C) M10 FLANGE MAL	0-91180-210-0	03	1	0603-
102	BRACKET; MODULATOR (B)	1-47537-149-0	01	1	0408-
102	BRACKET; MODULATOR (A)	1-47537-167-0	01	1	0408-
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0408-0602
104	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
104	NUT; BRKT TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91150-108-0	03	1	0112-0407
104	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0408-0602
104	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
107	MODULATOR; RR	1-47800-784-0	02	1	0112-0407
107	MODULATOR; RR MAL	1-48240-262-0	02	1	0408-
109	MODULATOR; FRT	1-47800-786-0	02	1	0112-0407
109	MODULATOR; FRT MAL	1-48240-262-0	02	1	0408-
119	BOLT; STAY M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
119	BOLT; STAY M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 ELBOW MAL	1-09650-430-0	02	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0408-
126	CONNECTOR; ELBOW TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0112-0407
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW MAL	1-09650-438-0	03	1	0408-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK TIRE INFLATOR DEVICE<SG4> 530KPA MAL	1-48340-054-1	03	1	0112-0407
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA MAL	1-48340-054-1	01	1	0408-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0408-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE MAL	0-91180-108-0	02	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0408-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE MAL	0-91180-210-0	04	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0112-0407
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	0408-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0112-0407
175	CAP; AIR COCK	9-48319-102-0	01	1	0408-
180	WASHER; LK (B)	1-48219-140-0	08	1	0112-0407
180	WASHER; LK (A) ID=12.2	9-09150-512-0	01	1	0408-0603
180	WASHER; LK (A) ID=12.2 MAL	0-91510-512-0	01	1	0604-
180	WASHER; LK TIRE INFLATOR DEVICE<SG4> (A) ID=12.2	9-09150-512-0	01	1	0112-0407
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0408-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0408-
260	NUT; UNION (B) M20	9-99110-520-0	01	1	0408-0512
260	NUT; UNION (B) M20	0-91110-520-0	01	1	0601-
260	NUT; UNION TIRE INFLATOR DEVICE<SG4> (A) M12	9-09840-280-0	01	1	0112-0407
260	NUT; UNION (A) M12	9-09840-280-0	01	1	0408-
278	BRACKET; CONNECTOR L=120 H=35	1-82698-088-0	01	1	0408-
282	UNION; 2 WAY (B) M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	01	1	0408-
282	UNION; 2 WAY TIRE INFLATOR DEVICE<SG4> (A)	1-09654-280-1	01	1	0112-0407
282	UNION; 2 WAY (A)	1-09654-280-1	01	1	0408-
317	CONNECTOR; MODULATOR (A) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0112-0407
317	CONNECTOR; MODULATOR (A) M16 & PT3/8 ELBOW MAL	1-09650-438-0	06	1	0408-
317	CONNECTOR; MODULATOR (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	02	1	0112-0407
317	CONNECTOR; MODULATOR (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0112-0407
317	CONNECTOR; MODULATOR (D) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0112-0407
344	CONNECTOR; 4WAY TIRE INFLATOR DEVICE<SG4> (A) MAL	1-09656-699-0	01	1	0112-0407
344	CONNECTOR; 4WAY (B) M16X2 & PT3/8 3WAY	1-09656-718-0	02	1	0408-
387	BRACKET; UNION (C)	1-47479-977-0	01	1	0408-
387	BRACKET; UNION TIRE INFLATOR DEVICE<SG4> (A)	1-47478-606-0	01	1	0112-0407
387	BRACKET; UNION (B)	1-47479-976-0	01	1	0408-

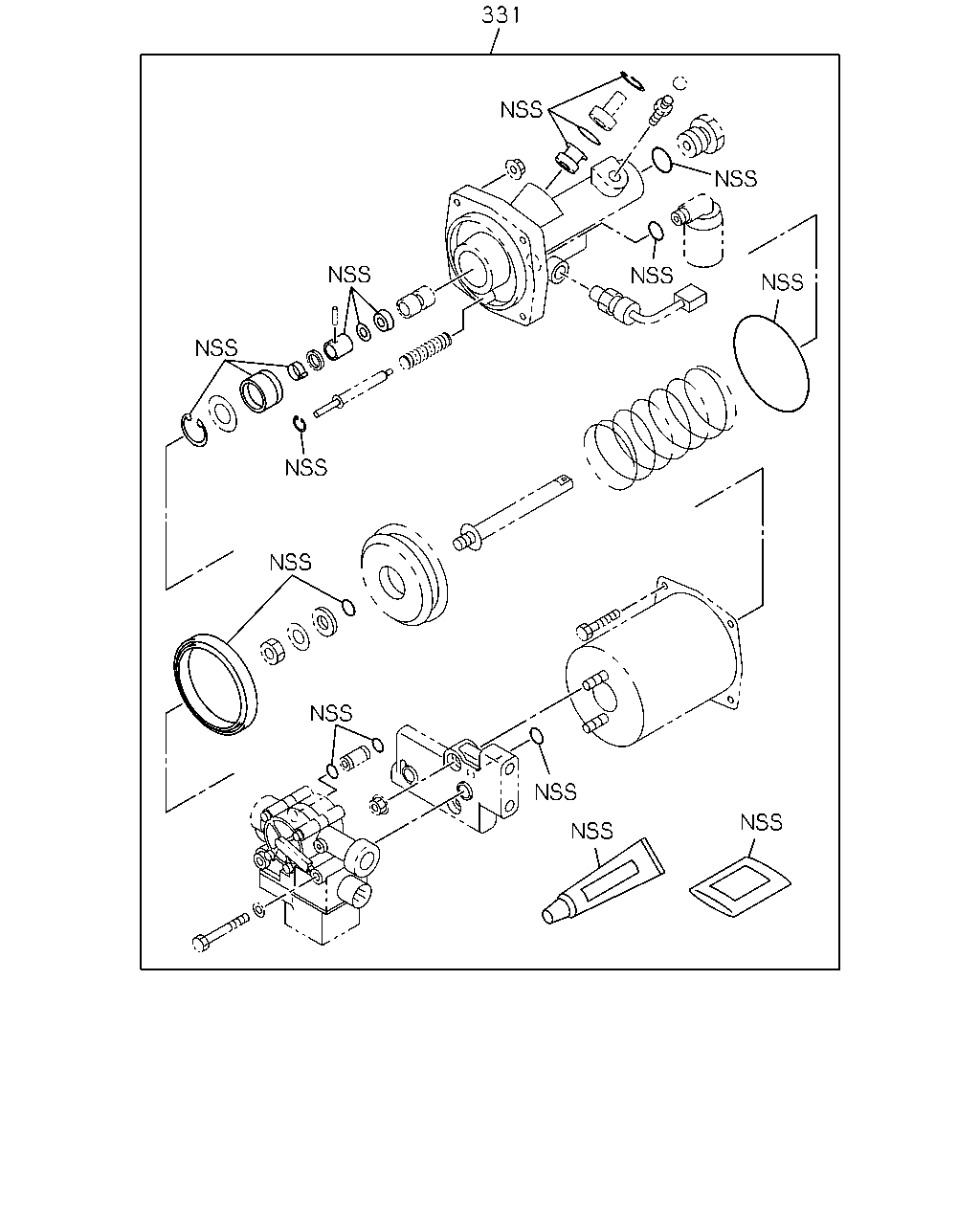

331

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	331	REPAIR KIT; MODULATOR,2 YEAR	1-85576-277-0	04	1	0112-0407

134 134 37 368 317 317 107 28 39 39 317 107 28 387 101 105 104 141 80 109 101 317 134 46 46 237 238 239 240 86 109 100 138 317 64 317 151 140 43 64 153 151 139 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK (C)	1-53318-379-0	01	1	0408-
28	BRACKET; AIR TANK TIRE INFLATOR DEVICE<SG4> (A)	1-48317-771-0	02	1	0112-0407
28	BRACKET; AIR TANK (B)	1-53318-378-1	01	1	0408-
37	BOLT; AIR TANK M10X35 FLANGE MAL	0-28681-035-0	04	1	0112-0407
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28681-240-0	06	1	0408-0512
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	0601-
39	U-BOLT; AIR TANK TIRE INFLATOR DEVICE<SG4> L=250	1-48317-308-0	02	1	0112-0407
43	BOLT; STAY,AIR TANK,MAIN (C) M10X25 FLANGE MAL	0-28681-025-0	04	1	0408-0512
43	BOLT; STAY,AIR TANK,MAIN (C) M10X25 FLANGE MAL	0-28651-025-0	04	1	0601-
43	BOLT; STAY,AIR TANK,MAIN TIRE INFLATOR DEVICE<SG4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0112-0407
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
46	NUT; U-BOLT TIRE INFLATOR DEVICE<SG4> M8 MAL	9-09110-408-0	08	1	0112-0407
64	STAY; AIR TANK,MAIN (C)	1-53318-293-1	01	1	0408-
64	STAY; AIR TANK,MAIN TIRE INFLATOR DEVICE<SG4> (A)	1-48317-831-0	02	1	0112-0407
64	STAY; AIR TANK,MAIN (B)	1-48317-349-0	01	1	0408-
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	02	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	0601-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	14	1	0408-0512
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	14	1	0601-
80	BOLT; BRKT TIRE INFLATOR DEVICE<SG4> (A) M8X20 FLANGE MAL	0-28680-820-0	03	1	0112-0407
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28680-825-0	01	1	0408-0512
80	BOLT; BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
86	SEAL; DUST	1-47529-019-0	01	1	0112-
100	BOLT; MODULATOR (A) M10X20 FLANGE MAL	0-28681-020-0	04	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	02	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	02	1	0601-
100	BOLT; MODULATOR (B)	1-47819-220-0	16	1	0112-0407
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28080-880-0	06	1	0408-0512
100	BOLT; MODULATOR (D) M8X80 FLANGE	0-28050-880-0	06	1	0601-
100	BOLT; MODULATOR (C)	1-48219-139-0	08	1	0112-0407
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28681-025-0	03	1	0408-0512
100	BOLT; MODULATOR (E) M10X25 FLANGE MAL	0-28651-025-0	03	1	0601-
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	12	1	0112-0407
101	NUT; MODULATOR (A) M8 FLANGE	0-91150-108-0	06	1	0408-0602
101	NUT; MODULATOR (A) M8 FLANGE MAL	0-91180-108-0	06	1	0603-
101	NUT; MODULATOR (B)	1-47829-114-0	04	1	0112-0407
101	NUT; MODULATOR (C) M10 FLANGE	0-91150-210-0	03	1	0408-0602
101	NUT; MODULATOR (C) M10 FLANGE MAL	0-91180-210-0	03	1	0603-
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0408-0602
104	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
104	NUT; BRKT TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91150-108-0	03	1	0112-0407
104	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0408-0602
104	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
105	COVER; MODULATOR TIRE INFLATOR DEVICE<SG4>	1-48317-804-1	01	1	0112-0407
107	MODULATOR; RR	1-47800-784-0	02	1	0112-0407
107	MODULATOR; RR MAL	1-48240-262-0	02	1	0408-
109	MODULATOR; FRT	1-47800-786-0	02	1	0112-0407
109	MODULATOR; FRT MAL	1-48240-262-0	02	1	0408-
134	BOLT; COVER FIX TIRE INFLATOR DEVICE<SG4> (B) M8X12 FLANGE	0-28080-812-0	04	1	0112-0407
134	BOLT; COVER FIX TIRE INFLATOR DEVICE<SG4> (A) M8X16 FLANGE	0-28080-816-0	06	1	0112-0407
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0112-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0112-0407
139	BRACKET; OIL TANK	1-47537-131-0	01	1	0408-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE MAL	0-28681-020-0	02	1	0112-0407
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0408-0512
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0407
141	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0408-0602
141	NUT; OIL TANK TO BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0112-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28680-820-0	02	1	0112-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0112-0602
153	NUT; OIL TANK TO BAND M8 FLANGE MAL	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-030-0	01	1	0112-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0112-
239	FILTER; DUST	1-47529-017-0	01	1	0112-
240	HOLDER; FILTER	1-47529-018-0	01	1	0112-
317	CONNECTOR; MODULATOR (A) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0112-0407
317	CONNECTOR; MODULATOR (A) M16 & PT3/8 ELBOW MAL	1-09650-438-0	06	1	0408-
317	CONNECTOR; MODULATOR (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	02	1	0112-0407
317	CONNECTOR; MODULATOR (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0112-0407
317	CONNECTOR; MODULATOR (D) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0112-0407
368	COVER; AIR TANK TIRE INFLATOR DEVICE<SG4>	1-48317-896-0	01	1	0112-0407
387	BRACKET; UNION (C)	1-47479-977-0	01	1	0408-
387	BRACKET; UNION TIRE INFLATOR DEVICE<SG4> (A)	1-47478-606-0	01	1	0112-0407
387	BRACKET; UNION (B)	1-47479-976-0	01	1	0408-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
