0-40 — FUEL INJECTION SYSTEM (#6482) — 118 parça

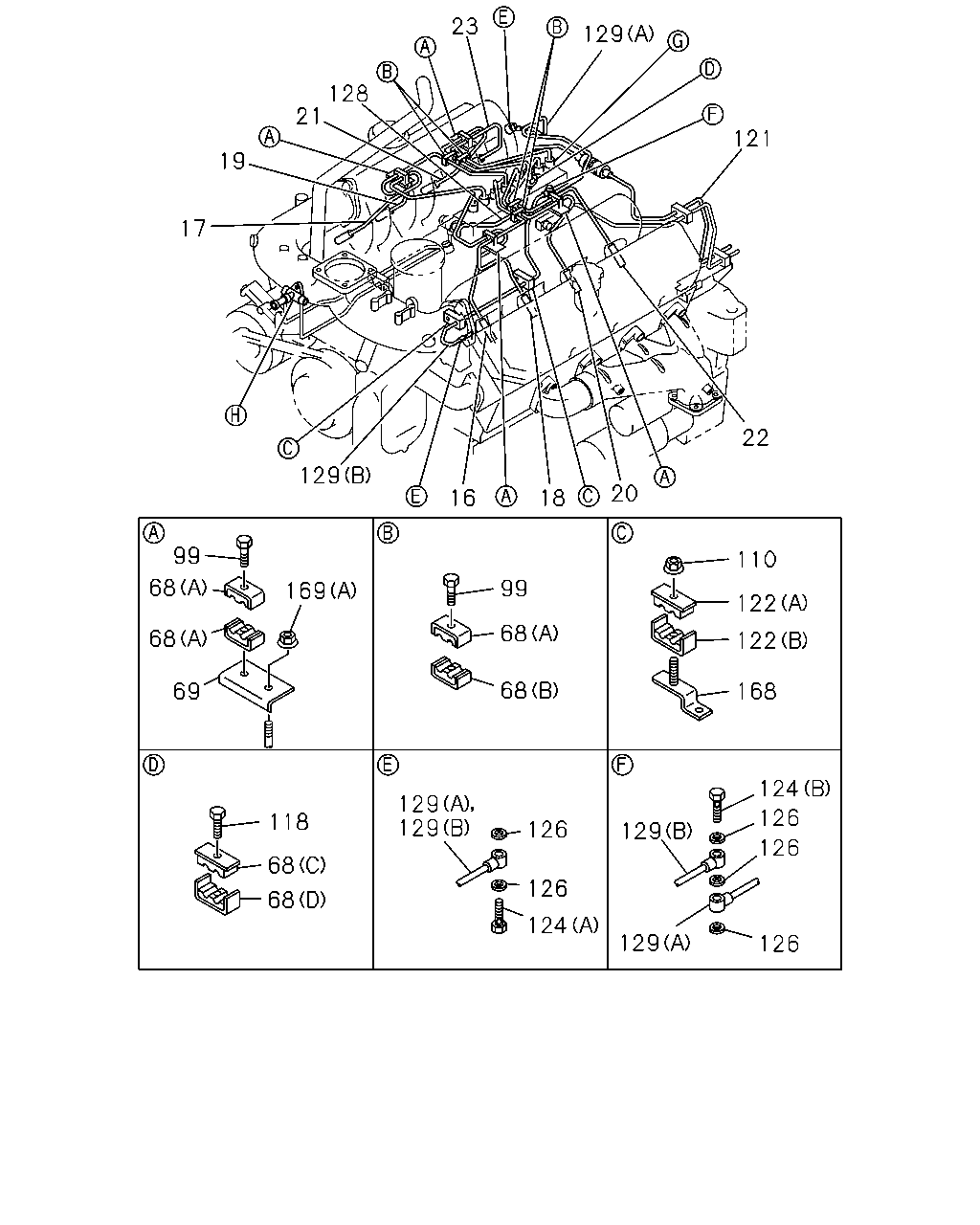

23 129 128 21 121 19 17 22 129 20 16 18 99 110 68 99 169 122 68 68 122 68 168 69 124 129 129 126 118 126 129 126 68 126 68 124 129 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15415-561-1	01	1	9705-
17	PIPE; INJ NO.2	1-15415-562-1	01	1	9705-
18	PIPE; INJ NO.3	1-15415-563-1	01	1	9705-
19	PIPE; INJ NO.4	1-15415-564-1	01	1	9705-
20	PIPE; INJ NO.5	1-15415-565-1	01	1	9705-
21	PIPE; INJ NO.6	1-15415-566-1	01	1	9705-
22	PIPE; INJ NO.7	1-15415-567-1	01	1	9705-
23	PIPE; INJ NO.8	1-15415-568-1	01	1	9705-
68	CLIP; INJ PIPE (A)	1-09701-132-0	12	1	9705-
68	CLIP; INJ PIPE (C)	1-09701-180-0	01	1	9705-
68	CLIP; INJ PIPE (B)	1-09701-213-0	04	1	9705-
68	CLIP; INJ PIPE (D) ID=10 & 10 L=25	8-94393-280-1	01	1	9705-
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	04	1	9705-
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	08	1	9705-
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9705-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	01	1	9705-
118	BOLT; CLIP,INJ PIPE M6X35 FLANGE	0-28080-635-0	01	1	9705-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-657-0	01	1	9705-
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9705-
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9705-
122	CLIP; LEAK OFF PIPE (D) L=19	1-09709-104-0	04	1	9705-
122	CLIP; LEAK OFF PIPE (C) L=22	1-09709-156-0	02	1	9705-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9705-
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9705-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9705-
128	PIPE ASM; INJ	1-15415-741-0	01	1	9705-
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-652-0	01	1	9705-
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-732-0	01	1	9705-
168	BRACKET; FUEL PIPE	1-15419-363-1	02	1	9705-9910
168	BRACKET; FUEL PIPE	1-15419-622-0	02	1	9911-
169	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9705-
169	NUT; BRKT (B) M10 FLANGE	0-91150-110-0	02	1	9705-
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9705-

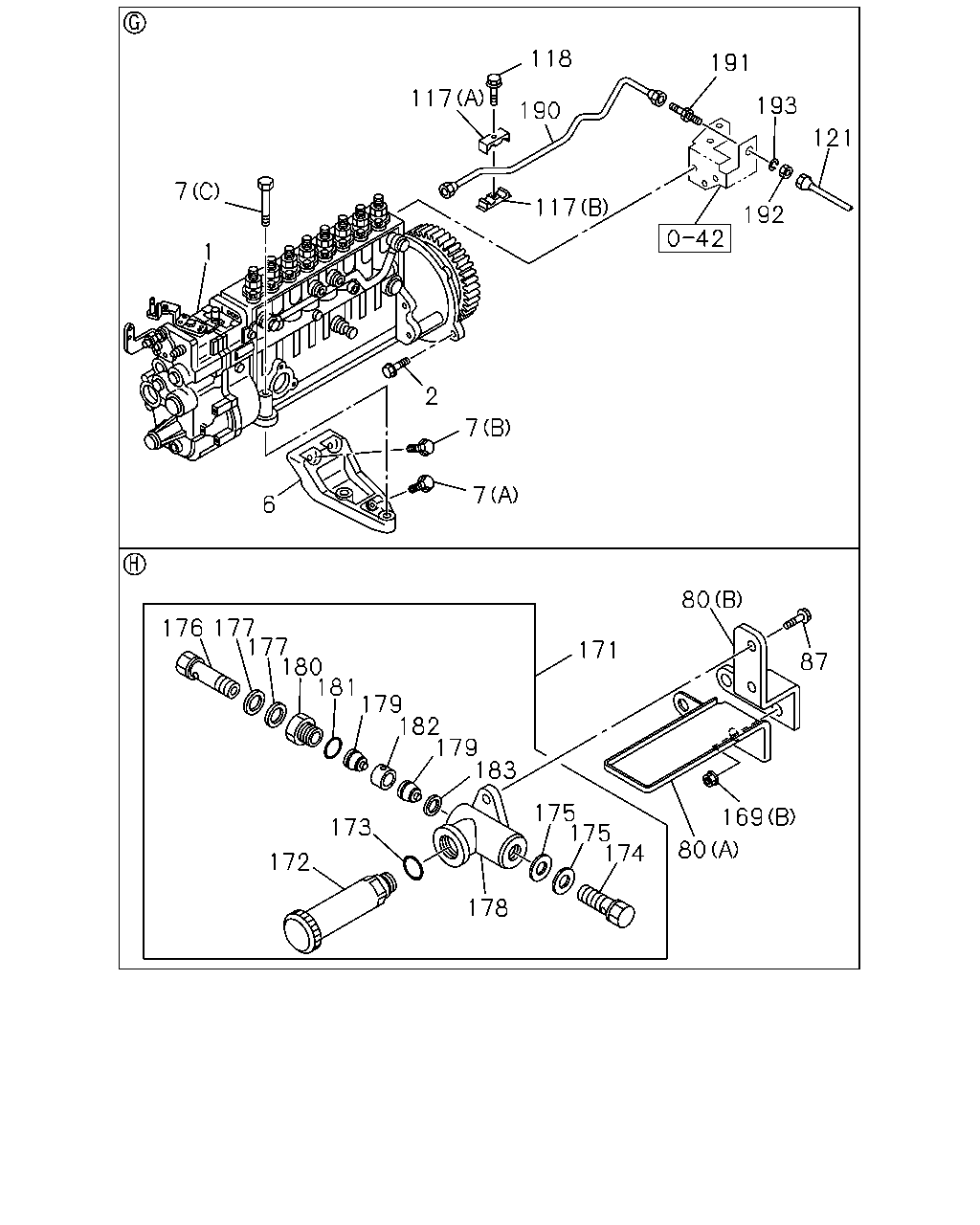

118 191 117 193 190 121 7 117 192 1 2 7 7 6 80 176 177 177 180 181 179 182 179 183 171 87 175 175 174 169 173 80 172 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-200-1	01	1	9705-
2	BOLT; INJ PUMP M10X80 FLANGE	0-28181-080-0	04	1	9705-
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9705-
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9705-
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28181-040-0	01	1	9705-
7	BOLT; INJ PUMP BRKT (C) M10X95 FLANGE	8-94397-027-1	02	1	9705-
80	BRACKET; PUMP (B)	1-15769-009-1	01	1	9705-
80	BRACKET; PUMP (A)	1-15769-015-0	01	1	9705-
87	BOLT; PUMP M8X22 FLANGE	0-28080-822-0	02	1	9705-
117	CLIP; INJ PIPE (A)	1-09701-195-1	01	1	9705-
117	CLIP; INJ PIPE (B)	1-09701-196-0	01	1	9705-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	01	1	9705-
118	BOLT; CLIP,INJ PIPE M6X35 FLANGE	0-28080-635-0	01	1	9705-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-657-0	01	1	9705-
169	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9705-
169	NUT; BRKT (B) M10 FLANGE	0-91150-110-0	02	1	9705-
171	PUMP ASM; FUEL FEED	1-15761-009-1	01	1	9705-
172	PUMP; PRIMING,FUEL FEED PUMP	1-15761-006-0	01	1	9705-
173	GASKET; PRIMING PUMP,FUEL FEED PUMP	1-19623-016-0	01	1	9705-
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	1-15759-011-0	01	1	9705-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2	1-09630-085-0	02	1	9705-
176	BOLT; EYE,FEED PUMP	1-15759-011-0	01	1	9705-
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2	1-09630-085-0	02	1	9705-
178	CYLINDER; FUEL FEED PUMP	1-15759-073-0	01	1	9705-
179	VALVE; CHECK,FEED PUMP	1-15755-003-0	02	1	9705-
180	ADAPTER; EYE BOLT,FUEL FEED PUMP	1-15759-072-0	01	1	9705-
181	GASKET; ADAPTER	1-09623-052-0	01	1	9705-
182	BUSHING; VLV	1-15769-005-0	01	1	9705-
183	GASKET; VLV,FUEL FEED PUMP	5-15729-115-0	01	1	9705-
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9705-
190	PIPE; FUEL INLET	1-15415-916-0	01	1	9705-
191	UNION; FLARE M20 L=77.5	9-09223-212-1	01	1	9705-9910
191	UNION; FLARE M20 L=77.5	9-09233-212-1	01	1	9911-
192	NUT; UNION M20	9-99110-420-0	01	1	9705-
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	9705-

127 122 133 127 122 57 56 55 52 61 132 52 60 31 59 132 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-328-0	08	1	9705-9709
31	NOZZLE ASM; INJ	1-15300-368-0	08	1	9710-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9705-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9705-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9705-
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9705-
56	COVER	1-15419-028-0	08	1	9705-
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9705-
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9705-
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9705-
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9705-
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9705-
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9705-
122	CLIP; LEAK OFF PIPE (D) L=19	1-09709-104-0	04	1	9705-
122	CLIP; LEAK OFF PIPE (C) L=22	1-09709-156-0	02	1	9705-
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9705-
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9705-
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9705-
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9705-

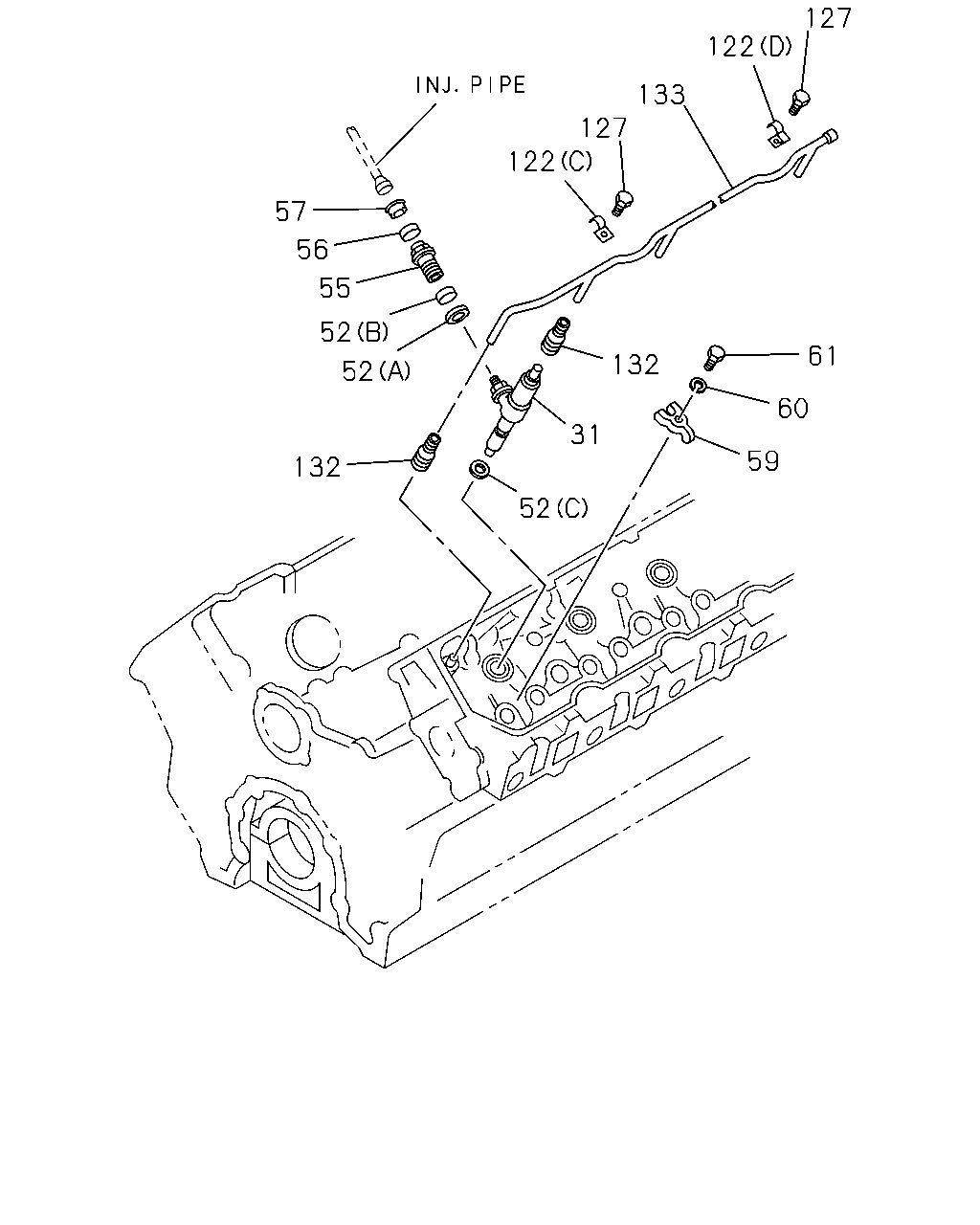

37 40 39 143 44 45 140 31 32 47 140 138 141 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-328-0	08	1	9705-9709
31	NOZZLE ASM; INJ	1-15300-368-0	08	1	9710-
32	HOLDER ASM; NOZZLE	1-15330-109-0	08	1	9705-
33	NOZZLE; INJ	1-15311-261-0	08	1	9705-9709
33	NOZZLE; INJ	1-15311-286-0	08	1	9710-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	08	1	9705-
37	NUT; CAP,NOZZLE HOLDER	1-15334-004-0	08	1	9705-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	08	1	9705-
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	08	1	9705-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	08	1	9705-
45	ROD; PUSH,NOZZLE HOLDER	1-15341-005-0	08	1	9705-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9705-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	08	1	9705-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	08	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9705-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9705-
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-004-0	08	1	9705-
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	08	1	9705-
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9705-
