◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10772 - LV280(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#6481) — 34 parça

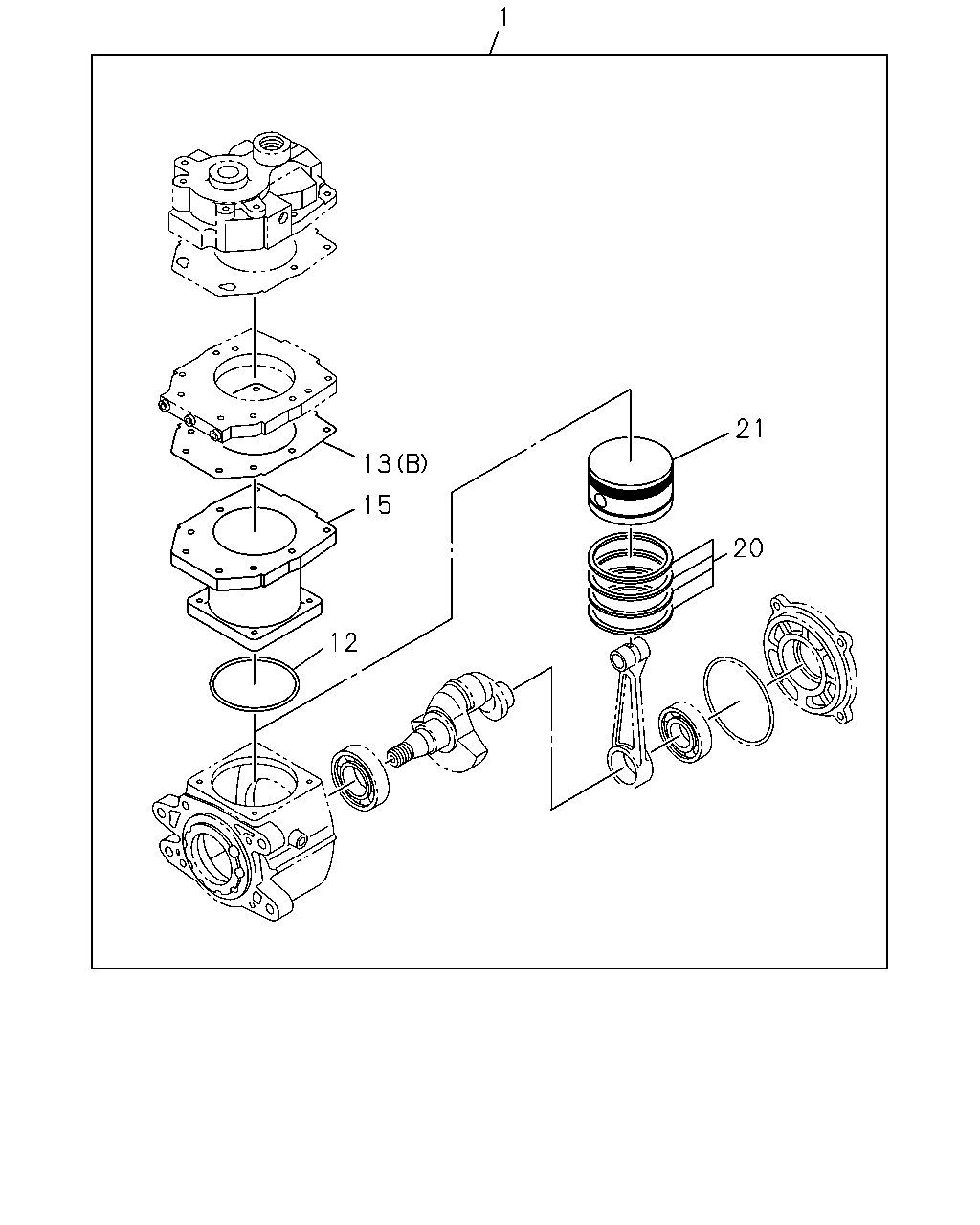

çizim 44416
1 21 13 15 20 12
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-056-1 01 1 9705-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9705-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9705-
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9705-
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9705-
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9705-
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9705-

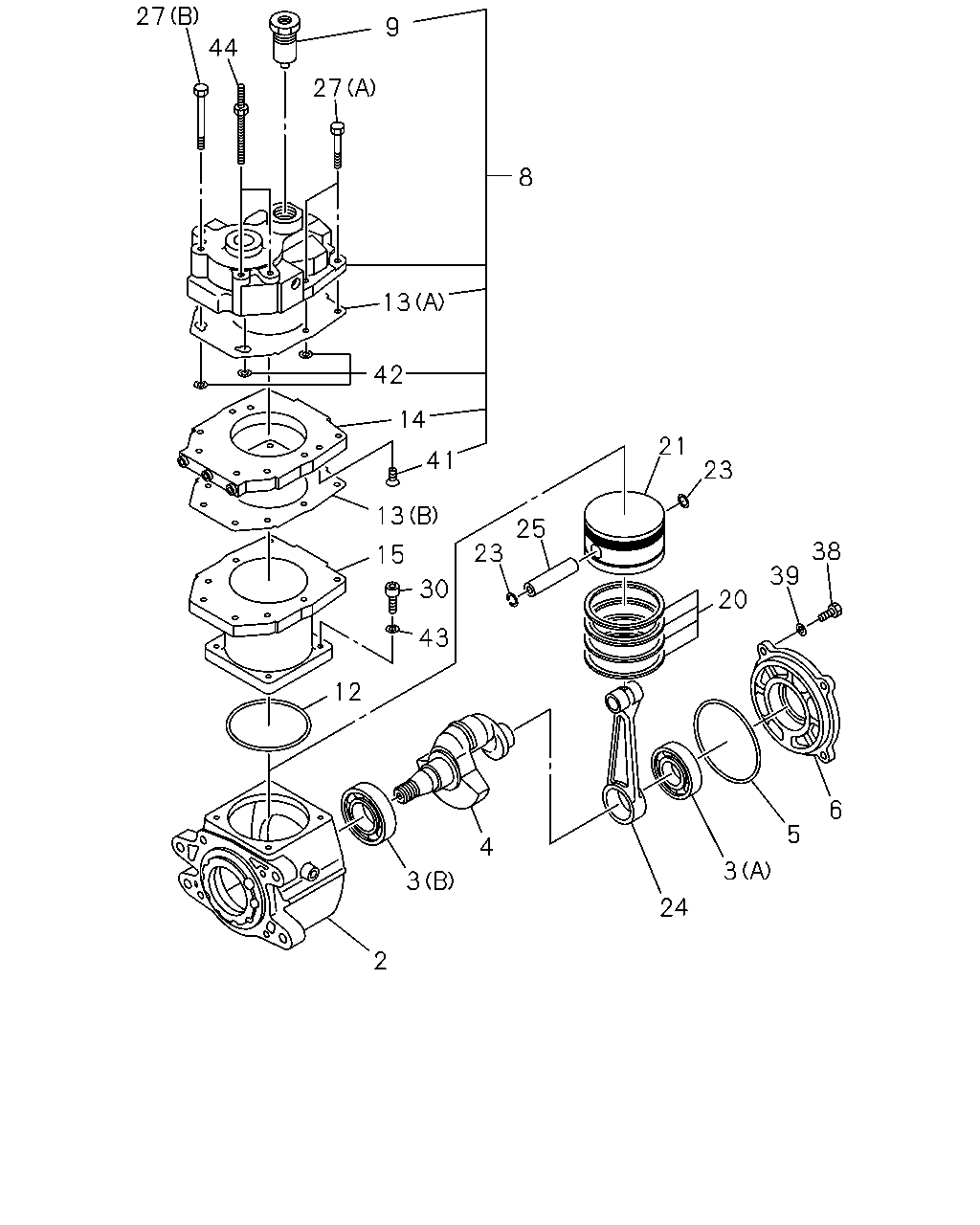

çizim 44473
27 9 44 27 8 13 42 14 21 41 23 13 25 38 23 15 39 30 20 43 12 6 5 4 3 3 24 2
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-238-0 01 1 9705-
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9705-
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9705-
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9705-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9705-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9705-
8 HEAD ASM; CYL,AIR CMPR 1-19110-049-3 01 1 9705-
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-018-1 01 1 9705-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9705-
13 GASKET; AIR CMPR
(A) 		1-19139-007-0 01 1 9705-
13 GASKET; AIR CMPR
(B) 		1-19139-009-0 01 1 9705-
14 PLATE; AIR CMPR 1-19111-017-3 01 1 9705-
15 CYLINDER; AIR CMPR 1-19151-236-0 01 1 9705-
20 RING KIT; PISTON,AIR CMPR 1-19163-055-1 01 1 9705-
21 PISTON; AIR CMPR 1-19161-014-0 01 1 9705-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-005-0 02 1 9705-
24 ROD ASM; CONN,AIR CMPR 1-19173-012-0 01 1 9705-
25 PIN; PISTON,AIR CMPR 9-19167-007-0 01 1 9705-
27 BOLT; HD
(A) 		1-19119-013-0 04 1 9705-
27 BOLT; HD
(B) 		1-19119-014-0 02 1 9705-
30 BOLT; CYL TO CRANKCASE 1-19159-007-0 04 1 9705-
38 BOLT; COVER FIX 1-19179-011-0 04 1 9705-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9705-
41 SCREW; PLATE TO HD,AIR CMPR 1-09100-018-0 02 1 9705-
42 GASKET; PLATE TO HD,AIR CMPR 1-09623-402-0 02 1 9705-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9705-
44 STUD; CYL HD,AIR CMPR 1-19119-002-0 02 1 9705-
