Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶

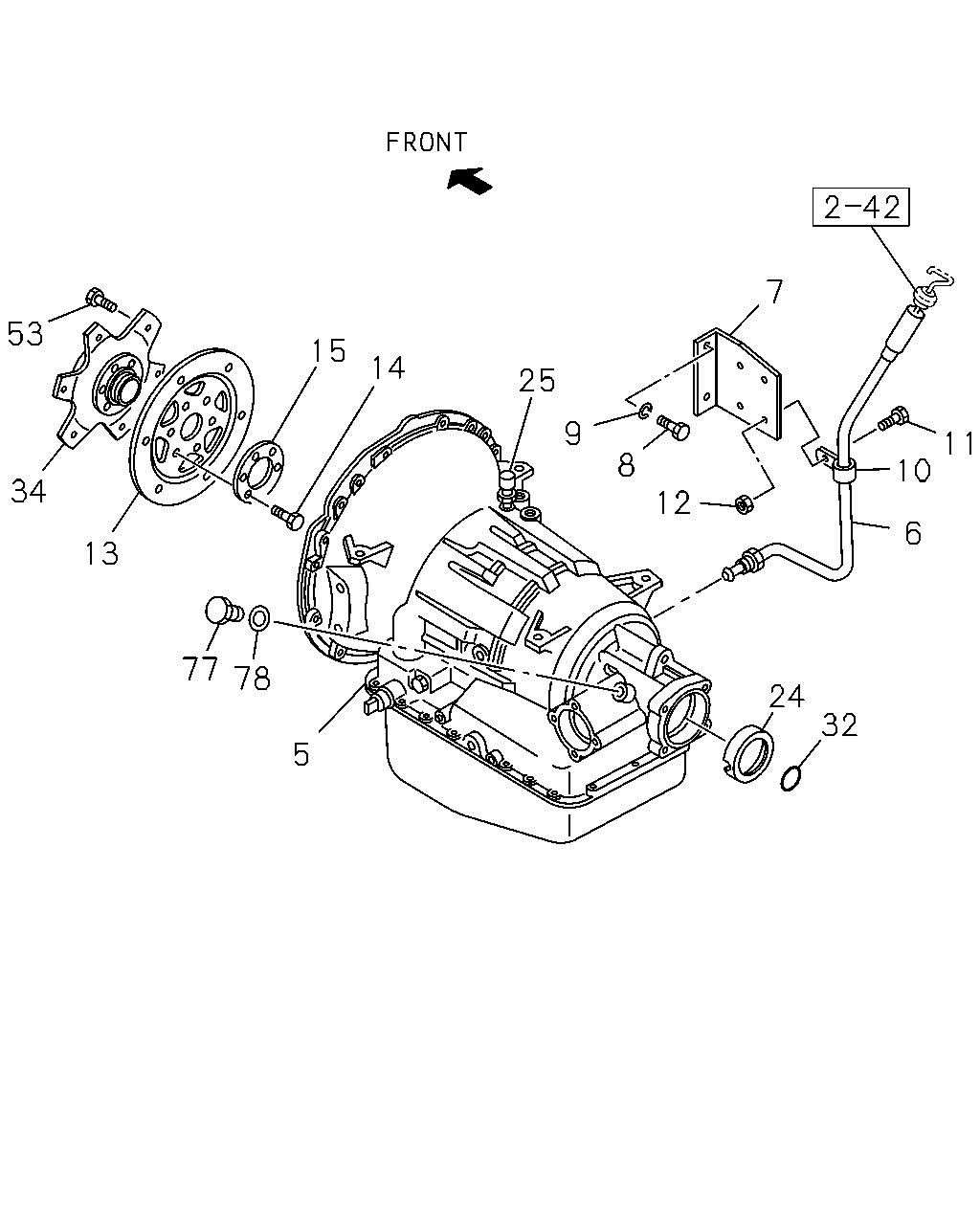

2-40 — AUTO TRANS ASM AND REPAIR KIT
(#64803) — 23 parça
7
53
15
14
25
9
11
8
10
34
12
6
13
77
78
24
32
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
TRANSMISSION ASM; AUTO
MAL
1-34000-640-0
01
1
0112-
6
FILLER; OIL
MAL
1-34121-126-0
01
1
0112-
7
BRACKET; OIL FILLER
MAL
1-34129-044-0
01
1
0112-
8
BOLT; BRKT
5/8"X30 MAL
1-09040-013-0
02
1
0112-
9
WASHER; LK
ID=16.2
9-09150-516-0
02
1
0112-0603
9
WASHER; LK
ID=16.2 MAL
0-91510-516-0
02
1
0604-
10
CLIP; OIL FILLER
ID=19 MAL
1-09700-664-0
02
1
0112-
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50140-816-0
04
1
0112-0512
11
BOLT; CLIP
M8X16 W/LK&PL WASHER MAL
0-50640-816-0
04
1
0601-
12
NUT; BOLT
M8 MAL
9-09110-408-0
04
1
0112-0512
12
NUT; BOLT
M8
0-91110-508-0
04
1
0601-
13
PLATE; FLEX,A/T
MAL
1-32213-022-0
01
1
0112-
14
BOLT; FLEX PLATE
M14X25
9-92061-425-0
06
1
0112-0512
14
BOLT; FLEX PLATE
M14X25 MAL
0-20951-425-0
06
1
0601-
15
WASHER; FLEX PLATE
MAL
1-32213-009-1
01
1
0112-
24
COVER; SEALED
MAL
1-34125-002-0
01
1
0112-
25
BREATHER; AIR
MAL
1-33547-004-2
01
1
0112-
32
GASKET
MAL
9-09921-103-0
01
1
0112-
34
ADAPTER
MAL
8-94396-923-2
01
1
0112-
53
BOLT; ADAPTER
M10X30 FLANGE
0-28791-030-0
06
1
0112-0512
53
BOLT; ADAPTER
M10X30 FLANGE
0-28761-030-0
06
1
0601-
77
PLUG; SCREW,STRAIGHT
MAL
1-34129-125-0
01
1
0112-
78
GASKET; PLUG
MAL
1-34129-126-0
01
1
0112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
