Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

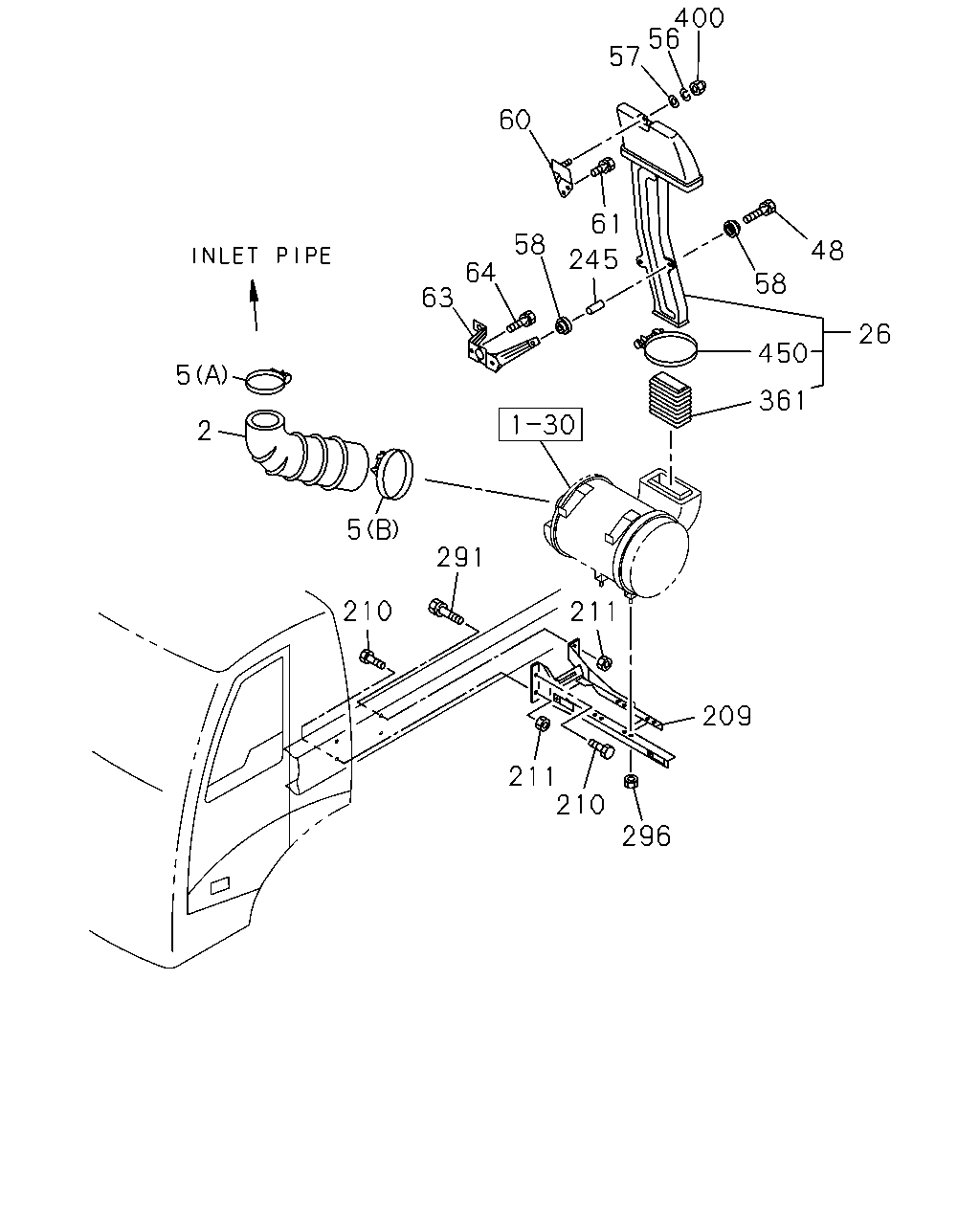

1-31 — AIR DUCT
(#64794) — 29 parça
400
56
57
60
61
58
48
245
64
58
63
26
450
5
361
2
5
291
210
211
209
211
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-919-1
01
1
0112-
5
CLIP; AIR DUCT
(A) ID=87-116
1-09707-144-0
01
1
0112-0212
5
CLIP; AIR DUCT
(A) ID=87-113
1-09707-199-0
01
1
0301-0811
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
0812-
5
CLIP; AIR DUCT
(B) ID=104-142
1-09707-155-0
01
1
0112-0212
5
CLIP; AIR DUCT
(B) ID=104-139
1-09707-200-0
01
1
0301-0812
5
CLIP; AIR DUCT
(B) ID=110-130
8-98133-359-0
01
1
0901-
26
DUCT; AIR INT
1-14230-176-2
01
1
0112-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0112-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0112-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0112-
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0112-
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0112-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0112-
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0112-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0112-
209
BRACKET; ACL
1-53497-508-2
01
1
0112-
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0112-0512
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
02
1
0112-0602
211
NUT; BRKT
M12 FLANGE MAL
0-91180-212-0
02
1
0603-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0112-
291
BOLT; ACL
M8X20 FLANGE MAL
0-28680-820-0
04
1
0112-0512
291
BOLT; ACL
M8X20 FLANGE MAL
0-28650-820-0
04
1
0601-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0112-0602
296
NUT; ACL
M8 FLANGE MAL
0-91180-108-0
04
1
0603-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0112-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0112-
450
CLAMP; HOSE
9-09915-504-1
01
1
0112-
