Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#64781) — 53 parça
◀

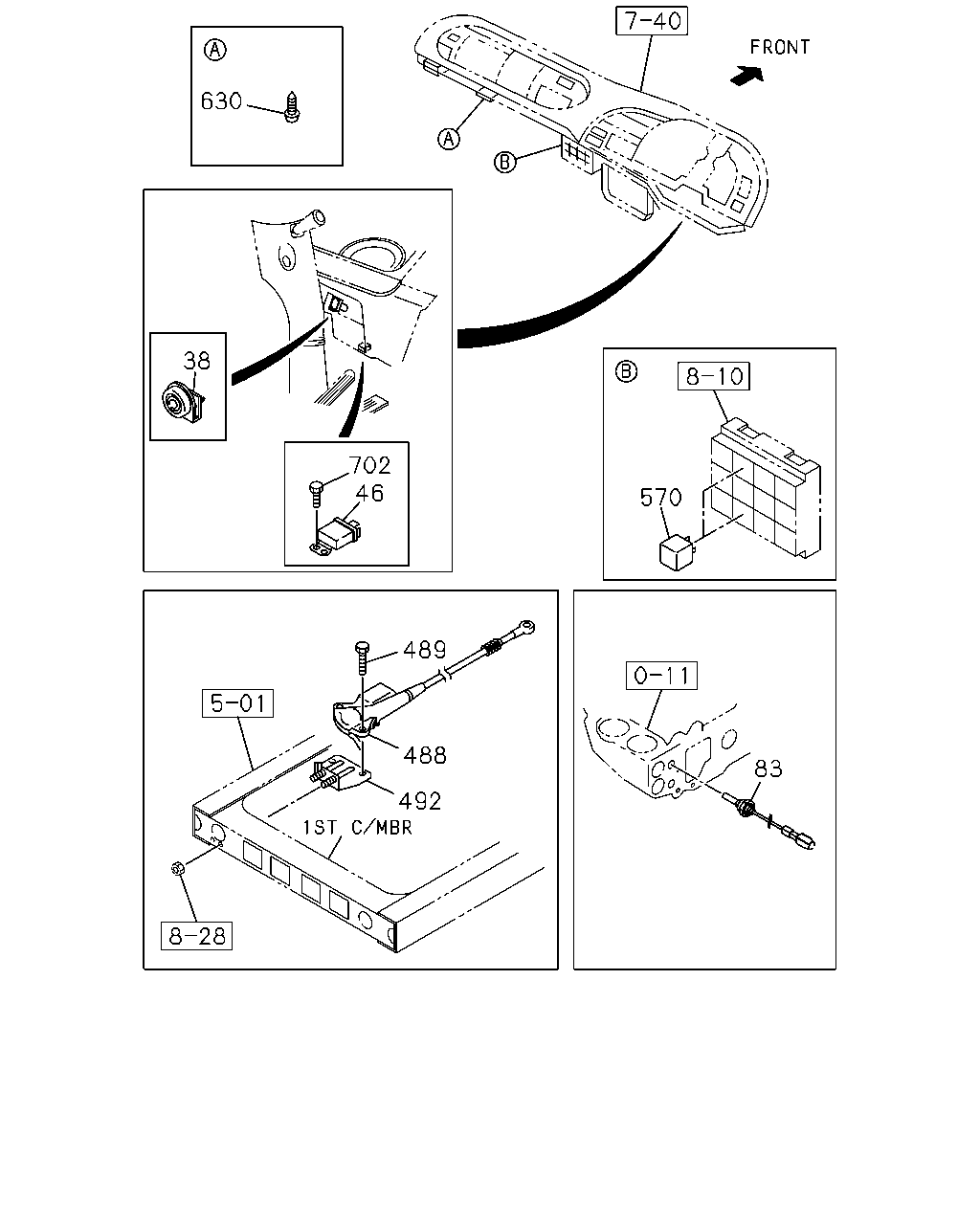

[060A] FIXING;CONTROL UNIT (11 parça)

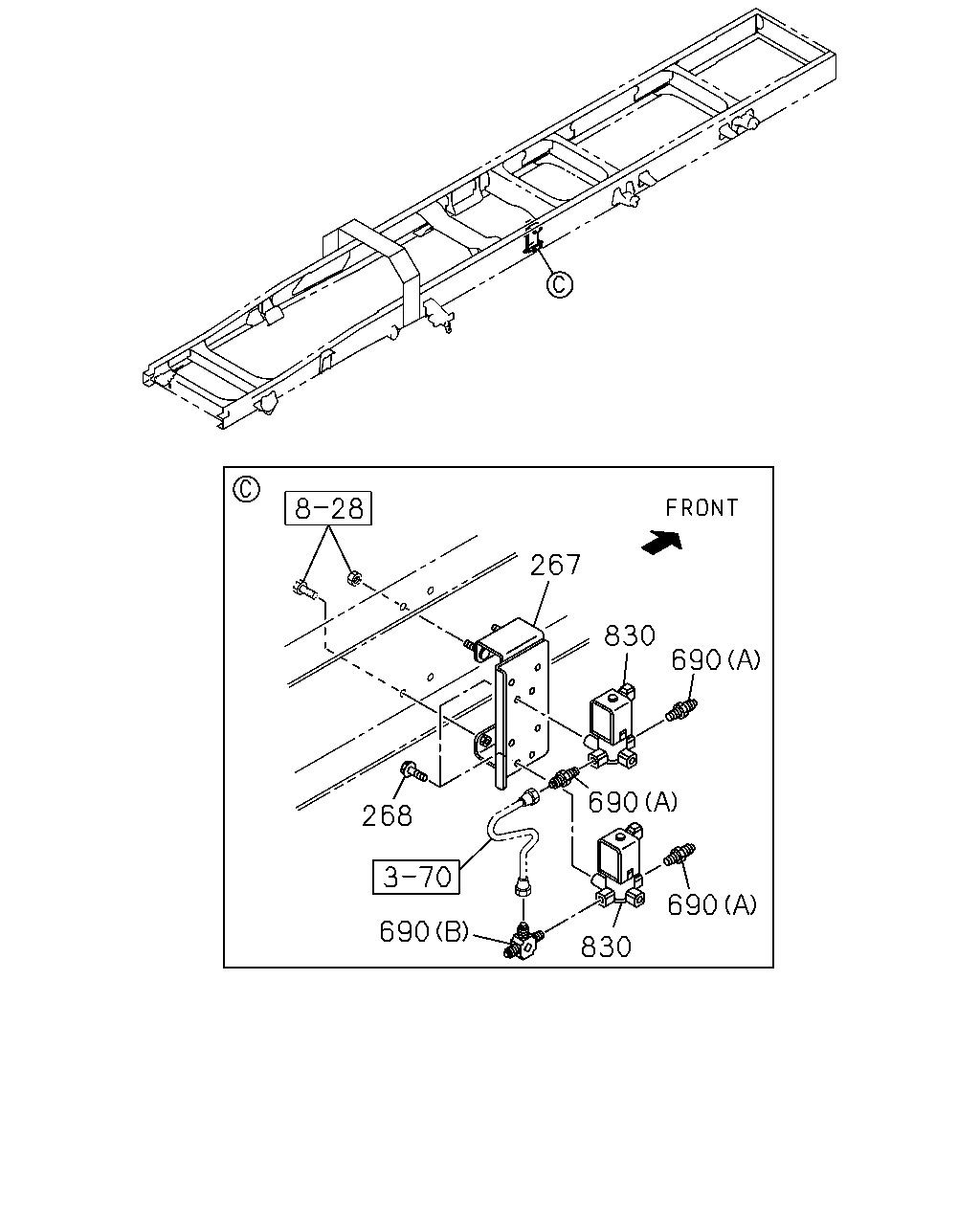

[060A] MAG VALVE (6 parça)

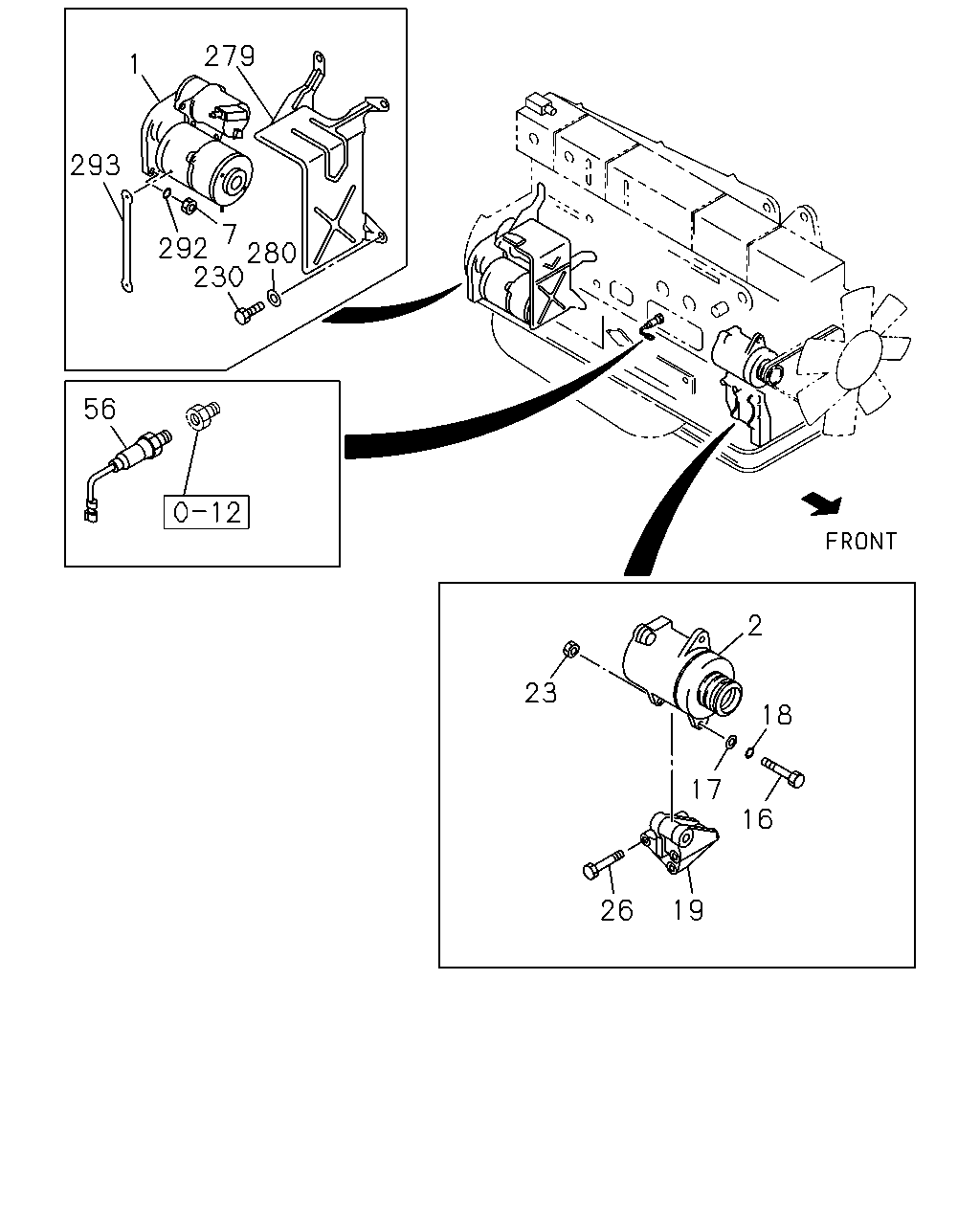

[060A] FIXING;STARTER AND GENERATOR (25 parça)

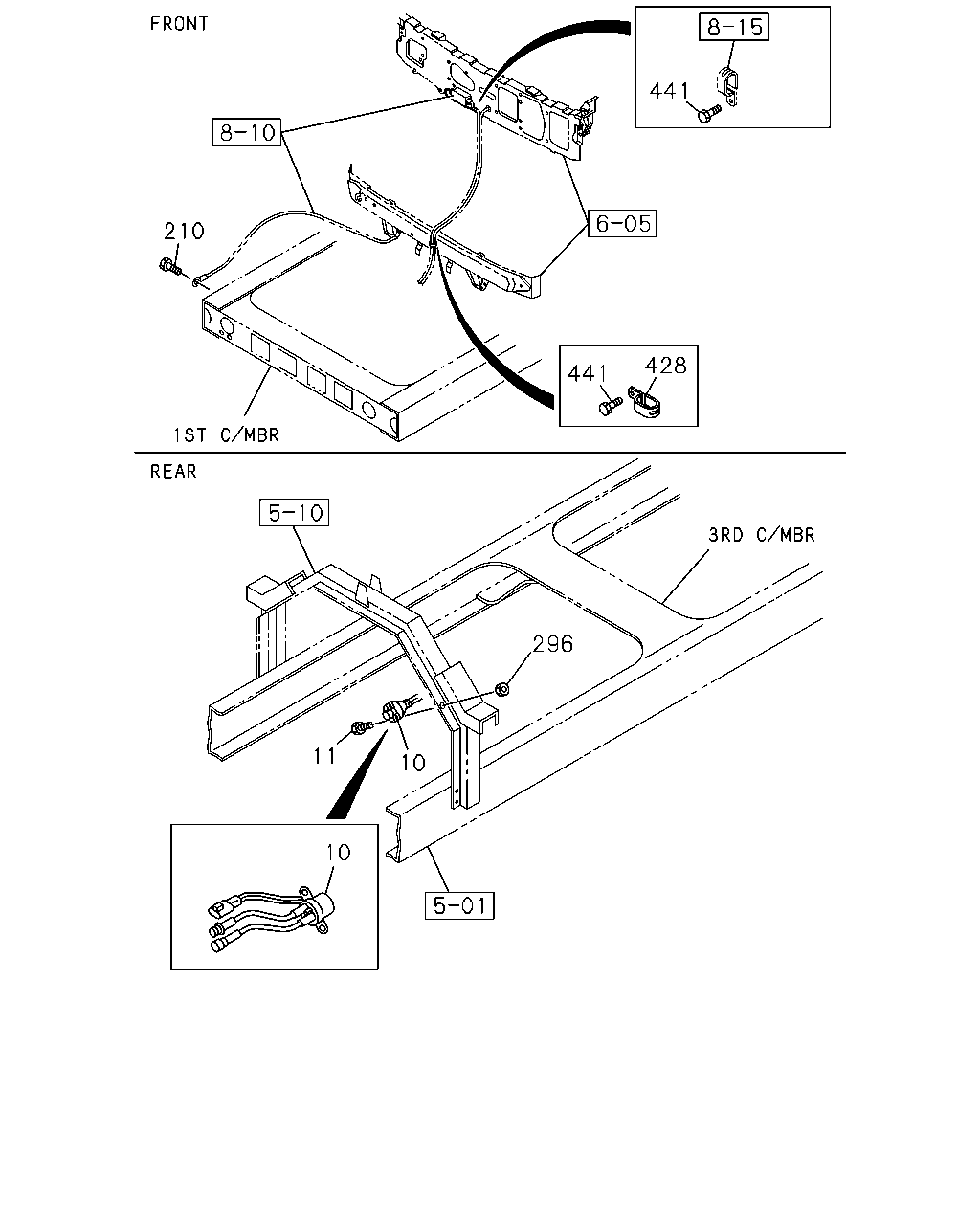

[060A] STARTER;RELAY AND CLIP (11 parça)
▶
630
38
702
46
570
489
488
83
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
0112-
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0112-
83
THERMOMETER UNIT
1-83161-031-1
01
1
0112-
488
STOPPER; ENG
1-82840-128-3
01
1
0112-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0112-0512
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50640-825-0
02
1
0601-
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
0112-
570
RELAY; EXH SHUTTER
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
570
RELAY; EXH SHUTTER
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
630
SCREW; UNIT
M6X12 W/LK&PL WASHER
9-03920-612-0
02
1
0112-0307
702
BOLT; RELAY
M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
01
1
0112-
267
830
690
690
268
690
690
830
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
267
BRACKET; MAG VLV
1-47477-327-2
01
1
0112-
268
BOLT; BRKT,MAG VLV
M8X20 FLANGE MAL
0-28680-820-0
04
1
0112-0512
268
BOLT; BRKT,MAG VLV
M8X20 FLANGE MAL
0-28650-820-0
04
1
0601-
690
CONNECTOR
(A) M12 & PT1/4 STRAIGHT MAL
1-09650-074-1
03
1
0112-
690
CONNECTOR
(B) M12X2 & PT1/4 3WAY MAL
1-09656-230-1
01
1
0112-
830
VALVE; MAG,EGR
1-82563-598-5
02
1
0112-
279
1
293
7
292
280
230
56
2
23
18
17
16
26
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-1
01
1
0112-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-5
01
1
0112-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0112-0512
7
NUT; STARTER
M14 MAL
0-91110-514-0
02
1
0601-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0112-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0112-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0112-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
8-94396-297-0
01
1
0112-0112
19
BRACKET; GEN
8-97602-318-0
01
1
0201-
23
NUT; GEN
M14
9-99110-414-0
01
1
0112-0512
23
NUT; GEN
M14 MAL
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
0112-0512
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
0112-0512
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0112-
230
BOLT; HEAT PROTECTOR
M8X14
0-20800-814-0
03
1
0112-
279
PROTECTOR; STARTER
8-94394-435-2
01
1
0112-
280
WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18
9-09160-608-0
03
1
0112-0605
280
WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18
0-91610-608-0
03
1
0606-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0112-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
L=360
1-82650-230-1
01
1
0112-
441
210
428
441
296
11
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
0112-0303
10
RELAY; STARTER
NIKKO
1-81171-075-1
01
1
0304-
11
BOLT; RELAY STARTER
M8X20 FLANGE MAL
0-28680-820-0
02
1
0112-0512
11
BOLT; RELAY STARTER
M8X20 FLANGE MAL
0-28650-820-0
02
1
0601-
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0112-1202
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1203-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0112-0602
296
NUT; RELAY,STARTER
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
428
CLIP; HARNESS
ID=35 L=50
1-09701-214-0
02
1
0112-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE MAL
0-28680-825-0
02
1
0112-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
