0-32 — WATER PIPING; ENGINE (#6477) — 15 parça

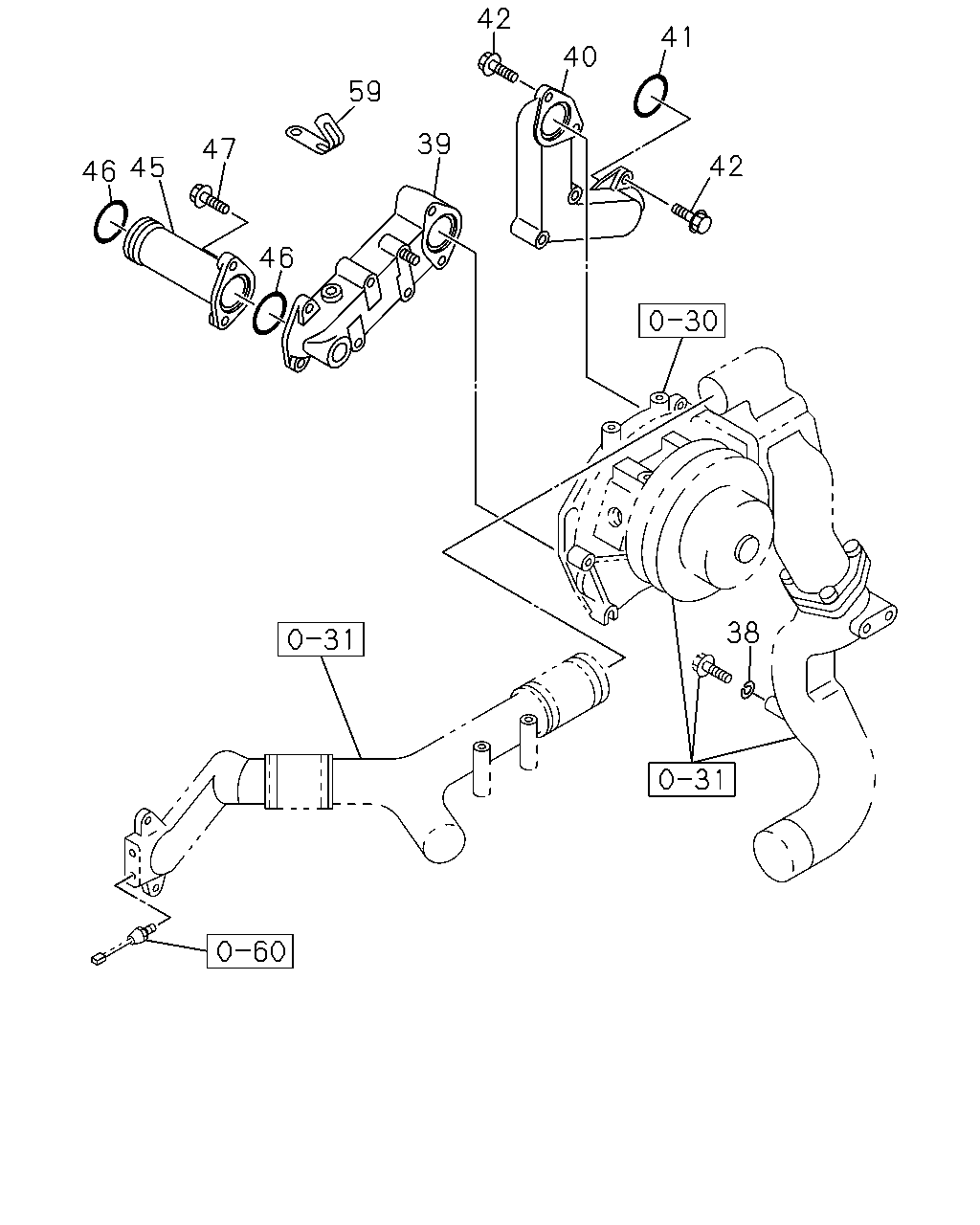

42 41 40 59 39 47 42 45 46 46 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	WASHER; LK,DUCT & ENG FOOT ID=10.2	9-09150-510-0	01	1	9705-
39	DUCT ASM; WATER,PUMP OUT	1-13711-621-1	01	1	9705-
40	DUCT; WATER	1-13711-623-3	01	1	9705-0108
40	DUCT; WATER	1-13711-074-3	01	1	0109-
41	GASKET; WATER DUCT,PUMP OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9705-
42	BOLT; DUCT,PUMP OUT M10X30 FLANGE	0-28181-030-0	04	1	9705-
45	DUCT; WATER,TO OIL COOLER	1-13711-381-2	01	1	9705-0106
45	DUCT; WATER,TO OIL COOLER	1-13711-060-2	01	1	0107-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9705-
47	BOLT; DUCT,TO OIL COOLER M10X25 FLANGE	0-28081-025-0	02	1	9705-
59	CLIP; HARNESS,WATER OUTLET PIPE L=36	8-94224-891-1	02	1	9705-

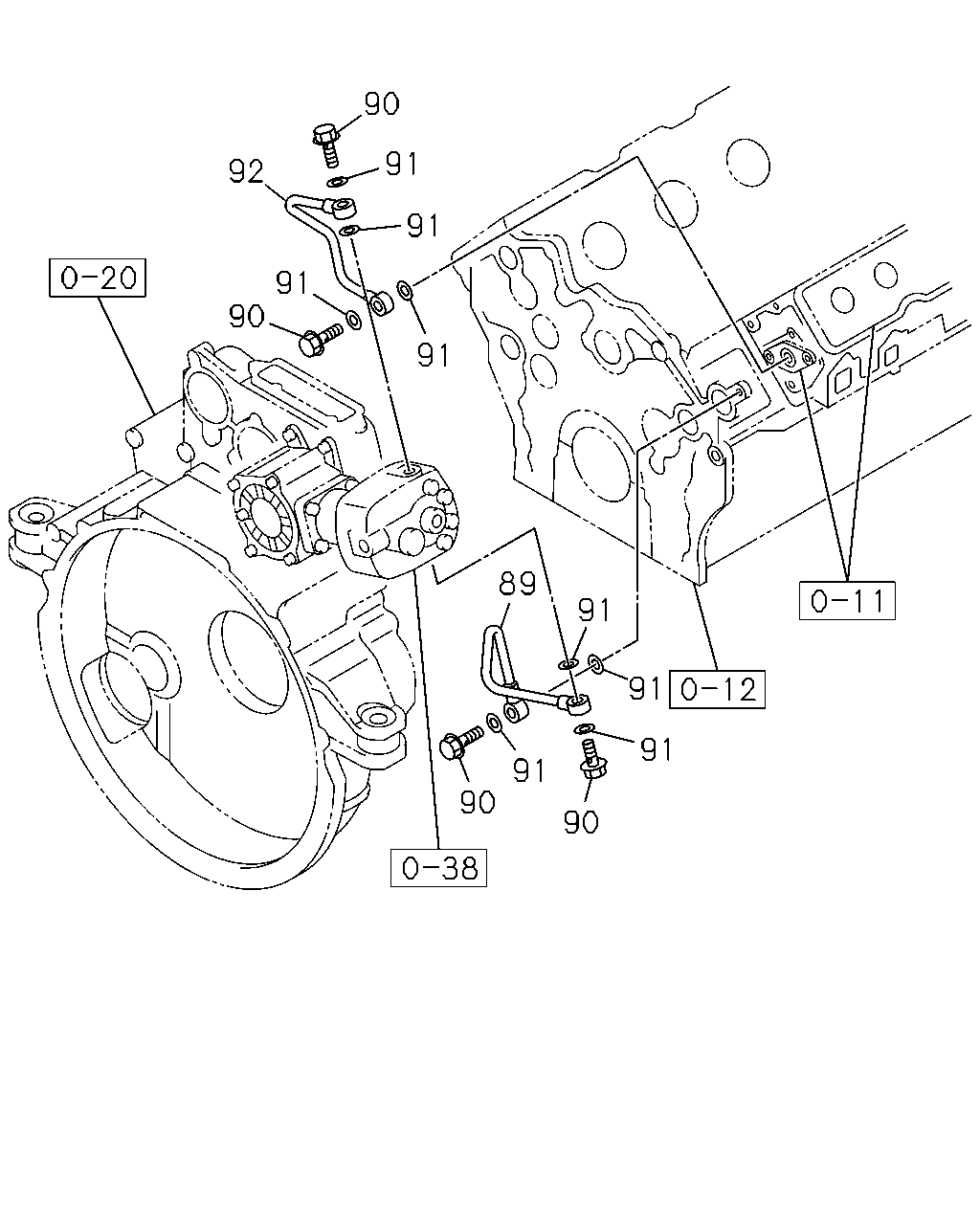

90 91 92 91 91 90 91 89 91 91 91 91 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN	1-13721-379-0	01	1	9705-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9705-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9705-
92	PIPE; WATER,AIR CMPR,OUT	1-13721-376-0	01	1	9705-
