Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

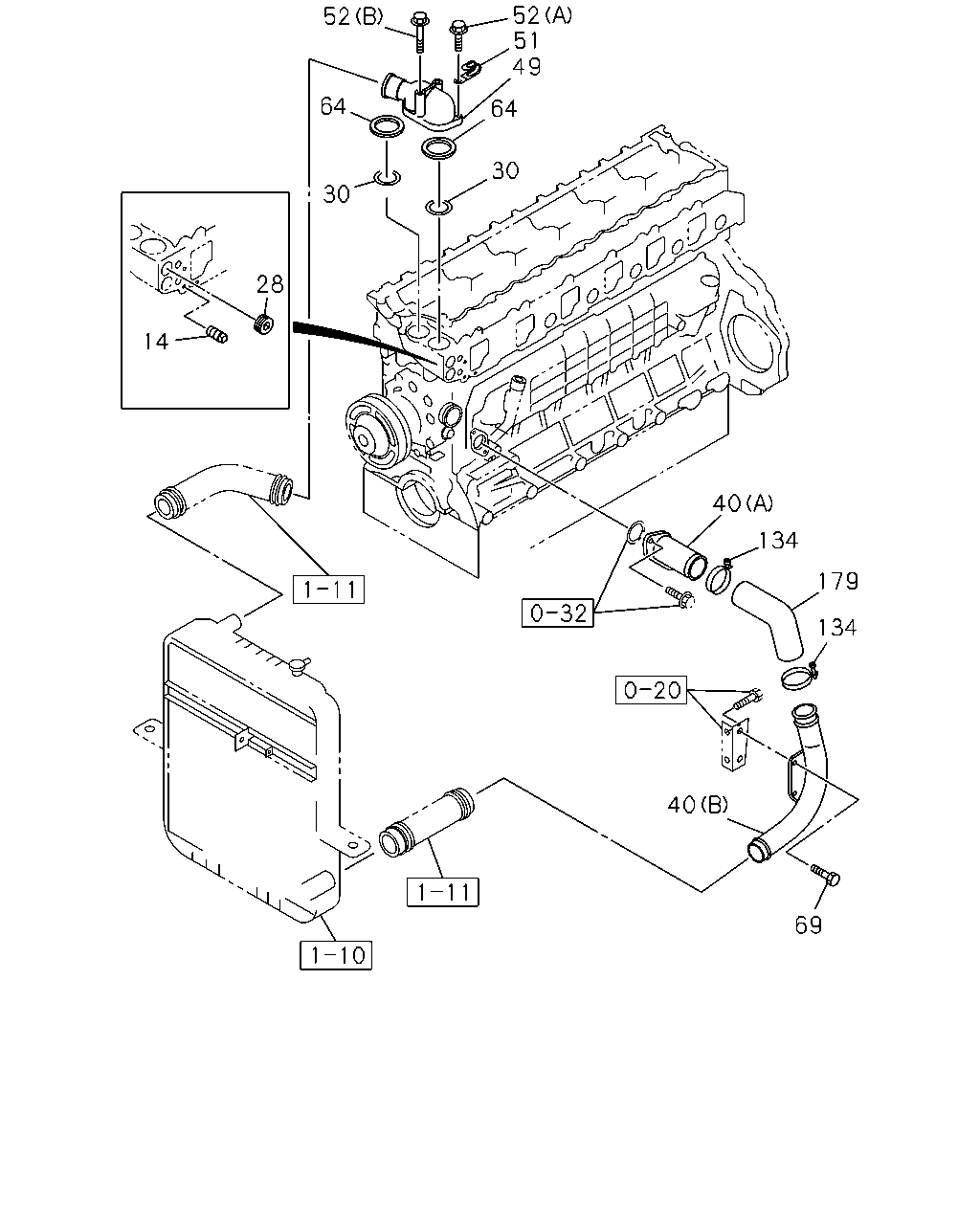

0-31 — THERMOSTAT AND HOUSING
(#64769) — 18 parça
52
64
30
28
14
52
51
49
64
30
40
134
179
134
40
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
0112-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0112-
30
SPACER
8-94393-517-0
02
1
0112-
40
DUCT; WATER,SUCTION
(A)
8-94391-091-1
01
1
0112-
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
0112-
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0112-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-94225-185-0
01
1
0112-0801
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
0802-
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28080-880-0
02
1
0112-0512
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28050-880-0
02
1
0601-
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE MAL
0-28680-825-0
02
1
0112-0512
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0112-1501
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
69
BOLT; DUCT,WATER OUTLET
M8X25 FLANGE MAL
0-28680-825-0
02
1
0112-0512
69
BOLT; DUCT,WATER OUTLET
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
0112-
179
HOSE; RUBBER,WATER DUCT
8-94394-535-2
01
1
0112-
