Sayfa 9-01 - Isuzu EPC

146 151 153 146 141 162 154 160 178 158 162 174 193 208 192 180 227 230 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
141	HANDLE; WRENCH OD=25 L=480 IDN	1-85116-011-0	01	1	9704-1409
141	HANDLE; WRENCH OD=25 L=480 IDN	8-98257-407-0	01	1	1410-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	9704-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9704-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9704-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9704-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9704-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9704-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	9704-
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	9704-
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	9704-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9704-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9704-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	9704-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	9704-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9704-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
193	JACK ASM 10TON IDN	8-97520-133-0	01	1	9704-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9704-0105
208	HANDLE; JACK L=600 IDN	1-85515-009-0	01	1	0106-1107
208	HANDLE; JACK L=600 IDN	8-98181-437-0	01	1	1108-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9704-
230	PUMP; GREASE 1.0 L IDN	8-97520-072-0	01	1	9704-
237	BAG; TOOL IDN	8-97520-067-0	01	1	9704-

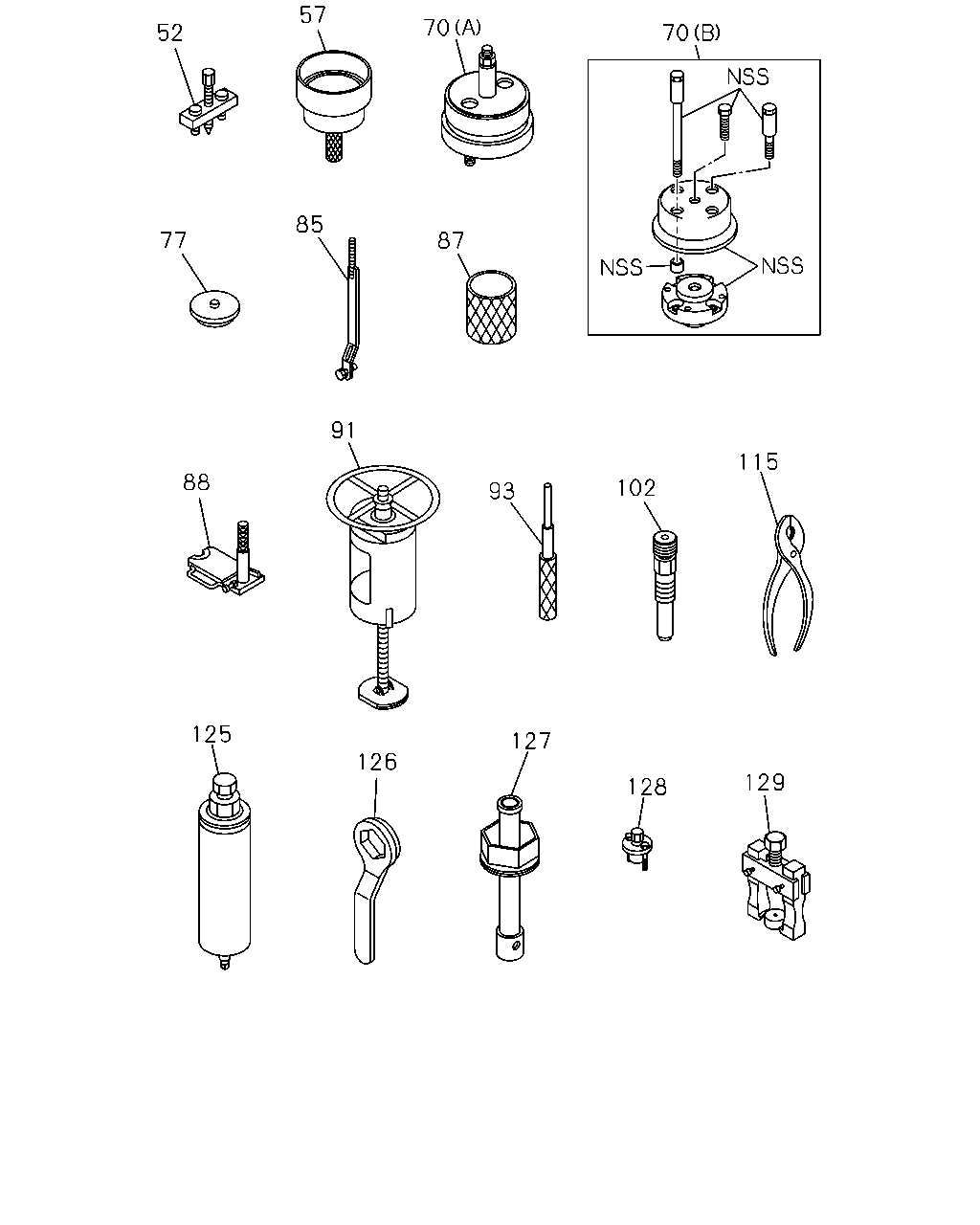

57 70 52 70 85 77 87 91 115 88 102 93 125 127 126 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	9704-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	9704-
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	9704-1108
70	TOOL; SETTING,OIL SEAL (B)	8-98194-607-0	01	1	1109-
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	9704-
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	9704-
87	TOOL; PISTON	1-85221-082-0	01	1	9704-
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	9704-
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	9704-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9704-
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	9704-
115	PLIER L=156 IDN	8-97520-071-0	01	1	9704-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9704-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	9704-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	9704-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9704-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9704-

9 17 13 12 1 10 23 22 21 20 29 29 29 40 39 38 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER IDN	9-23110-018-0	01	1	9704-
9	WRENCH; WHEEL PIN B=41 L=440 IDN	8-97520-132-0	01	1	9704-
10	WRENCH KIT; BRK ADJ	9-85110-013-0	01	1	9704-
12	HANDLE; WRENCH,WHEEL PIN L=600 IDN	8-97520-069-0	01	1	9704-
13	WRENCH; MONKEY IDN	8-97520-131-0	01	1	9704-
17	HAMMER L=321 IDN	8-97520-070-0	01	1	9704-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9704-9707
20	WRENCH; 10X12 10X12 IDN	8-97520-360-0	01	1	9708-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9704-9707
21	WRENCH; 14X17 14X17 IDN	8-97520-361-0	01	1	9708-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9704-9707
22	WRENCH; 19X22 19X22 IDN	8-97520-362-0	01	1	9708-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9704-0607
23	WRENCH; 24X27 24X27 IDN	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (C) <-> L=158 IDN	8-97520-129-0	01	1	9704-
29	DRIVER; SCREW (B) <+>,<-> L=285 IDN	8-97520-130-0	01	1	9704-
29	DRIVER; SCREW (A) <+> L=190 IDN	9-09595-522-0	01	1	9704-
36	WRENCH; 24	9-85111-377-0	01	1	9704-
37	WRENCH; 27	9-85111-375-0	01	1	9704-
38	WRENCH; 32	9-85111-358-0	01	1	9704-
39	WRENCH; 36	9-85111-374-0	01	1	9704-
40	WRENCH; 41	9-85111-356-0	01	1	9704-

274 271 268 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9704-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9704-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9704-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9704-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
