8-80 — WINDSHIELD WIPER AND WASHER (#64752) — 52 parça

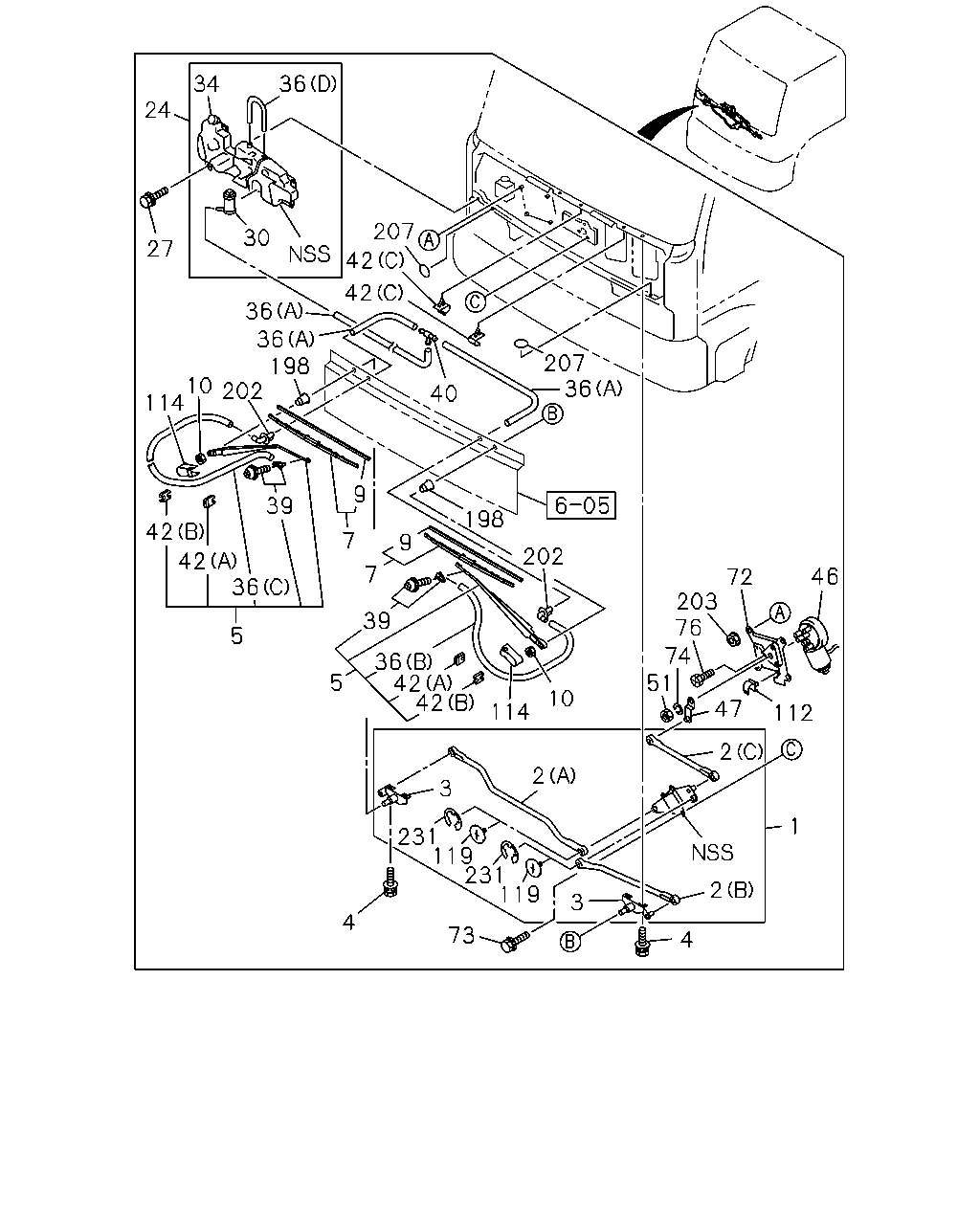

çizim 185096
34 36 24 207 30 27 42 42 36 36 198 202 207 36 10 114 40 9 198 39 42 7 9 202 42 36 7 46 72 203 76 74 51 39 5 36 42 42 5 10 47 114 112 2 2 3 1 231 119 231 119 2 3 4 73 4
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-86810-002-6 01 1 9704-9705
1 LINK ASM; FRT WIPER 1-83312-137-2 01 1 9706-
2 LINK; FRT WIPER
(A) 		1-86810-064-0 01 1 9704-9705
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 9706-
2 LINK; FRT WIPER
(B) 		1-86810-065-0 01 1 9704-9705
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 9706-
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 9704-
3 PIVOT ASM; FRT WIPER 1-86810-067-1 02 1 9704-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9704-0904
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
5 ARM; WIPER 1-86810-143-0 01 1 9704-0205
5 ARM; WIPER 1-83315-087-0 01 1 0206-
5 ARM; WIPER 1-86810-142-0 01 1 9704-0205
5 ARM; WIPER 1-83315-089-0 01 1 0206-
7 BLADE; WIPER 1-83315-046-2 01 1 9704-
7 BLADE; WIPER 1-83315-045-2 01 1 9704-
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9704-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9704-
24 TANK ASM; WASHER 1-86815-013-7 01 1 9704-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9704-
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9704-
34 CAP; WASHER TANK 1-86815-018-0 01 1 9704-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9704-
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9704-
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9704-
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9704-0011
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0012-
39 NOZZLE; WINDSHIELD WASHER 1-86810-041-0 01 1 9704-0205
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 0206-
39 NOZZLE; WINDSHIELD WASHER 1-86810-040-0 01 1 9704-0205
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 0206-
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9704-
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9704-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9704-
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9704-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-2 01 1 9704-
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9704-
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 9704-
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 9704-
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9704-0904
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 9704-
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9704-9802
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 9803-
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 9704-
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9704-
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-0805
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9704-
202 GROMMET; WIPER 1-86815-003-2 02 1 9704-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9704-
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9704-
231 RING; STOPPER 8-98120-195-0 02 1 0806-
