8-15 — FIXING PARTS; WIRING HARNESS (#64743) — 162 parça

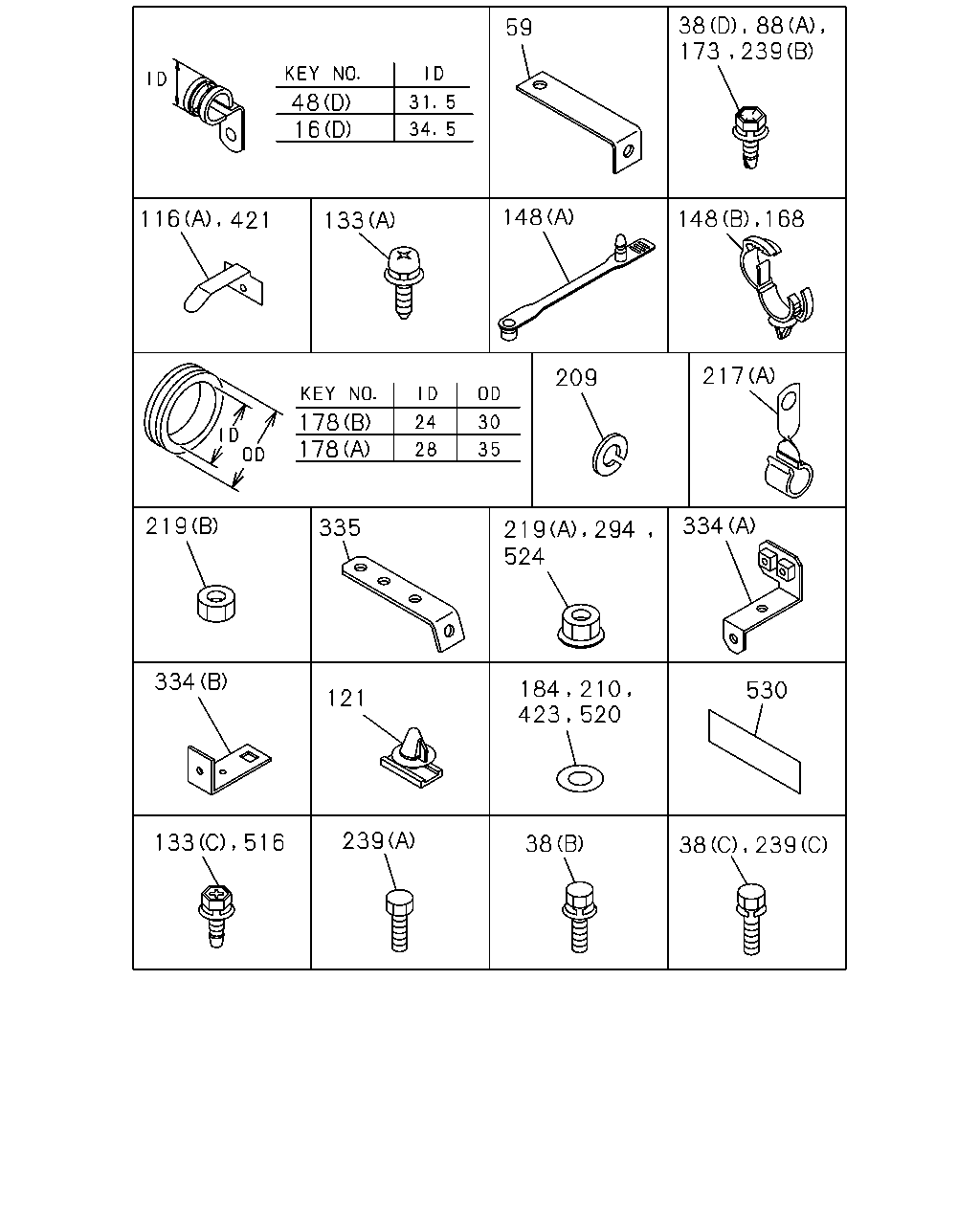

çizim 185082
59 48 16 148 116 148 168 133 217 209 178 178 334 219 335 219 524 294 334 530 121 239 38 38 88 184 210 423 520 133 516 38 239 173 239 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9704-
16 CLIP; HARNESS
(F) ID=11 L=61 		1-09700-484-0 03 1 9704-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9704-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9704-
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 9704-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 9704-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9704-
16 CLIP; HARNESS
(H) L=140 IDN 		5-09707-031-1 01 1 9704-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9704-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9704-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9704-9903
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 06 1 9704-
48 CLIP; FRAME HARNESS
(H) ID=35 L=75 		1-09700-608-2 01 1 9704-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 08 1 9704-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9704-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(B) ID=19 L=60 		9-09525-896-0 01 1 9704-0606
48 CLIP; FRAME HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 02 1 9704-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 22 1 9704-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9704-
48 CLIP; FRAME HARNESS
(I) ID=32 L=75 		1-09700-704-1 02 1 9704-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9704-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9704-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9704-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9704-0009
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-
116 CLIP; ROOF HARNESS
(B) L=15 		8-94315-436-1 01 1 9704-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9704-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER IDN 		8-94279-402-0 01 1 9704-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9704-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9704-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 9704-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9704-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9704-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 9704-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9704-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9704-
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9704-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 05 1 9704-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9704-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(B) M8 		9-09110-408-0 02 1 9704-0512
219 NUT
(B) M8 IDN 		0-91110-508-0 02 1 0601-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9704-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9704-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9704-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
334 BRACKET
(A) 		1-82699-639-1 02 1 9704-
334 BRACKET
(B) L=60 		1-82699-875-0 01 1 9704-
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9704-9910
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9704-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9909
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9704-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-

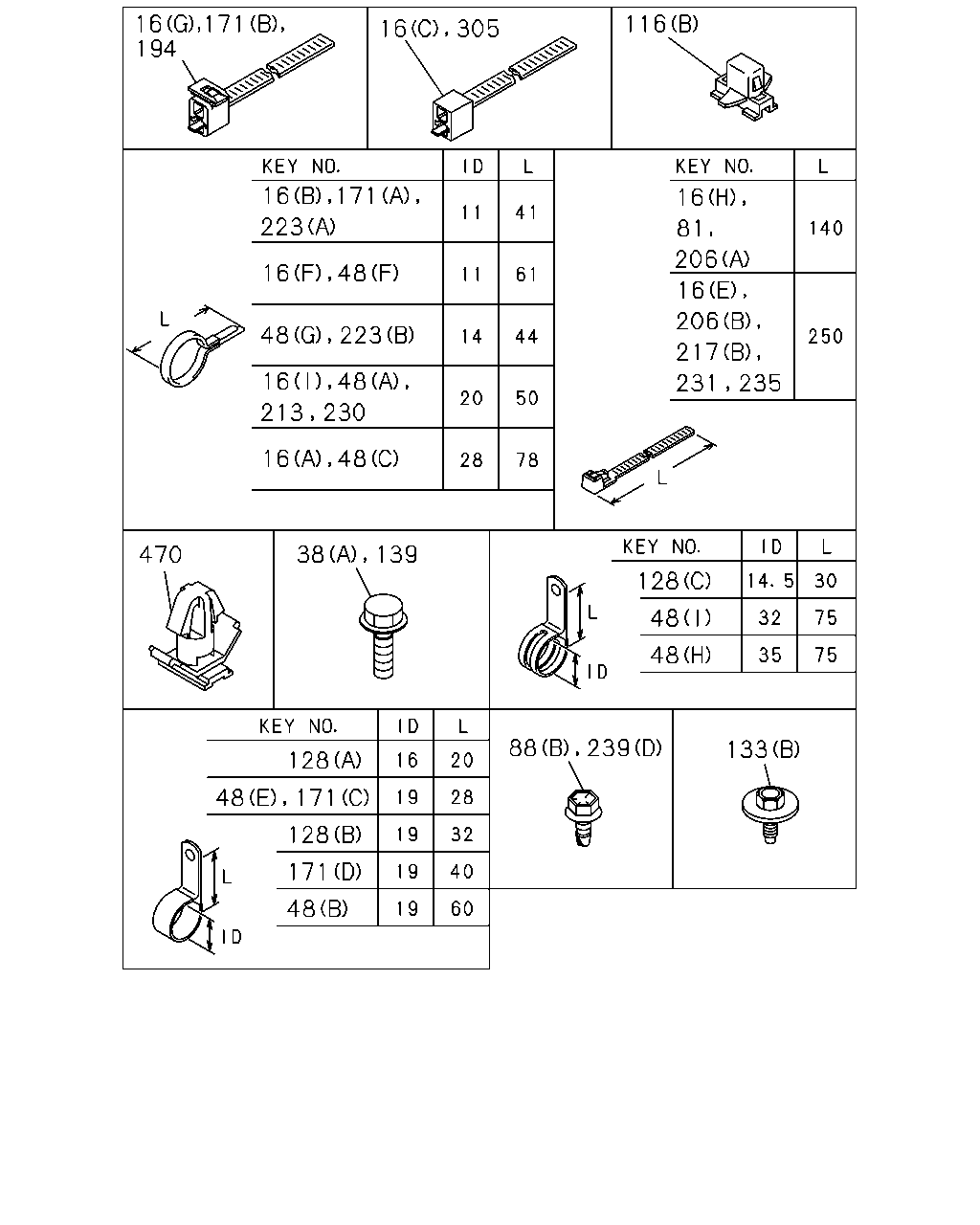

çizim 185088
16 194 116 16 171 16 223 81 206 16 206 48 217 231 235 16 48 38 139 470 128 48 48 133 128 48 171 128 171 48 171 16 305 16 48 223 16 48 213 230 88 239
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9704-
16 CLIP; HARNESS
(F) ID=11 L=61 		1-09700-484-0 03 1 9704-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9704-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9704-
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 9704-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 9704-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 01 1 9704-
16 CLIP; HARNESS
(H) L=140 IDN 		5-09707-031-1 01 1 9704-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9704-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28680-825-0 01 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9704-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9704-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9704-9903
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9910-1202
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 06 1 9704-
48 CLIP; FRAME HARNESS
(H) ID=35 L=75 		1-09700-608-2 01 1 9704-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 08 1 9704-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9704-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(B) ID=19 L=60 		9-09525-896-0 01 1 9704-0606
48 CLIP; FRAME HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 02 1 9704-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 22 1 9704-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9704-
48 CLIP; FRAME HARNESS
(I) ID=32 L=75 		1-09700-704-1 02 1 9704-
48 CLIP; FRAME HARNESS
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9704-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 9704-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9704-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9704-0009
116 CLIP; ROOF HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-
116 CLIP; ROOF HARNESS
(B) L=15 		8-94315-436-1 01 1 9704-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9704-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9704-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER IDN 		8-94279-402-0 01 1 9704-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512
139 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 01 1 0601-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
M10X20 FLANGE IDN 		0-28681-020-0 02 1 9704-0512
139 BOLT; BRKT
M10X20 FLANGE IDN 		0-28651-020-0 02 1 0601-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9704-
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-0 01 1 9704-9712
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-1 02 1 9801-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 02 1 9704-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0607-
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		9-09525-876-0 01 1 9704-0606
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		0-95235-876-0 01 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 9704-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9704-9709
206 CLIP; FUEL TANK HARNESS
(B) L=250 IDN 		5-09707-030-1 01 1 9710-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9704-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9704-
217 CLIP; RR BODY HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 9704-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 10 1 9704-
223 CLIP; AIR TANK HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9704-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9704-
231 CLIP; BAND,OIL PRESS
L=250 IDN 		5-09707-030-1 01 1 9704-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 IDN 		5-09707-030-1 01 1 9704-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9704-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9704-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 9704-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1202
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 9704-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9704-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
