8-10 — WIRING HARNESS AND FUSE
(#64742) — 44 parça
◀

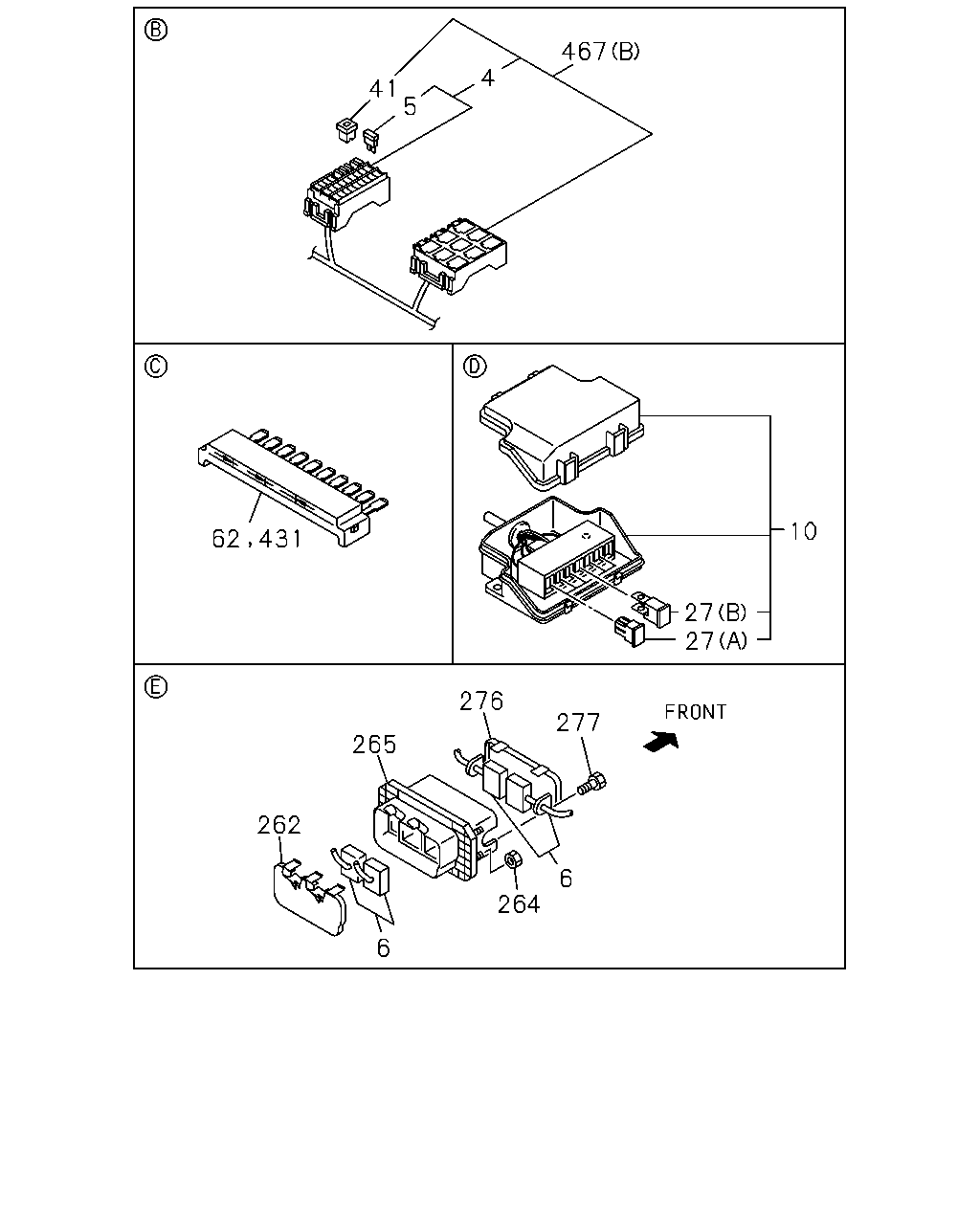

[810A] FUSE BOX AND FUSE,DIODE (19 parça)

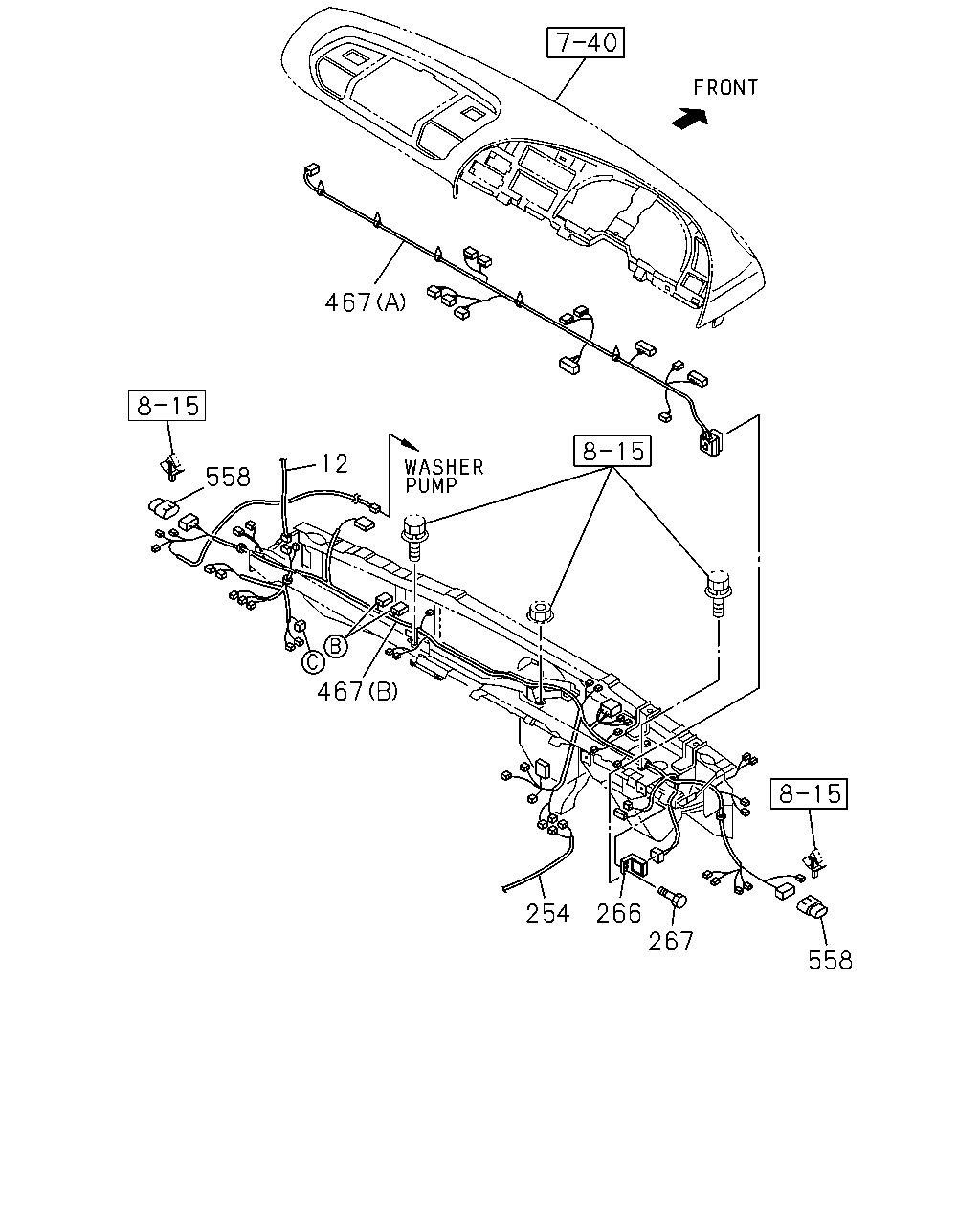

[810A] FACIA HARNESS (7 parça)

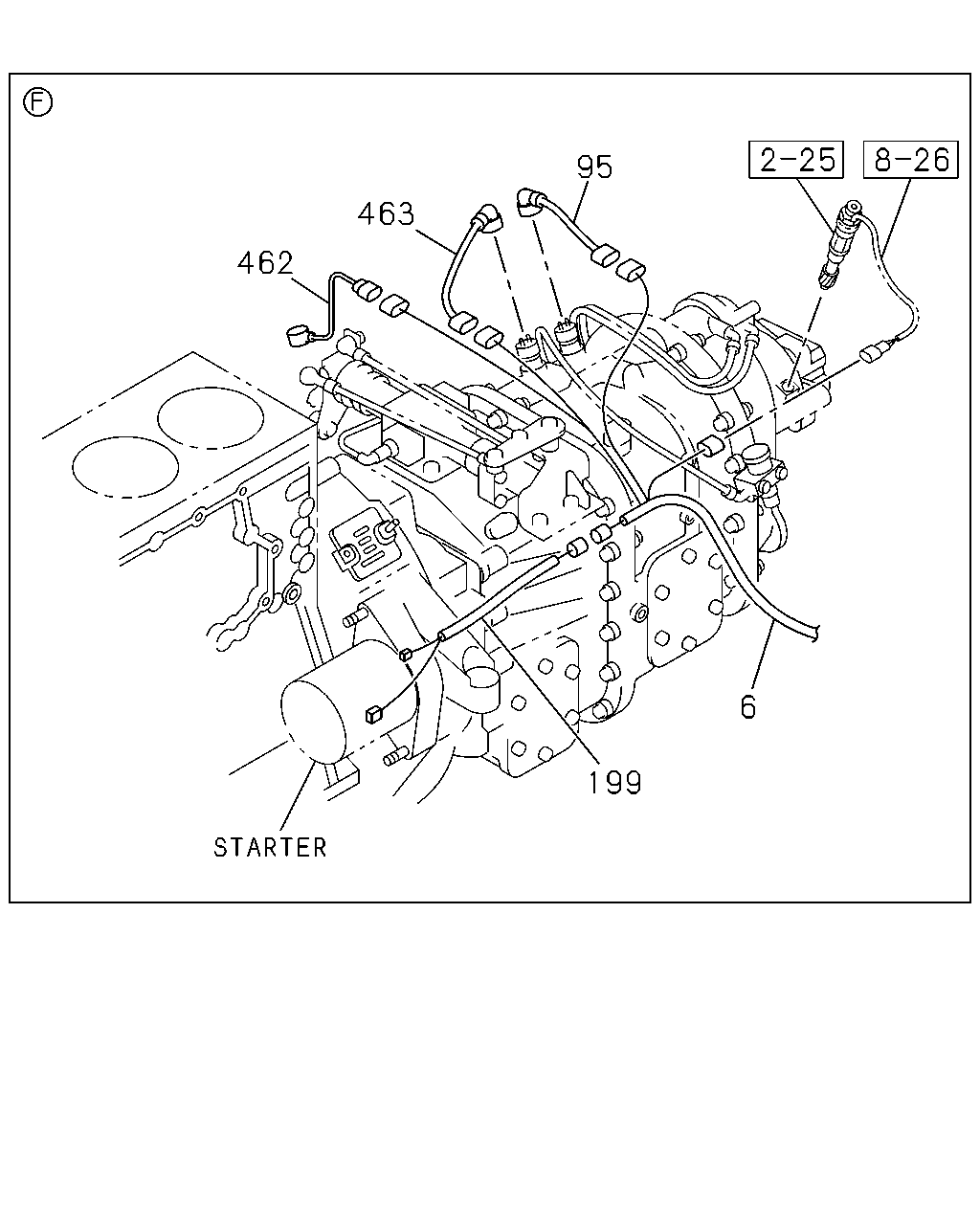

[810A] M/T SIDE (5 parça)
[810A] FLOOR HARNESS AND EARTH CABLE (9 parça)

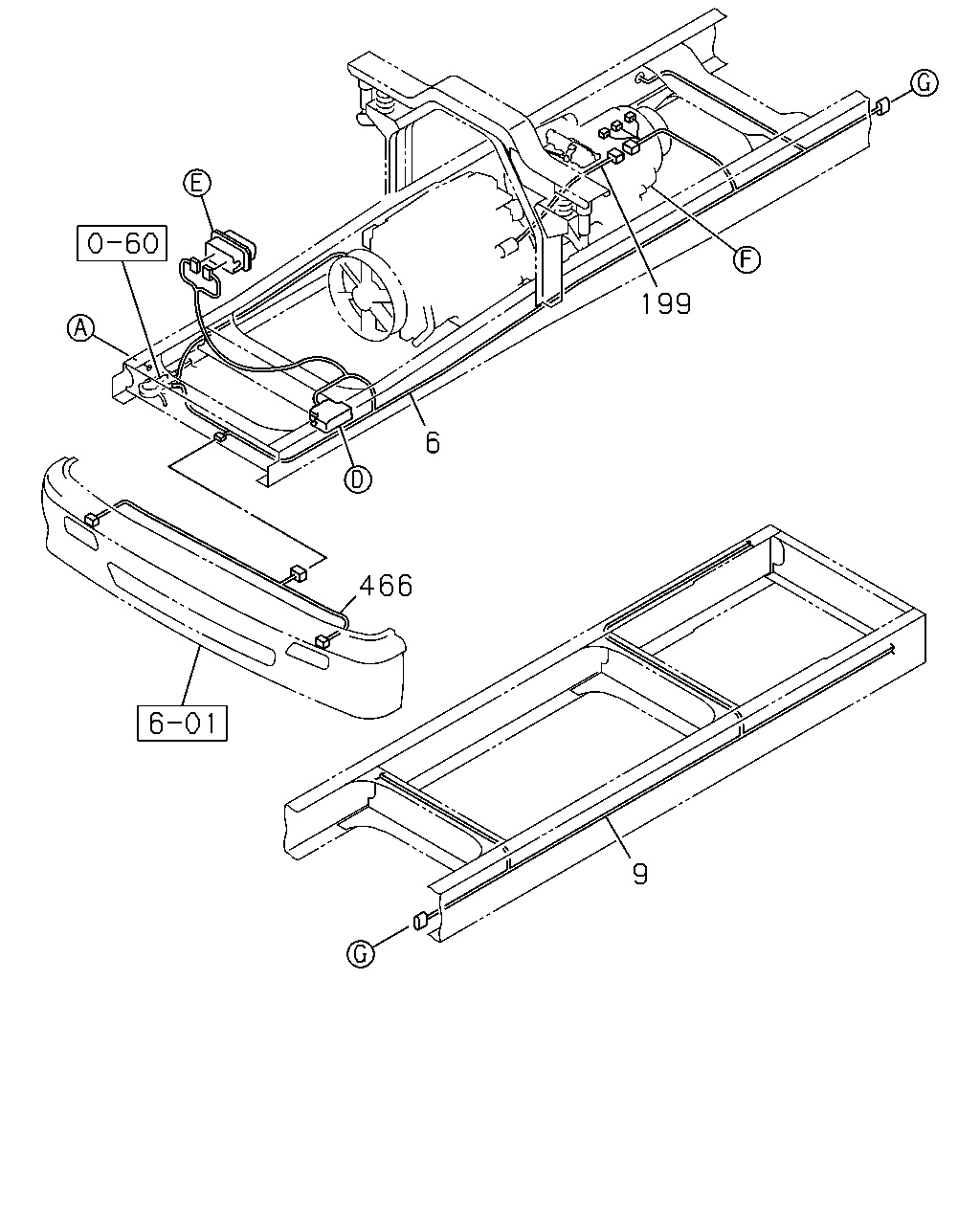

[810A] BUMPER AND FRAME HARNESS (4 parça)
▶
467
4
41
5
10
27
27
276
277
265
262
6
264
6
62
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
7.5AX11 15AX8 IDN
8-97520-468-0
01
1
9704-
5
FUSE; FACIA HARNESS
7.5A BROWN IDN
8-97520-466-0
11
1
9704-
5
FUSE; FACIA HARNESS
15A BLUE IDN
8-97520-467-0
08
1
9704-
6
HARNESS; FRAME
1-82670-058-2
01
1
9704-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
9704-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
9704-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
9704-
41
PULLER; FUSE
IDN
8-97520-465-0
01
1
9704-
62
DIODE; HARNESS
10P BROWN IDN
8-97520-463-0
01
1
9704-0609
62
DIODE; HARNESS
BLACK 10P IDN
8-97520-464-0
01
1
9704-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
9704-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9704-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
9704-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
9704-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
9704-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
431
CONNECTOR; JOINT
10P BROWN IDN
8-97520-463-0
01
1
0610-
467
HARNESS; FACIA
(A) IDN
8-97520-151-3
01
1
9704-
467
HARNESS; FACIA
(B) IDN
8-97520-259-3
01
1
9704-
467
12
558
467
254
266
267
558
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
IDN
8-97520-150-1
01
1
9704-
254
HARNESS; CAB FLOOR
IDN
8-97520-154-2
01
1
9704-
266
BRACKET; CONN BOX
1-82699-580-0
01
1
9704-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
9704-
467
HARNESS; FACIA
(A) IDN
8-97520-151-3
01
1
9704-
467
HARNESS; FACIA
(B) IDN
8-97520-259-3
01
1
9704-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
9704-
95
463
462
6
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82670-058-2
01
1
9704-
95
HARNESS; NEUTRAL SW
1-82639-627-0
01
1
9704-
199
HARNESS; STARTER
1-82640-794-1
01
1
9704-
462
HARNESS; SW,RANGE
1-82639-627-0
01
1
9712-
463
HARNESS; SW,BACK UP
1-82639-627-0
01
1
9704-
450
544
213
419
12
254
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
IDN
8-97520-150-1
01
1
9704-
189
HARNESS; EXT
IDN
8-97520-153-0
02
1
9704-
213
CABLE; EARTH,CAB TO FRAME
IDN
8-97520-139-0
01
1
9704-
254
HARNESS; CAB FLOOR
IDN
8-97520-154-2
01
1
9704-
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
9704-1202
419
BOLT; CAB EARTH
M8X24 W/PL WASHER
8-98141-256-1
01
1
1203-
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
9-09164-608-0
01
1
0205-0605
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
0-91614-608-0
01
1
0606-
544
SEAL; FRT MTG RAIL
OD=25 BLACK
1-76798-019-0
01
1
9704-
199
6
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82670-058-2
01
1
9704-
9
HARNESS; FRAME,RR
1-82670-118-1
01
1
9704-
199
HARNESS; STARTER
1-82640-794-1
01
1
9704-
466
HARNESS; BUMPER
IDN
8-97520-140-0
01
1
9704-
