Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#6474) — 26 parça
◀

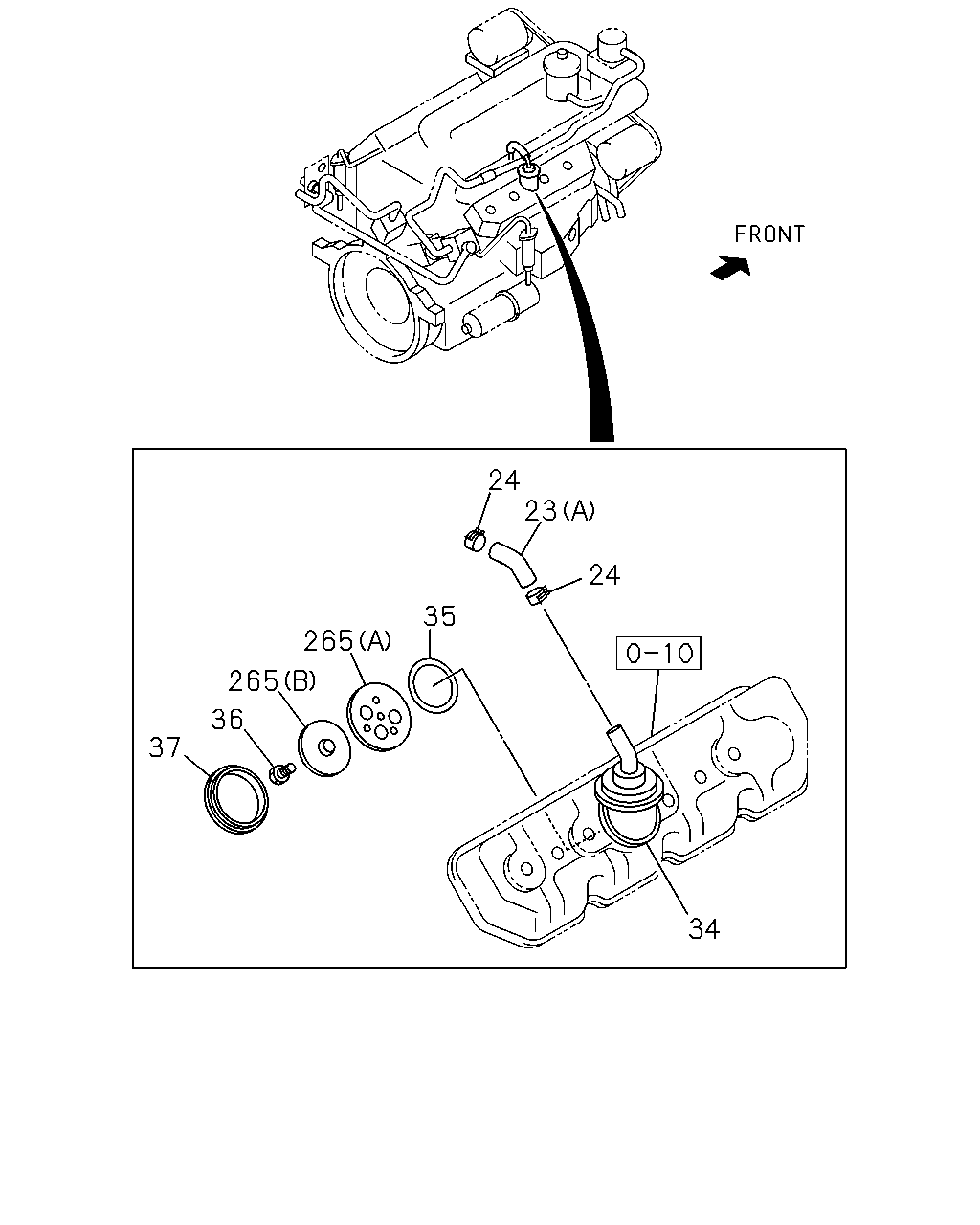

[028A] -'97/6 (12 parça)

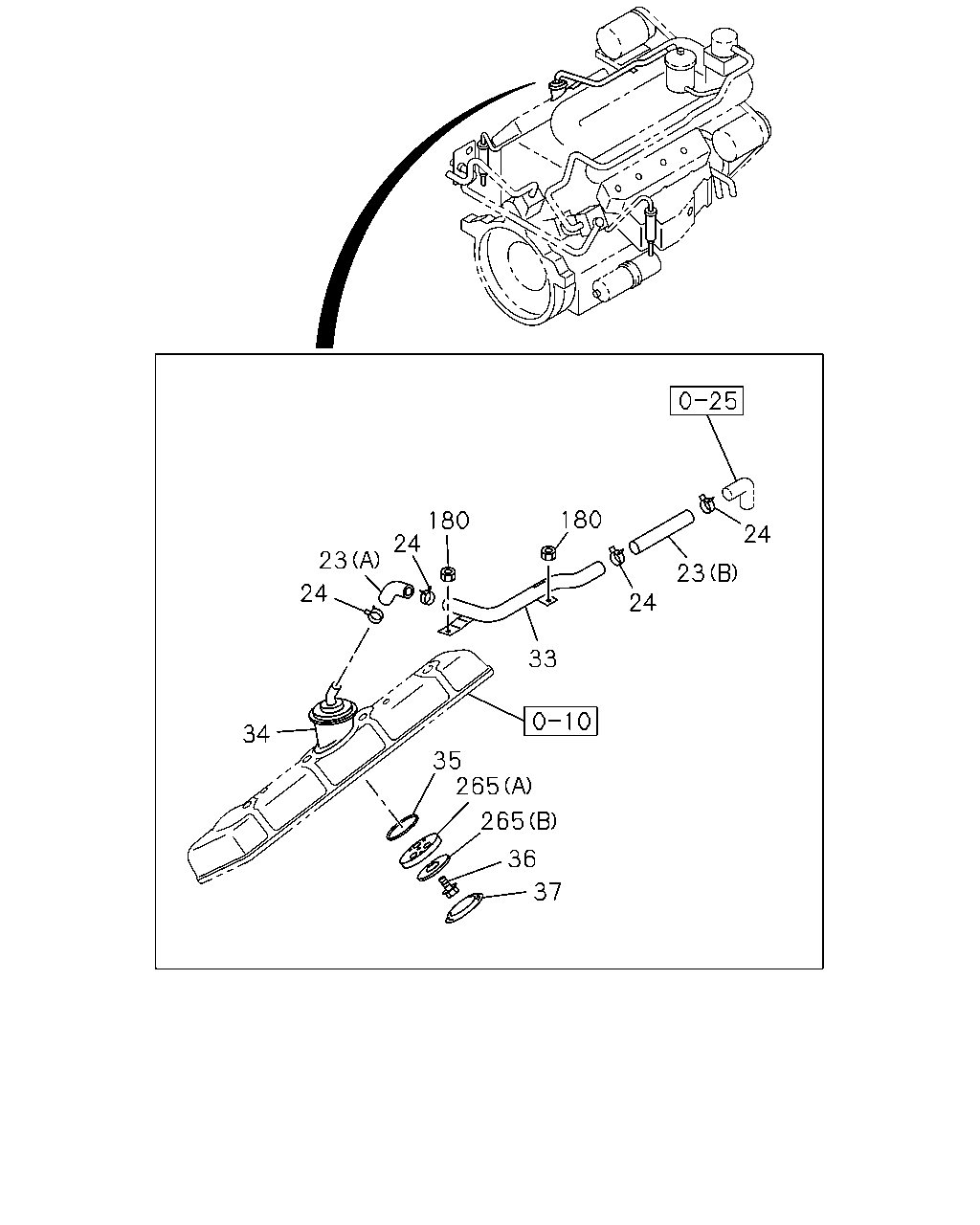

[028A] '97/7- (14 parça)
▶
24
23
24
35
265
265
36
37
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HOSE; RUBBER,AIR
L=220 SERVICED BY L=3000
0-03559-300-0
01
1
0104-
23
HOSE; RUBBER,VENTILATOR PIPE
(A)
1-09360-775-1
01
1
9705-
23
HOSE; RUBBER,VENTILATOR PIPE
(B) L=55
1-09360-766-0
01
1
9707-
24
CLIP; RUBBER HOSE,VENTILATOR
ID=26
1-09707-091-0
02
1
9705-9706
24
CLIP; RUBBER HOSE,VENTILATOR
ID=26
1-09707-091-0
04
1
9707-
34
VENTILATOR
1-14360-052-0
01
1
9705-9909
34
VENTILATOR
1-14360-055-0
01
1
9910-
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-418-0
01
1
9705-
36
BOLT; VENTILATOR
M6X12 FLANGE
0-28080-612-0
04
1
9705-
37
GROMMET; BREATHER,HD COVER
1-09333-132-0
01
1
9705-
265
PLATE; BAFFLE HD COVER
(A) OD=75
1-14369-051-0
01
1
9705-
265
PLATE; BAFFLE HD COVER
(B) OD=92
1-14369-052-0
01
1
9705-
180
180
24
24
23
23
24
24
33
34
35
265
265
36
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HOSE; RUBBER,AIR
L=220 SERVICED BY L=3000
0-03559-300-0
01
1
0104-
23
HOSE; RUBBER,VENTILATOR PIPE
(A)
1-09360-775-1
01
1
9705-
23
HOSE; RUBBER,VENTILATOR PIPE
(B) L=55
1-09360-766-0
01
1
9707-
24
CLIP; RUBBER HOSE,VENTILATOR
ID=26
1-09707-091-0
02
1
9705-9706
24
CLIP; RUBBER HOSE,VENTILATOR
ID=26
1-09707-091-0
04
1
9707-
33
PIPE; VENTILATOR
1-14236-106-1
01
1
9707-
34
VENTILATOR
1-14360-052-0
01
1
9705-9909
34
VENTILATOR
1-14360-055-0
01
1
9910-
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-418-0
01
1
9705-
36
BOLT; VENTILATOR
M6X12 FLANGE
0-28080-612-0
04
1
9705-
37
GROMMET; BREATHER,HD COVER
1-09333-132-0
01
1
9705-
180
NUT; PIPE
M8 FLANGE
0-91150-108-0
02
1
9707-
265
PLATE; BAFFLE HD COVER
(A) OD=75
1-14369-051-0
01
1
9705-
265
PLATE; BAFFLE HD COVER
(B) OD=92
1-14369-052-0
01
1
9705-
