◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10754 - FXZ(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#64739) — 61 parça
çizim 185078
248
BalonParca AdiParca NoAdetTipApplied Date
248 CLIP; HARNESS
ID=11.5 		1-09709-083-0 01 1 9704-

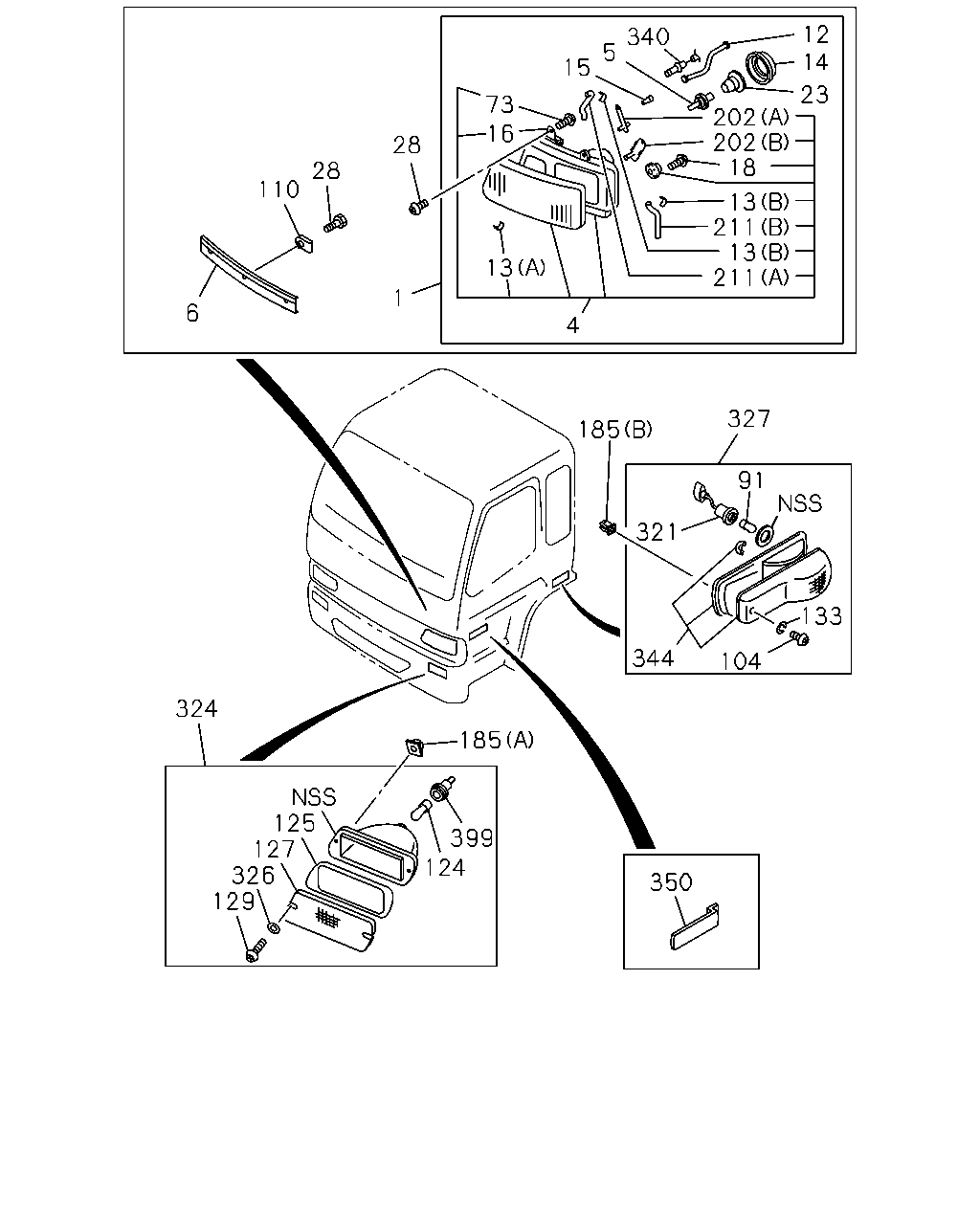

çizim 185084
12 14 340 5 15 23 73 16 202 202 18 28 28 110 13 211 13 211 13 1 6 4 327 185 91 321 133 344 104 324 185 125 127 326 129 399 124 350
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-86830-178-6 01 1 9704-0509
1 LAMP ASM; HEAD 8-97609-430-0 01 1 0510-
1 LAMP ASM; HEAD 1-86830-177-6 01 1 9704-0509
1 LAMP ASM; HEAD 8-97609-429-0 01 1 0510-
4 HEADLAMP UNIT 1-86830-190-1 01 1 9704-
4 HEADLAMP UNIT 1-86830-189-1 01 1 9704-
5 BULB; HEADLAMP
24V 75/70W IDN 		1-82194-063-0 02 1 9704-
6 RIM; HEADLAMP 1-86830-006-5 01 1 9704-
6 RIM; HEADLAMP 1-86830-005-5 01 1 9704-
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 9704-
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9704-
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9704-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9704-
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 9704-
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9704-
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9704-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9704-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9704-
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9704-0708
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709-
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9704-
91 BULB; SIDE TURN SIGNAL
24V 10W IDN 		1-82194-037-0 02 1 9704-9809
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9704-
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 9704-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9704-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9704-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9704-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9704-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9704-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9704-0206
185 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9704-9807
185 GROMMET; SCREW
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9704-
202 GEAR UNIT; HEADLAMP
(A) 		1-86830-139-0 02 1 9704-
202 GEAR UNIT; HEADLAMP
(B) 		1-86830-140-0 02 1 9704-
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9704-9911
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0105
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9704-9911
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912-
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9704-9911
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0105
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9704-9911
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9704-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9704-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9704-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9704-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9704-9809
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9704-9809
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9704-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9704-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9704-
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9704-0209
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210-
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9704-0209
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9704-
