10754 - FXZ(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#64731) — 80 parça
◀

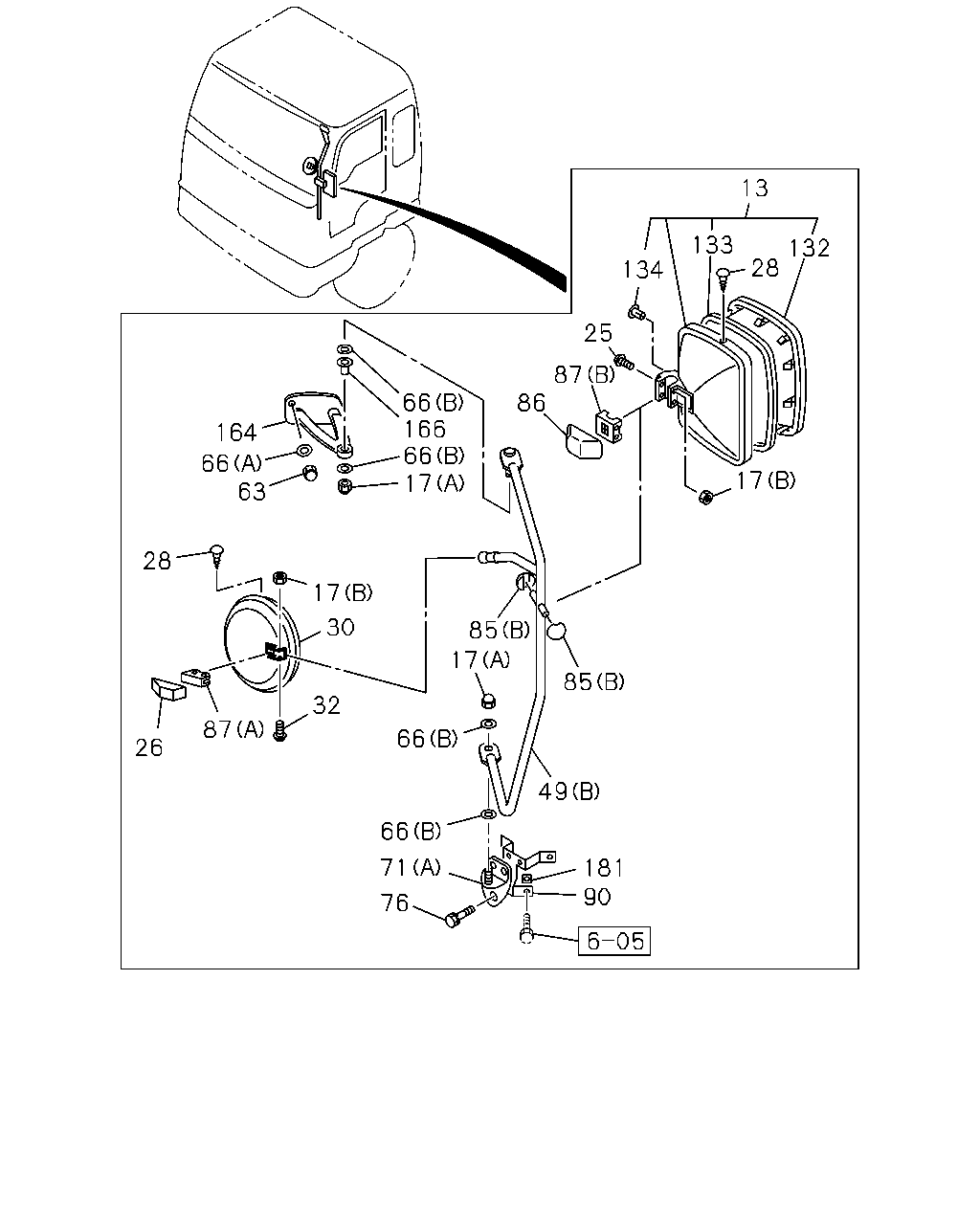

[720A] OUTSIDE MIRROR LH (40 parça)

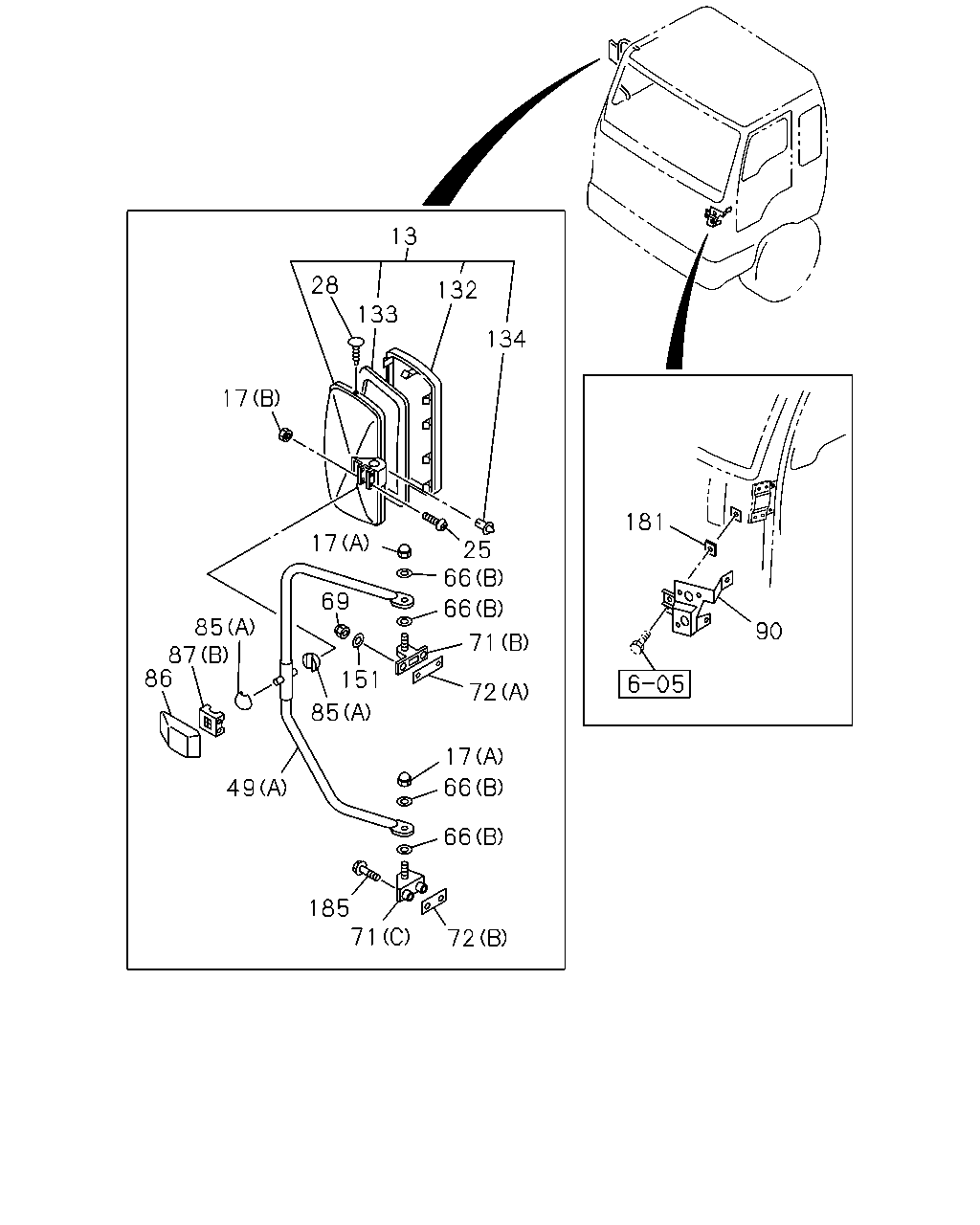

[720A] OUTSIDE MIRROR RH (37 parça)
[720A] ROOM MIRROR (3 parça)
▶
13
133
132
28
134
25
87
86
66
166
66
17
164
66
63
17
28
17
30
85
17
85
32
87
66
26
49
66
71
181
90
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
02
1
9704-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
9704-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
9704-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0209-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
04
1
9704-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0405-
26
COVER; OUTSIDE MIRROR
BLACK
1-71737-649-1
01
1
9704-
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
03
1
9704-9910
30
MIRROR; UNDER
1-71798-591-1
01
1
9704-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
9704-
49
STAY; MIRROR SIDE
(B)
1-71797-856-2
01
1
9704-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
9704-
63
NUT; STAY
M8
1-09984-187-0
03
1
9704-0003
63
NUT; STAY
M8
1-71707-105-0
03
1
0004-0005
63
NUT; STAY
M8
1-09984-187-0
03
1
0006-
63
NUT; STAY
M8
1-09984-187-0
03
1
0006-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9704-9710
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
9704-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
9704-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
9704-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
9704-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-1
03
1
0204-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-0
03
1
9704-0203
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
9704-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
9704-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
9704-
87
SPACER
(B)
1-71737-704-0
02
1
9704-
87
SPACER
(A)
1-71737-646-2
01
1
9704-
90
BRACKET; MIRROR STAY
1-71798-229-4
01
1
9704-9903
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
9904-
90
BRACKET; MIRROR STAY
1-71798-228-4
01
1
9704-9903
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
9904-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
1-71737-934-0
02
1
9704-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
02
1
9704-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
9704-
164
STAY; ROOF
1-71798-299-4
01
1
9704-
166
BUSHING; STAY
1-09983-175-1
01
1
9704-
181
SEAL; BRKT
25X25
8-94272-533-0
04
1
9902-
13
28
132
133
134
17
181
17
25
66
69
66
85
87
86
90
71
151
72
85
17
66
49
66
185
71
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
02
1
9704-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
9704-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
9704-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0209-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
04
1
9704-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0405-
28
GROMMET; UNDER MIRROR
BLACK
1-71737-678-0
03
1
9704-9910
49
STAY; MIRROR SIDE
(B)
1-71797-856-2
01
1
9704-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
9704-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-204-0
08
1
9704-9710
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
9711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
9704-
69
NUT; CAP
M8
1-09984-187-0
02
1
9704-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
02
1
0810-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
9704-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
9704-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
9704-
72
SHEET
(A)
1-71798-487-3
01
1
9704-
72
SHEET
(B)
1-71798-488-1
01
1
9704-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
9704-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
9704-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
9704-
87
SPACER
(B)
1-71737-704-0
02
1
9704-
87
SPACER
(A)
1-71737-646-2
01
1
9704-
90
BRACKET; MIRROR STAY
1-71798-229-4
01
1
9704-9903
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
9904-
90
BRACKET; MIRROR STAY
1-71798-228-4
01
1
9704-9903
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
9904-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
1-71737-934-0
02
1
9704-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
02
1
9704-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
9704-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
9704-
181
SEAL; BRKT
25X25
8-94272-533-0
04
1
9902-
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
02
1
9704-0512
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
02
1
0601-0605
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
02
1
0606-
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73118-026-1
01
1
9704-
2
SCREW; MIRROR TO BODY
M6X25
1-09981-441-0
02
1
9704-9906
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
9907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
