Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

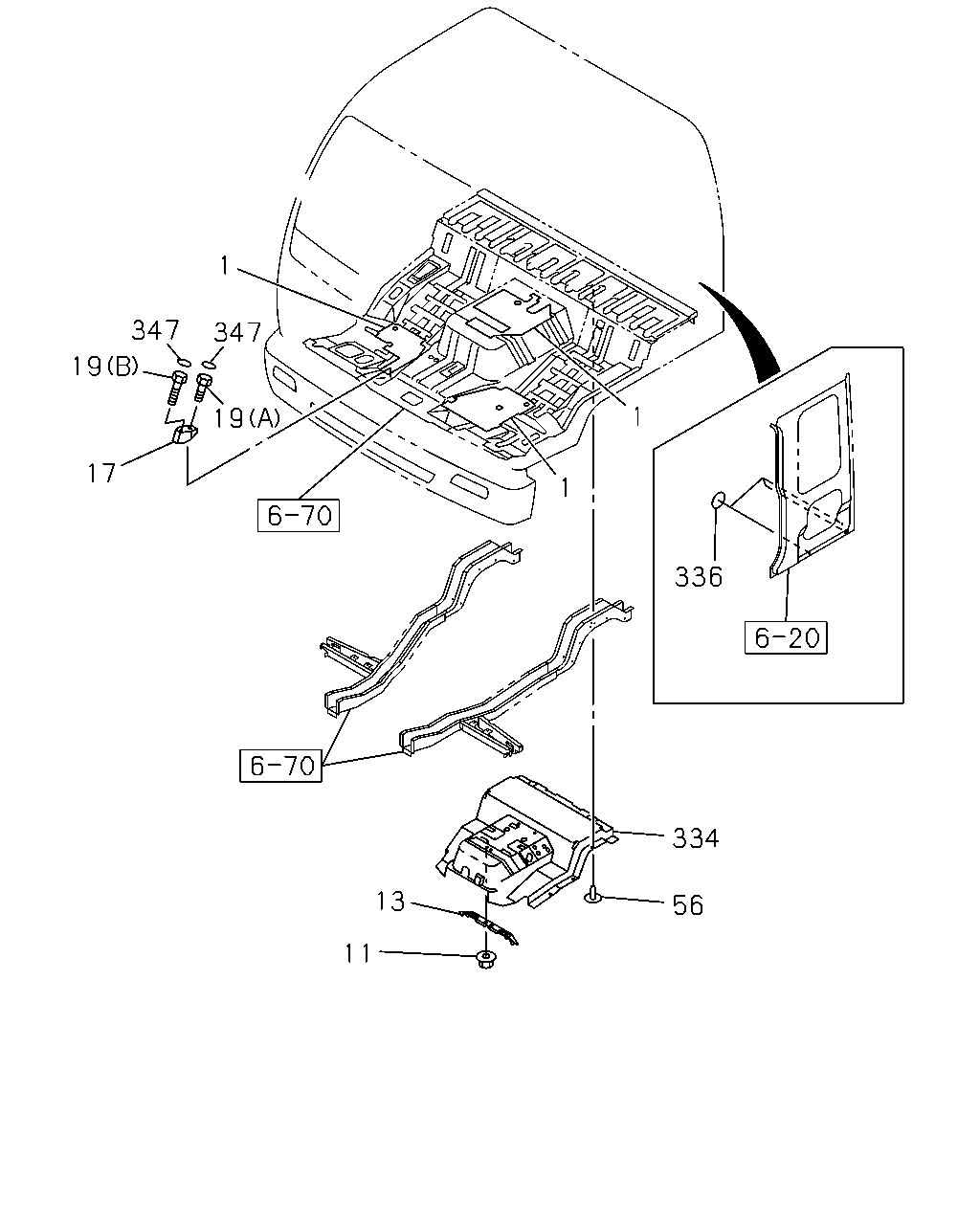

6-76 — FLOOR EQUIPMENT AND SEALING
(#64723) — 13 parça
1
347
347
19
1
19
17
1
336
334
13
56
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 IDN
1-61970-039-0
AR
1
9704-
11
NUT; HEAT INSULATOR
M8 FLANGE
8-94279-504-1
02
1
9704-9705
11
NUT; HEAT INSULATOR
M8 FLANGE
8-94279-518-0
02
1
9706-0401
11
NUT; HEAT INSULATOR
M8 FLANGE
1-75538-207-0
02
1
0402-
13
PLATE; HEAT INSULATOR
1-71998-812-4
01
1
9704-
17
REST; FOOT,DRIVER
1-73907-176-1
01
1
9704-
19
BOLT; FOOT REST
(B) M6X45 FLANGE
0-28080-645-0
01
1
9704-0512
19
BOLT; FOOT REST
(B) M6X45 FLANGE
0-28050-645-0
01
1
0601-
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
9704-
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4
8-97808-623-0
17
1
9704-
334
INSULATOR; ENG HOOD
1-71998-811-9
01
1
9704-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
04
1
9704-
347
SEAL; FOOT RESTR
OD=25 BLACK
1-76798-019-0
02
1
9704-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
