Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

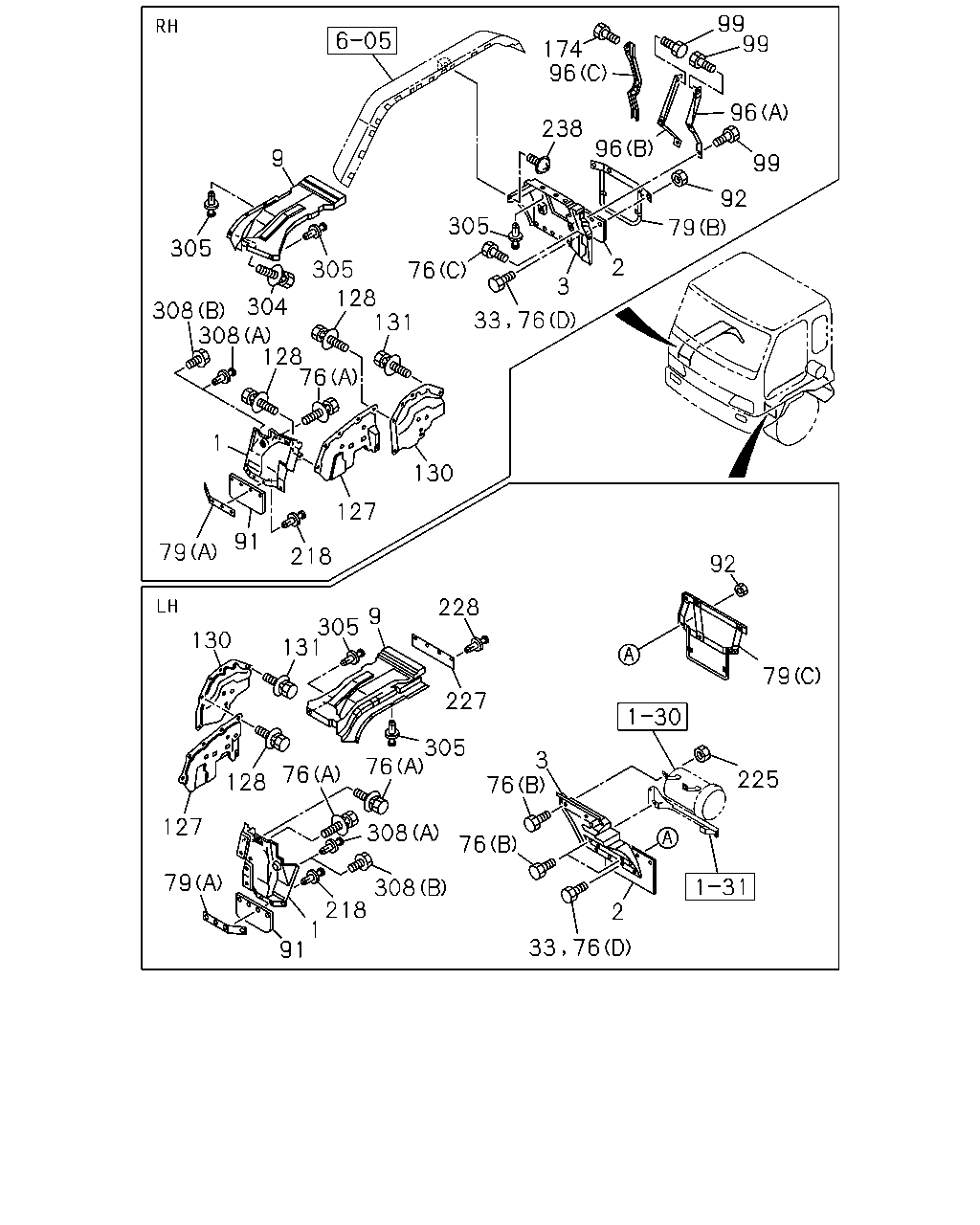

6-47 — MUD GUARD AND INSULATOR
(#64718) — 48 parça
99
99
174
96
96
238
96
9
99
92
305
79
305
2
305
128
131
76
3
304
308
308
128
76
1
130
127
91
79
218
92
228
9
305
131
130
79
227
305
3
76
76
76
225
128
127
308
76
79
308
218
1
2
91
33
76
33
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79938-812-8
01
1
9704-
1
GUARD; MUD,FRT
1-79938-810-8
01
1
9704-
2
COVER; MUD,TIRE RR
1-79938-972-2
01
1
9704-
2
COVER; MUD,TIRE RR
1-79931-254-2
01
1
9704-
3
GUARD; MUD,RR
1-79938-962-2
01
1
9704-9711
3
GUARD; MUD,RR
1-79938-999-0
01
1
9712-
3
GUARD; MUD,RR
1-79938-971-1
01
1
9704-
9
GUARD; SPLASH,WHEEL HOUSE
1-79938-831-9
01
1
9704-9802
9
GUARD; SPLASH,WHEEL HOUSE
1-79936-007-2
01
1
9803-
9
GUARD; SPLASH,WHEEL HOUSE
1-79938-955-3
01
1
9704-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
13
1
9704-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9704-0805
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0806-
76
BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
9704-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
9704-
76
BOLT; MUD GUARD
(D) M6X16 W/LK&PL WASHER
1-09980-492-0
01
1
9712-9712
76
BOLT; MUD GUARD
(D) M6X20 W/LK&PL WASHER
1-09980-495-0
01
1
9801-
79
RETAINER; MUD COVER
(A)
1-79931-044-0
02
1
9704-
79
RETAINER; MUD COVER
(C)
1-79931-278-1
01
1
9704-9711
79
RETAINER; MUD COVER
(C)
1-79931-304-0
01
1
9712-
79
RETAINER; MUD COVER
(B)
1-79931-252-0
01
1
9704-
91
COVER; MUD,FRT
1-79931-214-1
02
1
9704-
92
NUT; MUD COVER
M6 FLANGE
0-91150-106-0
09
1
9704-0602
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
09
1
0603-
96
STAY; MUD GUARD
(B)
1-79938-968-2
01
1
9704-
96
STAY; MUD GUARD
(A)
1-79938-969-1
01
1
9704-
96
STAY; MUD GUARD
(C)
1-79938-996-0
01
1
9712-
99
BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
9704-
127
APRON; FRT
1-53193-222-1
01
1
9704-
127
APRON; FRT
1-53192-302-2
01
1
9704-
128
BOLT; APRON,FRT
M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
9704-
130
PANEL; SHUTTER NOISE
1-53192-307-4
01
1
9704-
130
PANEL; SHUTTER NOISE
1-53192-306-1
01
1
9704-
131
BOLT; PANEL
M6X20 W/LK&PL WASHER
8-94279-203-0
08
1
9704-
174
BOLT; STAY FIX
M6X20 W/LK&PL WASHER
8-94279-203-0
03
1
9712-
218
FASTENER; RUBBER
1-09470-001-0
08
1
9704-
225
NUT; MUD GUARD
M8 FLANGE
0-91150-108-0
03
1
9704-0602
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
03
1
0603-
227
SEAL; MUD GUARD
1-79938-953-1
01
1
9704-
228
FASTENER; MUD GUARD SEAL
D8X13.5
1-09987-248-1
04
1
9704-
238
SCREW; MUD GUARD
M6X30
1-65481-387-0
01
1
9704-9705
238
SCREW; MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
01
1
9706-
304
BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
9704-
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
07
1
9704-9710
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
05
1
9711-
308
FASTENER; MUD GUARD
(A)
1-09470-007-0
02
1
9704-0601
308
FASTENER; MUD GUARD
(B) M6X22
1-65481-386-0
02
1
9704-0601
308
FASTENER; MUD GUARD
(B) M6X22
1-65481-386-0
04
1
0602-
