Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶

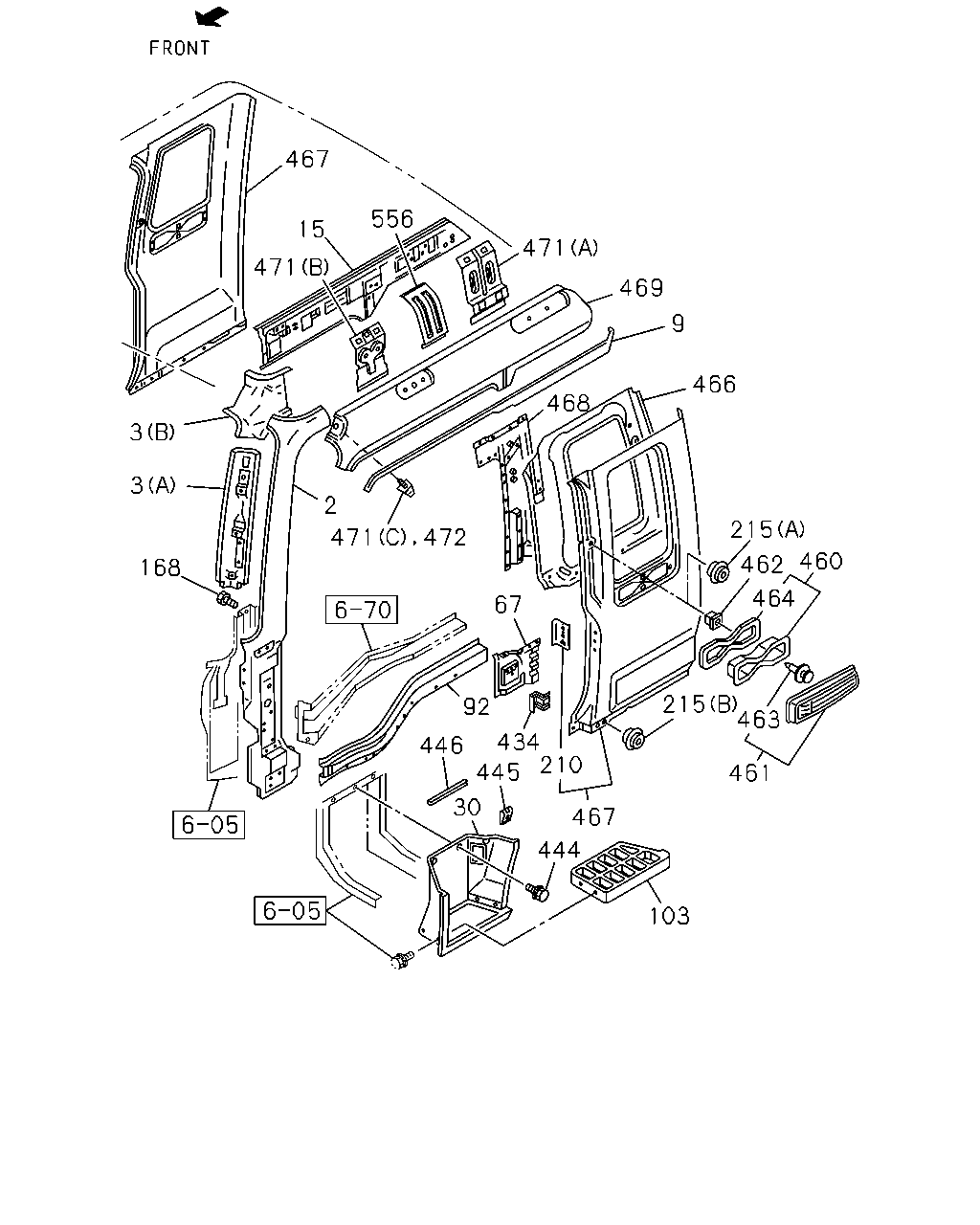

6-20 — SIDE PANEL AND STEP
(#64711) — 52 parça
467
556
15
471
471
469
9
466
468
3
3
2
215
460
462
168
464
67
215
463
92
434
210
446
445
461
30
467
444
103
471
472
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PILLAR; FRT
1-61281-156-4
01
1
9704-
2
PILLAR; FRT
1-61281-155-4
01
1
9704-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-170-5
01
1
9704-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-344-5
01
1
9704-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-169-5
01
1
9704-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-343-5
01
1
9704-
9
MOLDING; DRIP,CAB SIDE
1-61281-281-5
01
1
9704-
9
MOLDING; DRIP,CAB SIDE
1-61281-280-5
01
1
9704-
15
PANEL; CANT RAIL SIDE
1-61281-178-8
01
1
9704-
15
PANEL; CANT RAIL SIDE
1-61281-177-8
01
1
9704-
30
CLOSING; SIDE STEP
1-71998-878-7
01
1
9704-
30
CLOSING; SIDE STEP
1-71998-877-7
01
1
9704-
67
PANEL; INNER,RR PILLAR LWR
1-61281-195-5
01
1
9704-
67
PANEL; INNER,RR PILLAR LWR
1-61281-194-5
01
1
9704-
92
PANEL; SIDE SILL,CAB
1-61281-212-8
01
1
9704-
92
PANEL; SIDE SILL,CAB
1-61281-211-9
01
1
9704-
103
PLATE; STEP
1-71996-174-0
01
1
9704-
103
PLATE; STEP
1-71996-173-0
01
1
9704-
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE IDN
0-28080-610-0
04
1
9704-0512
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE IDN
0-28050-610-0
04
1
0601-
210
PANEL; DOOR STRIKER REINF
8-97851-446-1
01
1
9704-
215
GROMMET; RR PILLAR
(A) OD=23.5
1-09983-155-0
02
1
9704-9709
215
GROMMET; RR PILLAR
(A) OD=23.5
1-09983-101-0
02
1
9710-
215
GROMMET; RR PILLAR
(B) OD=28.5 IDN
8-94279-711-0
02
1
9704-
434
PATCH; ASSIST GRIP
1-61270-763-1
02
1
9704-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
9704-0904
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
445
NUT; CLOSING
8-94279-723-0
02
1
9704-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
9704-
460
VENTILATOR; BODY SIDE
1-76378-292-4
02
1
9704-
461
ORNAMENT; VENTILATOR
1-76378-303-6
01
1
9704-
461
ORNAMENT; VENTILATOR
1-76378-302-6
01
1
9704-
462
GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
08
1
9704-
463
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
9704-
464
SEAL; VENTILATOR
1-76378-299-0
02
1
9704-
466
PANEL; INNER,BACK CORNER
1-61281-416-1
01
1
9704-
466
PANEL; INNER,BACK CORNER
1-61281-415-1
01
1
9704-
467
PANEL; OUTER,BACK CORNER
1-61281-204-4
01
1
9704-
467
PANEL; OUTER,BACK CORNER
1-61281-203-4
01
1
9704-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-418-2
01
1
9704-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-417-2
01
1
9704-
469
ROOF; SIDE
1-61281-199-8
01
1
9704-
469
ROOF; SIDE
1-61281-198-8
01
1
9704-
471
PATCH; AIR DEFLECTOR
(A)
1-61281-202-3
02
1
9704-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-201-3
01
1
9704-
471
PATCH; AIR DEFLECTOR
(C) IDN
1-61281-233-4
01
1
9704-0812
471
PATCH; AIR DEFLECTOR
(C)
8-98132-463-0
01
1
0901-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-200-3
01
1
9704-
472
PATCH; STAY,ROOF
1-61281-232-3
01
1
9704-9907
472
PATCH; STAY,ROOF
IDN
1-61270-943-1
01
1
9908-
556
PATCH; ROOF SIDE
THA
8-97913-991-0
01
1
9704-
556
PATCH; ROOF SIDE
THA
8-97913-990-0
01
1
9704-
