◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10754 - FXZ(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#64709) — 193 parça

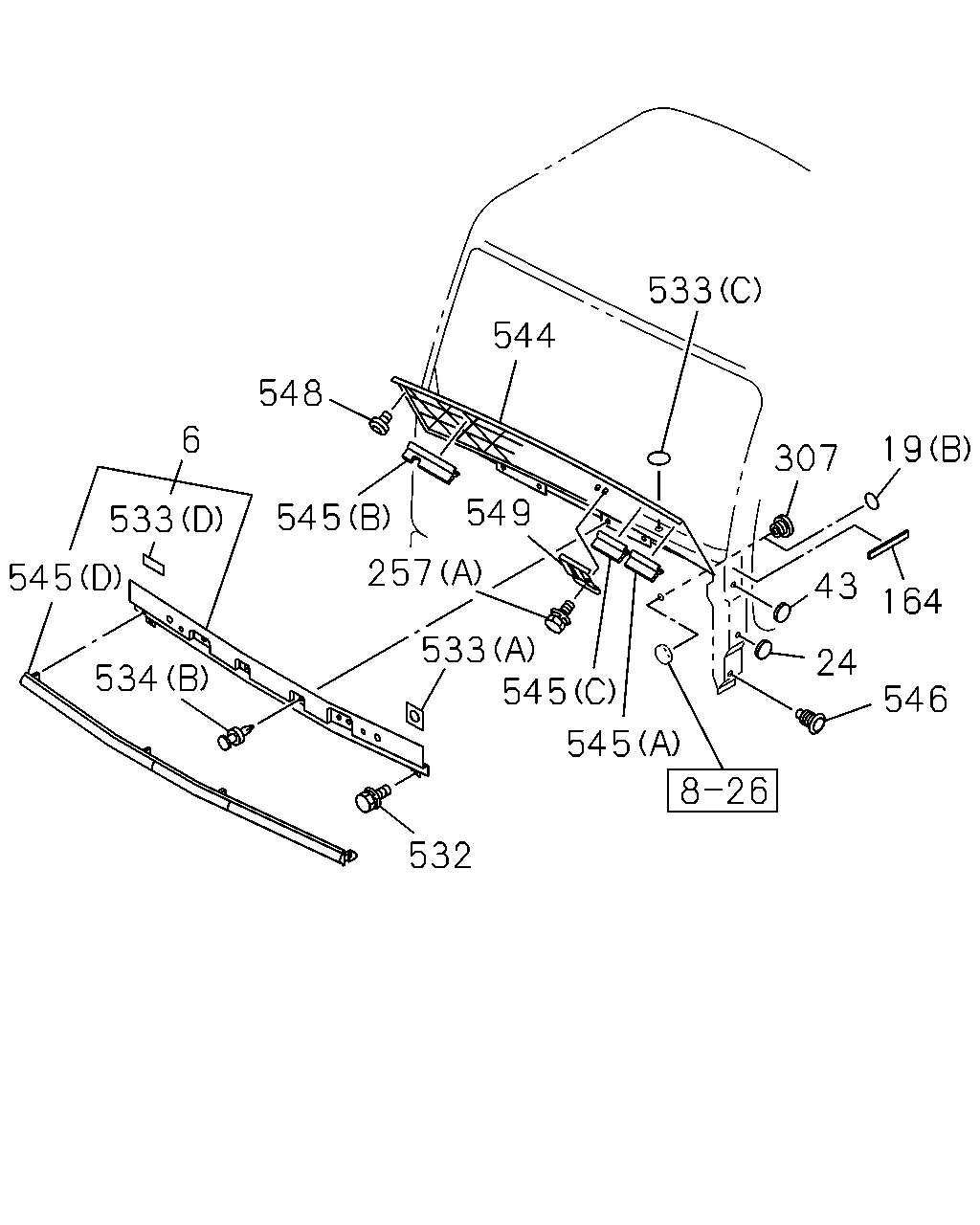

çizim 126307
533 544 548 6 19 307 549 545 533 257 545 43 164 533 545 24 534 546 545 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9704-9807
6 PANEL; FRONT 1-65481-744-2 01 1 9808-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9704-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9704-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9704-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9704-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 9704-9811
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9704-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9704-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9704-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9704-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9704-9704
532 BOLT; FRT PANEL
M8X20 		1-79198-002-0 02 1 9704-
532 BOLT; FRT PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9704-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9704-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9808-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9704-
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9704-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9704-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9704-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 24 1 9704-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9704-
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9704-
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9704-9908
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909-
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9704-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9704-
546 PLUG; DUMMY HOLE
OD=16 L=11 IDN 		1-76378-155-0 02 1 9704-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9704-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9704-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-

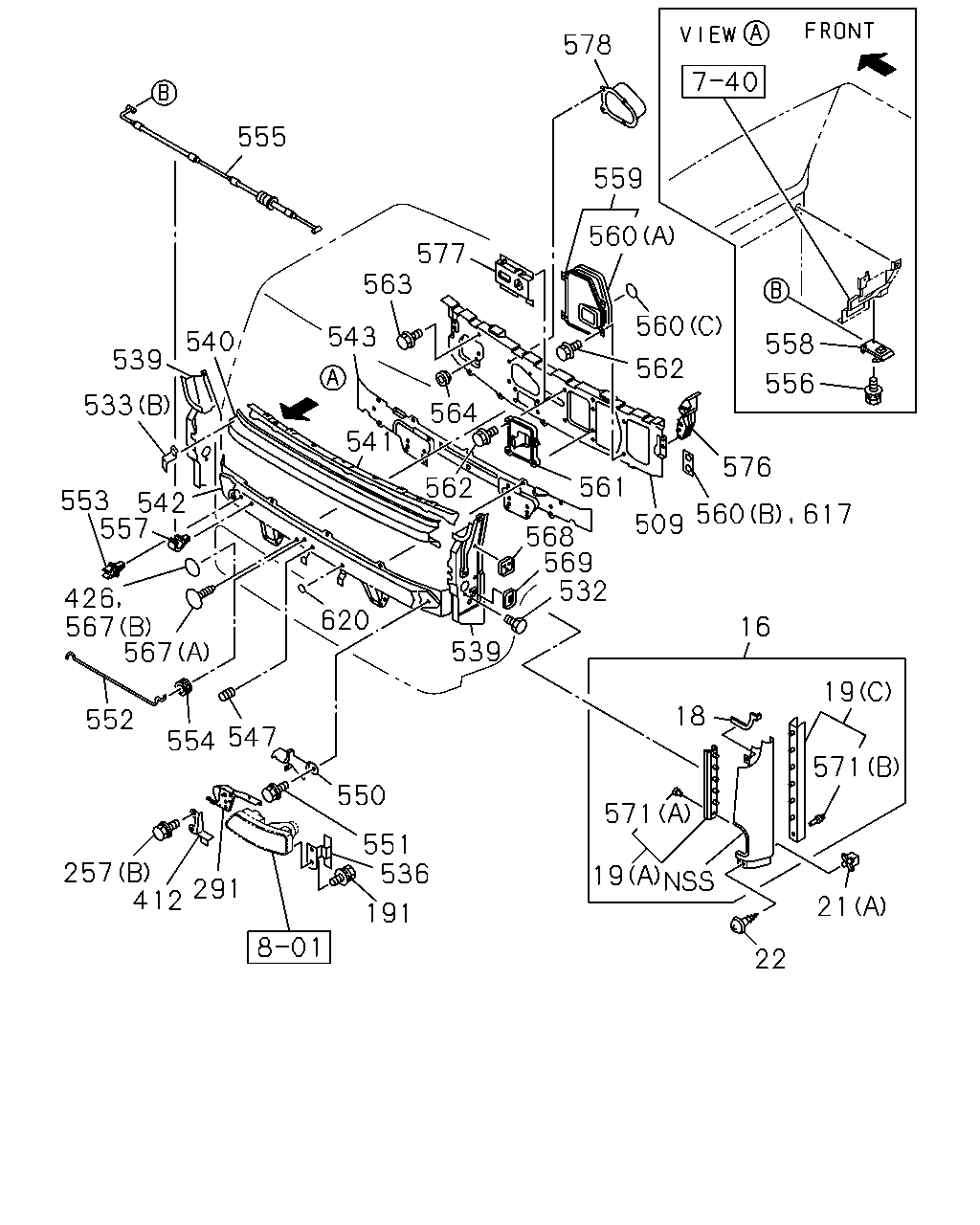

çizim 185157
578 555 559 560 577 563 560 543 540 558 539 562 556 533 541 564 562 576 561 557 568 569 532 509 426 567 567 620 16 539 19 18 552 547 554 571 550 571 551 536 257 291 412 19 21 191 22 560 617 553 542
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 9704-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 9704-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9704-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9704-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9704-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9704-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9704-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 9704-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 12 1 9704-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9704-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9704-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9704-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
291 PATCH ASM
THA 		8-97913-988-0 01 1 9704-
291 PATCH ASM
THA 		8-97913-987-0 01 1 9704-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 9704-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 9704-
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 9805-
509 PANEL; DASH
IDN 		8-97525-061-1 01 1 9704-
532 BOLT; FRT PANEL
M8X20 		1-79198-002-0 02 1 9704-
532 BOLT; FRT PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9704-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9704-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9808-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9704-
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9704-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9704-
536 HINGE 1-86830-004-5 01 1 9704-
536 HINGE 1-86830-003-5 01 1 9704-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9704-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9704-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9704-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9704-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 9704-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 9704-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9704-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 9704-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 9704-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9704-
552 STAY; FRT LID 1-71998-810-2 01 1 9704-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 9704-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9704-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9704-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9704-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9704-
558 LEVER; FRT LID 1-79338-003-1 01 1 9704-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 9704-
560 SEAL; COVER
(B) 		1-61281-497-0 02 1 9704-9805
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 9704-
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 03 1 9704-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK IDN 		5-76777-035-0 03 1 9807-
561 COVER; HEATER CORE 1-71998-829-1 01 1 9704-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9704-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9704-9707
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9704-9707
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9704-
567 PLUG; FRT MTG RAIL
(A) OD=15 BLACK 		8-94279-804-0 01 1 9704-9803
567 PLUG; FRT MTG RAIL
(B) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9704-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9704-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9704-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 9704-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9704-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9704-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9704-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9704-
577 BRACKET; IDLER 1-62280-195-0 01 1 9704-
578 COVER; WIPER MOTOR
IDN 		1-62280-173-4 01 1 9704-
617 SEAL; DASH 1-61281-497-1 02 1 9806-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9704-9801
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 9802-

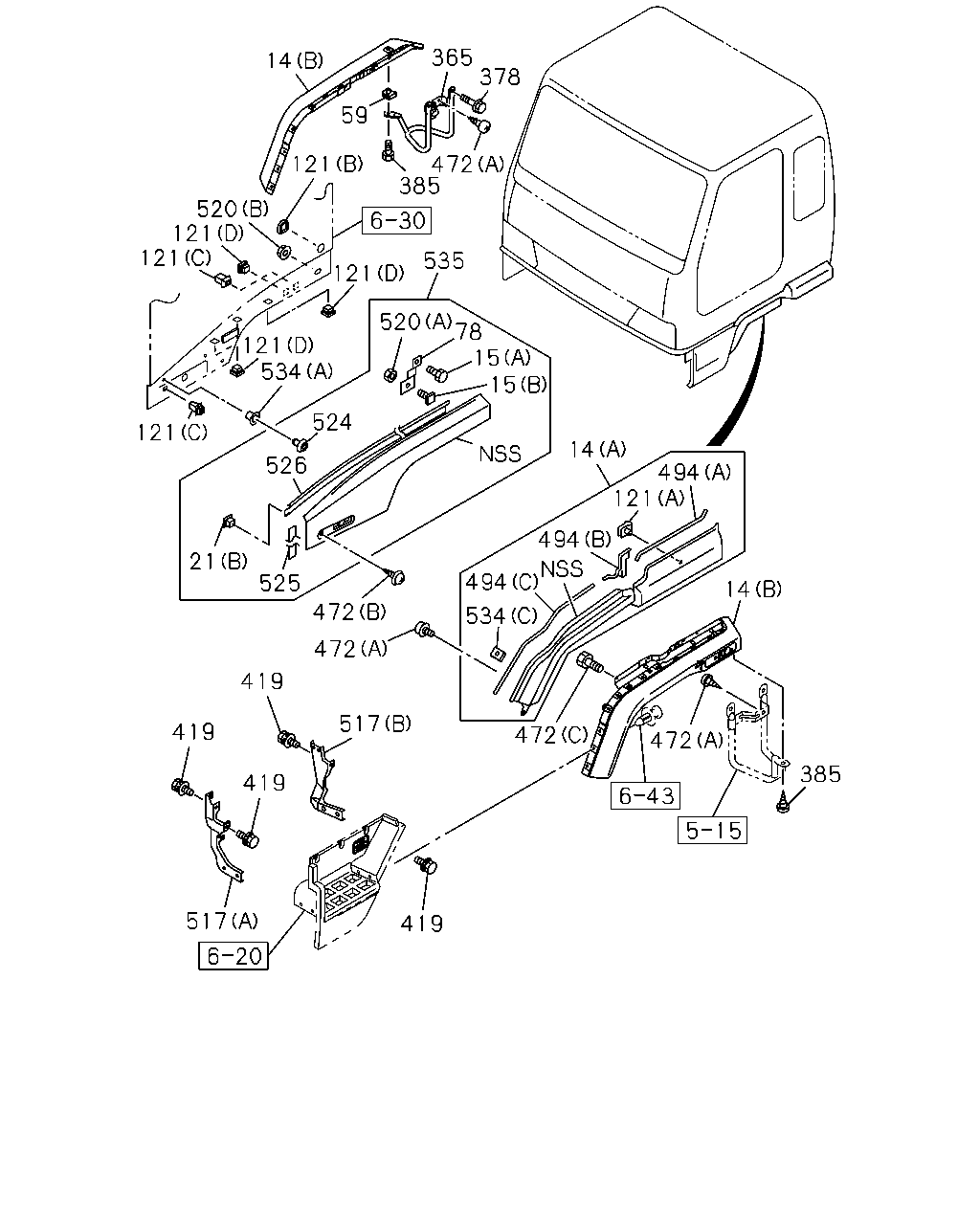

çizim 185158
365 378 14 59 121 472 385 520 121 121 535 121 520 78 15 15 121 534 524 121 14 526 494 121 494 21 494 525 14 472 534 472 419 517 419 472 472 385 419 517 419
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9704-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-149-5 01 1 9704-9704
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9704-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9704-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-148-4 01 1 9704-9704
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9704-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9704-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 9704-
59 GROMMET; SCREW 8-94279-723-0 03 1 9704-9705
59 GROMMET; SCREW 8-94279-723-0 02 1 9706-
78 BRACKET; FENDER 1-71268-323-0 01 1 9704-
78 BRACKET; FENDER 1-71268-322-0 01 1 9704-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9704-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 02 1 9704-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK IDN 		8-94279-714-0 10 1 9704-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9704-
365 SUPPORT; FENDER 1-71996-147-1 01 1 9704-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9704-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9704-
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9704-0009
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 16 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9704-9802
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 32 1 9704-9802
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9804
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9704-
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9704-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 02 1 9707-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9704-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9704-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9704-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9704-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9704-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9704-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9704-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9704-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9704-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9704-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9704-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9704-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 9704-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 9704-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9704-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 24 1 9704-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9704-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9704-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9704-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
