Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

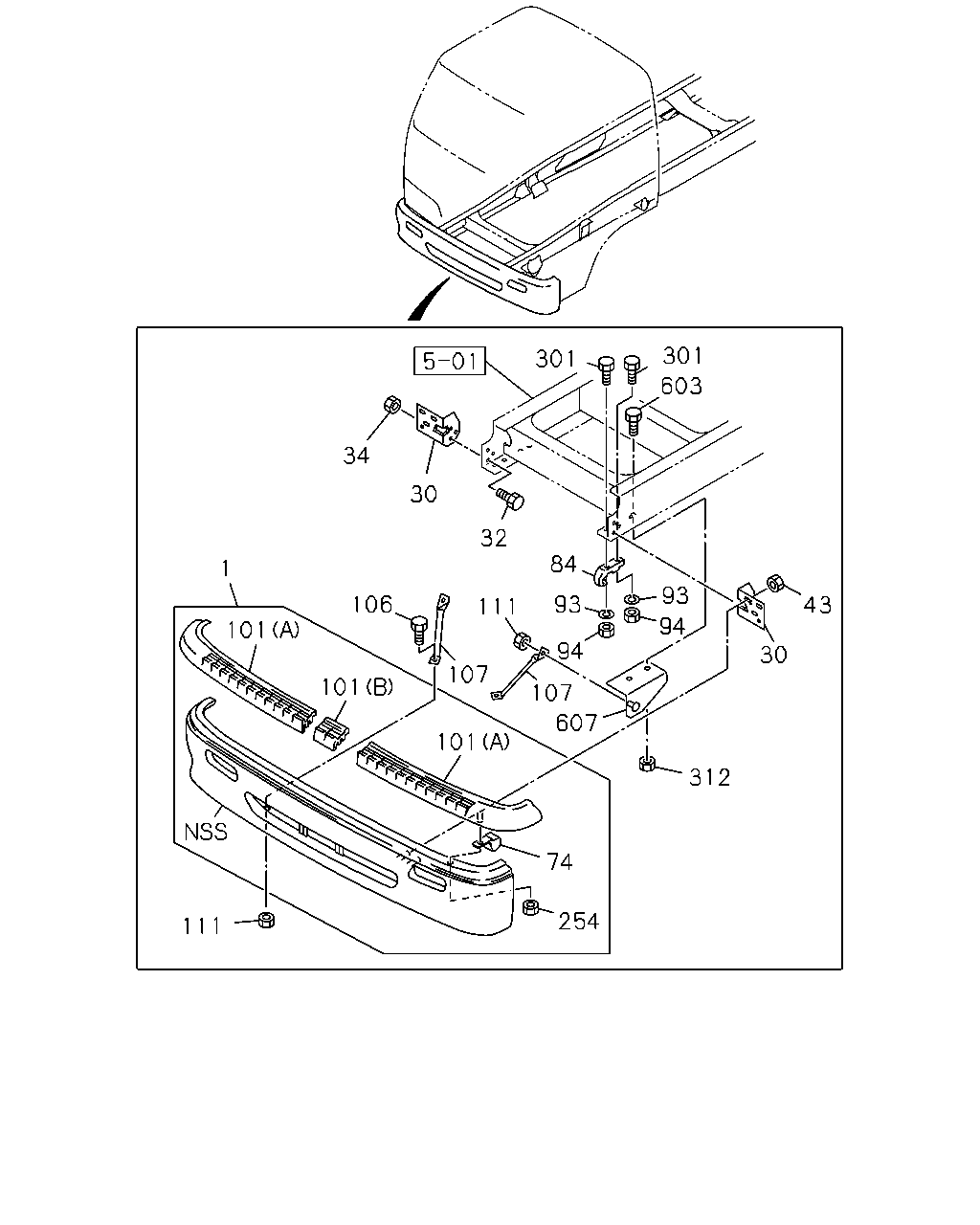

6-01 — FRONT BUMPER
(#64707) — 39 parça
301
301
603
34
30
32
84
93
106
93
43
111
94
101
94
30
107
107
101
607
101
312
74
254
111
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
1-71210-661-2
01
1
9704-
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
9704-
30
BRACKET; FRT BUMPER
1-71230-207-3
01
1
9704-0111
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0112-
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
9704-0512
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
9704-0602
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
9704-0602
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
9704-
84
HOOK
1-57181-027-1
01
1
9704-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9704-0603
93
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
94
NUT; HOOK
M16 IDN
9-99110-416-0
02
1
9704-0512
94
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
9704-
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
9704-
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
9704-
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
9704-0512
106
BOLT; AIR DAM
M10X25 FLANGE IDN
0-28651-025-0
02
1
0601-
107
STAY; AIR DAM
1-71260-132-1
01
1
9704-
107
STAY; AIR DAM
1-71260-131-1
01
1
9704-
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
9704-0602
111
NUT; STAY
M10 FLANGE
0-91180-210-0
04
1
0603-
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
9704-0602
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
301
BOLT; HOOK TO FRAME
M16X60
0-10811-660-0
01
1
9704-0512
301
BOLT; HOOK TO FRAME
M16X60
0-10861-660-0
01
1
0601-
301
BOLT; HOOK TO FRAME
M16X70
0-10811-670-0
01
1
9704-0512
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
01
1
0601-
312
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
9704-0602
312
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
0603-
603
BOLT; BRKT
M12X35 FLANGE
0-28681-235-0
04
1
9704-0512
603
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
607
BRACKET
THA
8-97913-981-0
01
1
9704-9802
607
BRACKET
IDN
8-97520-293-0
01
1
9803-
607
BRACKET
THA
8-97913-982-0
01
1
9704-9802
607
BRACKET
IDN
8-97520-294-0
01
1
9803-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
