5-15 — CAB MOUNTING; CAB SIDE (#64704) — 84 parça

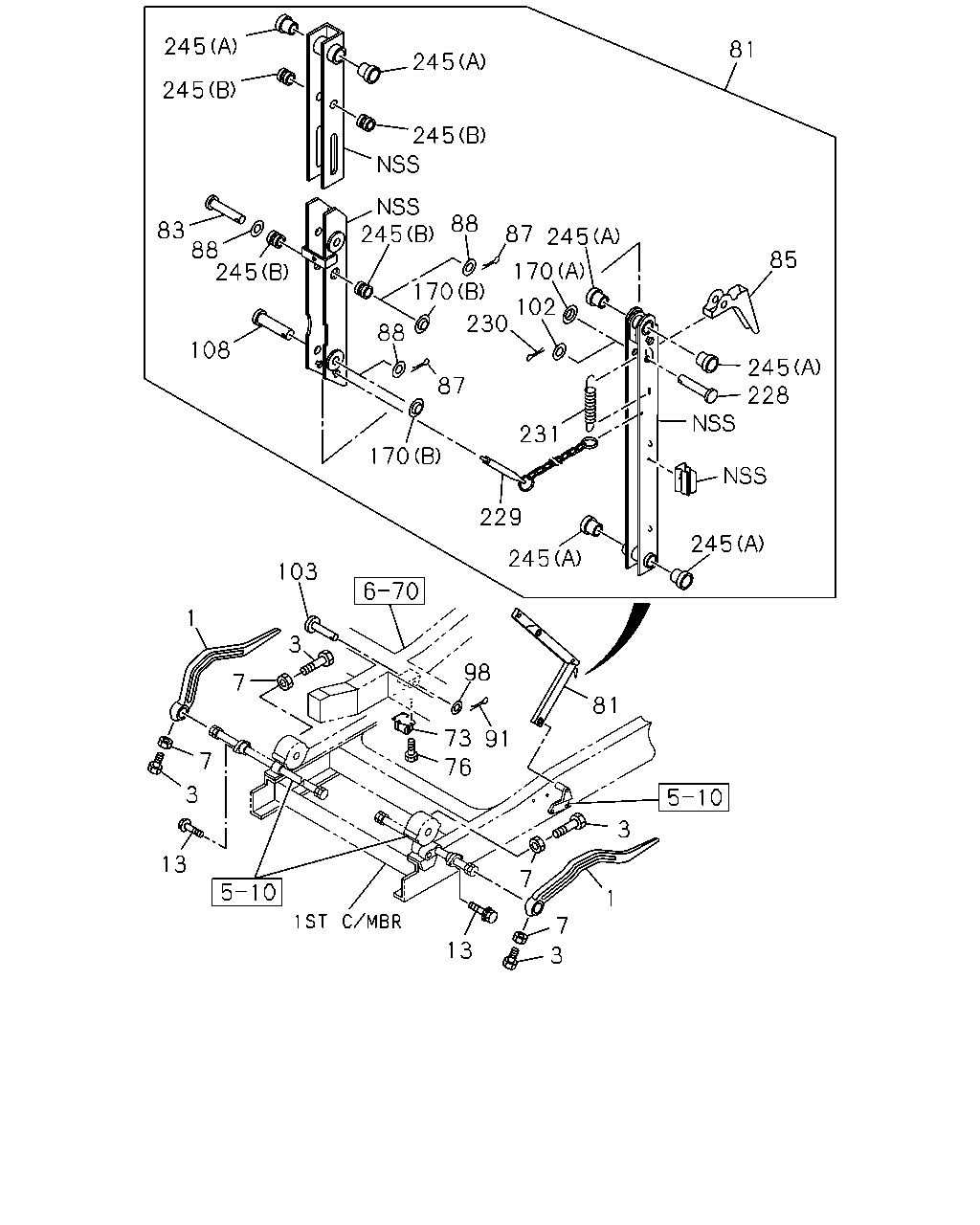

çizim 185152
245 81 245 245 245 245 88 83 88 245 87 245 85 170 170 102 230 88 108 245 228 87 231 170 229 245 245 103 1 3 98 7 81 73 91 7 76 3 3 13 7 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR 1-53458-284-0 01 1 9704-
1 LEVER; TORSION BAR 1-53458-283-0 01 1 9704-
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 9704-
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 9704-0512
7 NUT; LK,LEVER
M10 		0-91110-510-0 04 1 0601-
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9704-9709
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28080-612-0 02 1 9710-0512
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28050-612-0 02 1 0601-
73 PAD; TORSION BAR 1-53459-790-1 02 1 9704-
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 9704-
81 STAY ASM; CAB TILT 1-62500-646-2 01 1 9704-9811
81 STAY ASM; CAB TILT 1-62500-720-1 01 1 9812-0405
81 STAY ASM; CAB TILT 1-62500-761-0 01 1 0406-1406
81 STAY ASM; CAB TILT 8-98278-116-0 01 1 1407-
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9704-
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 9704-
87 PIN; SPLIT,CAB STAY PIN 1-09746-021-0 02 1 9704-9708
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 03 1 9704-9708
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 9709-
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9704-
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 9704-
102 WASHER; PL,CAB STAY
ID=8.4 OD=16 		1-09985-174-0 01 1 9704-9708
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 9704-
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9704-
170 NUT
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9709-
170 NUT
(B) ID=9.9 PUSH NUT 		8-97022-566-0 02 1 9709-
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 9704-
229 PIN ASM; SAFETY 1-62500-517-1 01 1 9812-
230 PIN; SPLIT CAB STAY 1-09746-019-0 01 1 9704-9708
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 9704-
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 9704-
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 9704-

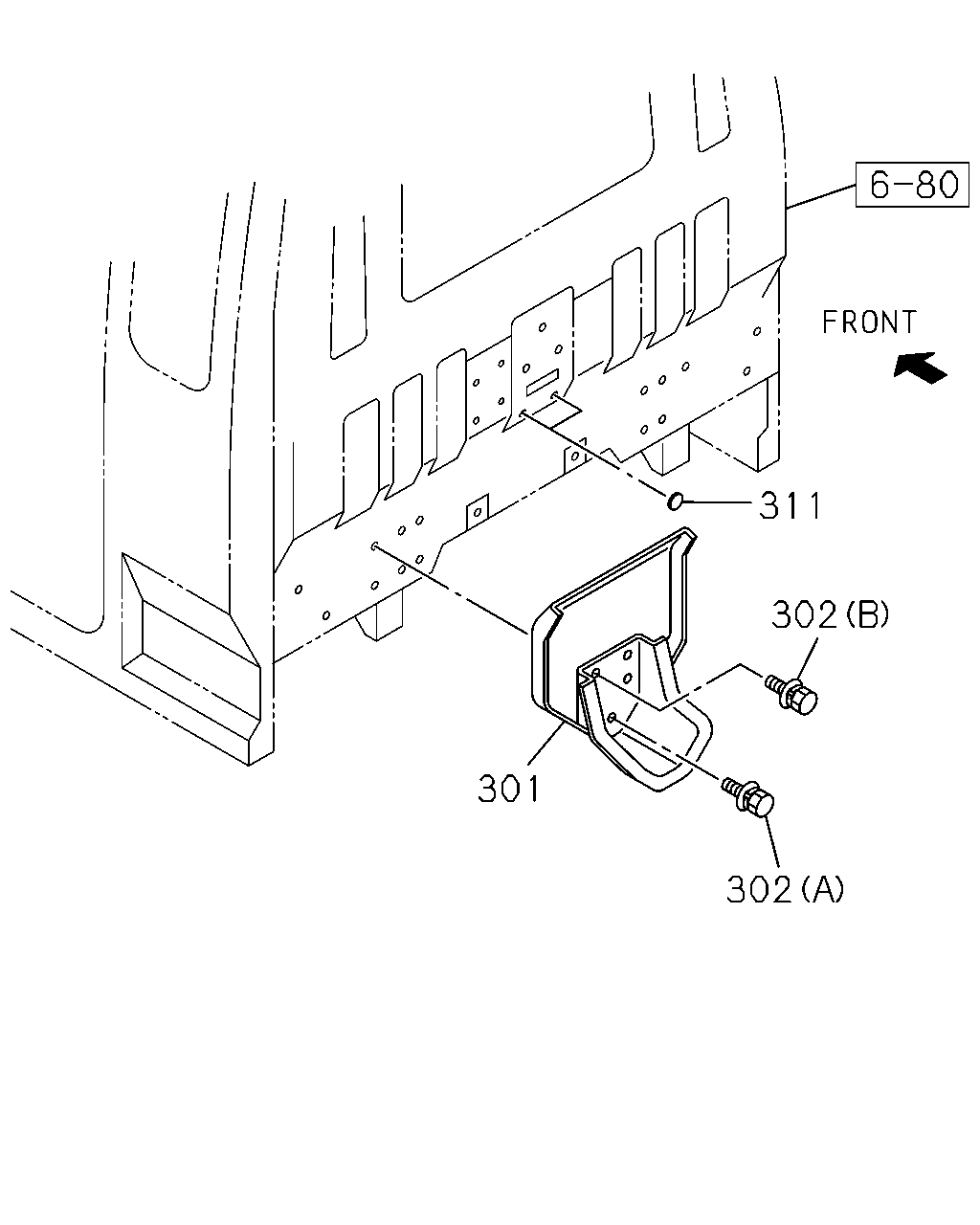

çizim 185154
311 302 301 302
BalonParca AdiParca NoAdetTipApplied Date
301 BRACKET; RR MTG,CAB 1-62580-283-3 01 1 9704-
301 BRACKET; RR MTG,CAB 1-62580-282-3 01 1 9704-
302 BOLT; BRKT,CAB
(A) M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9704-
302 BOLT; BRKT,CAB
(B) M8X25 W/LK&PL WASHER 		1-09980-526-0 08 1 9704-
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 9704-

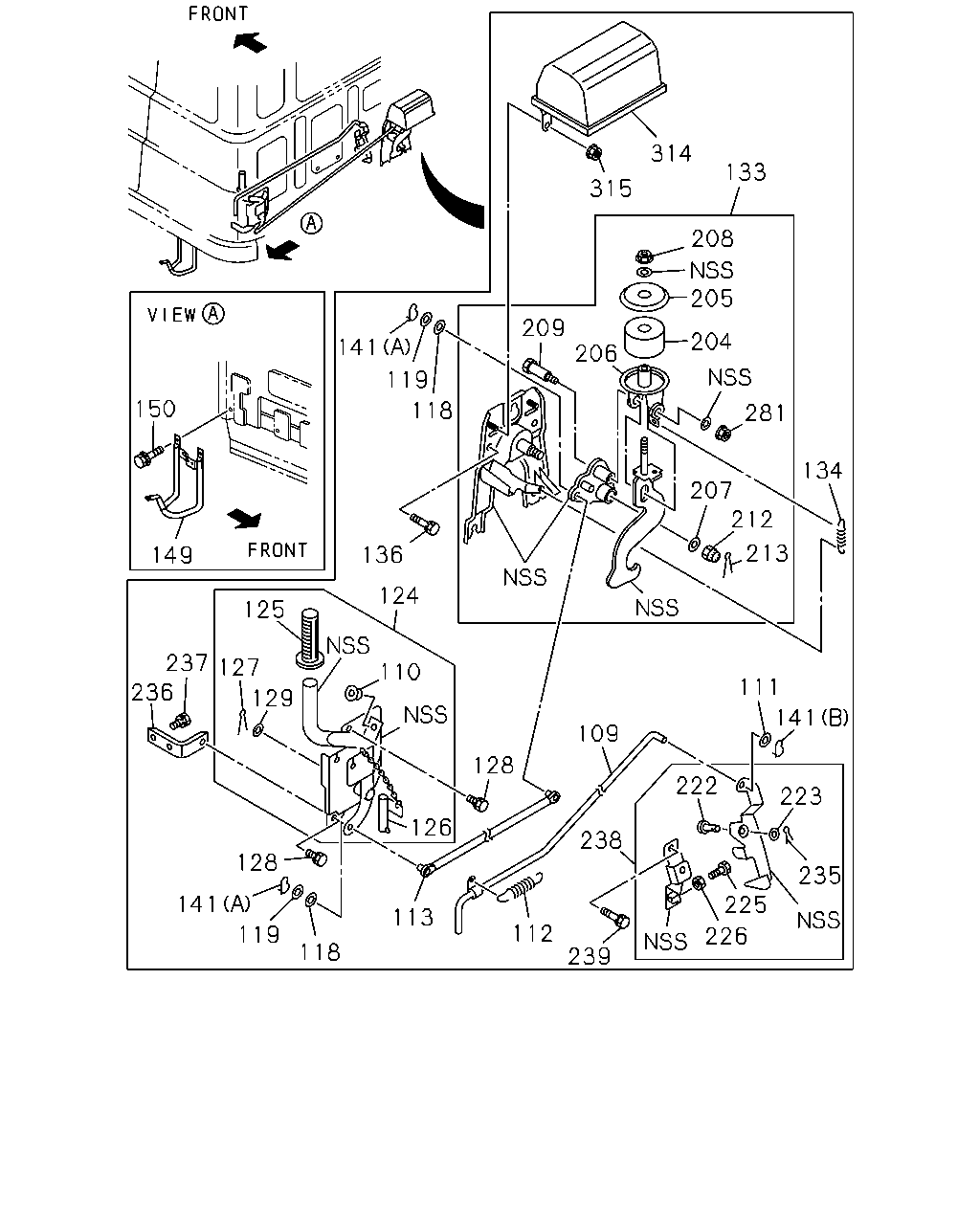

çizim 185156
213 212 207 134 281 204 205 208 133 314 315 209 206 119 118 136 124 110 128 109 111 141 223 222 238 239 226 225 235 112 113 126 129 127 125 118 119 141 128 236 237 149 150 141
BalonParca AdiParca NoAdetTipApplied Date
109 ROD; SAFETY,CAB LK 1-79718-606-0 01 1 9704-9709
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 9710-
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 9704-
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 9704-
112 SPRING; RETURN,SAFETY ROD 1-79718-539-0 01 1 9704-9901
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 9902-
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 9704-
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 9704-
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 9704-
124 LEVER ASM; HAND,CAB LK 1-79718-585-4 01 1 9704-1403
124 LEVER ASM; HAND,CAB LK 8-98268-403-0 01 1 1404-
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 9704-
126 PIN; LK,HAND LEVER 1-79718-594-1 01 1 9704-1403
126 PIN; LK,HAND LEVER 8-98268-412-0 01 1 1404-
127 PIN; SPLIT,BRKT
L=30 L=30 		1-09987-080-0 01 1 1404-
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9704-0904
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 9704-
133 LOCK ASM; CAB 1-79718-553-4 01 1 9704-9905
133 LOCK ASM; CAB 1-79718-656-0 01 1 9906-
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 9704-
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 9704-
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 9704-
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 9704-
149 HANDLE; TILT 1-71996-146-1 01 1 9704-
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9704-
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 9704-
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 9704-
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 9704-
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 		1-09985-113-0 01 1 9704-
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE 		1-79718-526-0 01 1 9704-
209 PIN; JOINT,SUPPORT 1-79718-523-0 01 1 9704-
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 9704-
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 9704-
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 9704-
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 9704-
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 9704-
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 9704-
235 PIN; SNAP 1-09987-158-1 01 1 9704-
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 9704-
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9704-
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 9704-
239 BOLT; SAFETY LK
M8X25 W/PL WASHER 		8-94279-166-0 02 1 9704-0304
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0305-
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE 		1-79718-524-1 01 1 9704-
314 COVER; CAB LOCK 1-79718-575-1 01 1 9704-
315 NUT; COVER
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9704-
