5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

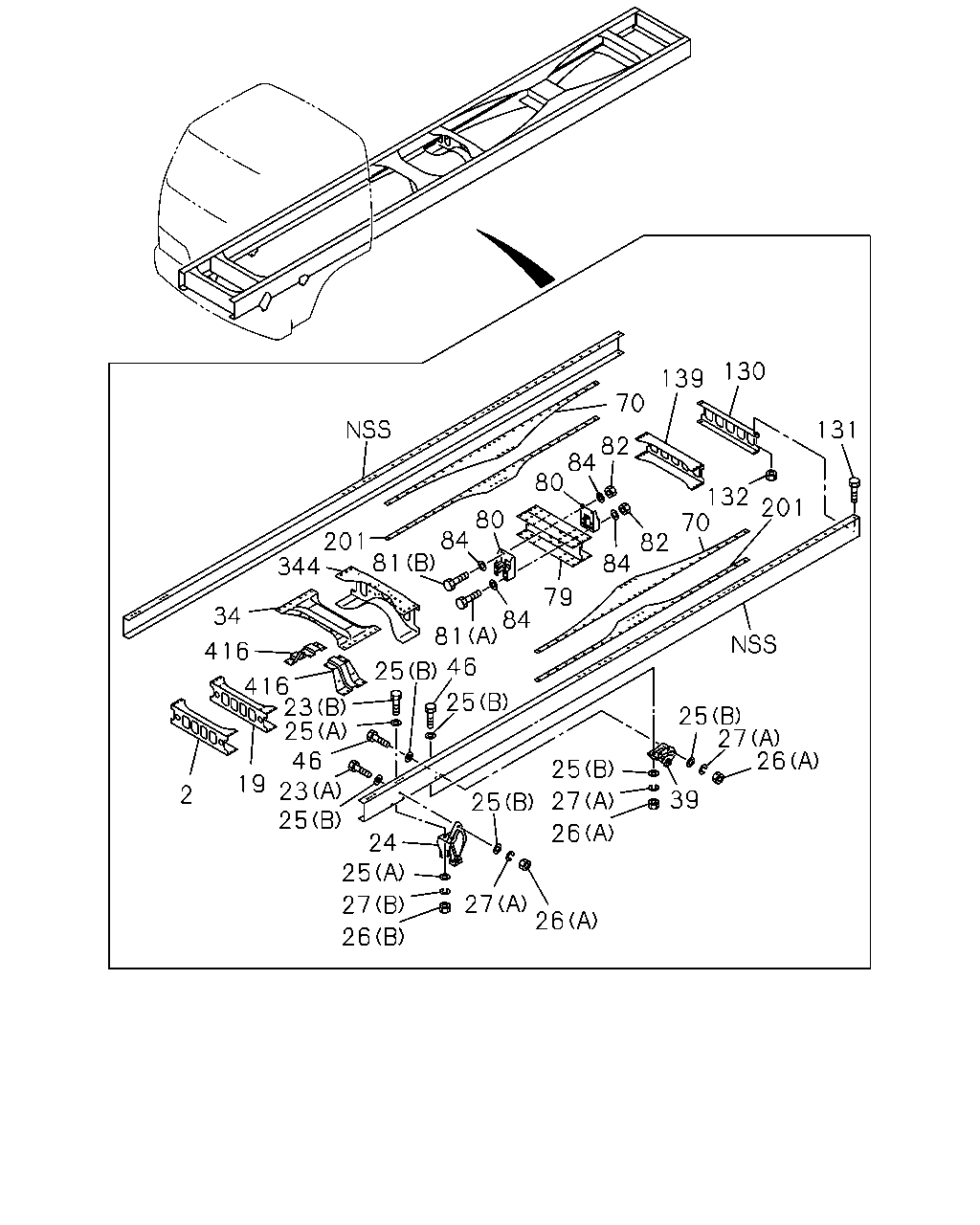

5-01 — FRAME AND OTHER PARTS
(#64702) — 43 parça
130
139
82
84
80
70
131
132
70
201
80
201
84
344
81
82
84
79
34
84
81
416
2
46
416
23
25
46
23
25
25
25
27
26
25
19
2
39
27
25
26
24
25
27
26
27
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
IDN
8-97912-224-2
01
1
9704-
19
MEMBER; CROSS,2ND
IDN
8-97913-977-0
01
1
9704-
23
BOLT; BRKT,SPR
(A) M14X50
9-92061-450-0
06
1
9704-0512
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
0601-
23
BOLT; BRKT,SPR
(B) M16X60
9-92061-660-0
04
1
9704-0512
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0601-
24
BRACKET; FRT SPR,FRT
IDN
8-97520-017-0
01
1
9704-
24
BRACKET; FRT SPR,FRT
IDN
8-97520-016-0
01
1
9704-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
08
1
9704-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
28
1
9704-1201
25
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
28
1
1202-
26
NUT; BRKT,SPR
(A) M14 IDN
9-99110-514-0
14
1
9704-0512
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
0601-
26
NUT; BRKT,SPR
(B) M16 IDN
9-99110-516-0
04
1
9704-0512
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0601-
27
WASHER; LK,BRKT,FRT SPR
(A) ID=14.2
9-09150-814-0
14
1
9704-0603
27
WASHER; LK,BRKT,FRT SPR
(A) ID=14.2
0-91510-814-0
14
1
0604-
27
WASHER; LK,BRKT,FRT SPR
(B) ID=16.2
9-09150-816-0
04
1
9704-0603
27
WASHER; LK,BRKT,FRT SPR
(B) ID=16.2
0-91510-816-0
04
1
0604-
34
MEMBER; CROSS,3RD
1-53174-221-0
01
1
9704-
39
BRACKET; FRT SPR,RR
IDN
8-97520-019-0
01
1
9704-
39
BRACKET; FRT SPR,RR
IDN
8-97520-018-0
01
1
9704-
46
BOLT; BRKT FIX
M14X50
9-92061-450-0
08
1
9704-0512
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0601-
70
GUSSET; TRUNNION,UPR
1-53161-565-1
02
1
9704-
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97913-978-0
01
1
9704-
80
BRACKET; C/MBR
1-53363-031-2
02
1
9704-
81
BOLT; BRKT
(A) M14X205
1-09000-147-0
02
1
9704-
81
BOLT; BRKT
(B) M14X50
9-92061-450-0
02
1
9704-0512
81
BOLT; BRKT
(B) M14X50
0-20951-450-0
02
1
0601-
82
NUT; BRKT
M14 IDN
9-99110-514-0
04
1
9704-0512
82
NUT; BRKT
M14
0-91110-514-0
04
1
0601-
84
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
9704-1201
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
130
MEMBER; CROSS,END
THA
8-97913-979-0
01
1
9704-
131
BOLT; END C/MBR
M12X35 FLANGE
0-28681-235-0
04
1
9704-0512
131
BOLT; END C/MBR
M12X35 FLANGE
0-28651-235-0
04
1
0601-
132
NUT; END C/MBR
M12
9-99110-412-0
04
1
9704-0512
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
0601-
139
MEMBER; CROSS,6TH
1-53181-609-3
01
1
9704-
201
GUSSET; C/MBR
1-53161-561-1
02
1
9704-
344
MEMBER; CROSS,4TH
1-53181-643-1
01
1
9704-
416
GUSSET; 3RD C/MBR
1-53164-207-0
02
1
9704-
