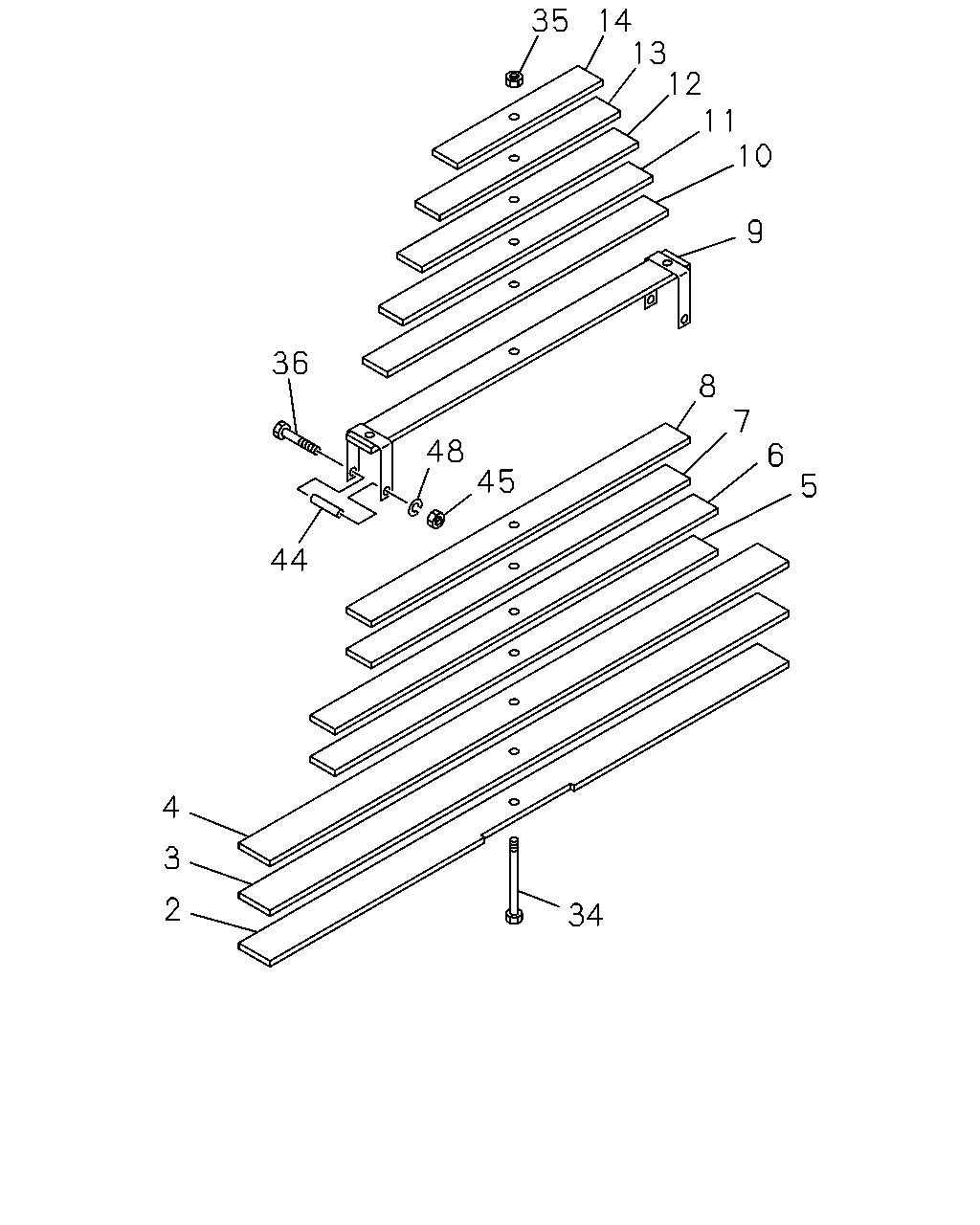

4-65 — REAR LEAF SPRING (#64700) — 19 parça

35 14 13 12 11 10 9 36 8 7 48 45 6 5 44 4 3 2 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-427-1	1-51311-427-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-427-1	1-51312-427-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-427-1	1-51313-427-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-427-1	1-51314-427-1	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-427-1	1-51315-427-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-427-1	1-51316-427-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-427-1	1-51317-427-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP ASM PART: A = 1-51310-427-1	1-51318-427-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-427-1	1-51319-427-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-427-1	1-51321-427-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: A = 1-51310-427-1	1-51322-427-0	01	1	-
13	SPRING; LEAF,NO 12,RR MAIN ASM PART: A = 1-51310-427-1	1-51323-427-0	01	1	-
14	SPRING; LEAF,NO 13,RR MAIN ASM PART: A = 1-51310-427-1	1-51324-427-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=245 ASM PART: A = 1-51310-427-1	1-51356-297-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51310-427-1	9-99110-116-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51310-427-1	1-09000-195-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51310-427-1	1-51353-001-0	02	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10, IDN ASM PART: A = 1-51310-427-1	9-09110-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 1-51310-427-1	9-09150-010-0	02	1	-
