Isuzu WW
▶
TRUCKS
▶
FSR
▶
10624 - FSR-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#647) — 72 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
◀

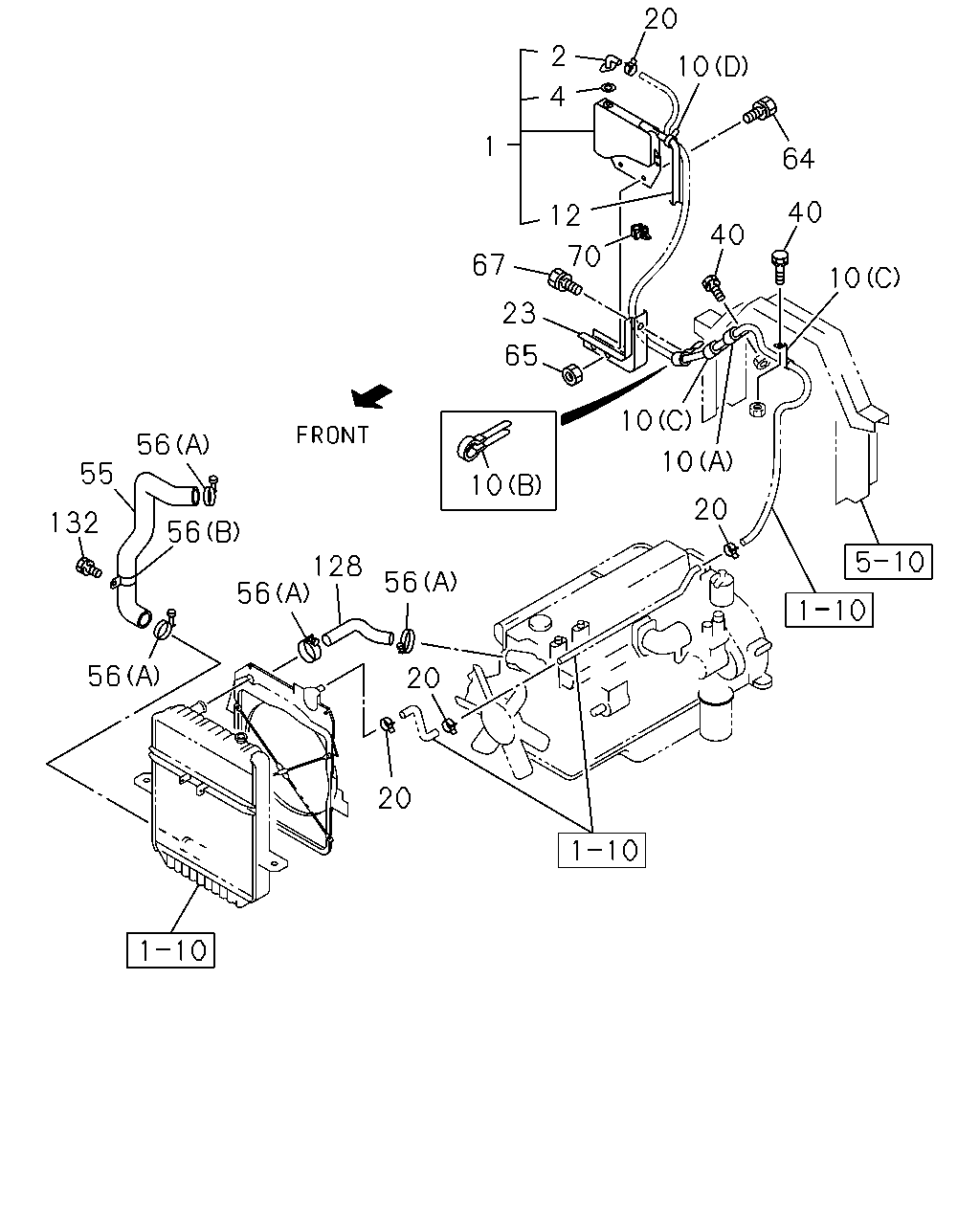

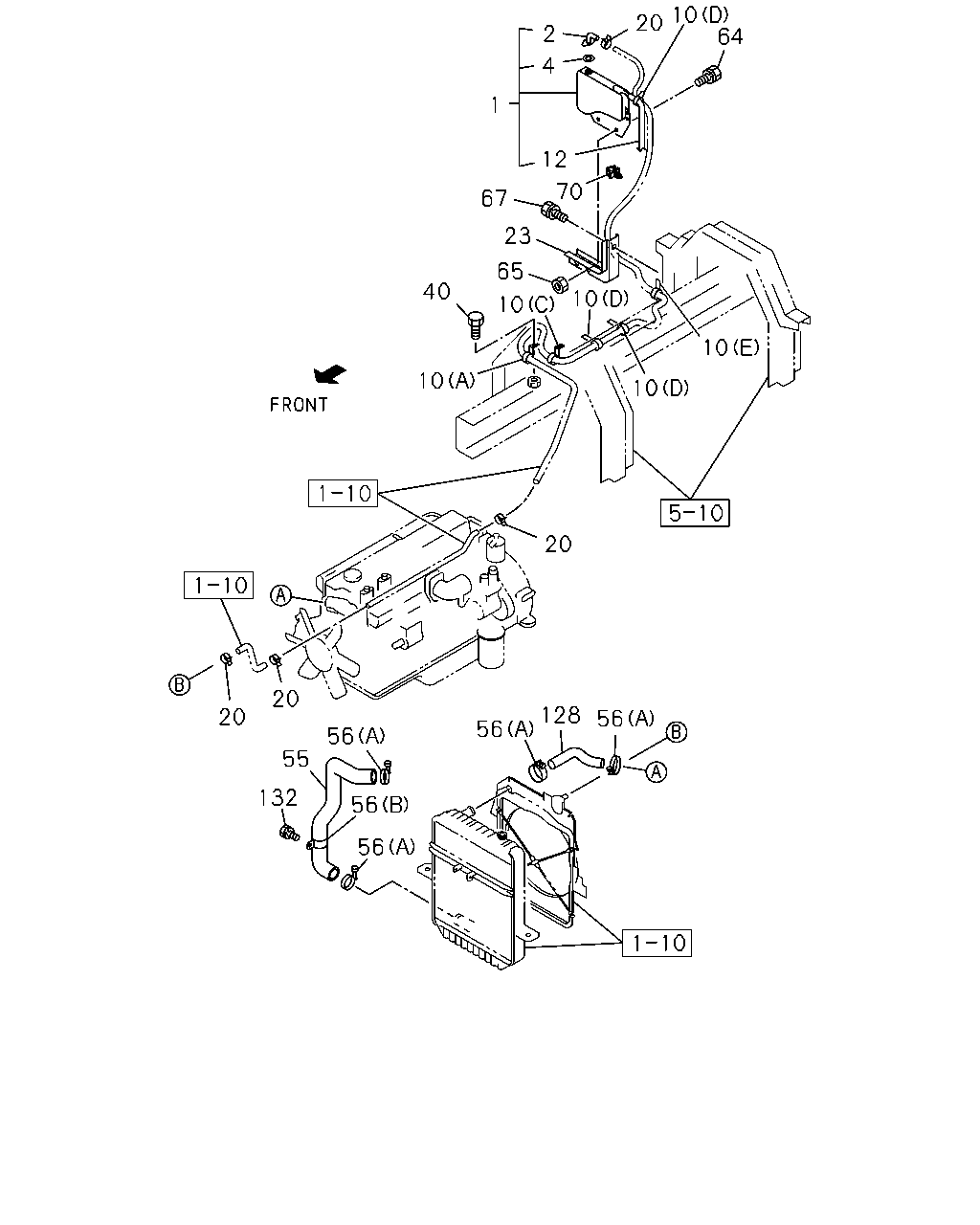

[111A] DOUBLE CAB (36 parça)
[111A] STD CAB (36 parça)
▶
10
64
20
2
4
1
12
70
67
23
65
10
40
10
10
10
10
20
20
128
20
56
56
56
55
132
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9202-
●
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9202-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9202-
●
●
10
CLIP; RUBBER HOSE
STD CAB(FS**M*) (D) L=140
5-09707-031-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
STD CAB(FS**M*) (B) ID=14 L=44
9-09917-427-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
DOUBLE CAB(FS**W*) (E) ID=13 L=50
1-09700-027-1
01
1
9202-
●
10
CLIP; RUBBER HOSE
DOUBLE CAB(FS**W*) (D) L=140
5-09707-031-0
03
1
9202-
●
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
02
1
9202-
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=40
9-09525-276-0
01
1
9202-
●
●
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9202-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9202-
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9202-
●
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X18
0-28010-818-0
03
1
9202-9204
●
40
BOLT; CLIP
M8X18
0-28010-818-0
03
1
9202-9204
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X18 FLANGE
0-28080-818-0
03
1
9205-9207
●
40
BOLT; CLIP
M8X18 FLANGE
0-28080-818-0
03
1
9205-9207
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X20 FLANGE
0-28080-820-0
03
1
9208-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28080-820-0
03
1
9208-
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X18
0-28010-818-0
02
1
9202-9204
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X18 FLANGE
0-28080-818-0
02
1
9205-9207
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X20 FLANGE
0-28080-820-0
02
1
9208-
●
55
HOSE; WATER,RAD OUTLET
A/T<X9D>
1-21437-363-0
01
1
9202-
●
●
55
HOSE; WATER,RAD OUTLET
ISUZU M/T<X9A>
1-21437-361-0
01
1
9202-
●
●
56
CLIP; WATER HOSE,RAD
(B)
1-09700-842-1
01
1
9202-
●
●
56
CLIP; WATER HOSE,RAD
(A)
1-09704-067-0
04
1
9202-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9202-
●
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9202-
●
●
67
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9202-9312
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
02
1
9401-
●
●
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9202-9405
●
●
128
HOSE; WATER,RAD INL
1-21437-356-0
01
1
9202-
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18
0-28010-818-0
01
1
9202-9204
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18 FLANGE
0-28080-818-0
01
1
9205-9207
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X20 FLANGE
0-28080-820-0
01
1
9208-
●
●
20
2
10
4
1
64
40
12
40
70
67
10
23
65
10
56
10
55
10
20
132
56
128
56
56
56
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9202-
●
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9202-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9202-
●
●
10
CLIP; RUBBER HOSE
STD CAB(FS**M*) (D) L=140
5-09707-031-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
STD CAB(FS**M*) (B) ID=14 L=44
9-09917-427-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9202-
●
10
CLIP; RUBBER HOSE
DOUBLE CAB(FS**W*) (E) ID=13 L=50
1-09700-027-1
01
1
9202-
●
10
CLIP; RUBBER HOSE
DOUBLE CAB(FS**W*) (D) L=140
5-09707-031-0
03
1
9202-
●
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
02
1
9202-
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=40
9-09525-276-0
01
1
9202-
●
●
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9202-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9202-
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9202-
●
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X18
0-28010-818-0
03
1
9202-9204
●
40
BOLT; CLIP
M8X18
0-28010-818-0
03
1
9202-9204
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X18 FLANGE
0-28080-818-0
03
1
9205-9207
●
40
BOLT; CLIP
M8X18 FLANGE
0-28080-818-0
03
1
9205-9207
●
40
BOLT; CLIP
STD CAB(FS**M*) M8X20 FLANGE
0-28080-820-0
03
1
9208-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28080-820-0
03
1
9208-
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X18
0-28010-818-0
02
1
9202-9204
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X18 FLANGE
0-28080-818-0
02
1
9205-9207
●
40
BOLT; CLIP
DOUBLE CAB(FS**W*) M8X20 FLANGE
0-28080-820-0
02
1
9208-
●
55
HOSE; WATER,RAD OUTLET
A/T<X9D>
1-21437-363-0
01
1
9202-
●
●
55
HOSE; WATER,RAD OUTLET
ISUZU M/T<X9A>
1-21437-361-0
01
1
9202-
●
●
56
CLIP; WATER HOSE,RAD
(B)
1-09700-842-1
01
1
9202-
●
●
56
CLIP; WATER HOSE,RAD
(A)
1-09704-067-0
04
1
9202-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9202-
●
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9202-
●
●
67
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9202-9312
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
02
1
9401-
●
●
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9202-9405
●
●
128
HOSE; WATER,RAD INL
1-21437-356-0
01
1
9202-
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18
0-28010-818-0
01
1
9202-9204
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18 FLANGE
0-28080-818-0
01
1
9205-9207
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X20 FLANGE
0-28080-820-0
01
1
9208-
●
●
