Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

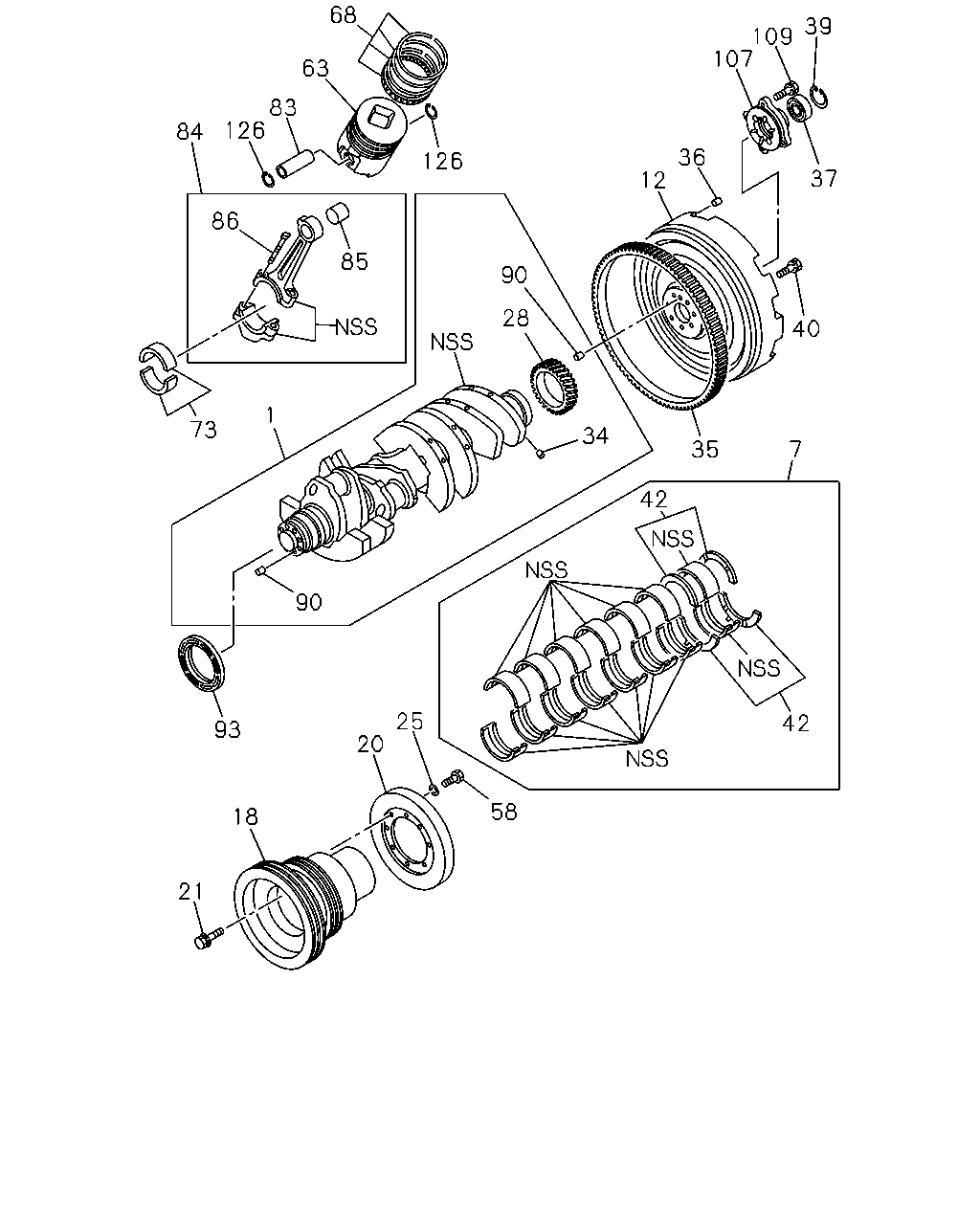

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#6469) — 34 parça
68
39
109
107
63
83
126
84
36
126
37
12
86
85
90
28
40
1
73
34
35
7
42
90
25
42
93
20
58
18
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-623-4
01
1
9705-9708
1
CRANKSHAFT
1-12310-700-1
01
1
9709-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-100-1
01
1
9705-0006
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-113-0
01
1
0007-
12
FLYWHEEL
1-12331-258-4
01
1
9705-
18
PULLEY; CR/SHF
6-GROOVE
1-12371-421-1
01
1
9705-
20
DAMPER; CR/SHF
1-12375-143-2
01
1
9705-
21
BOLT; PULLEY FIX
M18X42 W/WASHER
1-12334-016-2
08
1
9705-
25
WASHER; DAMPER
ID=12.5
9-09851-682-0
08
1
9705-
28
GEAR; CR/SHF
Z=48
1-12521-012-1
01
1
9705-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
9705-
35
GEAR; RING
Z=164
1-12333-019-0
01
1
9705-9711
35
GEAR; RING
Z=164
1-12333-024-0
01
1
9712-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
9705-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-200-1
01
1
9705-
39
RING; SNAP,BRG
OD=76.5
9-09180-172-0
01
1
9705-
40
BOLT; FLYWHEEL
M18X60 W/PL WASHER
1-12334-012-3
08
1
9705-
42
WASHER; THRUST,CR/SHF
1-11515-041-0
02
1
9705-
58
BOLT; CR/SHF PULLEY
9-02361-220-0
08
1
9705-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-926-0
08
1
9705-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-129-0
08
1
9705-
73
METAL SET; CONN ROD,STANDARD
1-12271-076-0
08
1
9705-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-036-4
08
1
9705-
84
ROD ASM; CONN
1-12230-166-5
08
1
9705-9705
84
ROD ASM; CONN
1-12230-194-0
08
1
9706-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-042-0
08
1
9705-9705
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-045-0
08
1
9706-
86
BOLT; CONNROD
M13X66 FLANGE
1-12235-039-1
16
1
9705-
90
PIN; FLYWHEEL & PULLEY
OD=8 L=16
9-08150-816-0
02
1
9705-
93
THROWER; OIL,CR/SHF
1-12319-017-0
01
1
9705-
101
PIN; CR/SHF
OD=6 L=16
9-08160-616-0
16
1
0104-
107
RETAINER; BRG
1-12338-006-0
01
1
9705-
109
BOLT; RET
M10X20 FLANGE
0-28181-020-0
04
1
9705-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
16
1
9705-
