Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10754 - FXZ(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

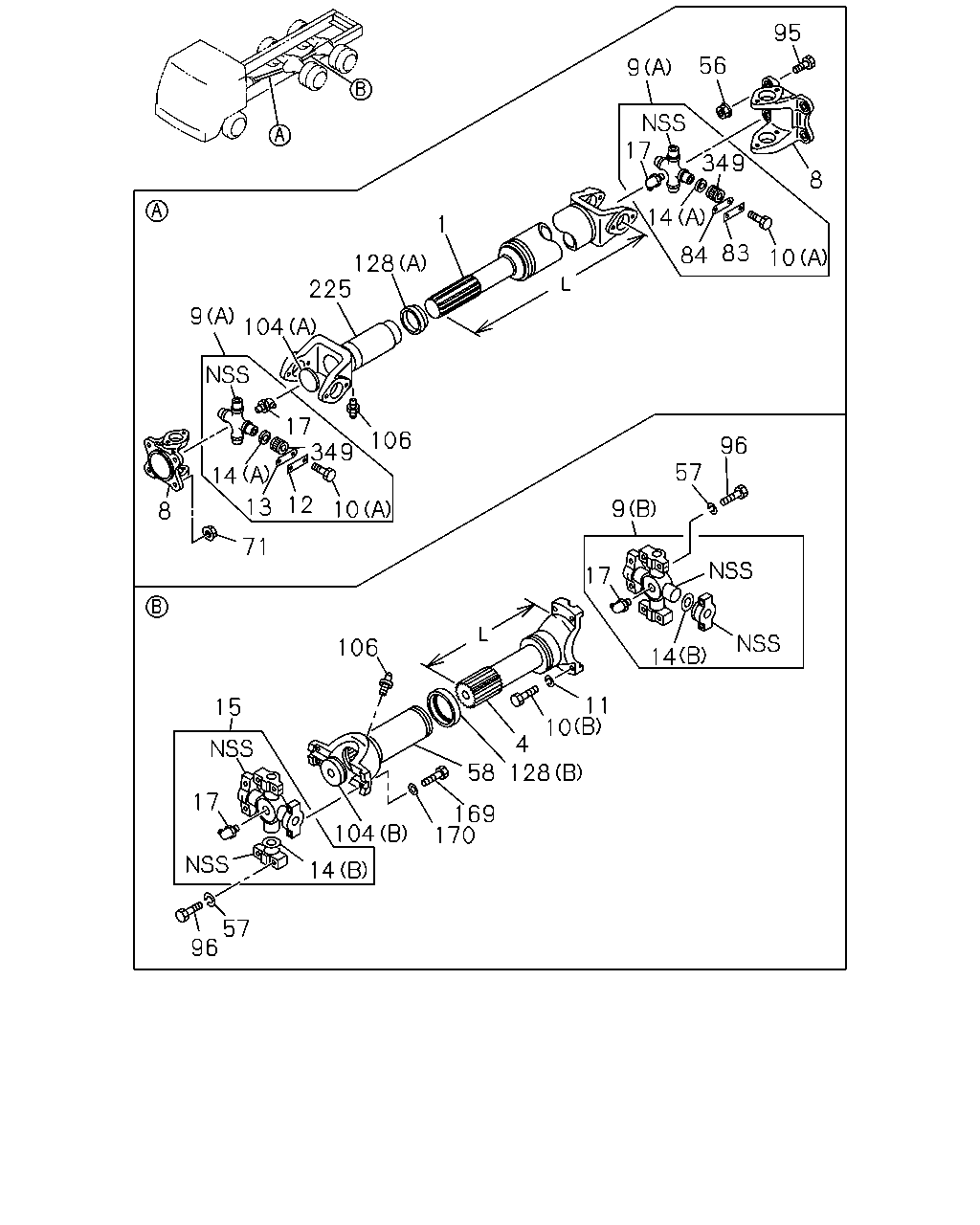

4-01 — PROPELLER SHAFT
(#64685) — 41 parça
1
128
225
104
9
17
106
349
10
13
12
14
71
8
17
15
106
96
57
14
104
170
169
58
128
4
10
11
14
17
9
57
96
84
83
10
8
95
56
9
17
349
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; PROP
L=1422
1-37123-967-0
01
1
9704-
4
SHAFT; PROP
L=348
1-37171-127-2
01
1
9704-
8
YOKE; FLANGE,PROP SHAFT
1-37211-066-1
02
1
9704-
9
JOURNAL ASM; PROP SHAFT
(A)
1-37300-091-1
02
1
9704-
9
JOURNAL ASM; PROP SHAFT
(B)
1-37300-100-1
01
1
9704-
10
BOLT; UJT
(A) M10X20
9-02061-020-0
16
1
9704-0512
10
BOLT; UJT
(A) M10X20
0-20951-020-0
16
1
0601-
10
BOLT; UJT
(B) M12X45
9-91066-245-0
04
1
9704-0805
10
BOLT; UJT
(B) M12X45
8-98036-382-0
04
1
0806-
11
WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2
9-09150-612-0
04
1
9704-0603
11
WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2
0-91510-612-0
04
1
0604-
12
PLATE; LK,FRT UJT,PROP SHAFT
1-37356-008-0
04
1
9704-
13
COVER; FRT UJT,PROP SHAFT
1-37355-020-0
04
1
9704-
14
COVER; DUST,SPIDER
(A)
1-37249-131-0
08
1
9704-
14
COVER; DUST,SPIDER
(B)
1-37319-004-0
08
1
9704-
15
UNIVERSAL CENTER
1-37300-100-1
01
1
9704-
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
04
1
9704-0512
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
04
1
0601-
56
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
9704-
57
WASHER; LK,YOKE
ID=12.2
9-09150-612-0
08
1
9704-0603
57
WASHER; LK,YOKE
ID=12.2
0-91510-612-0
08
1
0604-
58
FLANGE; SPLINED
L=265
1-37245-317-0
01
1
9704-
71
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
9704-
83
PLATE; LK,UJT,PROP SHAFT
1-37356-008-0
04
1
9704-
84
COVER; UJT,PROP SHAFT
1-37355-020-0
04
1
9704-
95
BOLT; YOKE,FINAL
M16X48
1-09000-383-0
04
1
9704-
96
BOLT; PROP SHAFT
M12X45
9-91066-245-0
08
1
9704-0805
96
BOLT; PROP SHAFT
M12X45
8-98036-382-0
08
1
0806-
104
PLUG; SLEEVE YOKE
(B)
1-09600-049-0
01
1
9704-
104
PLUG; SLEEVE YOKE
(A)
1-09600-067-0
01
1
9704-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
9-09031-010-0
02
1
9704-0512
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
128
SEAL; SLEEVE
(B)
1-37247-006-0
01
1
9704-0312
128
SEAL; SLEEVE
(B)
8-97603-618-0
01
1
0401-
128
SEAL; SLEEVE
(A)
1-37247-019-0
01
1
9704-
169
BOLT; YOKE,SLEEVE
M12X45
9-91066-245-0
04
1
9704-0805
169
BOLT; YOKE,SLEEVE
M12X45
8-98036-382-0
04
1
0806-
170
WASHER; LK,YOKE,SLEEVE
ID=12.2
9-09150-612-0
04
1
9704-0603
170
WASHER; LK,YOKE,SLEEVE
ID=12.2
0-91510-612-0
04
1
0604-
225
YOKE; SLEEVE,PROP SHAFT
L=332
1-37241-103-1
01
1
9704-
349
BEARING; FRT UJT,PROP SHAFT
1-09811-375-0
08
1
9704-
