3-78 — FIXING PARTS; AIR PIPING (#64684) — 175 parça

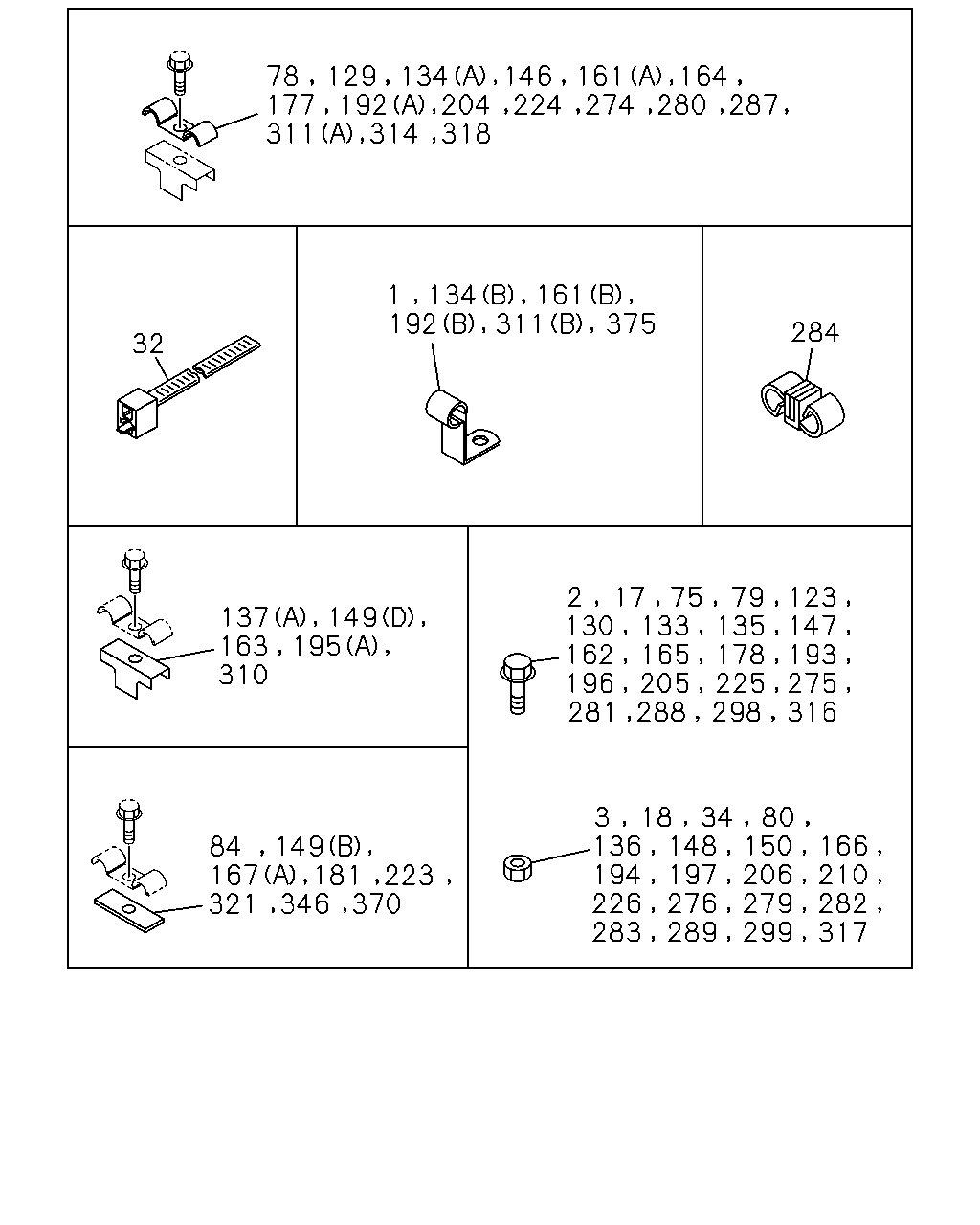

çizim 121821
78 177 311 146 161 274 164 1 134 161 284 32 2 123 137 163 310 149 195 3 136 84 149 167 129 134 192 204 224 280 287 314 318 192 311 375 17 79 130 133 135 147 162 165 178 193 196 205 225 275 281 288 298 316 18 34 80 148 150 166 194 197 206 210 226 276 279 282 283 289 299 317 181 223 321 346 370 75
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 9704-
2 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
2 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
17 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
17 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
32 CLIP; BAND,RUBBER SLEEVE
L=250 		1-09707-126-0 01 1 9704-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
75 BOLT; CLIP
M8X14 FLANGE 		0-28080-814-0 01 1 9704-
75 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9704-0512
75 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
78 CLIP; AIR PIPE
ID=16 & 7 L=18 & 15 		1-09700-661-0 01 1 9704-
79 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
79 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
84 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9704-
123 BOLT; PIPE CLIP
M8X25 FLANGE IDN 		0-28680-825-0 02 1 9704-0512
123 BOLT; PIPE CLIP
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-
123 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
123 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
129 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
130 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
130 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE IDN 		0-28680-825-0 01 1 9704-0512
133 BOLT; BRKT
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
134 CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 05 1 9704-
134 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
134 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9704-0707
134 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
135 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 9704-0512
135 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
135 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 03 1 9704-0512
135 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28050-840-0 03 1 0601-
135 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
135 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
136 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 04 1 9704-0602
136 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
137 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 03 1 9704-
137 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 03 1 9704-
146 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 9704-
147 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
147 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
147 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 01 1 9704-0512
147 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28050-840-0 01 1 0601-
147 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
147 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
149 BRACKET; PIPE CLIP
(B) L=50 		1-47475-299-2 01 1 9704-
149 BRACKET; PIPE CLIP
(D) 		1-47475-427-1 01 1 9704-
149 BRACKET; PIPE CLIP
(A) M8 W/NUT 		1-47475-439-2 01 1 9704-
149 BRACKET; PIPE CLIP
(C) 		1-47475-746-2 01 1 9704-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 9704-0602
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
161 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
161 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9704-0707
161 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
162 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 01 1 9704-0512
162 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28050-840-0 01 1 0601-
162 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
162 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
163 BRACKET; PIPE CLIP 1-47475-427-1 01 1 9704-
164 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9704-
165 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9704-0512
165 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
166 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
166 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
167 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 01 1 9704-
167 BRACKET; PIPE CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 9704-
177 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
177 CLIP; AIR PIPE
ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 9704-
178 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9704-0512
178 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
181 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 02 1 9704-
192 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
192 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9704-0707
192 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
193 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 9704-0512
193 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
194 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9704-0512
194 NUT; PIPE CLIP
M8 IDN 		0-91110-508-0 01 1 0601-
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 02 1 9704-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9704-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9704-
196 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
196 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
197 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
197 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
204 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 04 1 9704-
205 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
205 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 01 1 9704-0512
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28050-840-0 01 1 0601-
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9704-0512
205 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
206 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
206 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
210 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
210 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
223 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9704-
224 CLIP; AIR PIPE
ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 9704-
225 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
225 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
226 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
226 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
274 CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9704-
275 BOLT; PIPE CLIP
M8X14 FLANGE 		0-28080-814-0 01 1 9704-
275 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
275 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
276 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9704-0512
276 NUT; PIPE CLIP
M8 IDN 		0-91110-508-0 01 1 0601-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
280 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
281 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
281 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
282 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
283 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 9704-
287 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 9704-
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
298 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
298 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
310 BRACKET; PIPE CLIP 1-47475-427-1 02 1 9704-
311 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 9704-
311 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9704-
314 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 9704-
314 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9704-
316 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
316 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0602
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
318 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 9704-
321 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 9704-
346 BRACKET; BRK PIPE
L=50 		1-47475-299-2 01 1 9704-
370 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9704-
375 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 9704-

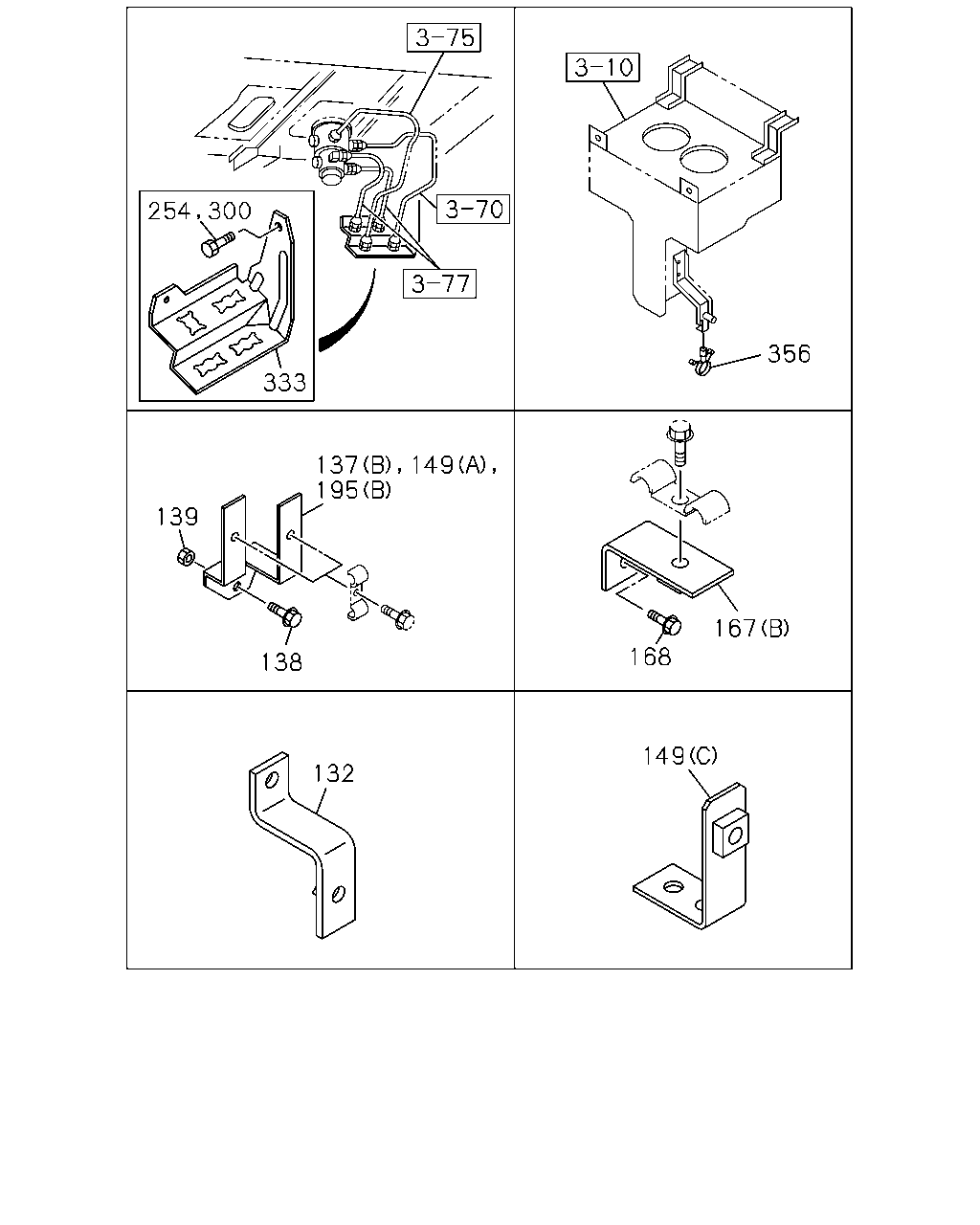

çizim 185140
356 333 137 195 149 139 167 168 138 149 132 254 300
BalonParca AdiParca NoAdetTipApplied Date
132 BRACKET; PIPE CLIP 1-47475-881-0 01 1 9704-
137 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 03 1 9704-
137 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 03 1 9704-
138 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 9704-0512
138 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
139 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 9704-0602
139 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
149 BRACKET; PIPE CLIP
(B) L=50 		1-47475-299-2 01 1 9704-
149 BRACKET; PIPE CLIP
(D) 		1-47475-427-1 01 1 9704-
149 BRACKET; PIPE CLIP
(A) M8 W/NUT 		1-47475-439-2 01 1 9704-
149 BRACKET; PIPE CLIP
(C) 		1-47475-746-2 01 1 9704-
167 BRACKET; PIPE CLIP
(A) L=50 		1-47475-299-2 01 1 9704-
167 BRACKET; PIPE CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 9704-
168 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9704-0512
168 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 02 1 9704-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9704-
195 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9704-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9704-
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0206-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 9704-
356 CLIP; AIR PIPE
ID=4.8 		8-94128-483-0 01 1 9704-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
