3-77 — BRAKE PIPING; AIR,REAR
(#64683) — 35 parça
◀

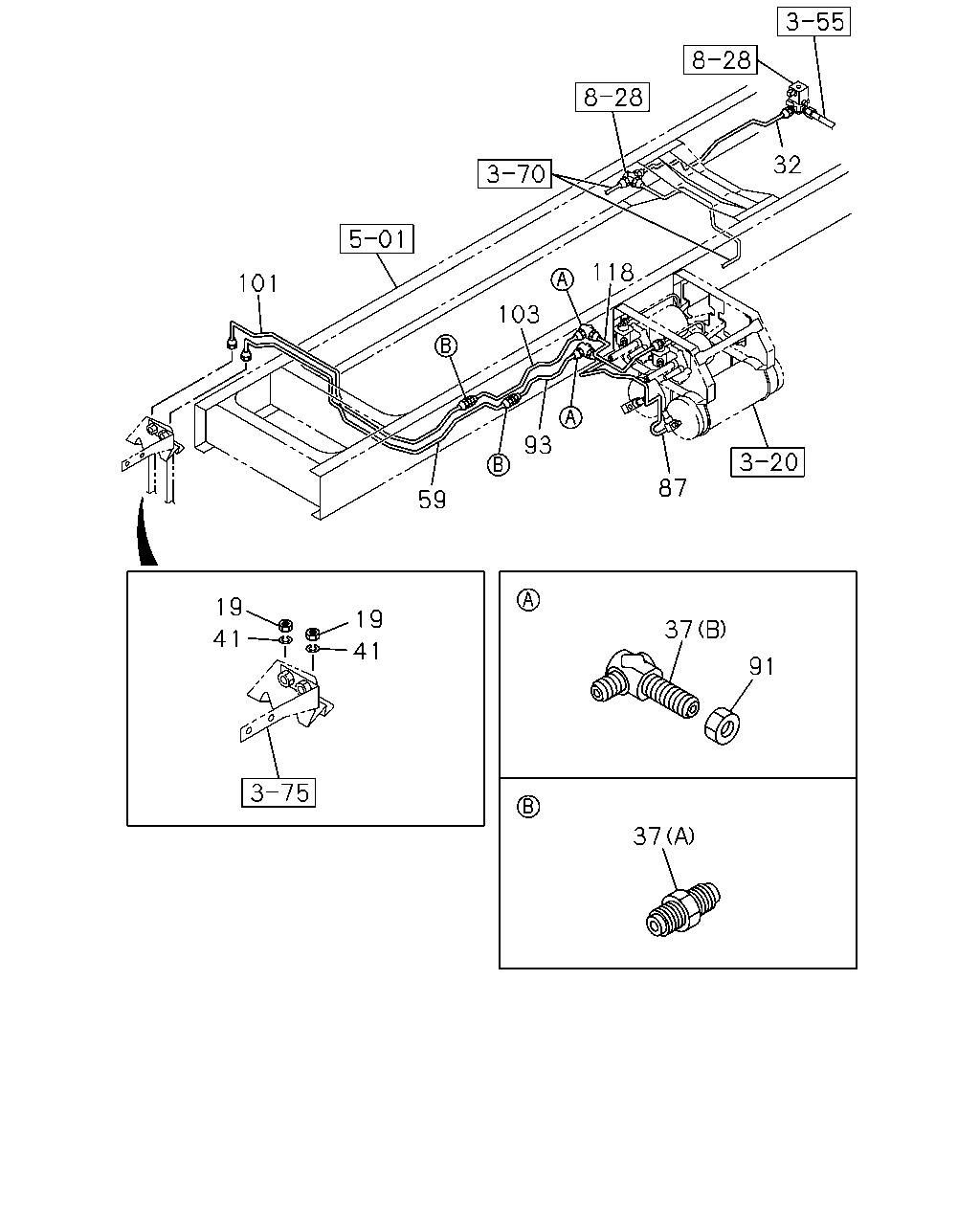

[377A] NO.1 (19 parça)
[377A] NO.2 (16 parça)
▶
32
118
101
103
93
87
59
19
19
37
41
41
91
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9704-0512
19
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
32
PIPE; AIR,UNION TO MAG VLV,DIFF LOCK
L=1859 SERVICED BY L=2000
1-47426-359-0
01
1
9704-
37
UNION; AIR PIPE
(A) M16 L=42
9-09233-010-1
02
1
9704-0607
37
UNION; AIR PIPE
(A) M16 L=42
0-92123-010-0
02
1
0608-
37
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
01
1
9704-0607
37
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
01
1
9704-0607
37
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0608-
37
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0608-
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9704-0603
41
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
59
PIPE; AIR,UNION TO FLEX HOSE
L=2421 SERVICED BY L=2500
1-47426-423-0
01
1
9704-
87
PIPE; AIR,AIR TANK TO UNION
1-49113-661-0
01
1
9704-
91
NUT; PIPE UNION
M16
9-99111-416-0
02
1
9704-0512
91
NUT; PIPE UNION
M16 IDN
0-91111-516-0
02
1
0601-
93
PIPE; AIR,UNION TO UNION
1-49113-624-0
01
1
9704-
101
PIPE; AIR,FLEX HOSE TO UNION
L=2017 SERVICED BY L=2100
1-47426-422-0
01
1
9704-
103
PIPE; AIR,UNION TO UNION
L=1246 SERVICED BY L=1300
1-47426-417-0
01
1
9704-
118
PIPE; AIR,UNION TO AIR MASTER
1-49113-662-0
01
1
9704-
1
206
1
206
7
7
6
6
285
285
10
10
64
64
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=279
1-47492-449-4
01
1
9704-9902
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
9903-0109
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=278
1-49121-498-0
01
1
0110-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9704-0603
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
9704-0512
7
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
02
1
0601-
8
HOSE; FLEX,AIR,CAB SIDE
0-07474-610-1
02
1
9704-0209
8
HOSE; FLEX,AIR,CAB SIDE
L=600
1-09363-732-0
02
1
0210-
10
CONNECTOR; FLEX HOSE
1-09654-324-0
02
1
9704-0209
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
02
1
0210-
64
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9704-0209
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
9704-0109
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=397
1-49118-723-2
01
1
0110-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
9704-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
