Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#64681) — 98 parça

434 337 434 333 286 328 325 322 323 438 321 140 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE L=450	0-07120-450-0	01	1	9704-
140	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9704-
286	PLUG; AIR PIPE	9-09204-510-0	01	1	9704-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9704-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9704-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9704-0603
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	9704-
328	UNION; AIR PIPE	1-47470-362-2	01	1	9704-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9704-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9704-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-57210-810-0	01	1	0606-
434	CLIP (A) ID=17	1-09987-105-1	01	1	9704-
434	CLIP (B)	8-94297-486-0	02	1	9704-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9704-

307 307 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-47492-448-5	01	1	9704-9902
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	9903-0109
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=414	1-49121-497-0	01	1	0110-
374	CONNECTOR	1-09654-324-0	01	1	9704-0209
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0210-
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9704-0605
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-

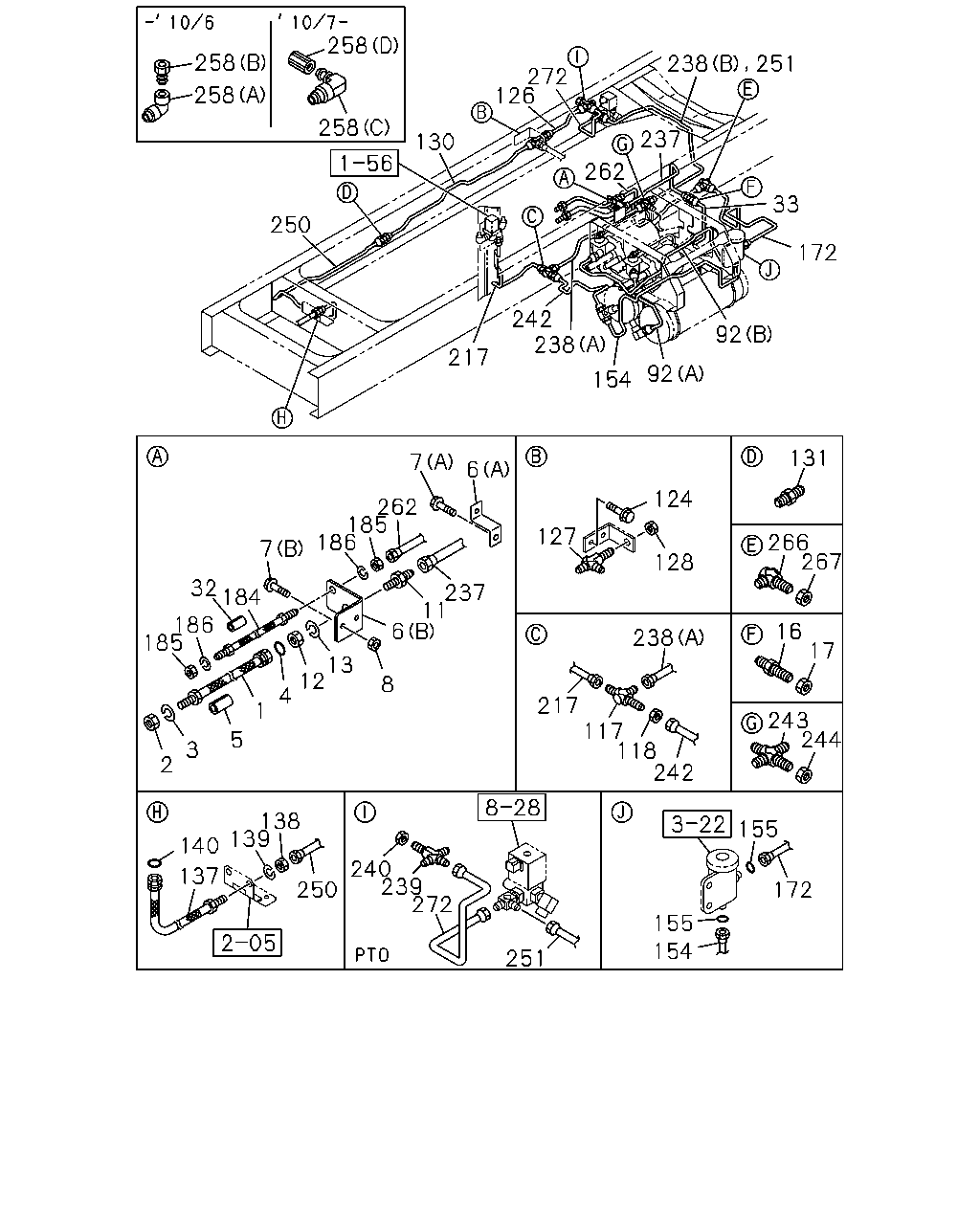

258 272 126 258 258 237 258 130 262 33 250 172 242 238 92 217 92 154 131 7 6 124 262 185 186 127 266 267 7 128 32 184 237 11 6 186 185 16 238 17 13 12 4 8 217 117 118 242 1 243 244 5 3 2 138 139 155 140 240 239 272 137 250 172 155 154 251 238 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=560	0-07806-560-1	01	1	9704-0605
1	HOSE; FLEX,AIR TANK L=560	0-57806-560-1	01	1	0606-
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9704-0512
2	NUT; FLEX HOSE,AIR TANK M20	0-91111-520-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9704-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	0-91510-520-0	01	1	0604-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9704-
5	SLEEVE; FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9704-
6	BRACKET; FLEX HOSE,AIR TANK (A)	1-47475-689-0	01	1	9704-
6	BRACKET; FLEX HOSE,AIR TANK (B)	1-47477-304-0	01	1	9704-
7	BOLT; BRKT,FLEX HOSE,AIR TANK (B) M8X30 FLANGE	0-28680-830-0	01	1	9704-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
7	BOLT; BRKT,FLEX HOSE,AIR TANK (A) M8X35 FLANGE	0-28680-835-0	02	1	9704-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9704-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
11	UNION; AIR PIPE M20 & M22 STRAIGHT	1-09654-166-1	01	1	9704-
12	NUT; UNION M20	9-99111-420-0	01	1	9704-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
13	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9704-0603
13	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
16	UNION; AIR PIPE M22	9-09233-315-1	01	1	9704-0607
16	UNION; AIR PIPE M22	0-92123-315-0	01	1	0608-
17	NUT; UNION M22	9-09111-422-0	01	1	9704-0512
17	NUT; UNION M22	0-91111-522-0	01	1	0601-
32	SLEEVE; RUBBER,AIR PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	9704-
33	PIPE; AIR,UNION TO AIR TANK	1-49114-557-0	01	1	9704-
92	PIPE; AIR,AIR TANK TO AIR MASTER (A) L=534	1-47482-332-1	01	1	9704-
92	PIPE; AIR,AIR TANK TO AIR MASTER (B) L=1499 SERVICED BY L=1500	1-49111-463-0	01	1	9704-
117	UNION; AIR PIPE M12 3WAY	9-09228-906-1	01	1	9704-0607
117	UNION; AIR PIPE M12 3WAY	0-92138-906-0	01	1	0608-
118	NUT; UNION M12	9-09840-280-0	01	1	9704-
124	BOLT; BRKT M8X40 FLANGE	0-28080-840-0	02	1	9704-0512
124	BOLT; BRKT M8X40 FLANGE	0-28050-840-0	02	1	0601-
126	PIPE; AIR,UNION TO UNION	1-49118-011-0	01	1	9704-
127	UNION; AIR PIPE 3WAY	1-09656-574-1	01	1	9704-
128	NUT; PIPE UNION M12	9-09840-280-0	01	1	9704-
130	PIPE; AIR,UNION TO UNION L=1177 SERVICED BY L=1200	1-47426-352-0	01	1	9704-
131	UNION; AIR PIPE M12 L=40	9-09223-006-1	01	1	9704-0607
131	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0608-
137	HOSE; FLEX,AIR PRESSURE GAGE L=450	0-07120-450-0	01	1	9704-
138	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9704-
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9704-0603
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
140	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9704-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49111-892-0	01	1	9704-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9704-
172	PIPE; AIR,GOV TO UNION	1-49114-570-0	01	1	9704-
184	HOSE; FLEX,AIR GOV L=640	0-07030-640-0	01	1	9704-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	02	1	9704-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	02	1	9704-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	02	1	0604-
217	PIPE; VAC,UNION TO MAG VLV	1-49117-178-0	01	1	9704-
237	PIPE; AIR,FLEX HOSE TO UNION	1-49114-556-0	01	1	9704-
238	PIPE; AIR,UNION TO UNION (A)	1-49116-172-0	01	1	9704-
238	PIPE; AIR,UNION TO UNION EXC. PTO CONTROL<SV6> (B) L=1165 SERVICED BY L=1200	1-47426-352-0	01	1	9704-
239	UNION; AIR PIPE M12	9-09228-306-1	01	1	9704-0607
239	UNION; AIR PIPE M12	0-92138-306-0	01	1	0608-
240	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9704-0512
240	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0601-
242	PIPE; AIR,AIR TANK TO UNION	1-49113-649-0	01	1	9704-
243	UNION; AIR PIPE M12	9-09228-306-1	01	1	9704-0607
243	UNION; AIR PIPE M12	0-92138-306-0	01	1	0608-
244	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9704-0512
244	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0601-
250	PIPE; AIR,UNION TO FLEX HOSE L=1740 SERVICED BY L=1820	1-47426-358-0	01	1	9704-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> L=1217 SERVICED BY L=1250	1-47426-353-0	01	1	9704-
258	CONNECTOR; NYLON TUBE (A)	1-09660-924-1	01	1	9704-1006
258	CONNECTOR; NYLON TUBE (C)	8-97633-756-0	01	1	1007-
258	CONNECTOR; NYLON TUBE (B)	1-09660-931-1	01	1	9704-1006
258	CONNECTOR; NYLON TUBE (D)	8-97633-769-0	01	1	1007-
262	PIPE; AIR,UNION TO FLEX	1-49114-571-0	01	1	9704-
266	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9704-0607
266	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
267	NUT; UNION M12	9-09840-280-0	01	1	9704-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6>	1-49115-779-0	01	1	9704-
